110.2" Yama Seiki #GVH-2500, VTC, 98.43" table diameter, 118.11" swing, heavy duty manual independent 4 hard jaws, new

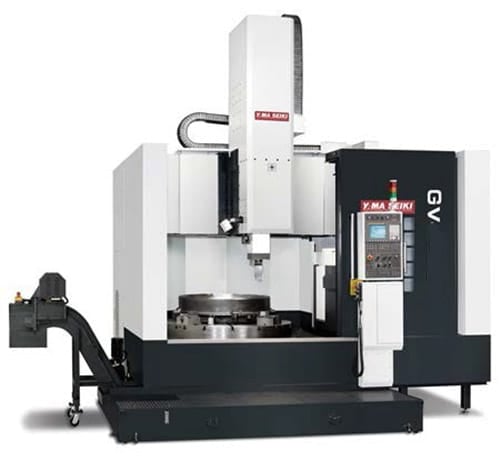

Yama Seiki GVH2500 Vertical Turning Center

TABLE DIAMETER: 2,500 MM (98.43 INCH)
HEAVY DUTY MANUAL INDEPENDENT 4 HARD JAWS
MAX. SWING: 3,000 MM (118.11 INCH)
MAX. TURNING DIAMETER: 2,800 MM (110.24 INCH)
MAX. TURNING HEIGHT: 1,700 MM (66.93 INCH)
RAM STROKE (Z AXIS): 1200MM (47.25 INCH)
CROSS RAIL TRAVEL (W AXIS): 1200 MM (47.25 INCH) / 6 STEP POSITION
WORK-PIECE SPINDLE SPEED: 1 ~ 160 RPM
FANUC AC 100 HP (30 MIN) WORK-PIECE SPINDLE MOTOR WITH 2 SPEED TRUE GEAR BOX
MAX. WORK-PIECE SPINDLE TORQUE: 74,140 N-m
TABLE LOADING CAPACITY: 15,000 KG (33,0000 LBS.)
AUTOMATIC TOOL CHANGER: BT/CAT-50 16 STATIONS (16 TURNING)
RAPID X / Z: 393/393 IPM

FANUC 0I-TF PLUS 10.4 INCH COLOR LCD
WIDELY SPACED BOX WAYS ON ALL AXES
RENISHAW AUTOMATIC TOOL SETTER
OIL SKIMMER
CHIP CONVEYOR WITH AUTO TIMER, HINGE TYPE, LEFT DISCHARGE
“GRUNDFOS” COOLANT SYSTEM FOR CUTTING TOOLS
“GRUNDFOS” COOLANT SYSTEM FOR CHIP FLUSH
HALF ENCLOSED SPLASH COVERS
ADVANCE LUBRICATION SYSTEM FOR SLIDE WAYS & BALL SCREWS
OIL CHILLER LUBRICATION SYSTEM FOR SPINDLE BEARINGS & GEARS
OPERATION FINISH AND ALARM LIGHTS
HIGH INTENSITY WORK LIGHT
ELECTRIC CABINET HEAT EXCHANGER
FOUNDATION & LEVELING KIT / MAINTENANCE TOOL KIT
OPERATION & MAINTENANCE MANUALS
STANDARD TOOL HOLDER & SLEEVE PACKAGE
X AXIS LINEAR SCALE
Z AXIS LINEAR SCALE
VK-3182A CAT-50 O. D. HOLDER (1-1/4” SHANK SIZE) X 2 PCS
VK-3184A CAT-50 BORING HOLDER (1”X L200MM) X 2 PCS
VK-3186A CAT-50 BORING HOLDER (1” X L200MM) X 2 PCS
