Description

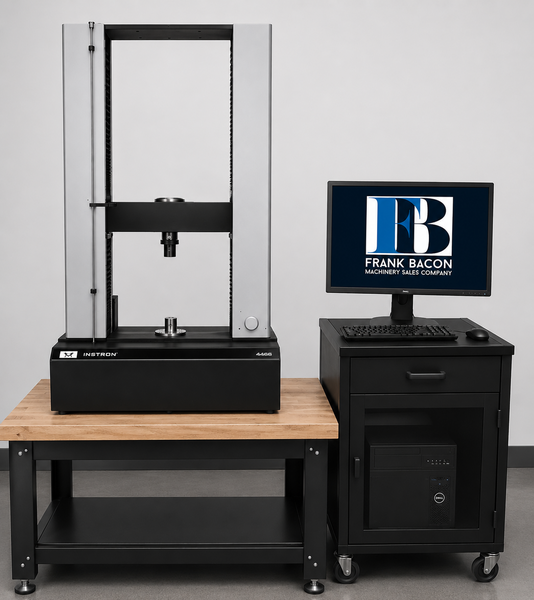

11.25K (50kN) Instron 4468 Tensile & Compression Testing System
Reconditioned 11,250 lbf (50kN) Capacity Instron Model 4468 Tensile & Compression Testing System
SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 48"
Compression Testing Opening (Less Tooling): 48"
Distance Between Columns/Screws: 22"
Testing Stroke: 48"
Table Size (W x D): 22" x 7.75"
Testing Speed (IPM): .00002 – 20
Crosshead Adjusting Speed (IPM): 20
Overall Dimensions:
Load Frame (W x D x H): 45" x 36" x 75"
Load Frame Weight (lbs.): 800
Electrical Requirements (V, Hz, PH): 200-230, 60, 1
EQUIPPED WITH:
- Computer System with Keyboard & Mouse
- Microsoft Windows 11 Professional, Workstation
- MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
- MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
- Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
- New AC Servo Motor with Incremental Encoder and Solid State Drive Controller for Precision Control of Testing Rates (Load, Position & Strain).
- 50kN Tension & Compression Load Cell
- Upper and Lower Quick Release Hubs for Quick Tooling Changes
FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty
* Representative Image
| #13152-00
DOWNLOAD SPEC SHEET
Get Your Price from Frank Bacon Machinery Sales!
Buyers Who Viewed This Listing Also Viewed:

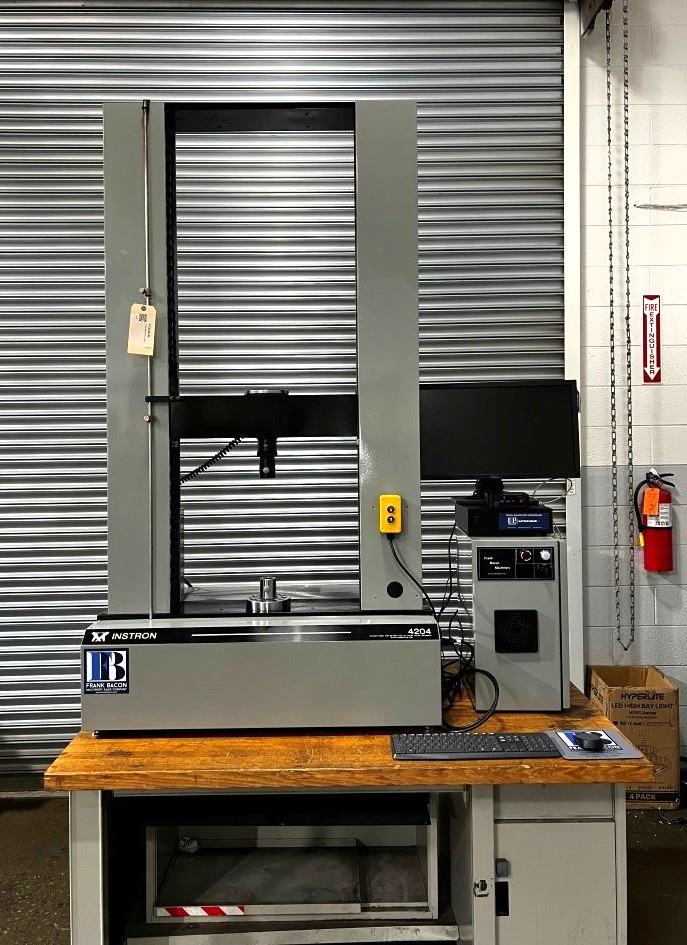

11250 lbf. (50kN) Instron #4204, compression tester, 22" W x 7.75" D table, 46" testing stroke
