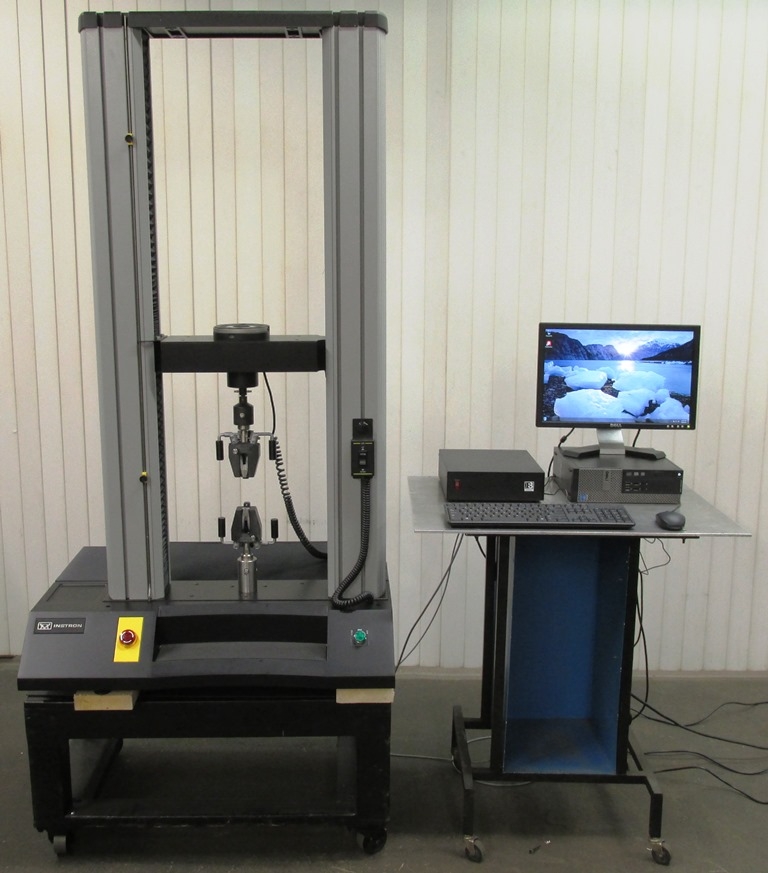

1125 lbf. (5kN) Instron #5565/4465, tensile & compression testing system, 48" test opening, 16" btwn columns/screws, reconditioned, retrofitted

(1) Reconditioned 1,125 lbf (5 kN) Capacity Instron, Model 5565/4465, Table Top Precision Two Ball Screw Electro-Mechanical Tension and Compression Testing Machine Frame

SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 48"
Compression Testing Opening (Less Tooling): 48"
Distance Between Columns/Screws: 16"
Testing Stroke: 48"
Table Size (W x D): 16" x 6"
Testing Speed (IPM): 0.0004 - 20
Crosshead Adjusting Speed (IPM): 20
Approximate Overall Dimensions:
Load Frame (W x D x H): 35.8" x 27.5" x 62.9"
Approximate Weight (lbs): 360
Electrical Requirements (V,Hz,PH): 120, 60, 1

EQUIPPED WITH:

• Computer system with Keyboard and Mouse
• 24" LED-Backlit LCD Color Monitor
• Microsoft Windows 11 Professional, Workstation
• MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis
and Computer Controlled Testing with Manual.
• MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
• Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and
Crosshead Jog Controller.
• New Solid State Drive Controller & Electronics for Precision Control of Testing Rates (Load,
Position & Strain).
• 5kN Tension & Compression Load Cell
• Upper and Lower Quick Release Hubs

FOB Warren, MI
Reconditioned/Retrofitted & Certified
1 Year Parts and Labor Warranty
