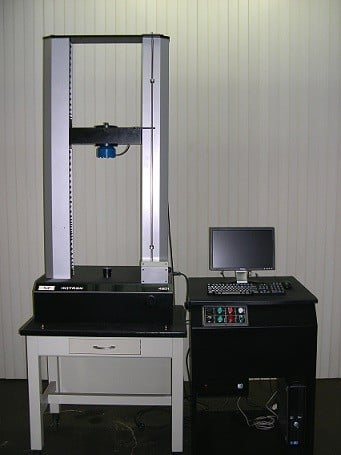

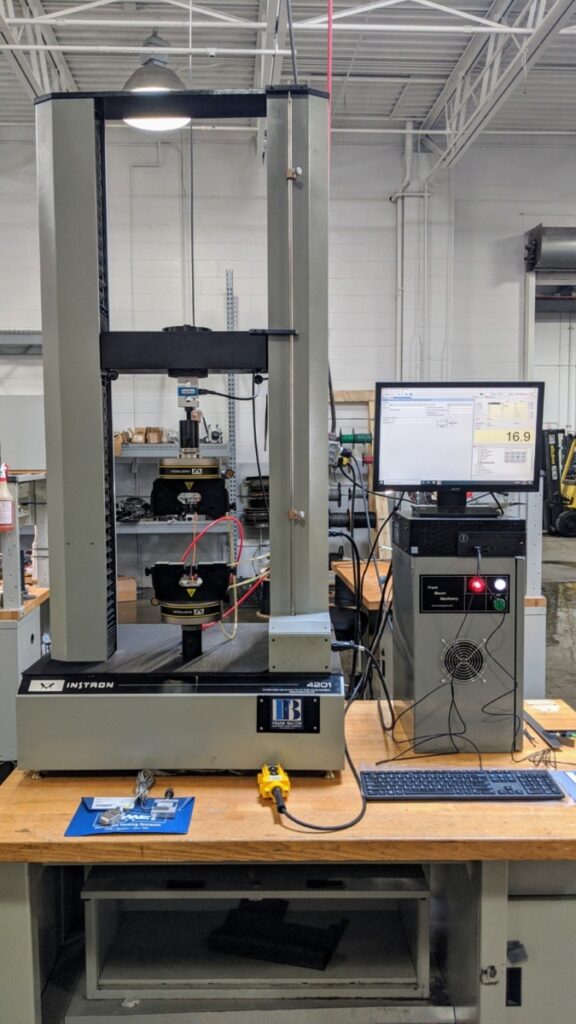

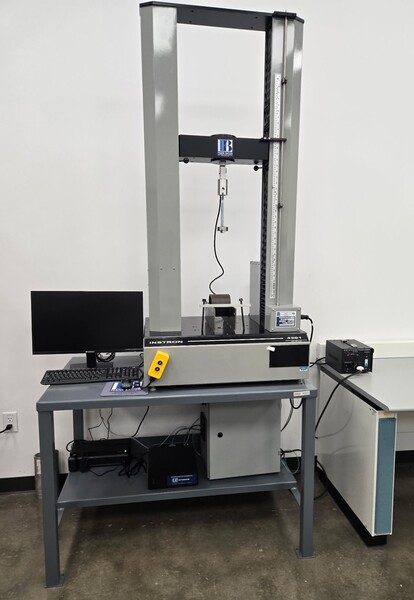

1125 lbf. (5kN) Instron #4201, electro mechanical Unispace tension & compression testing machine, 48" test opening, reconditioned, retrofitted

Reconditioned 1,125 lbf (5 kN) Capacity Instron Model 4201 Electro-Mechanical Unispace Tension and Compression Testing Machine updated with New 5 kN Load Cell and Precision Drive System

Instron Model 4201

SPECIFICATIONS:

Tension Testing Opening (Less Tooling): 48"

Compression Testing Opening (Less Tooling): 48"

Distance Between Columns/Screws: 16"

Testing Stroke: 48"

Table Size (W x D): 16" x 25"

Testing Speed (IPM): 20

Crosshead Adjusting Speed (IPM): 20

Approximate Overall Dimensions:

New Tabletop Control Console (W x D x H): 16" x 19.5" x 11.5"

Load Frame (W x D x H): 30 ½" x 25" x 64"

Weight (lbs.): 360

Electrical Requirements (V, Hz, PH): 120/230, 60, 1

EQUIPPED WITH:

• Computer System with Keyboard & Mouse
• 24" LED-Backlit LCD Color Monitor
• Microsoft Windows 11 Professional, Workstation
• MTGENIUS, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
• MTGENIUS, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.
• Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
• 5kN Tension & Compression Load Cell
• Upper and Lower Quick Release Hubs

Click for Video

FOB Warren, MI

Reconditioned/Retrofitted & Certified

1 Year Parts and Labor Warranty
