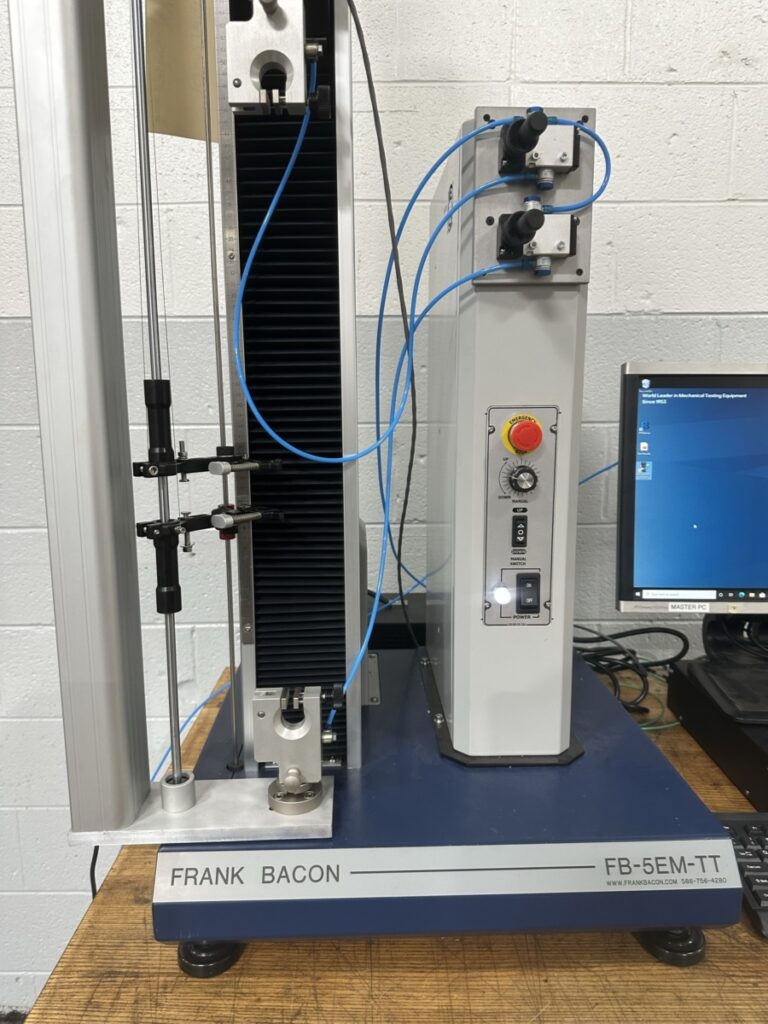

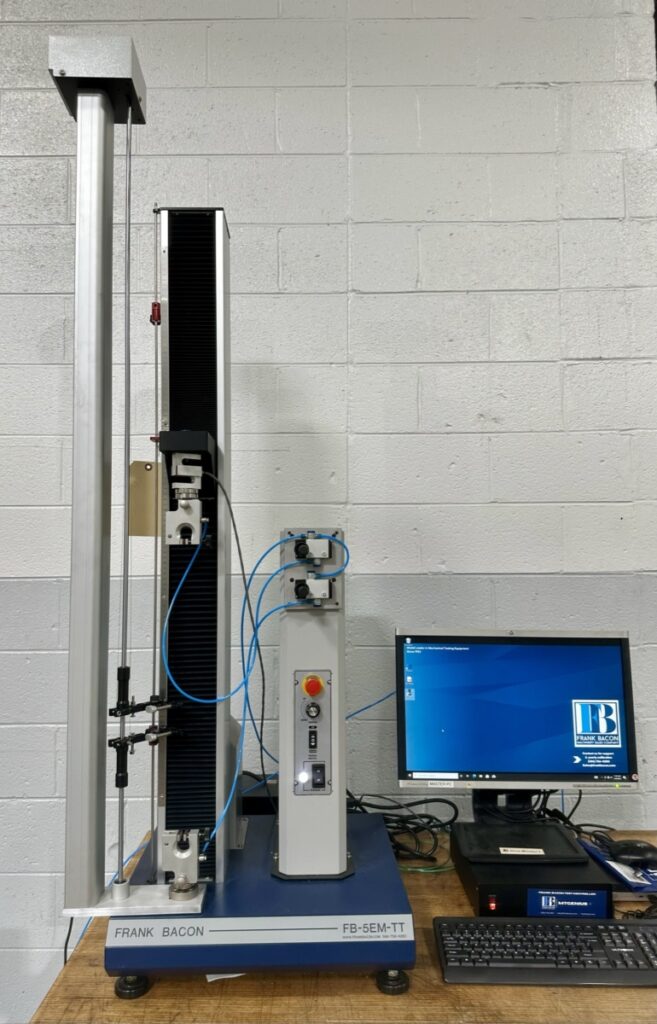

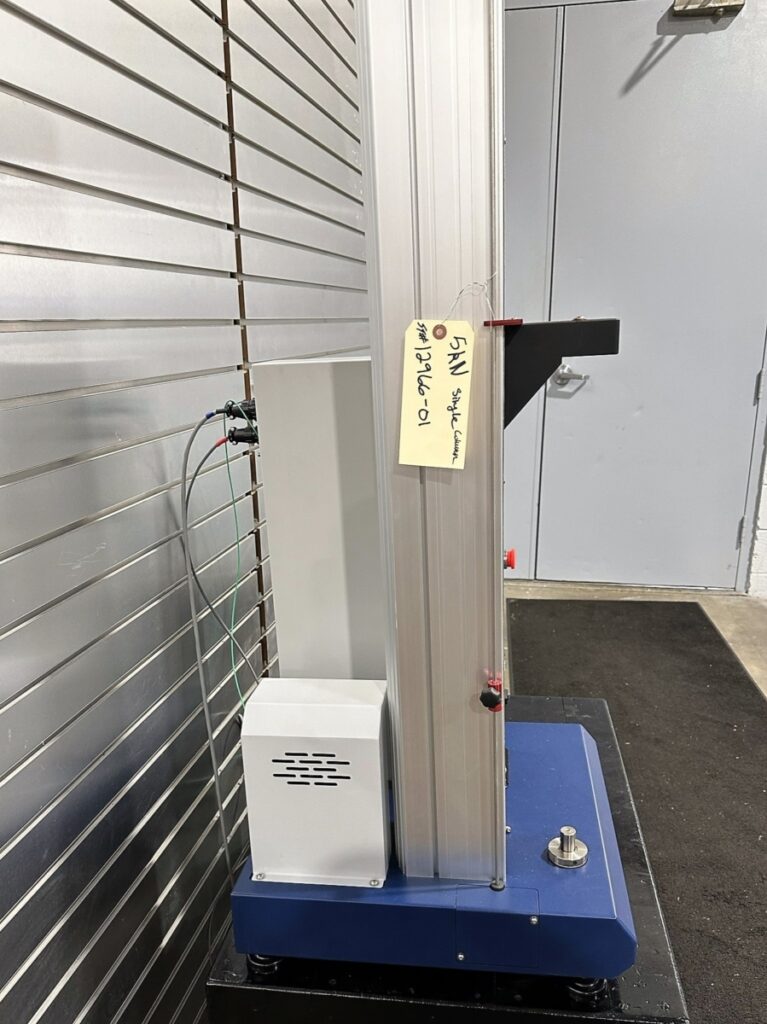

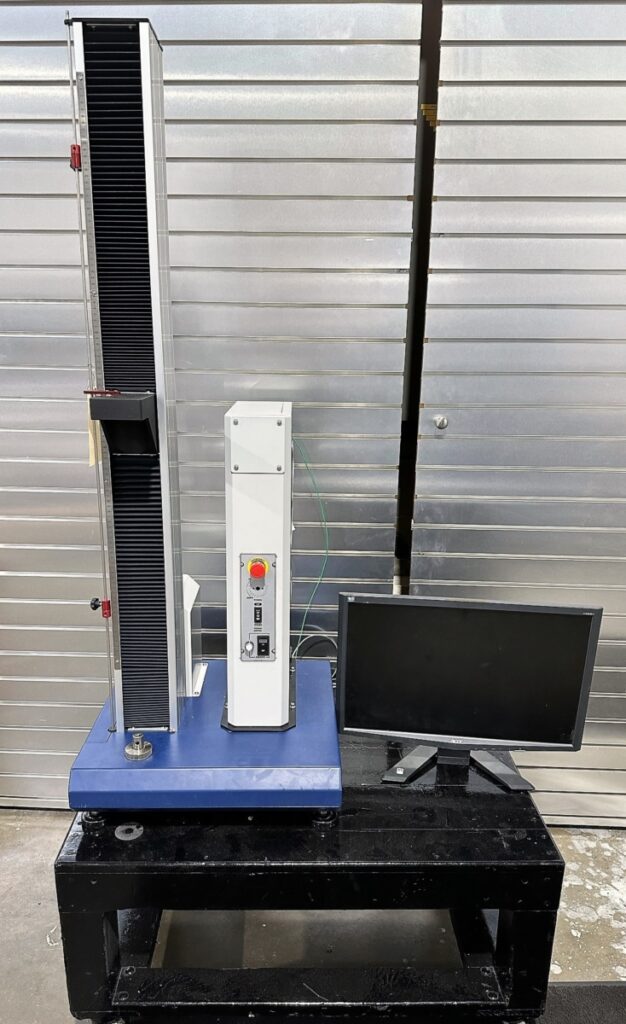

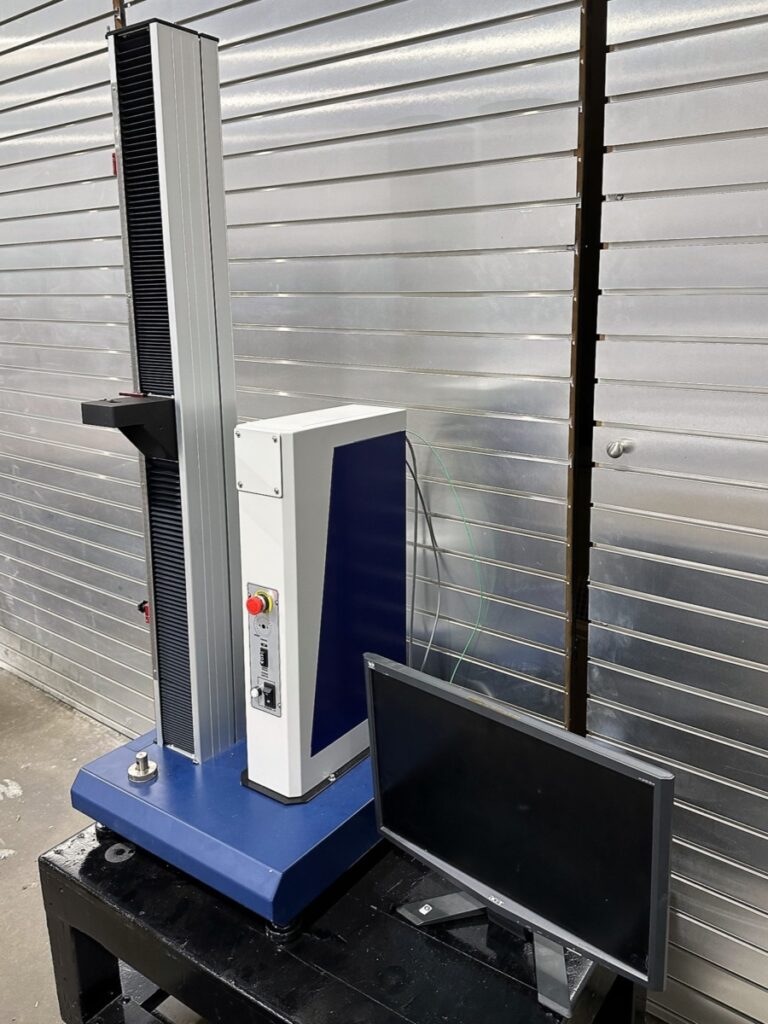

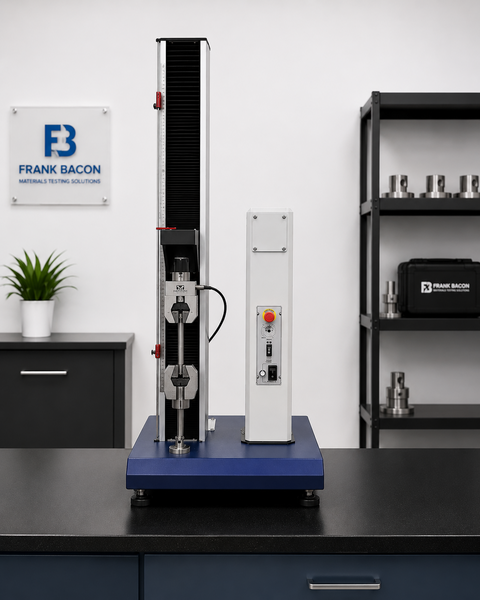

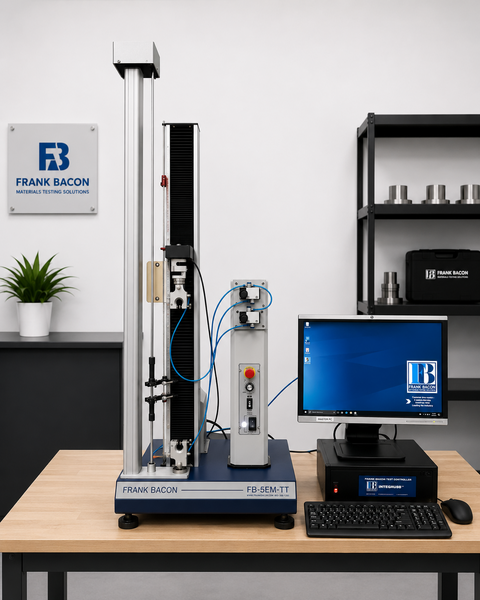

1125 lbf. (5kN) Frank Bacon #FB-EMS-TT, Single Column Tension and Compression Testing Machine with Precision Load Cell, new

NEW 1,125 lbf (5kN) Capacity Single Column Frank Bacon Tension and Compression Testing Machine with Precision Load Cell.
Model FB-5EMS-TT

SPECIFICATIONS:
Tension Testing Opening (Less Tooling): 38"
Compression Testing Opening (Less Tooling): 38"
Testing Stroke: 38"
Testing Speed (IPM): .00002 – 20
Crosshead Adjusting Speed (IPM): 20
Load Frame Dimensions: 20" x 20" x 58"
Electrical Requirements (V,Hz,PH): 200-240V, 60Hz, 1PH (120V Transformer Available for Additional Cost)

EQUIPPED WITH:
• Computer with Keyboard & Mouse
• 24" LED-Backlit LCD Color Monitor or Better & Manual
• Microsoft Windows 11 Professional, Workstation
• Frank Bacon MTGenius, Material Testing Software for Data Acquisition (Load, Position & 2 Strain), Analysis and Computer Controlled Testing with Manual.
• Frank Bacon MTGenius, Micro Console for Sensor Excitation and Analog/Digital Signal Processing with USB Cable.

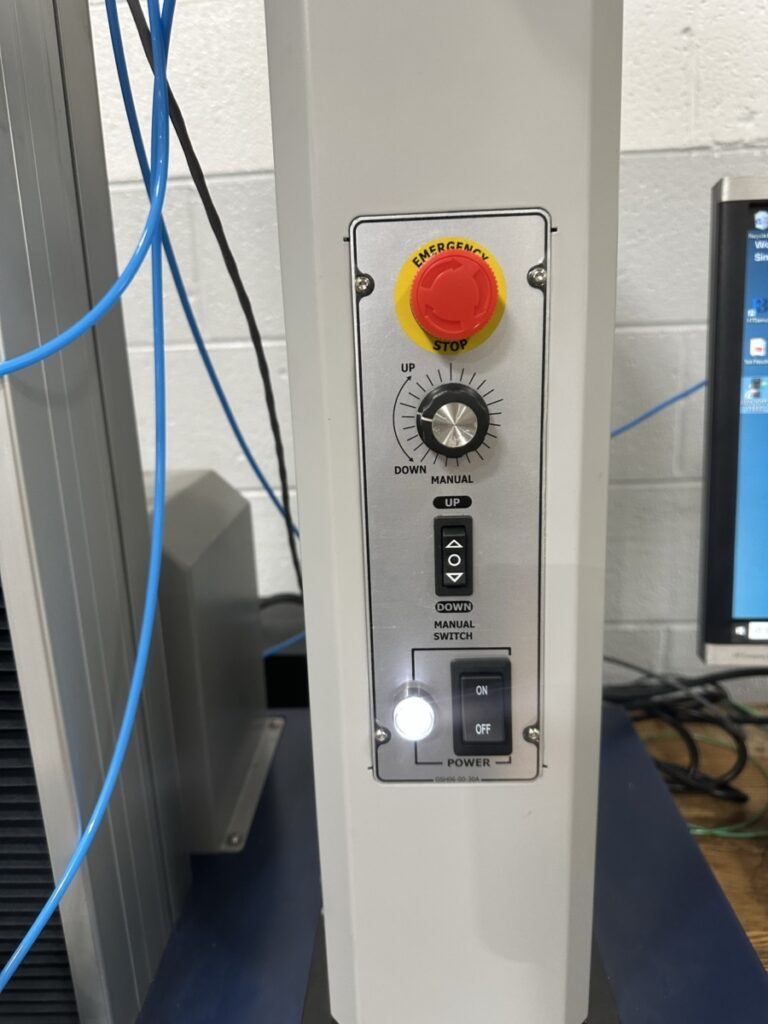

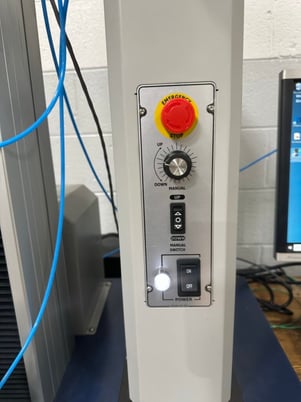

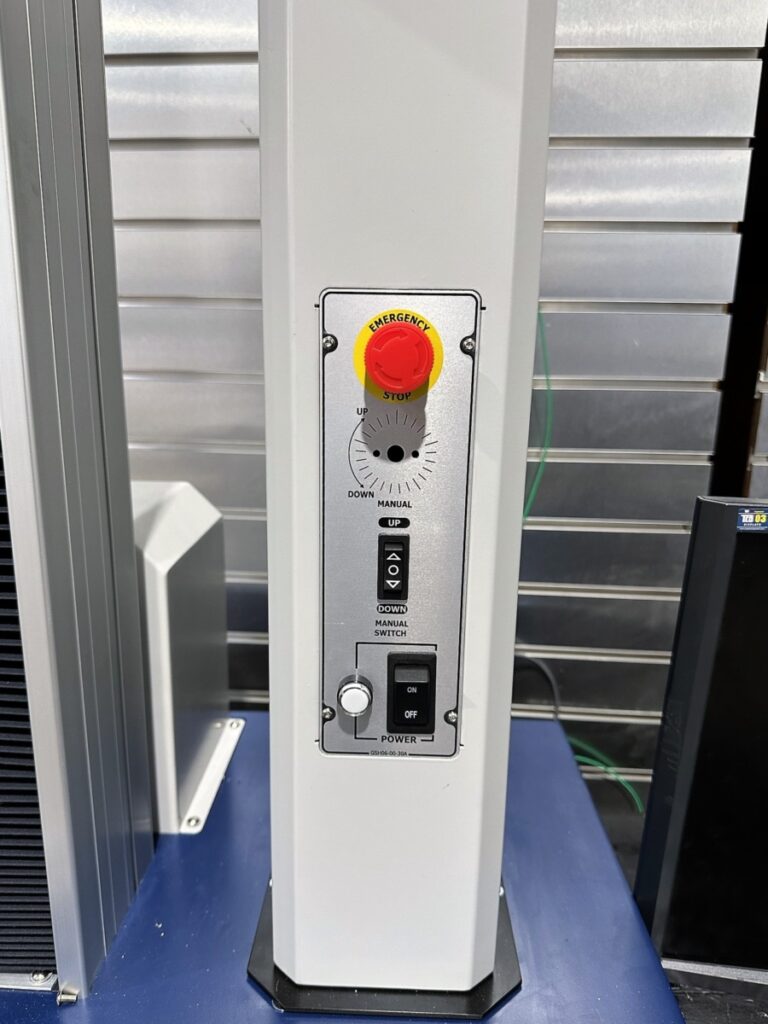

• Electronic Material Testing Control System in Custom Cabinet/Desk with PC Controls and Crosshead Jog Controller.
• Precision AC Servo Motor and Drive
• 5kN Tension & Compression Load Cell
• Upper and Lower Quick Release Adaptors

FOB Warren, MI

NEW, Calibrated and Certified
Industry Leading 2 Year Parts and Labor Warranty

30 Day Satisfaction Guarantee Return Privilege
ISO 17025 Accredited Certification

Hundreds of Grips, Fixtures, and Accessories Available
