For Sale by Pioneer Machine Sales
Description

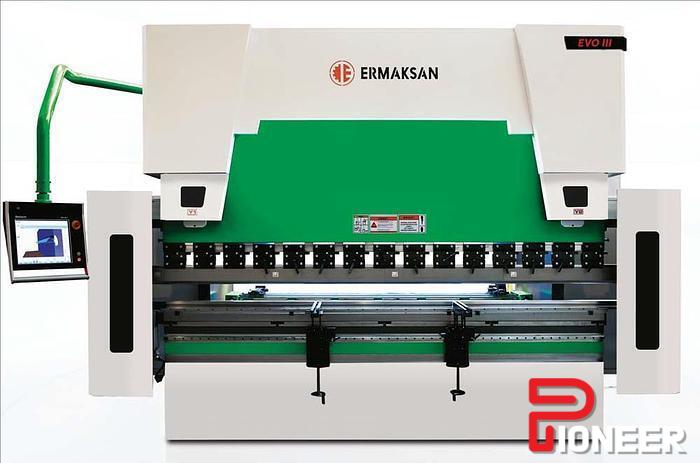

EVO-III 8.5 x 110
Delem DA-69T TOUCH SCREEN CNC CONTROLLER
TOTAL 6 AXIS (Y1,Y2,X,R,Z1,Z2)

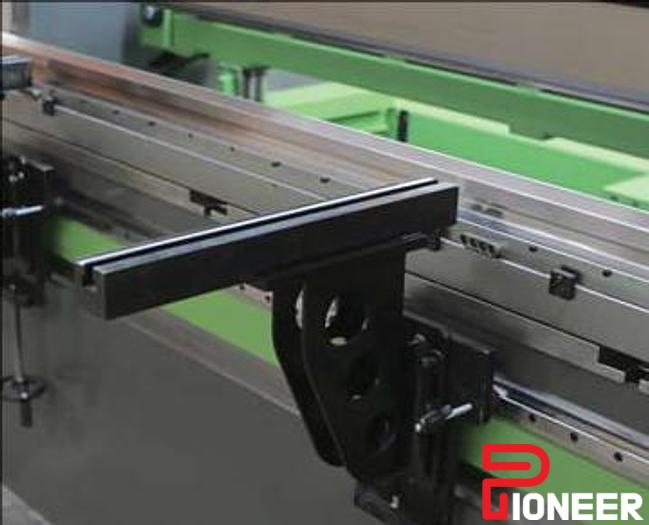

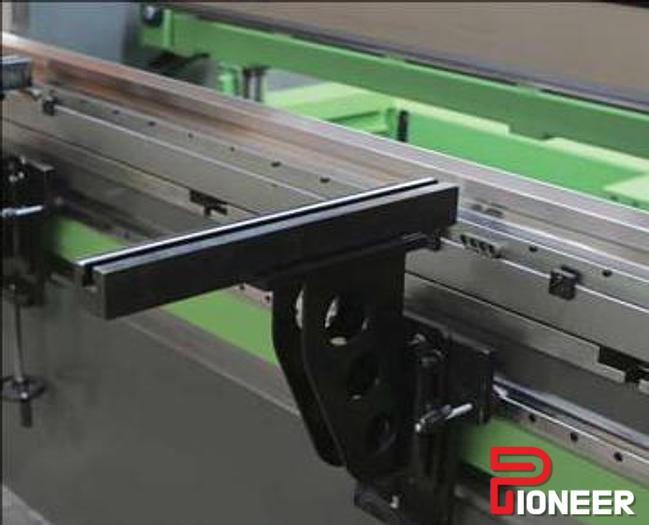

FOUR AXIS BACKGAUGE (X,R,Z1,Z2)
AMERICAN PROCAME QUICK RELEASE
STROKE HEIGHT 10.8"
THROAT DEPTH 16"
460 VOLT, 3PH 60HZ
LASER SAFE LIGHT GUARDS
SIDE GUARDS WITH SAFETY SWITCH
BACKSIDE SAFETY- DOOR WITH SWITCH
DOUBLE FOOT PADEL
HOERBIGER SYSTEM
SIEMENS ELECTRIC SYSTEM
SLIDING FRONT SUPPORTS
STANDARD NARROW TABLE
Specifications
MACHINE HEIGHT ( H ) 110.3 "
OIL CAPACITY 2x6,6
1/30/2020
WEIGHT 15435 lbs
* Working speed MUST be max. 10 mm / sec. at CE certified
machines according to the EN12622 norm.
MACHINE LENGTH ( L ) 147.6 "
MACHINE WIDTH ( W ) 76.8
US Gallons
MAX. PRESSURE 3625 psi
PLANT TEMPERATURE 0-50 oC
MAX. NOISE 63 dB
MAIN MOTOR 2x6,4 HP
BACK GAUGE MOTORS (X , R) 3,18+2,39 Nm
PLANT VOLTAGE 460 V
IP 54 -
TABLE WIDTH ( G ) 3.54 "
DAYLIGHT ( D ) 20.8 "
THROAT DEPTH ( E ) 16.1 "
TABLE HEIGHT ( F ) 35.4 "
DISTANCE BETWEEN HOUSING ( B ) 86.6 "
CROWNING MOTORIZED -
BACK GAUGE STROKE ( X AXIS ) 31.5 "
BACK GAUGE STROKE ( R AXIS ) 9.8 "
RETURN BACK SPEED 7.48 in/s
STROKE ( C ) ( Y1 , Y2 ) 10.8 "
FREE DOWN SPEED 7.9 in/s
BENDING SPEED 0.47 in/s
MAX.BENDING CAPACITY (59748 psi) 0.2 "
AXIS NUMBER OF MACHINE Y1,Y2,X,R, Z1, Z2 -
MAX.BENDING CAPACITY (81087 psi)
MAX.BENDING CAPACITY (89622 psi)
0.16 "
BENDING LENGTH ( A ) 102.4 "
Get Your Price from Pioneer Machine Sales!
