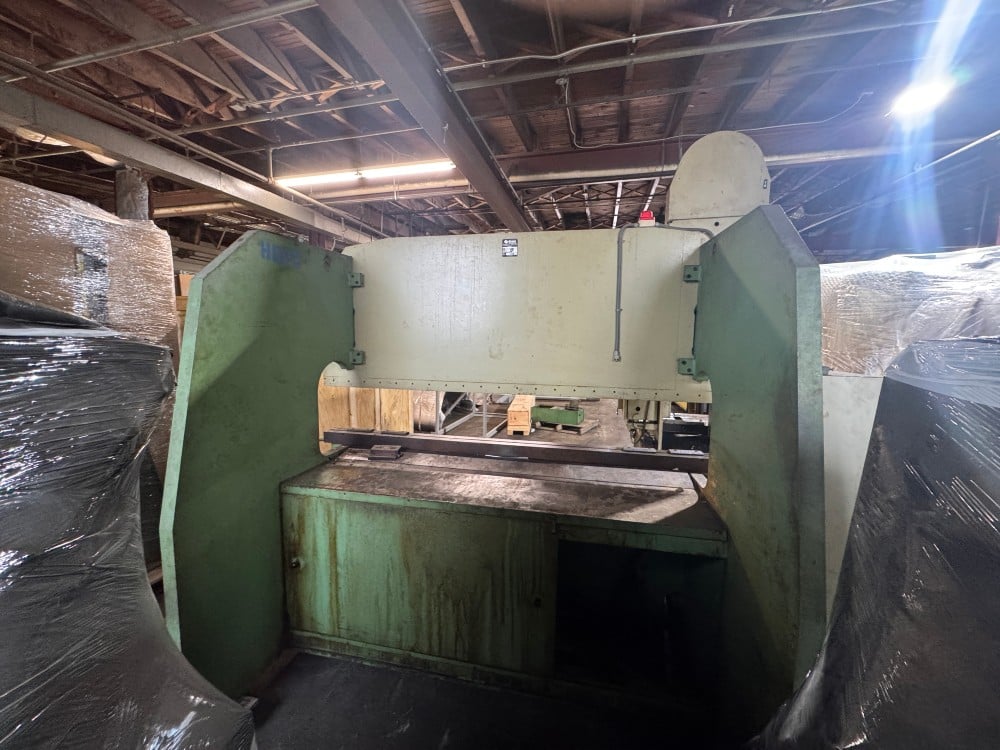

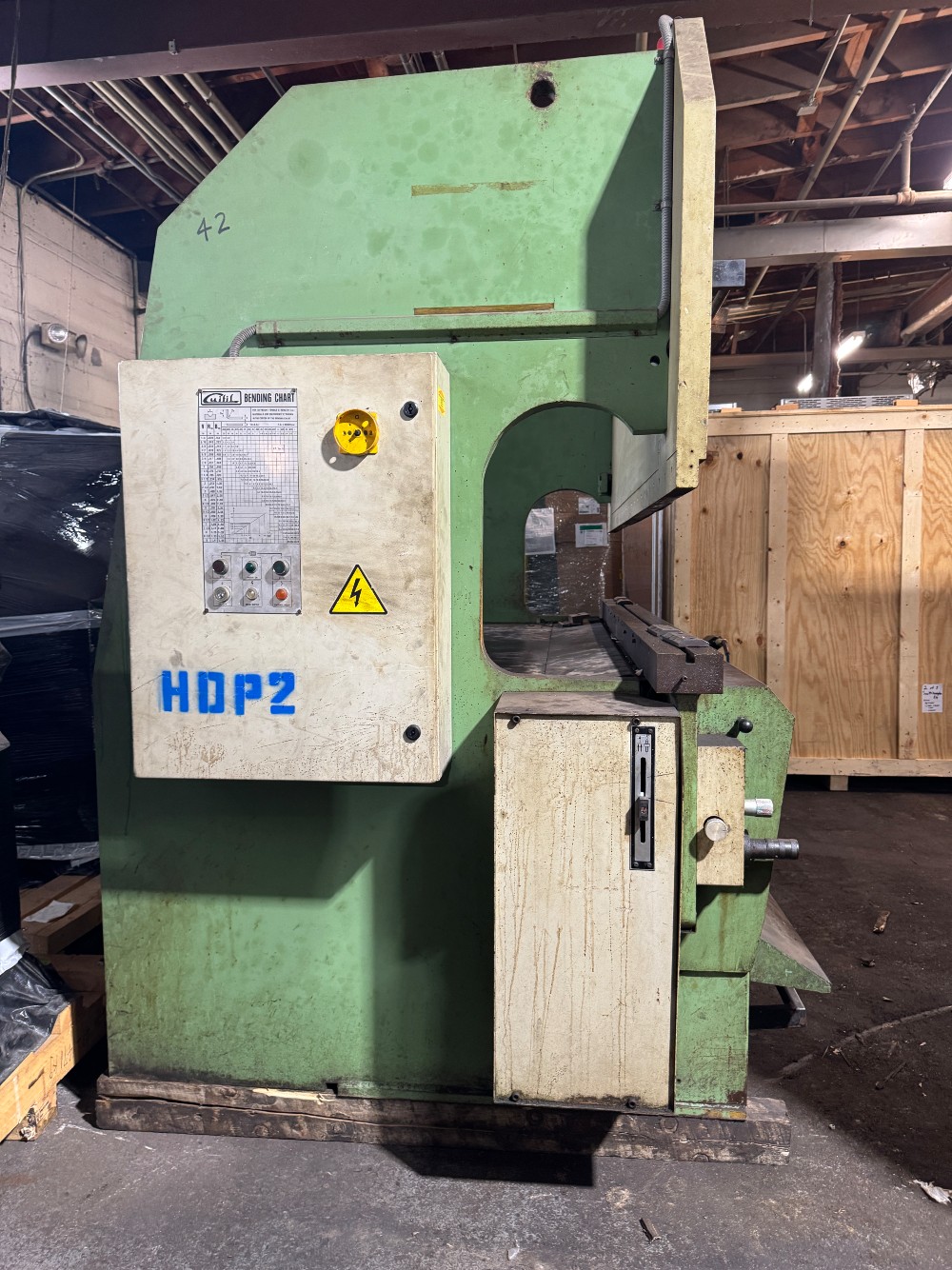

110 Ton, Guifil #PE25-100, Up-Acting Hydraulic Press Brake, 8.2'OA, 81" between housing, 16" throat, 18" stroke, 10 HP, 220/460 V., 1990

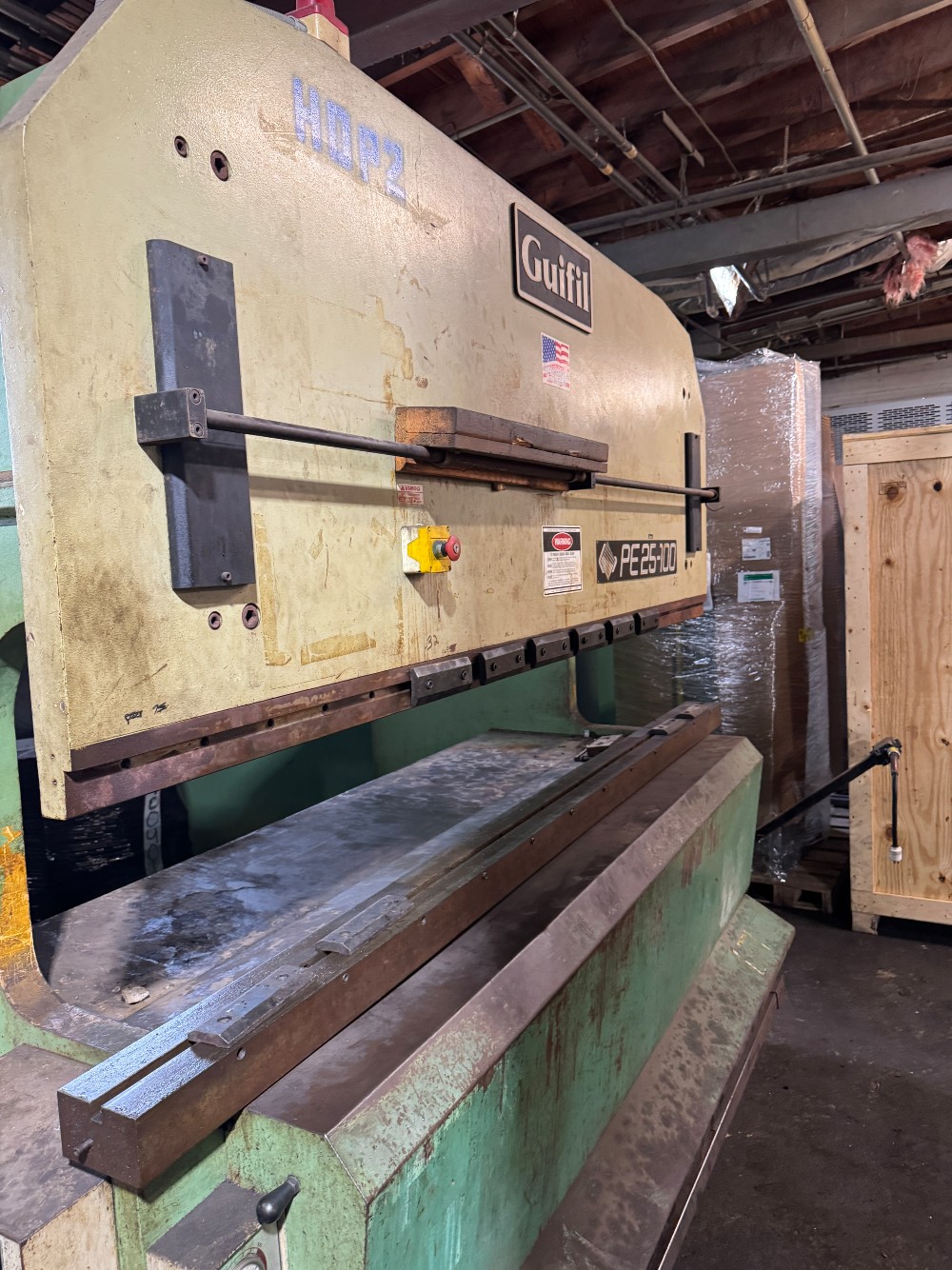

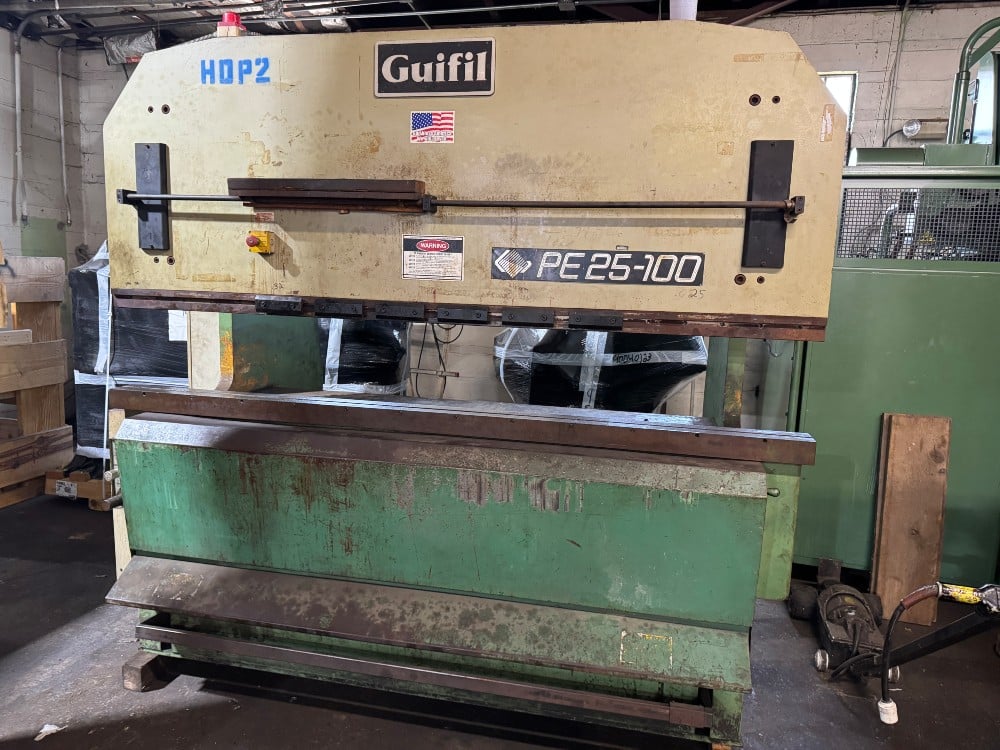

110 TON X 8’ GUIFIL PE-25-100 UP-ACTING HYDRAULIC PRESS BRAKE

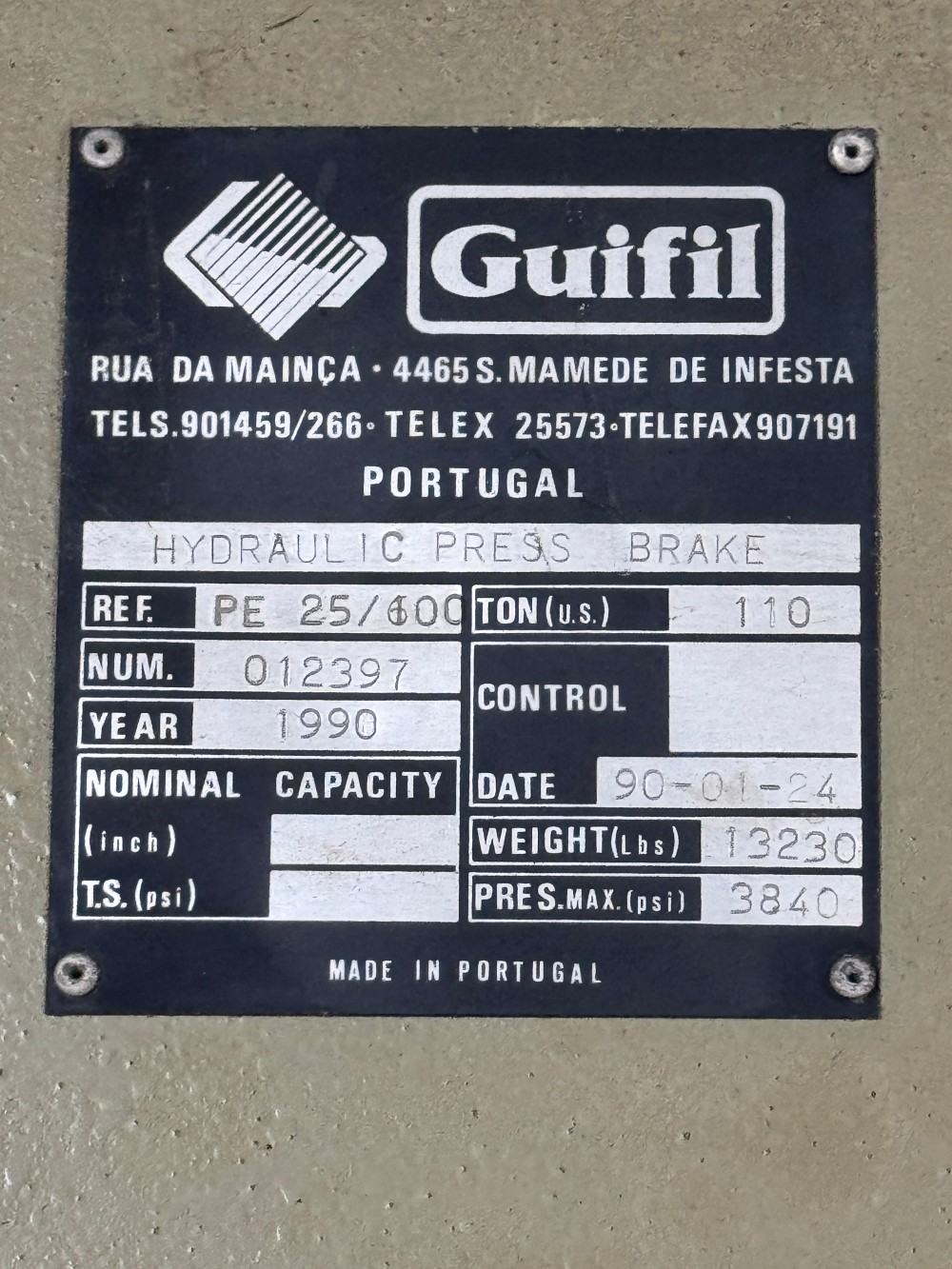

Stock#R880
Model#25-100
Serial#012397
Year 1990

Core Capacity & Dimensions
• Tonnage Capacity: 110 US Tons (Maximum working pressure)
• Overall Bed Length: 98.5 inches (8.2 feet)
• Distance Between Housings: 80 inches
• Throat Depth: 16 inches
• Maximum Bending Capacity: 8 feet x 3/16 inch Mild Steel
Ram & Stroke Characteristics
• Type of Action: Up-acting lower ram
• Maximum Stroke Length: 18 inches
• Open Height (Without Tools): 24 inches
• Ram Alignment System: Roller bearing guide system with parallel mechanical deflection , Operating Speeds
• Approach Speed: 1.58 inches per second (IPS)
• Bending Speed: 0.28 inches per second (IPS)
• Return Speed: 2.17 inches per second (IPS)
Power & Mechanicals

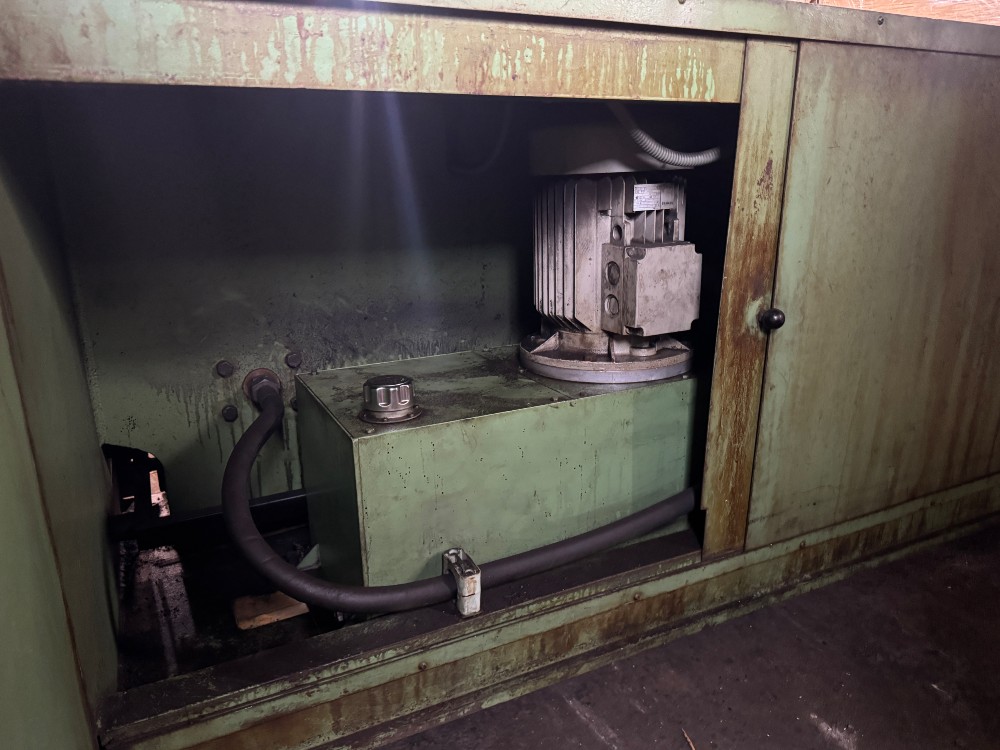

• Main Drive Motor: 10 HP

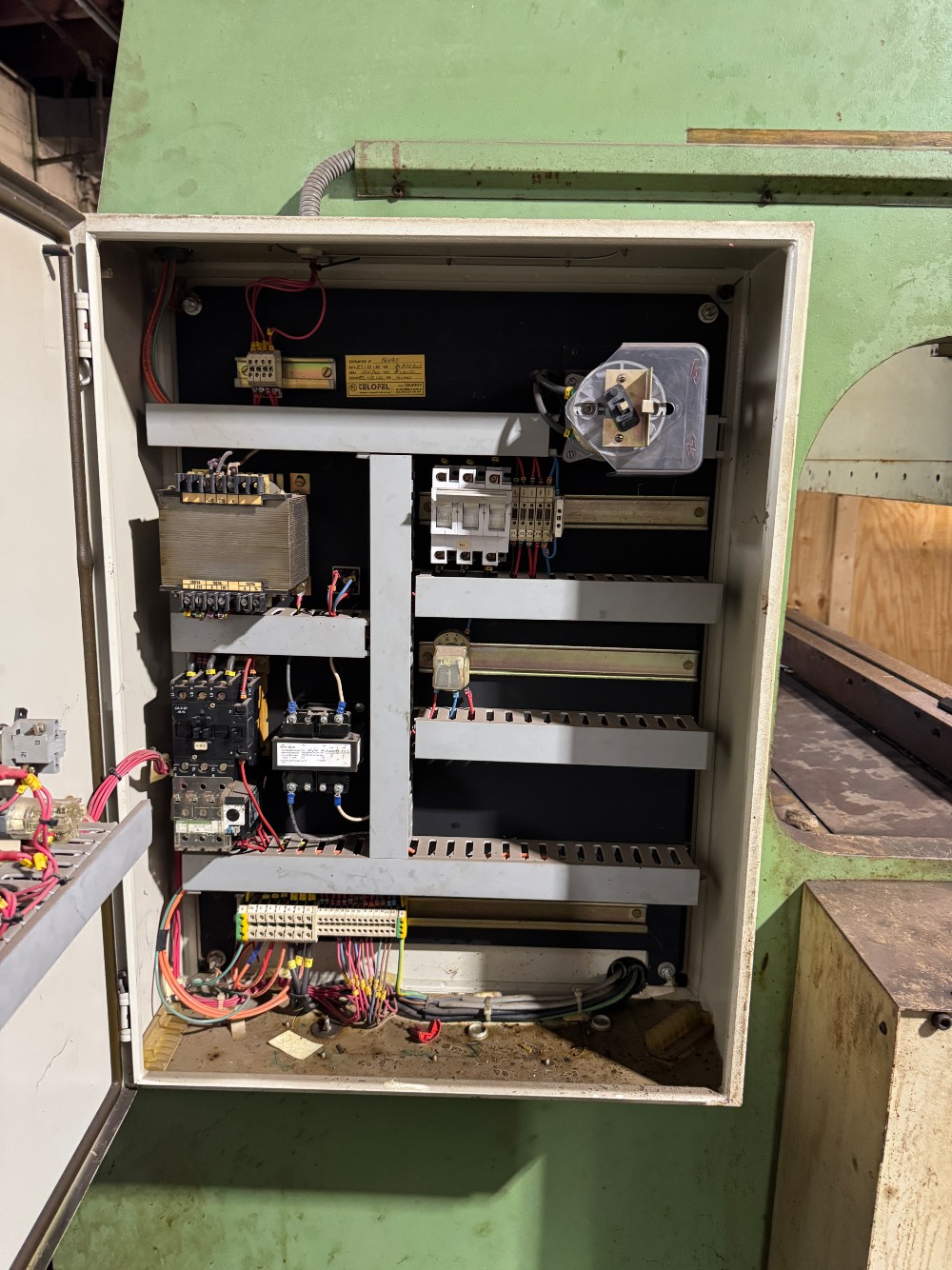

• Electrical System: wired for 220V / 460V, 3-Phase, 60Hz
• Tooling Compatibility: Universal clamping blocks (Accepts standard American and European-style tangs)
• Bed Design: Extra-wide lower table equipped with standard center-slot and lock screws

Shipping & Footprint Specs
• Total Weight: 13,230 lbs (Estimated operating/shipping weight)
• Width (Left to Right): 105 inches
• Depth (Front to Back): 72 inches
• Height (Total Vertical): 95 inches
