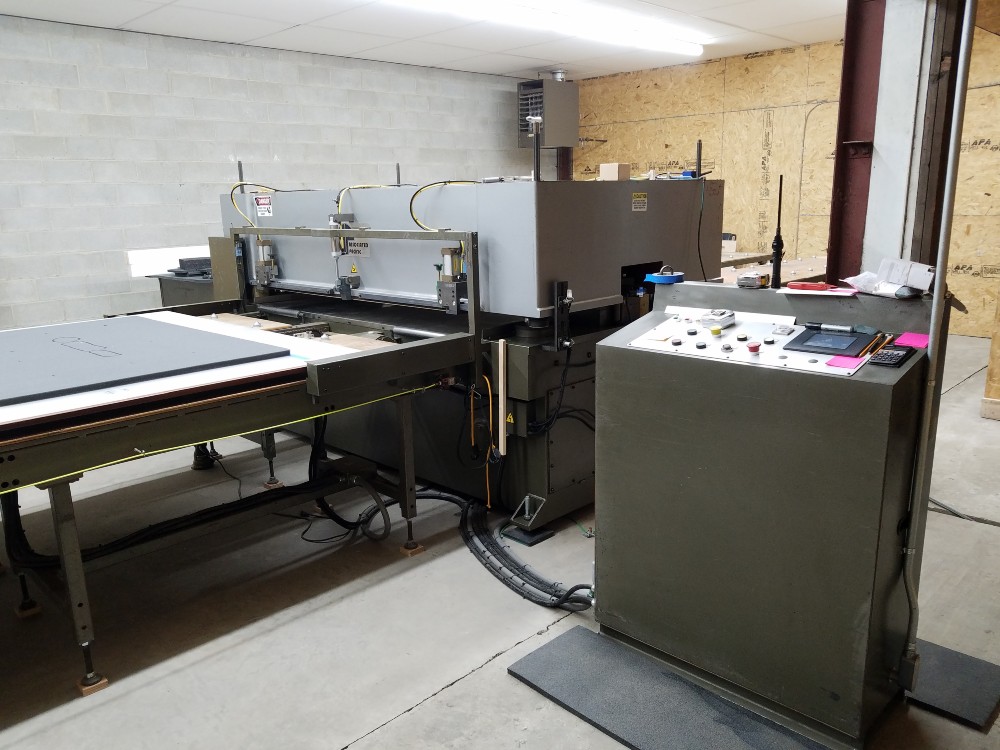

110 Ton, APMC #FH5979-100, four-post hydraulic die cutting press, 4.3 stroke, 6.3" DL, 59.1" x78.7" bed, 2003 reduced price!!

Condition: Excellent

Cutting Force: 100 Metric (110 US) Tons

Cutting Stroke: 4.3” (110mm) Adjustable

Daylight: 6.3” (160mm)

Machine Bed: 59.1” D x 78.7” W (1500 x 2000mm)

Effective Cutting Area: 57.1” D x 72.8” W (1450 x 1850mm)

Corner post diameters: 100mm

Main Motor: 20 HP

Power: 220 Volt, 3 Phase, 60 Cycle

Manual 4 Position Mechanical Stops – Low point stops ensure the precise bottom position and parallelism of the head on each cutting stroke. There are four adjustable stops located in the head of the press. They correspond to the 4 corners of the head. When one stop is adjusted, all stops adjust at the same time.

Pneumatic Die Mounting Rails Under the Head – The die rails hold the tooling under the head. They are air operated and fully adjustable for easy die board change out.

2 mm Steel Wear Plate on the machine bed

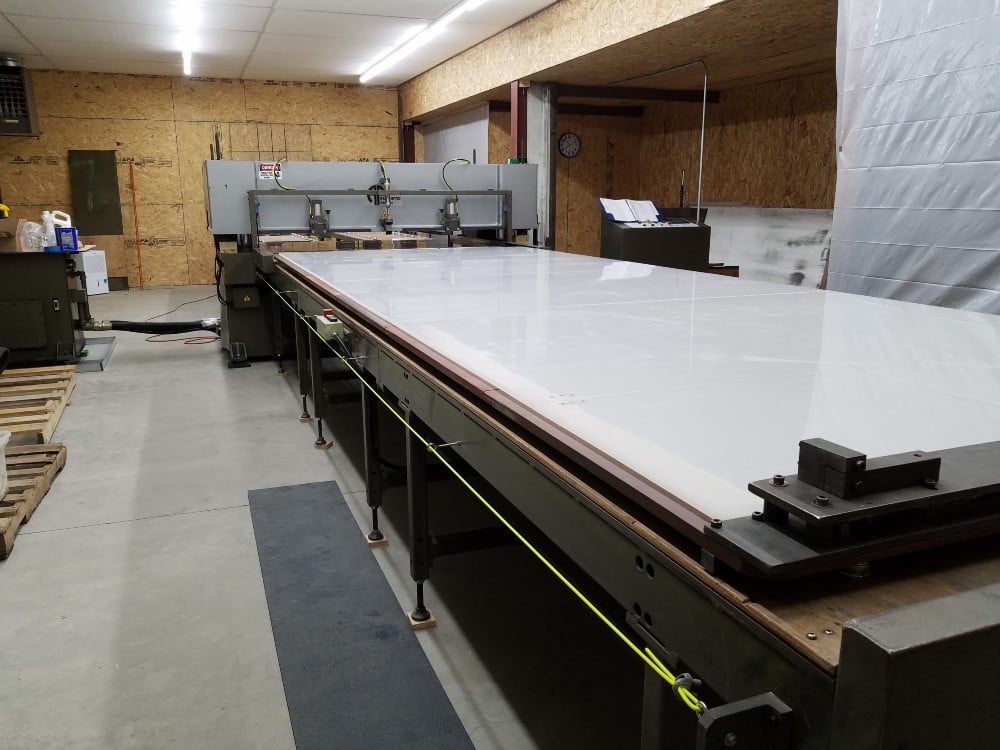

Automated Mitsubishi Incremental Feeding System including Control and Power feeding unit driven by timing belt, 236” (6M) long infeed plywood on steel legs live roller table, 157” (4M) long out feed plywood on steel legs live roller table and 197” (5M) long Bakelite sliding cutting table with Oscillating Pad Shifter on Slide Table to greatly improve cutting pad life by moving the cutting pad after each cut.

2 HP Servo Motor Cutting Table Positioning System has a +/-0.004” positioning accuracy for high material yields. The system consists of the AC Servo Motor, Encoder and integrated Drive.

Separate Sealed Hydraulic Power Unit

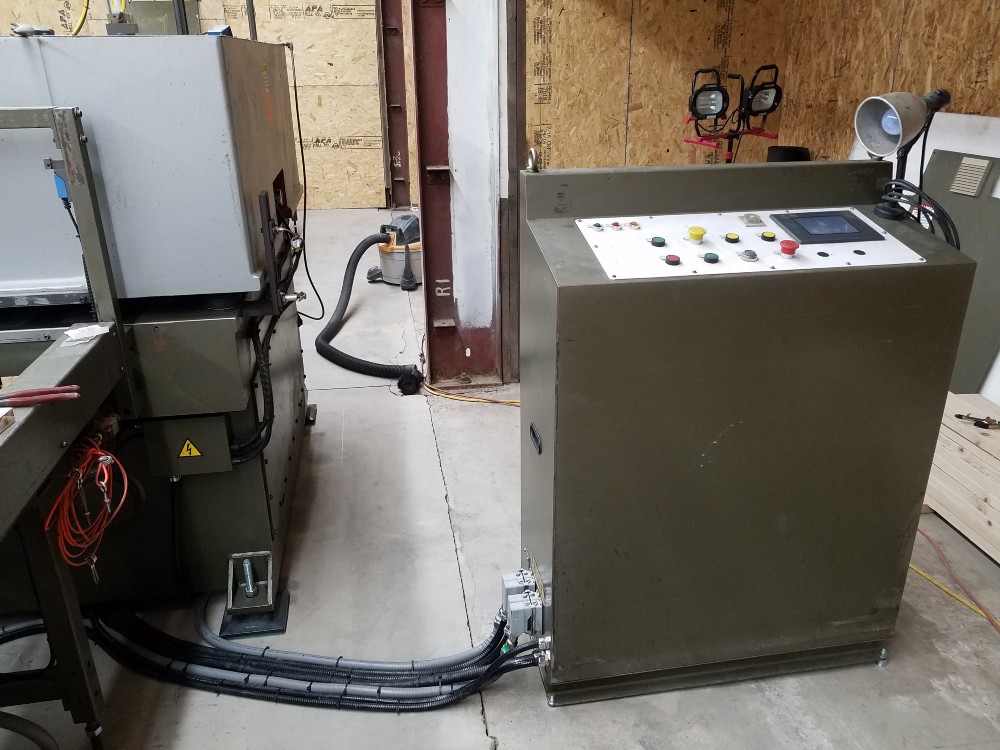

Operator Console with Touch Screen Interface with Program Storage and Program Recall

Send us an email with questions and we will send you full set of pics, video and manual, or just call
