For Sale by Liberty Machinery Co
Surplus Record Dealer Since 1996
Location: Lincolnshire, IL
Contact Peter Sonneborn
Phone Number: 847...> Show Phone Number 847-276-2761
Let the seller know you found their listing on Surplus Record!
Description

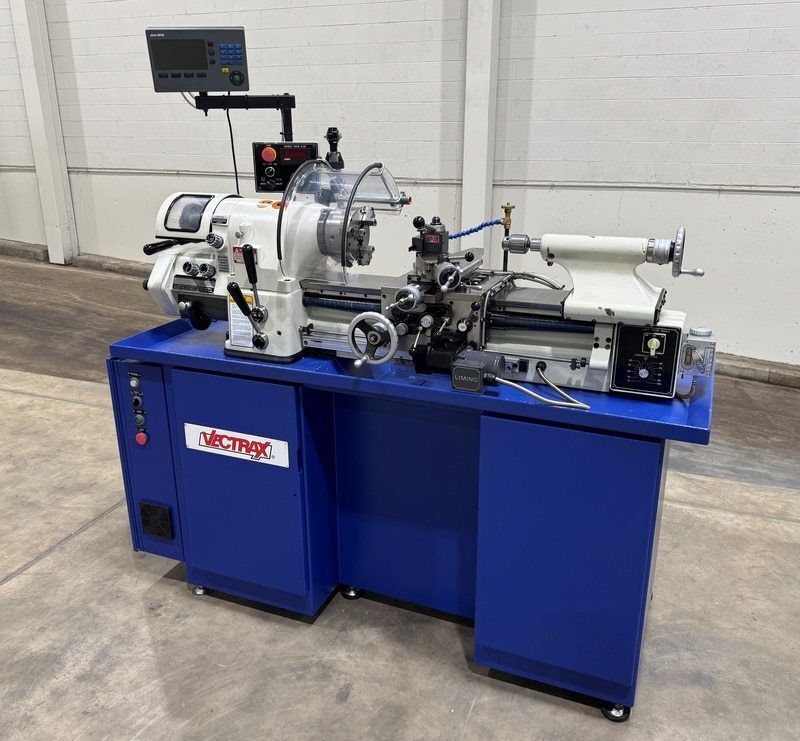

Year Built - 2019
Serial No. 108111609
SPECIFICATIONS:
Swing:
- Over Bed............11"
- Over Cross Slide............6"
Width of Bed............6.75"
Distance Between Centers............18"
Cross Slide Travel............6"
Top Slide Travel............3'
Spindle:
- Bore............1.5"

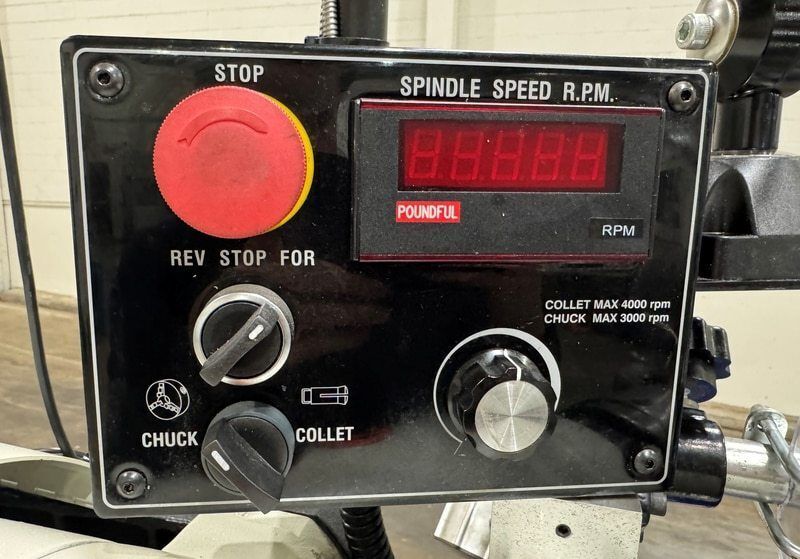

- Speeds............Infinitely Variable
- Speed Range............0 - 4000 RPM
Longitudinal Feed............5/16" - 7" ipm
Cross Feed............5/16" - 4" ipm
Lead Screw Diameter............1"
Thread - Standard (Whit-worth)............36 (11-108) TPI
Thread - Metric Pitch............36 (0.275-2.7) mm
Threading Pitch............8 TPI
Quill:
- Travel............3.75"
- Diameter............1.358"
- Bore Taper............MT#2
Main Motor............3 HP
Coolant Pump Motor............1/4 HP
Dimensions - Approximate............65"L x 28"W x 68"H
Weight - Approximate............2,300 Lbs.
EQUIPPED WITH:

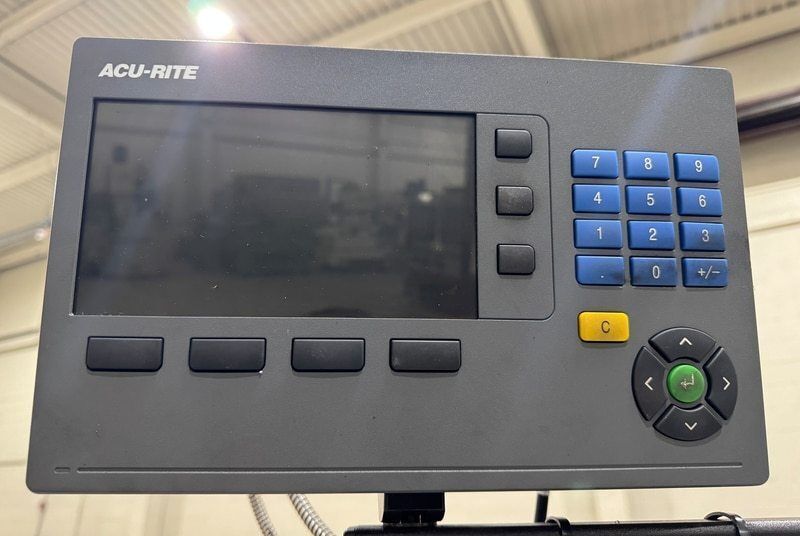

Acu-Rite Model DRO 203 3-Axis Digital Read Out

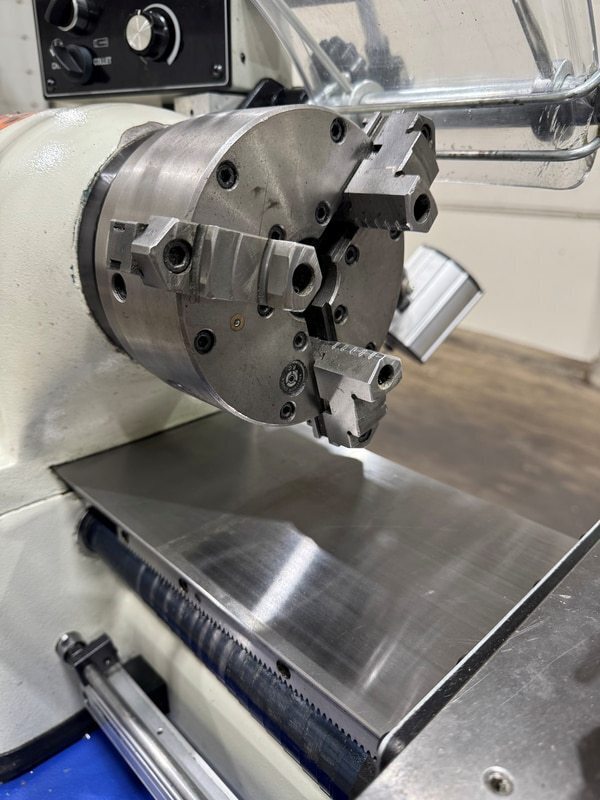

6" 3-Jaw Chuck
4" 3-Jaw Chuck
5C Collet Closer System

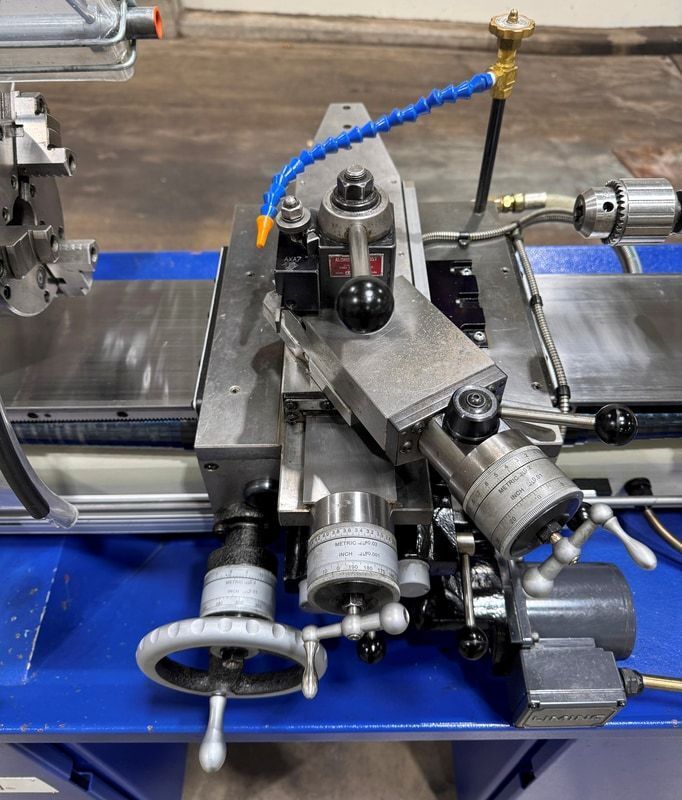

Aloris AXA Tool Post
Precision Live Center Set
Dead Centers

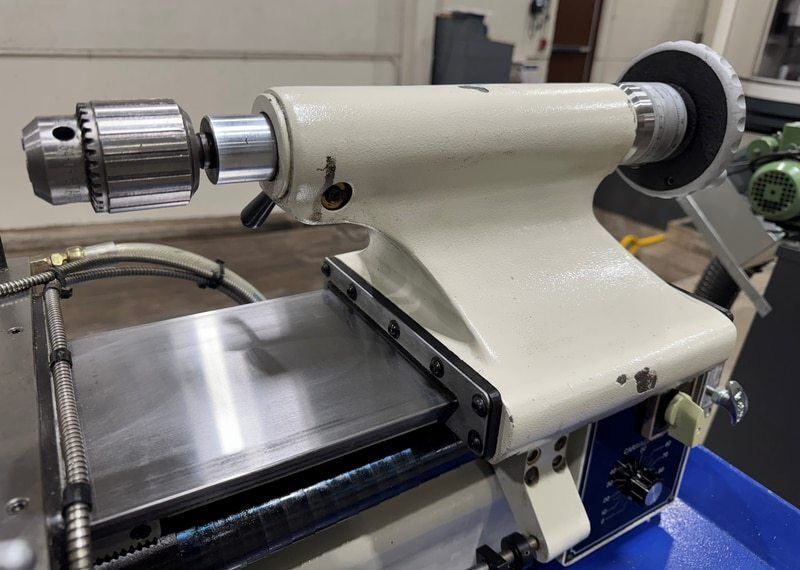

Tail Stock w/Jacobs Chuck
7" Face Plate
Inch & Metric Threading
Chip & Coolant Shield
Work Light
Misc. Tooling & 5C Collets
*Preliminary specifications, pending confirmation
Serial No. 108111609
SPECIFICATIONS:
Swing:
- Over Bed............11"
- Over Cross Slide............6"
Width of Bed............6.75"
Distance Between Centers............18"
Cross Slide Travel............6"
Top Slide Travel............3'
Spindle:
- Bore............1.5"
- Speeds............Infinitely Variable
- Speed Range............0 - 4000 RPM
Longitudinal Feed............5/16" - 7" ipm
Cross Feed............5/16" - 4" ipm
Lead Screw Diameter............1"
Thread - Standard (Whit-worth)............36 (11-108) TPI
Thread - Metric Pitch............36 (0.275-2.7) mm
Threading Pitch............8 TPI
Quill:
- Travel............3.75"
- Diameter............1.358"
- Bore Taper............MT#2
Main Motor............3 HP
Coolant Pump Motor............1/4 HP
Dimensions - Approximate............65"L x 28"W x 68"H
Weight - Approximate............2,300 Lbs.
EQUIPPED WITH:
Acu-Rite Model DRO 203 3-Axis Digital Read Out
6" 3-Jaw Chuck
4" 3-Jaw Chuck
5C Collet Closer System
Aloris AXA Tool Post
Precision Live Center Set
Dead Centers
Tail Stock w/Jacobs Chuck
7" Face Plate
Inch & Metric Threading
Chip & Coolant Shield
Work Light
Misc. Tooling & 5C Collets
*Preliminary specifications, pending confirmation
