For Sale by Liberty Machinery Co
Surplus Record Dealer Since 1996
Location: Lincolnshire, IL
Contact Peter Sonneborn
Phone Number: 847...> Show Phone Number 847-276-2761
Let the seller know you found their listing on Surplus Record!
Description
Serial No. HLV-H-11377T
Year Built – 1993

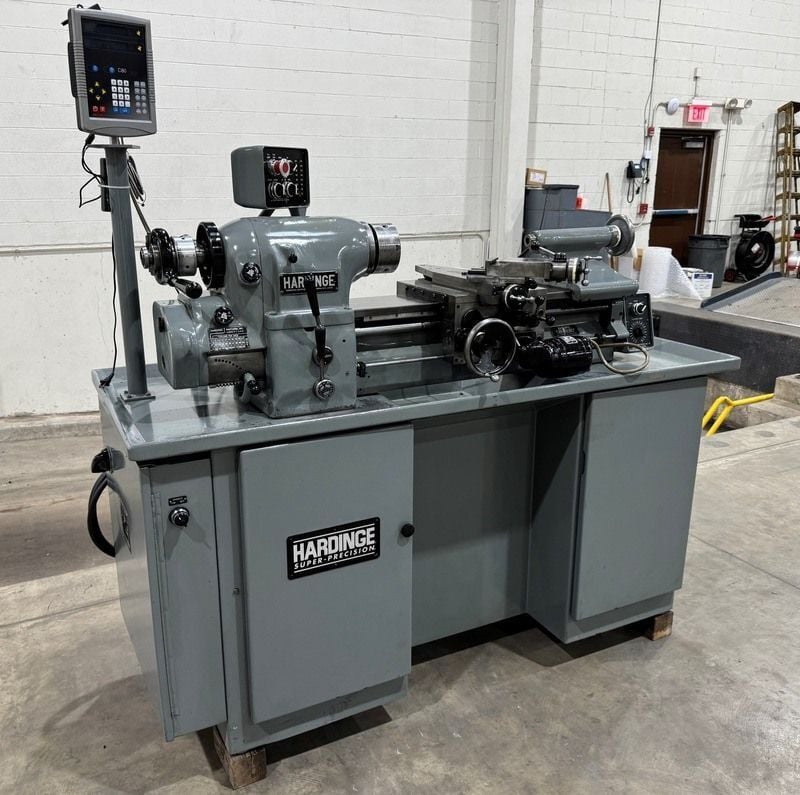

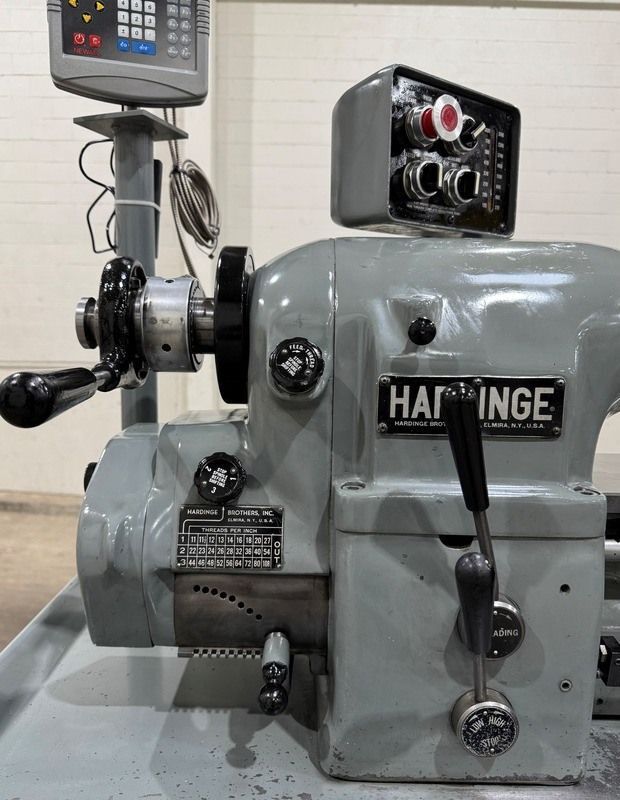

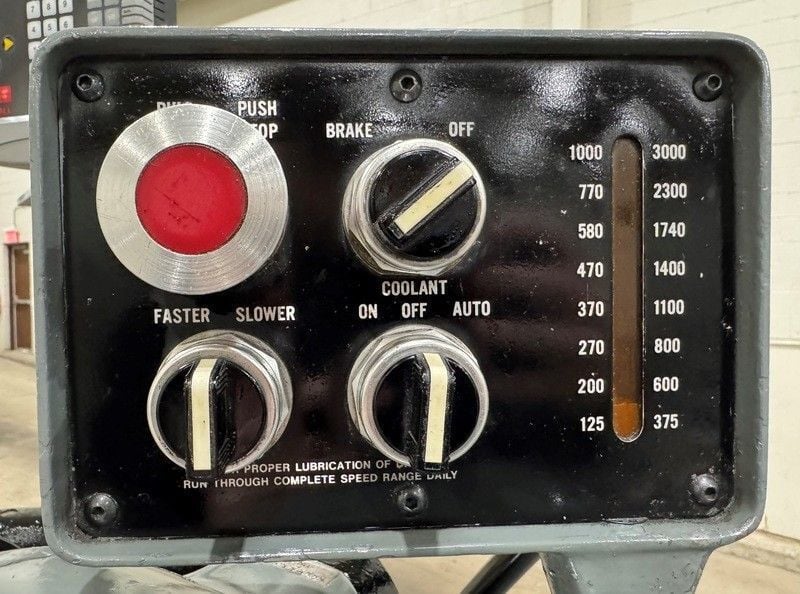

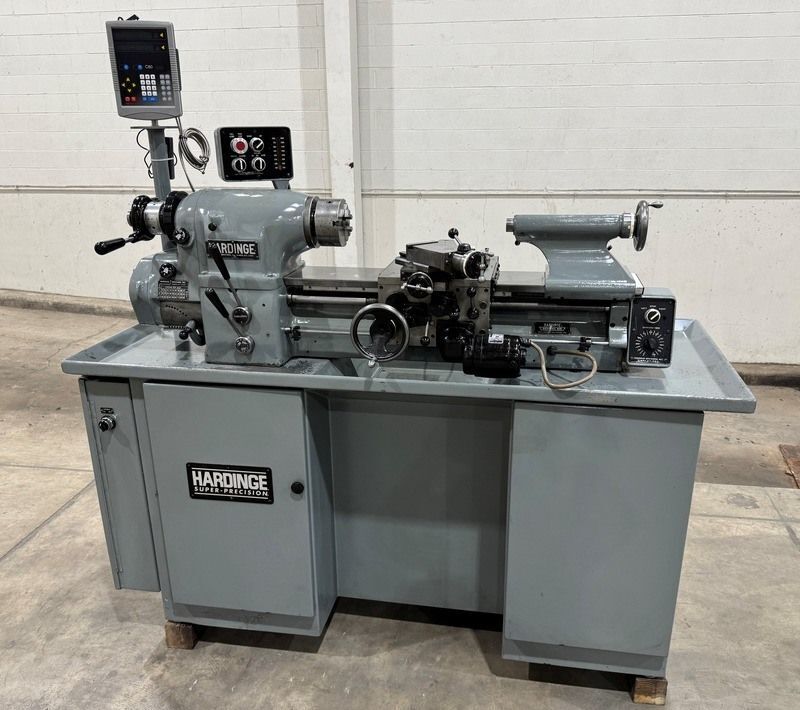

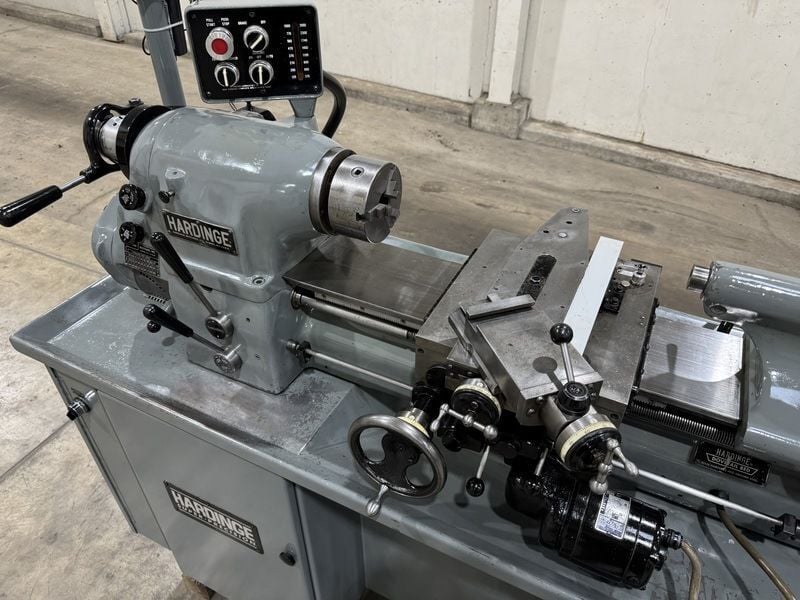

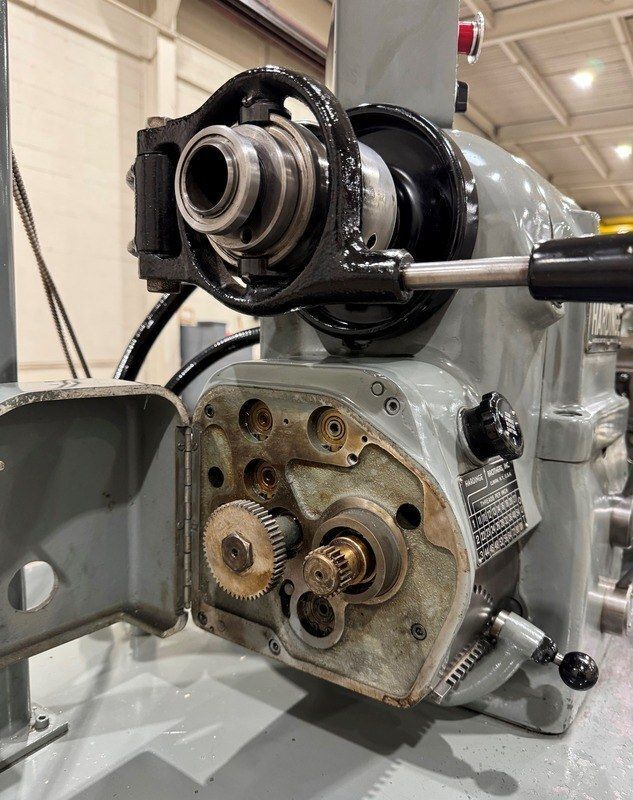

Motor driven with 2-Speed, 3Ph/60Hz/460 volt variable speed drive unit with direct reading spindle speed indicator and controls. Hardinge Super-Precision ball bearing spindle. Hardinge tapered spindle nose. Tool storage compartment. Built-in coolant system. Hardened and ground dovetail bed. Leadscrew threading with automatic stop. Independent electric variable power feed drive for carriage and cross slide. Quick change gear box.
SPECIFICATIONS:
Spindle Capacity 5C Collets – Round…………1-1/16″
Spindle Capacity 5C Collets – Hex…………7/8″
Step Chucks…………1-1/16″ – 6″
Variable Spindle Speeds…………125 – 3000 RPM
Swing Over Bed…………11″
Swing Over Cross Slide…………6″
Swing Over Carriage…………9″
Distance Between Centers…………18″
Hole thru Spindle…………1-1/4″

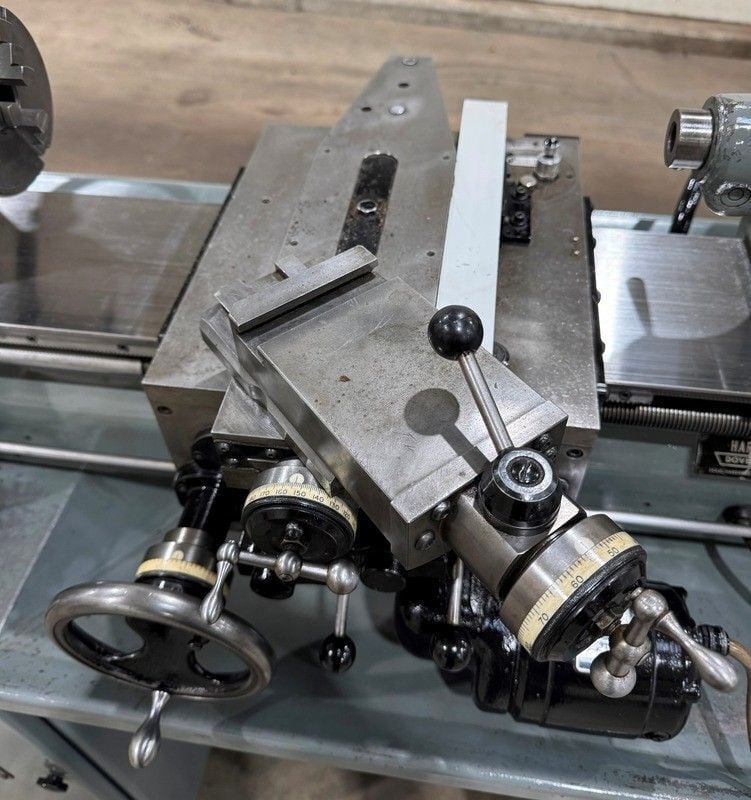

Compound Slide Travel…………3″
Carriage Power Feed Range…………5/16″ – 7 IPM
Cross Slide Power Feed Range…………3/16″ – 4 IPM

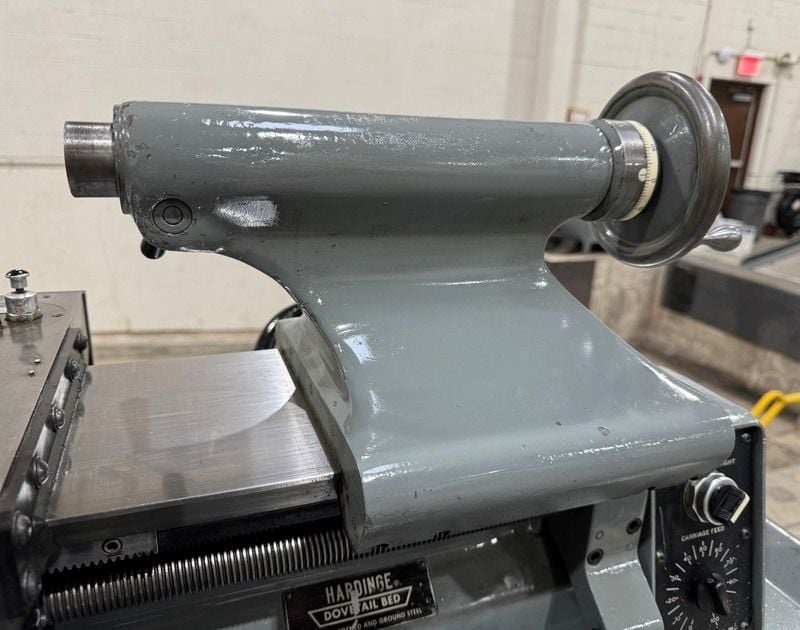

Tailstock Spindle Travel…………3-3/4″
Tailstock Spindle Taper…………No. 2 MT
Lead Screw Diameter…………1″ – 8″ Thread
Electrics…………460V/3Ph/60Hz
Actual Dimensions…………72″L x 32″W x 64″H
Actual Dimensions (Skidded)…………48″L x 48″W x 24″H
Actual Weight (Skidded)…………2,000 Lbs.
EQUIPPED WITH:

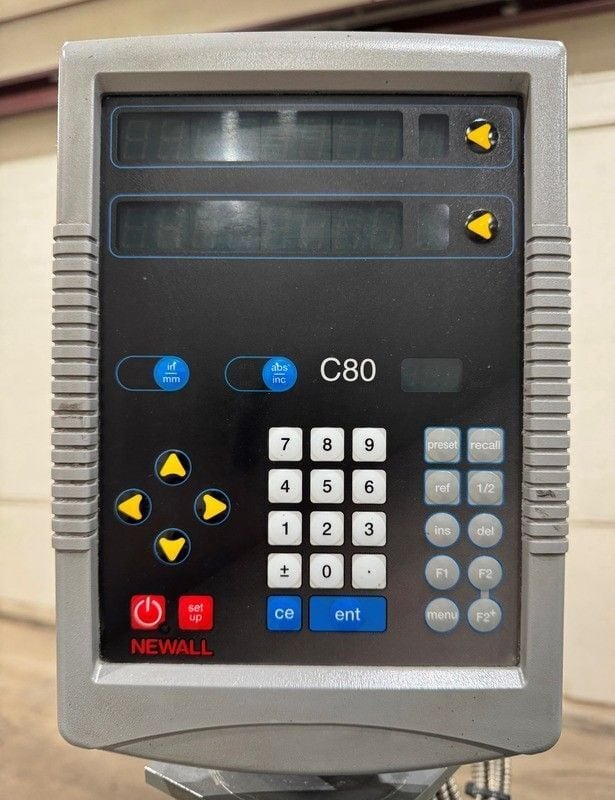

Newall C80 2-Axis Digital Readout

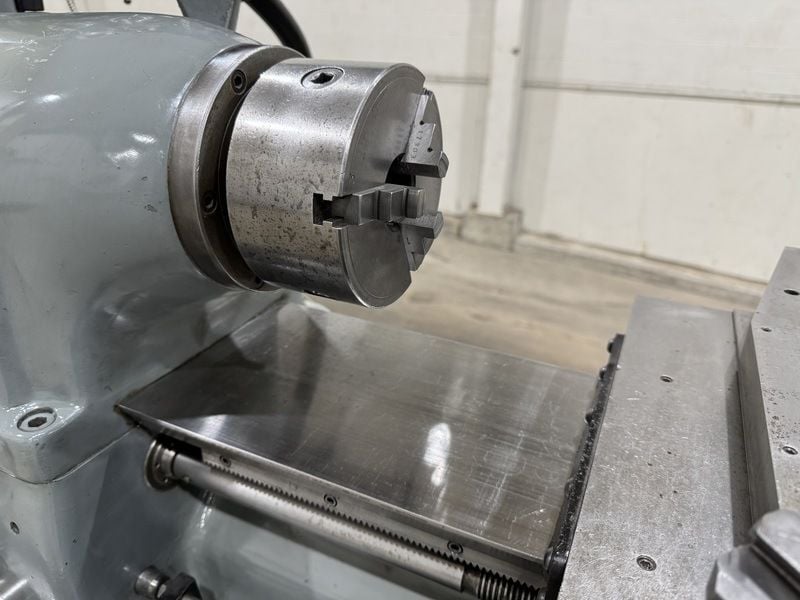

5" 3-Jaw Chuck
5" 4-Jaw Chuck
Assorted 5C Collets
Aloris Tool Holders
M.D. Coolant
*Preliminary specifications, pending confirmation.
Year Built – 1993
Motor driven with 2-Speed, 3Ph/60Hz/460 volt variable speed drive unit with direct reading spindle speed indicator and controls. Hardinge Super-Precision ball bearing spindle. Hardinge tapered spindle nose. Tool storage compartment. Built-in coolant system. Hardened and ground dovetail bed. Leadscrew threading with automatic stop. Independent electric variable power feed drive for carriage and cross slide. Quick change gear box.
SPECIFICATIONS:
Spindle Capacity 5C Collets – Round…………1-1/16″
Spindle Capacity 5C Collets – Hex…………7/8″
Step Chucks…………1-1/16″ – 6″
Variable Spindle Speeds…………125 – 3000 RPM
Swing Over Bed…………11″
Swing Over Cross Slide…………6″
Swing Over Carriage…………9″
Distance Between Centers…………18″
Hole thru Spindle…………1-1/4″
Compound Slide Travel…………3″
Carriage Power Feed Range…………5/16″ – 7 IPM
Cross Slide Power Feed Range…………3/16″ – 4 IPM
Tailstock Spindle Travel…………3-3/4″
Tailstock Spindle Taper…………No. 2 MT
Lead Screw Diameter…………1″ – 8″ Thread
Electrics…………460V/3Ph/60Hz
Actual Dimensions…………72″L x 32″W x 64″H
Actual Dimensions (Skidded)…………48″L x 48″W x 24″H
Actual Weight (Skidded)…………2,000 Lbs.
EQUIPPED WITH:
Newall C80 2-Axis Digital Readout
5" 3-Jaw Chuck
5" 4-Jaw Chuck
Assorted 5C Collets
Aloris Tool Holders
M.D. Coolant
*Preliminary specifications, pending confirmation.
Get Your Price from Liberty Machinery Co!
