Description

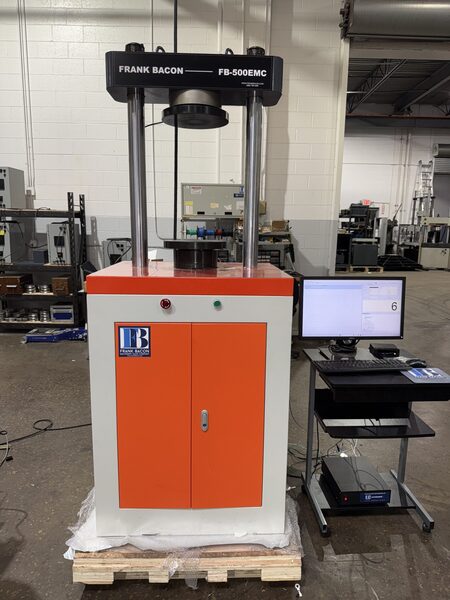

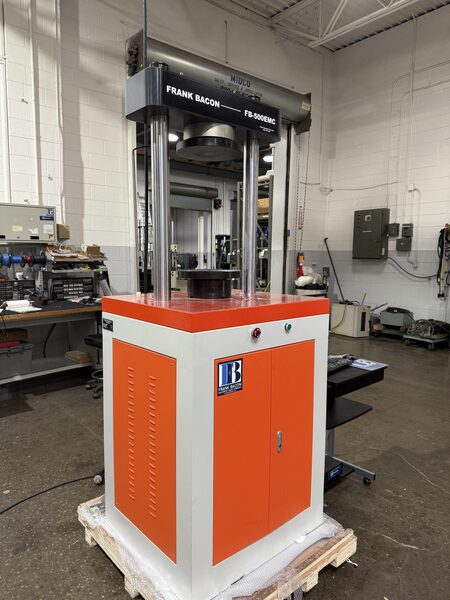

100K (500kN) FB-500EMC Screw Driven Compression Test System
112,500 lbf (500 kN) Capacity Frank Bacon, Model FB-500C, Screw Driven Compression Testing Machine.
100K (500kN) FB-500EMC Compression Test System
SPECIFICATIONS:
Compression Testing Opening (Less Tooling): 19.5"
Distance Between Columns/Screws: 17.5"
Testing Stroke: 3.9" (100 mm)
Testing Speed (IPM): .002 to 1.5

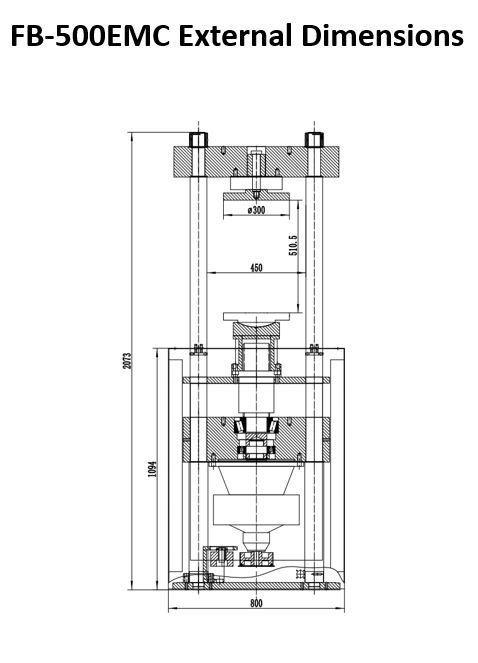

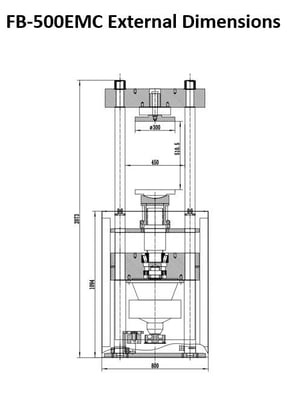

Load Frame Dimensions (W x D x H): 29" x 26" x 82"
Approximate Weight (lbs): 2,646
Electrical Requirements (V,Hz,PH): 200-240, 60, 3
EQUIPPED WITH:
- Computer System with Keyboard and Mouse.
- 24" LED-Backlit LCD Color Monitor
- Microsoft Windows 11 Professional, Workstation
- MTGenius, Material Testing Software for Data Acquisition (load, position, 2 strain & aux), Analysis and Computer Controlled Testing with Manual.

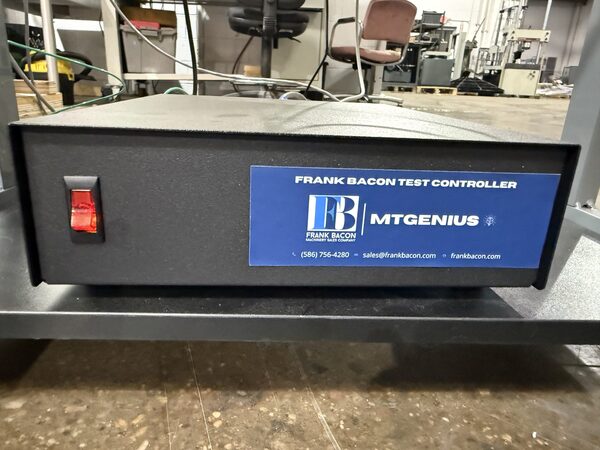

- MTGenius, Micro console for sensor excitation and analog/digital signal processing with USB Cable.
- 300mm Diameter Upper and Lower Compression Platens
- 500kN Compression Precision Load Cell Indicating System
FOB Warren, MI
2 Year Parts and Labor Warranty
*Actual Image
| #FB-500EMC
DOWNLOAD SPEC SHEET
