10000 lb. CWP #4.5RM-24 / SMX-24PTS, 24" W, 72" OD, 15.5"-20.5" ID, 3-leaf mandrel, 2013

Coil weight capacity: 10000 pounds

Stock Width Capacity 24 inches

Max Stock Thickness Capacity At Full Width .093 inches

Minimum expansion range: 15.5 inches

Maximum expansion range: 20.5 inches

Coil O.D. capacity: 72 inches

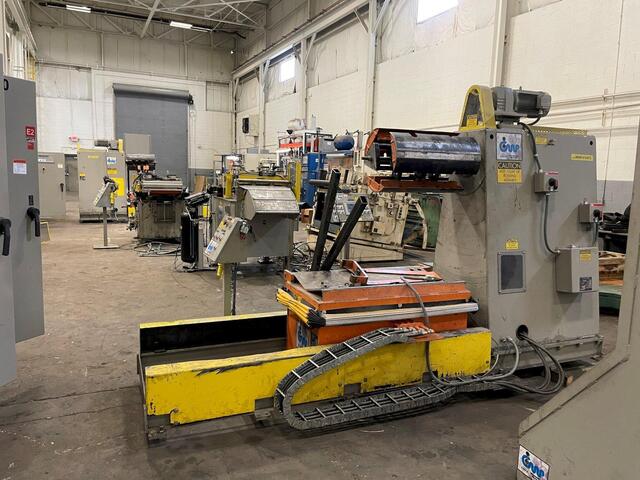

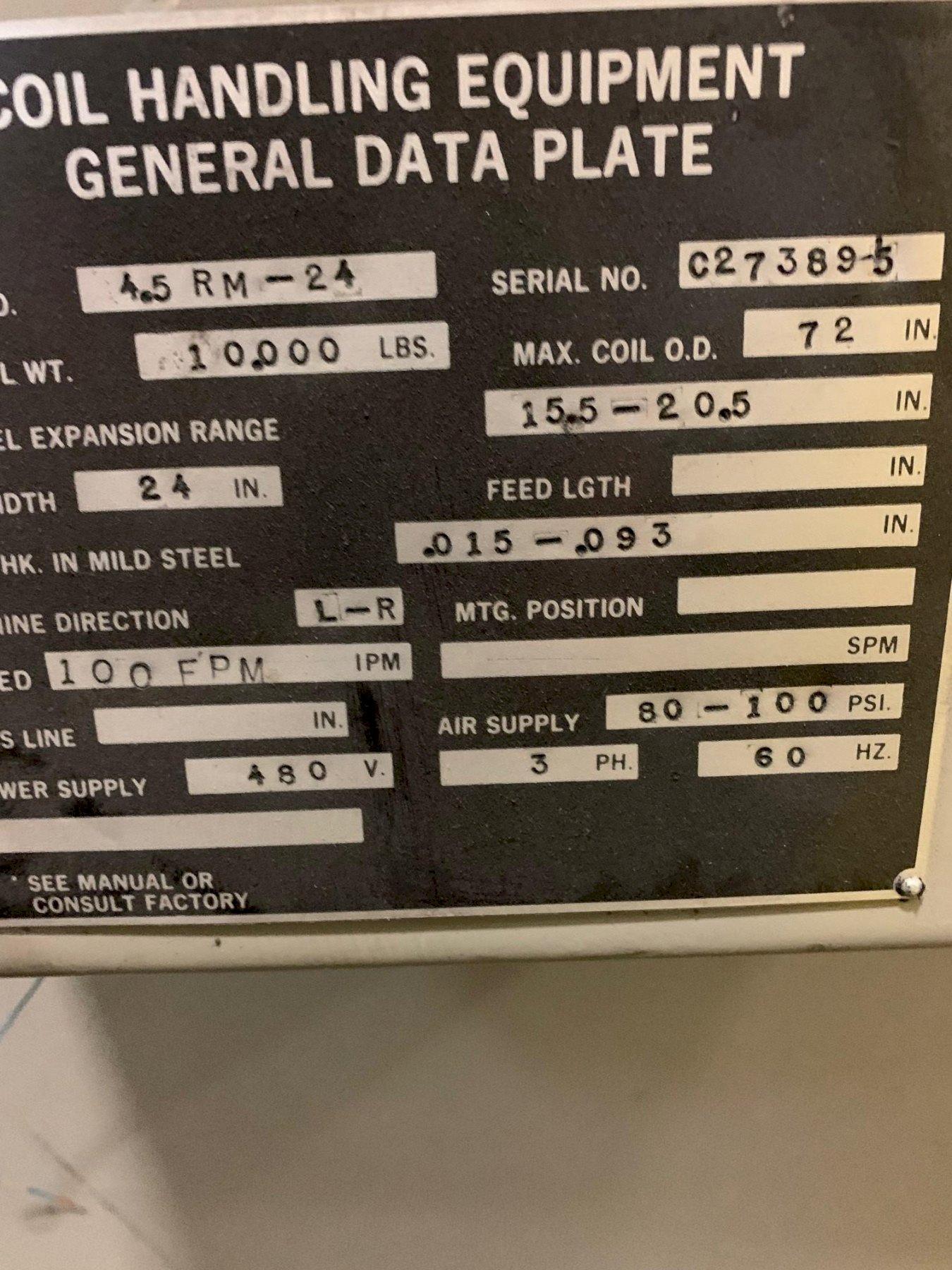

CWP Coil Reel Model No. 4.5RM-24
Three leaf mandrel with adjustable coil keeper arms
Hydraulic mandrel expansion
Motorized payout
Self contained hydraulic unit

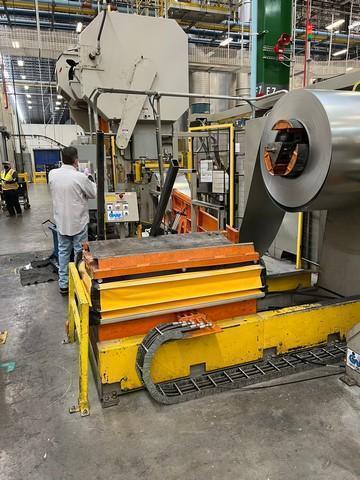

Traveling coil load car
Clock spring guard

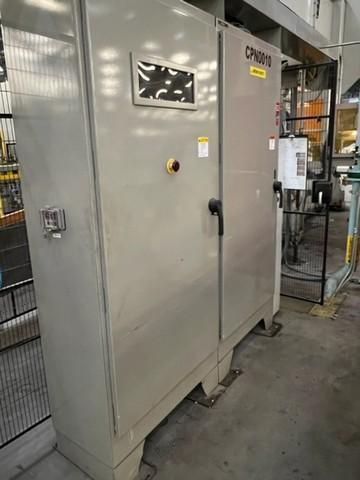

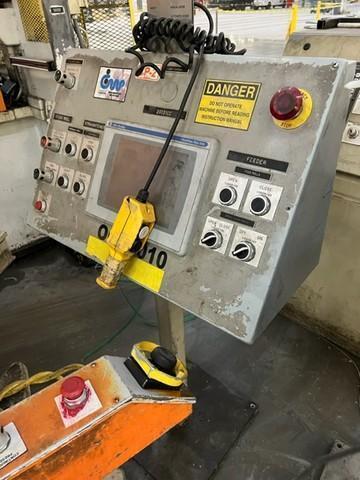

Operator's control station
Loop control - variable speed
CWP Exit threading table
Bomb-Bay door design

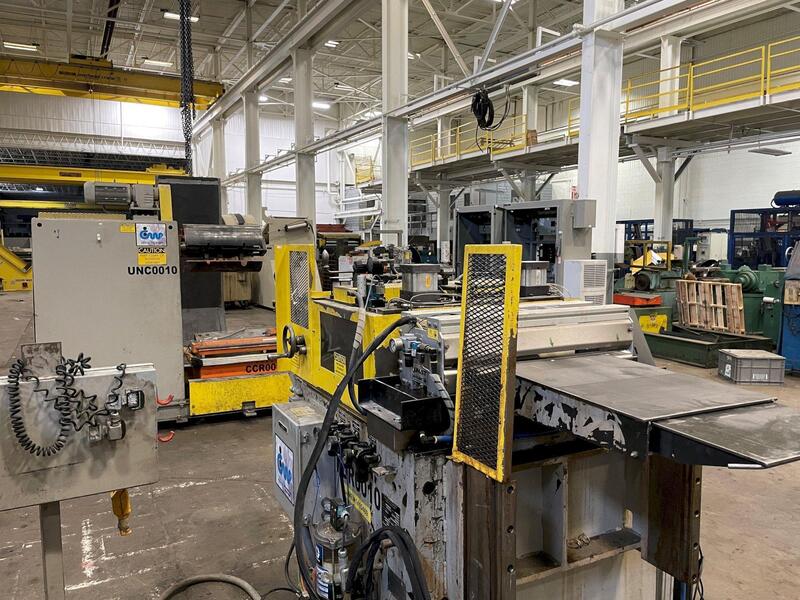

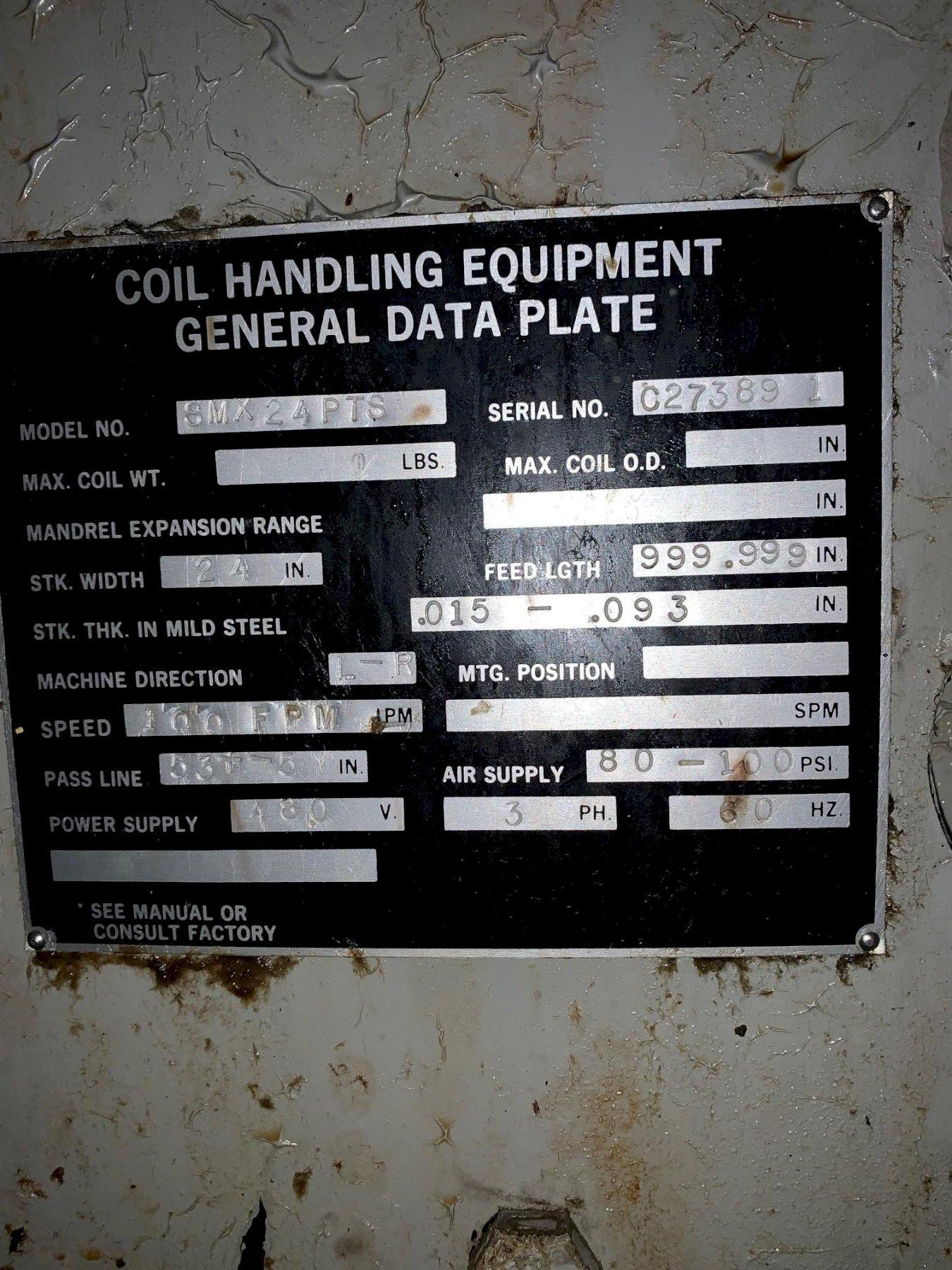

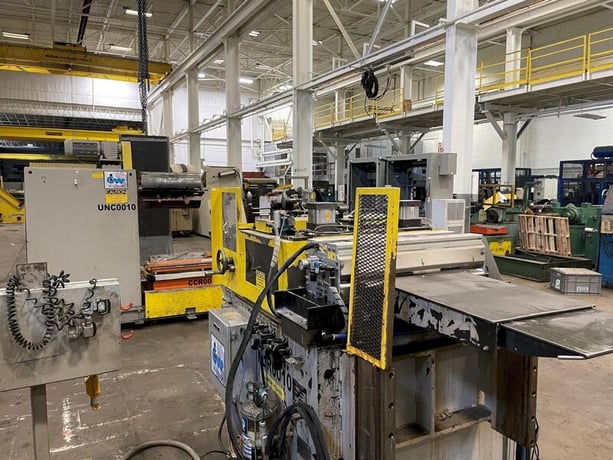

CWP Servo Feed Feed - Straightener Combination Model No. SMX24
Feed rolls with air operated upper roll lift / pilot
Straightener SM5-24
Entry pinch rolls for stock threading with air operated upper roll adjustment
Five straightening rolls
Entrance cascade loop support rollers
Hand crank edge guides
Cabinet base with adjustable pass line height range
Equipment Feature Highlights:

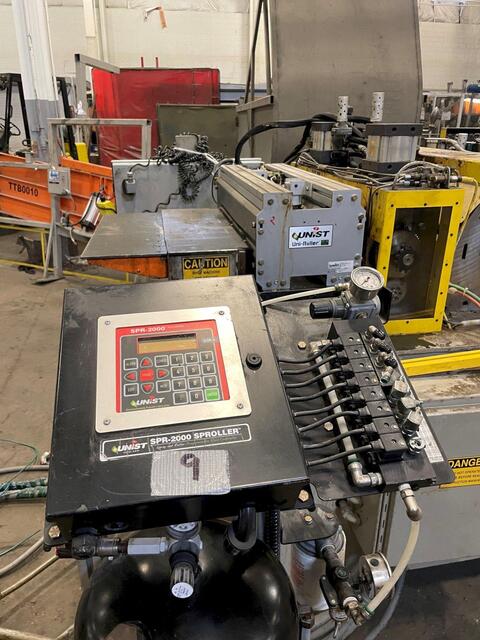

UNIST Stock lubricator system
Telescoping stock supper table at exit side of feed

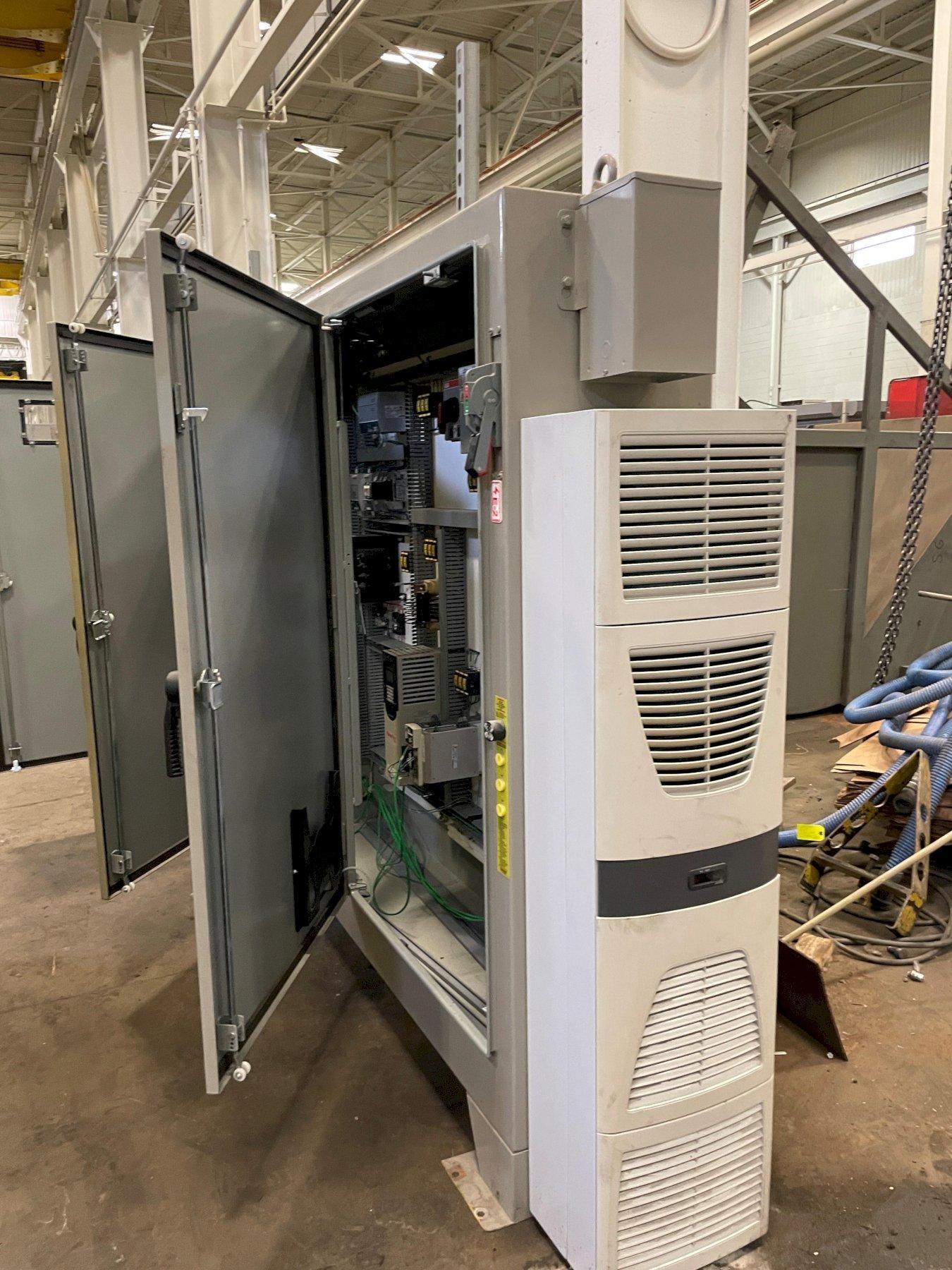

Air conditioner on main control panel
Quick disconnect cable and wire management
Automatic lubrication system on servo feed
NOTE: Line layout included under Files Tab on main web page listing
