10000 lb. Minster #MR10-20D/MS20-20-7/MEF4-20, Coil Feed Line, 20" coil width, 0.110" coil thickness, 1996

Manufacturer: Minster
Model: MR10-20D / MS20-20-7 / MEF4-20
Year: 1996
CapacityLbs.: 10000
Stock # 3039

For Sale by S & G Press & Machinery Sales

Surplus Record Dealer Since 1996
Gold Level Dealer
Location: Shelby Township, MI
Contact Sergio Gasperoni
Let the seller know you found their listing on Surplus Record!

Description

Specifications

Coil Weight

10000 pounds

Coil Width

20 inches

Coil Thickness

.110 inches

Used Minster Coil Feed Equipment For Sale
10,000 lbs. x 20 inch Wide x .110" Capacity
Year 1996 - Can be seen Under Power!

Minster Conventional Coil Feed Line Specifications:

10,000 lbs. Coil Weight Capacity (per side)
20" Maximum Coil Width
.110" Capacity at Full Material Width
.020" Minimum Thickness Material
.200" Maximum Thickness at 5" Width
20"-24" Coil I.D. Range
60" Maximum Coil O.D.
Left to Right Feed Direction
60-600 IPM Line Speed
Minster Conventional Coil Feed Line Equipment and Features:

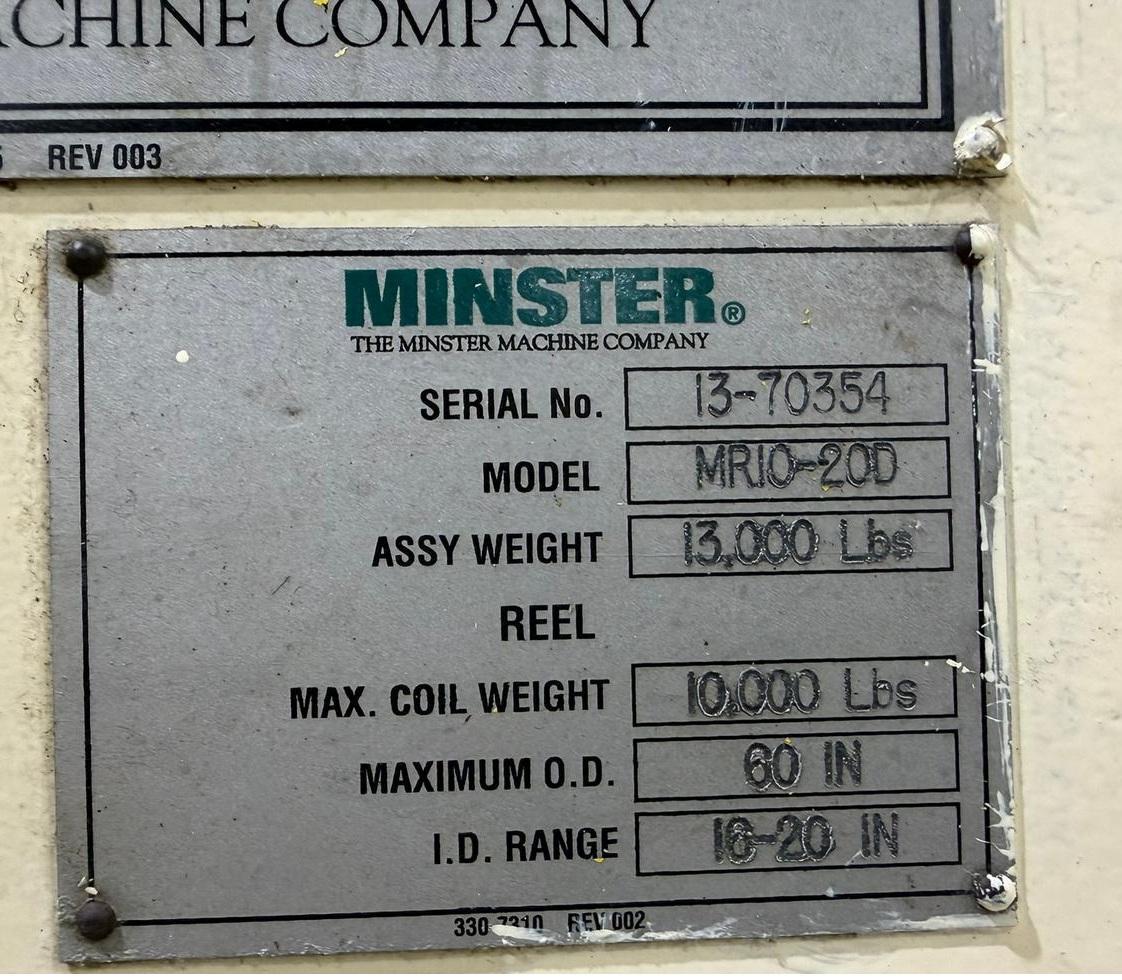

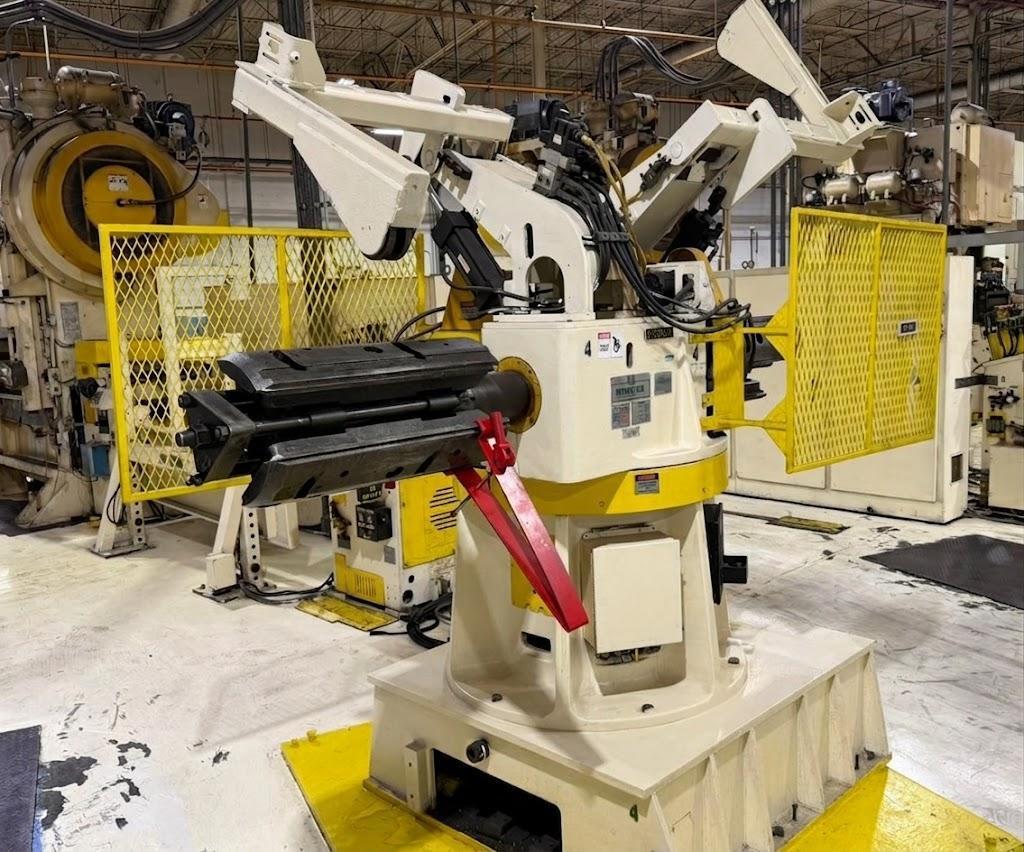

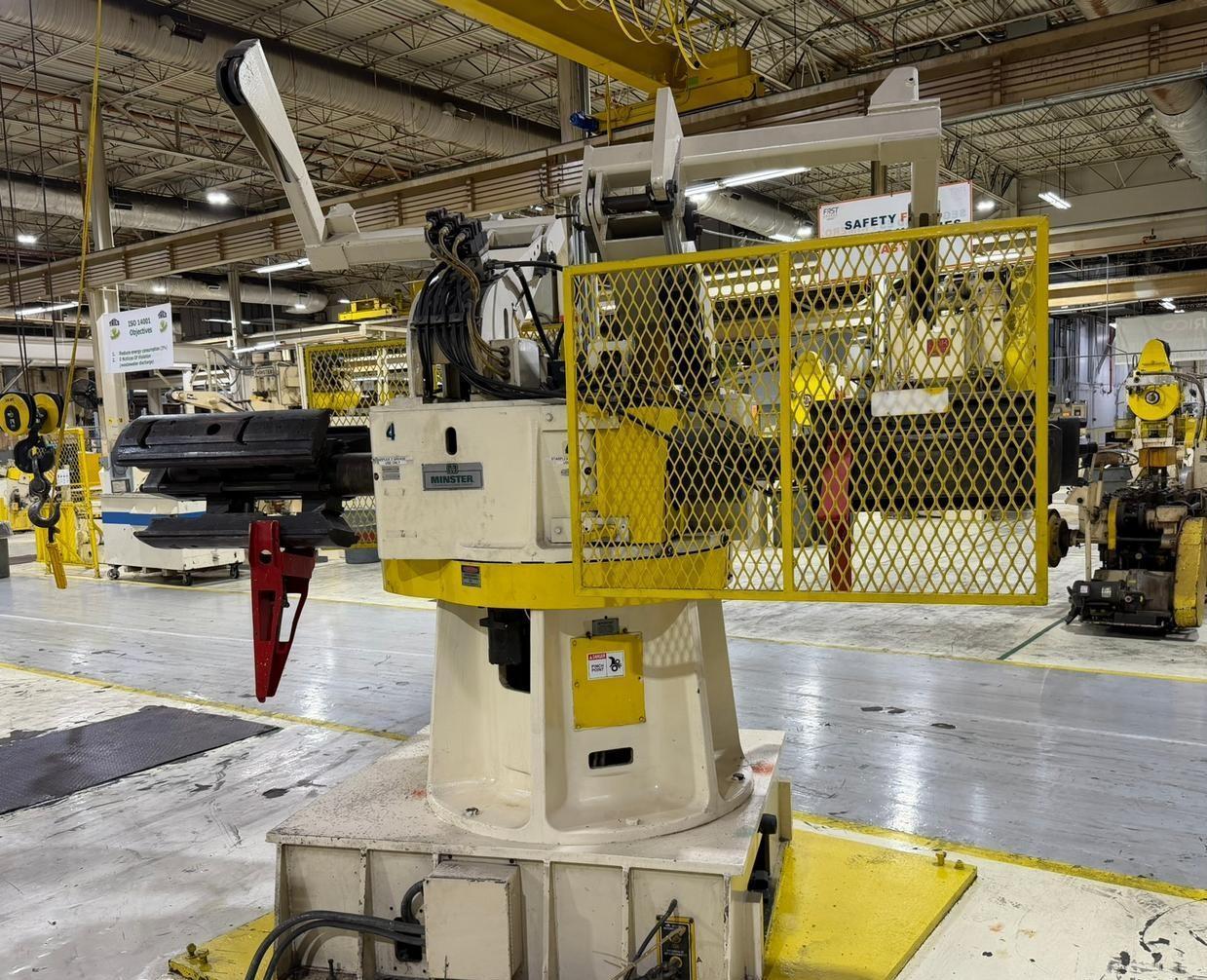

Minster Pull Off Double End Coil Reel Model# MR10-20D, SN/ 13-70354
Three leaf mandrel coil reel per side
Coil reel keeper arms
Hydraulic mandrel expansion
Air drag brakes mounted on main coil reel spindles
Outboard air regulators for drag brake adjustments
Hydraulic threading drives for jog forward and reverse
Hydraulic operated coil hold down arms
Motorized coil hold down arm end wheels
Air operated turret locking pin
Hydraulic turret rotation
Self Contained Hydraulic Unit

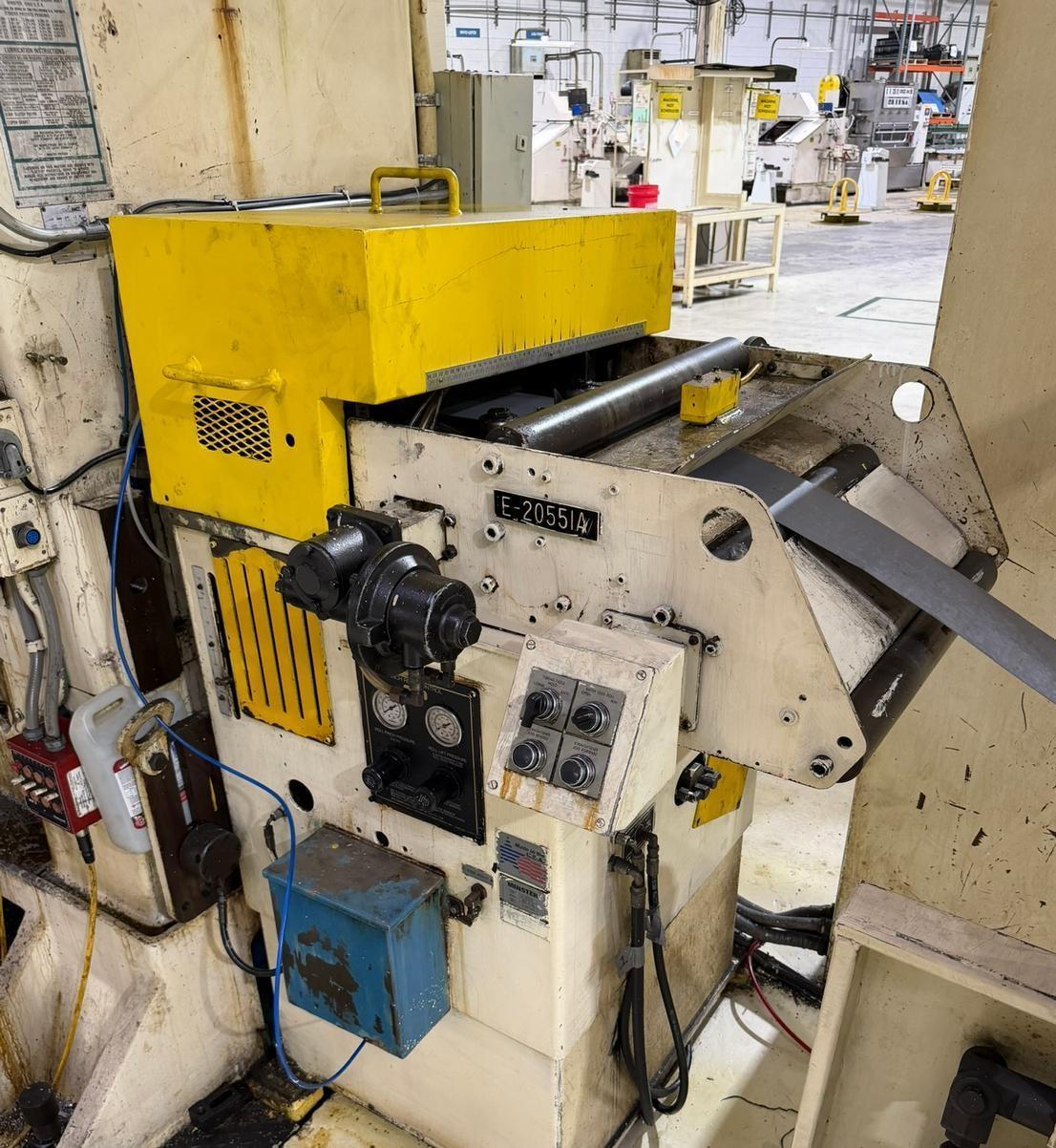

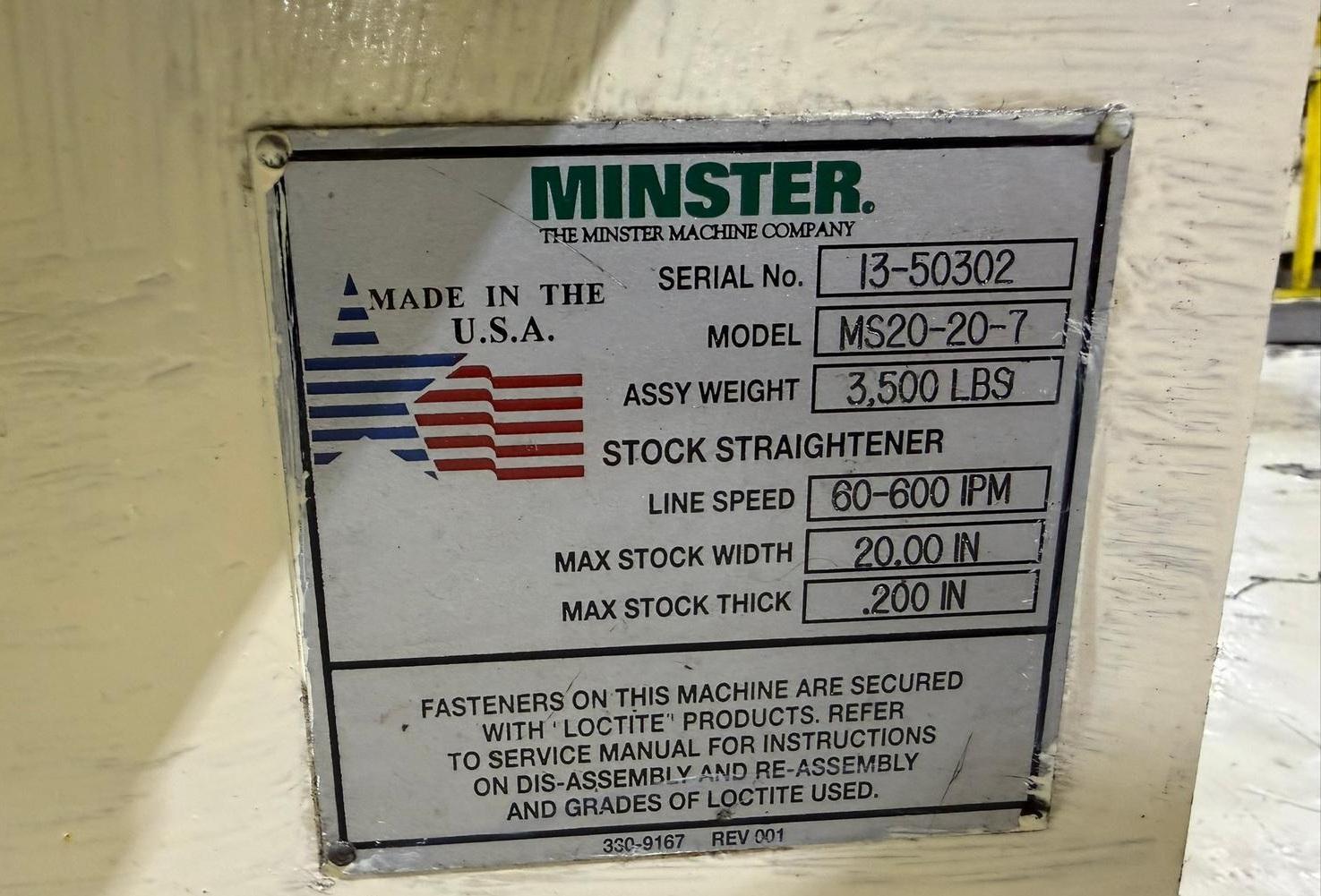

Minster Powered Coil Straightener Model# MS20-20-7, SN/ 13-50302
Entry and exit powered coil straightener pinch rolls with air operated adjustment
Outboard air regulator for upper powered coil straightener pinch roll air pressure adjustment
Seven coil straightening rolls x 2" diameter
3.3" Diameter Air Actuated Pinch Rolls
Hydraulic upper straightener roll adjustments
Digital upper straightening roll depth displays
Motorized Stock Guide Adjustment with Digital Readout
Inclined powered coil straightening head
Cascade loop support section
Auto lubrication system
Variable speed powered coil straightener drive
Common operator's control station for coil reel and powered straightener functions
Jog forward and reverse
Auto / Run cycle
Loop control
480 Volt

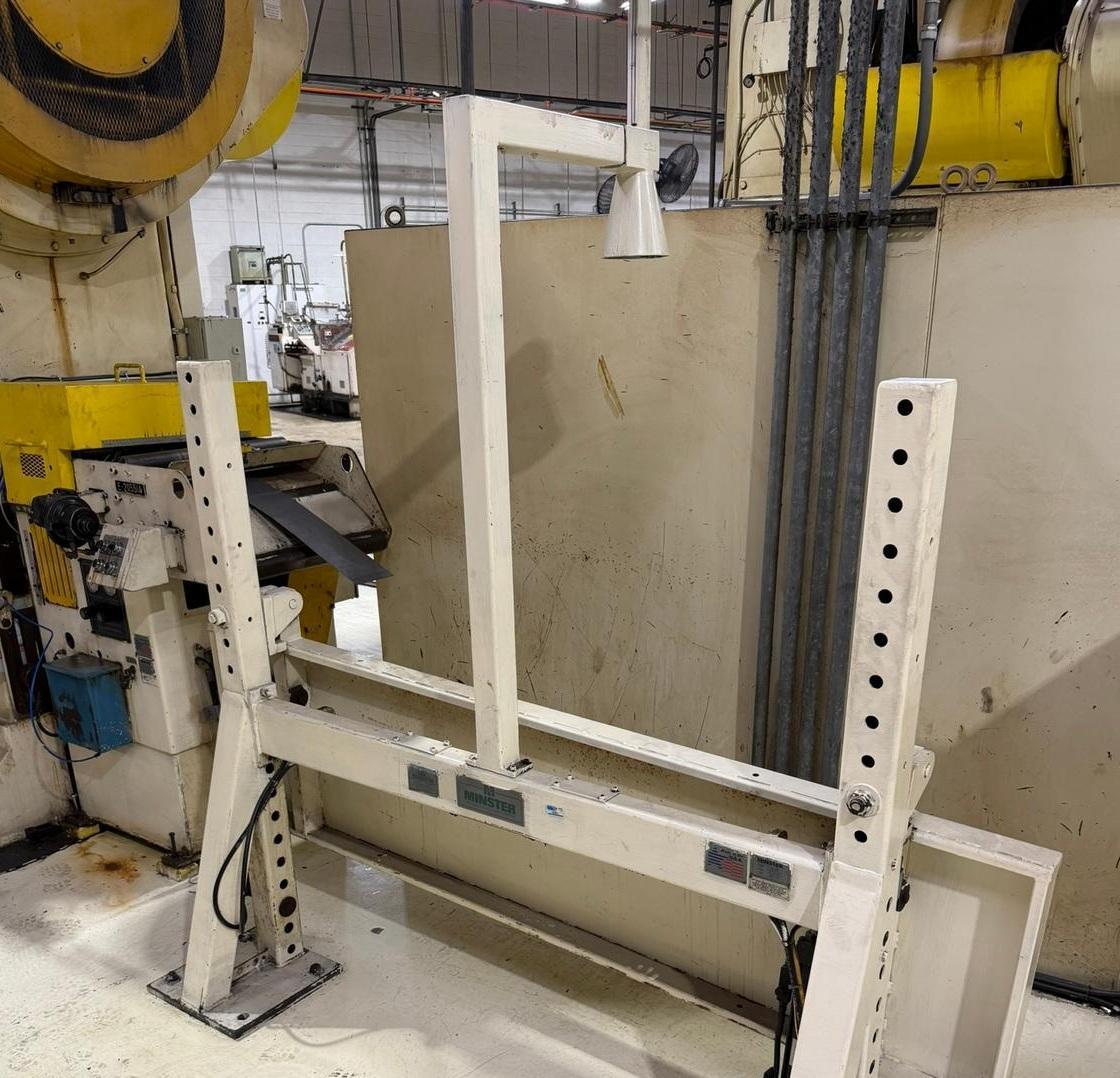

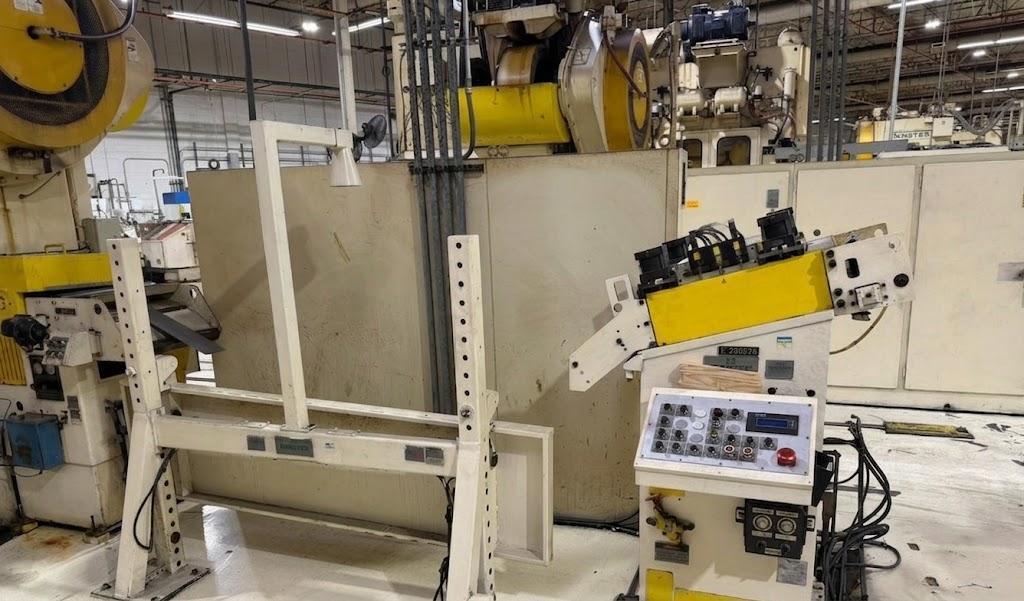

Minster Threading Table Model# MTT8-26S, SN/ 13-81112
Air Actuated
Length of Table 8' Long
Single Side - Bombay door style
Ultrasonic Loop Control Sensor

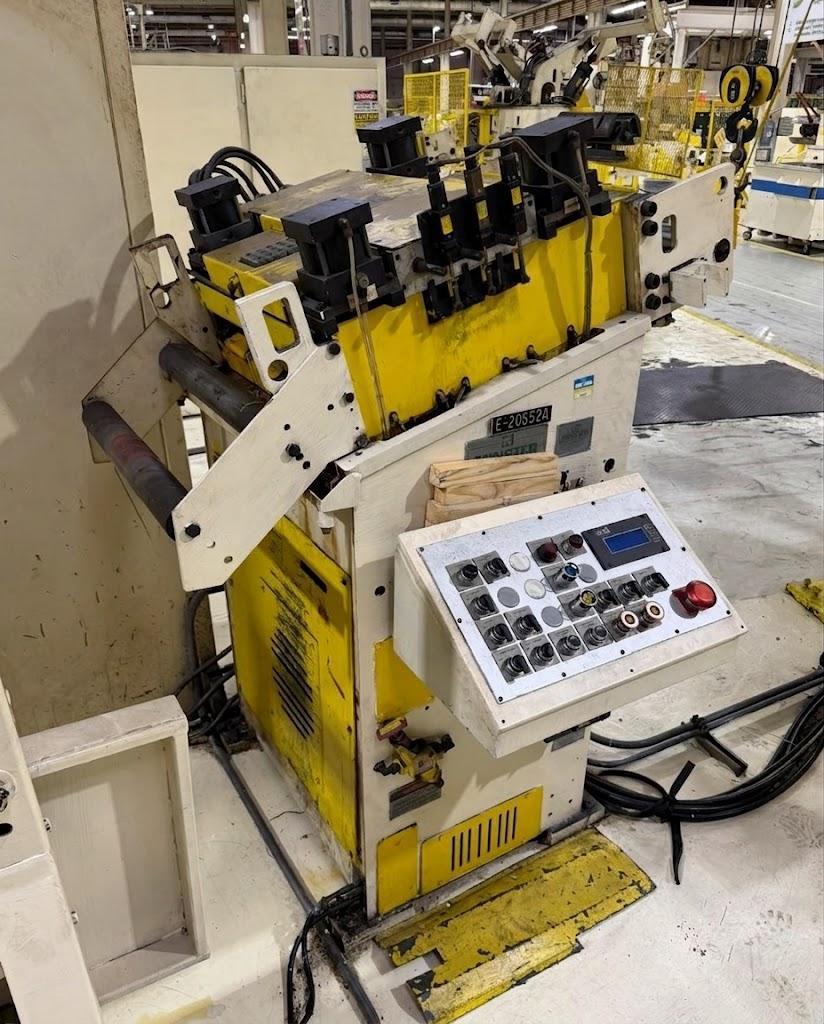

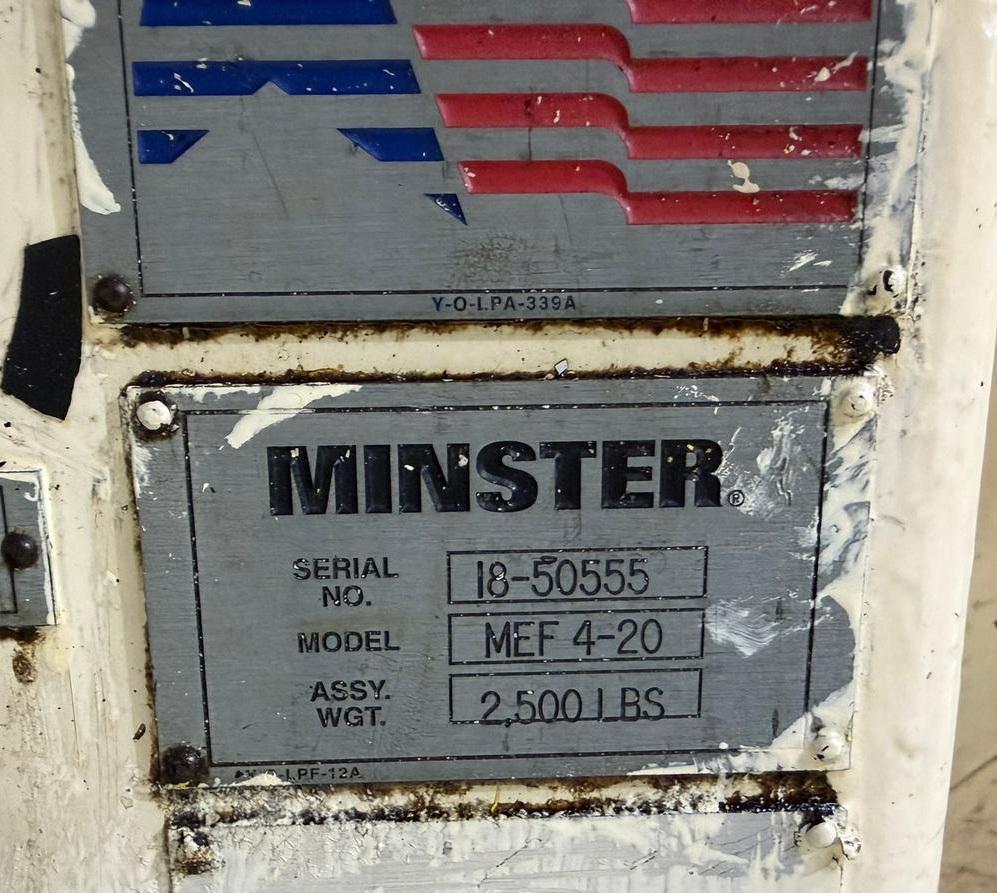

Minster Servo Roll Feed Model# MEF4-20, SN/ 18-50555
4 inch diameter upper and lower servo feed rolls
48"-57" Pass Line Range
Air operated upper servo feed roll lift / pilot release
Cascade loop - material support rollers
End Of Stock Detector
Hydraulic Pass Line Mounting Clamps
Cabinet mounted with Motorized Pass Line Adjustment
Motorized Adjustable stock width edge guides
AC servo roll feed drive and controls
Job memory micro adjust batch count etc. (Consult sales for complete details)
Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
Fused disconnect

Upgrade your stamping operations with this exceptional 1996 Minster 10,000 lbs. x 20" conventional coil feed line, engineered for high-precision, heavy-duty production. Designed to handle material up to .110" thick at full width (and up to .200" at 5" width), this production-ready line features a double-end reel (MR10-20D), an MS20-20-7 powered straightener with digital readouts, an 8' threading table, and an MEF4-20 AC servo roll feed operating at speeds up to 600 IPM.

Why Buy From S&G Press? Purchasing from S&G Press guarantees industry-leading expertise and total reliability. Available to inspect under power at our Livonia, Michigan facility, this feed line undergoes rigorous operational checks so you can buy with total confidence. S&G Press delivers trusted machinery solutions, unmatched technical support, and seamless integration for your plant floor.
