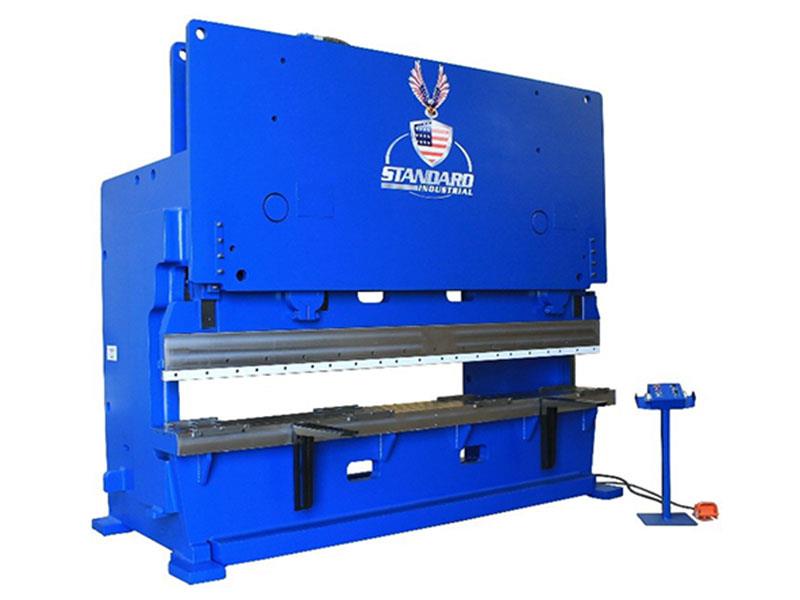

100 Ton, Standard Industrial #AB100-12, hydraulic press brake, 12' overall, 125" between housing, 6" stroke, 6" throat, 13" open, 15 HP, 2026, new

Manufacturer: Standard
Model: AB100-12
Year: 2026
Tons: 100.0
Overall: 12.0
Between Housings: 125.00
Stock # BQ-300081

For Sale by Ex-Factory

Surplus Record Dealer Since 2022
Gold Level Dealer
Location: Charlotte, NC
Contact Sales Dept.
Let the seller know you found their listing on Surplus Record!

Description

STANDARD INDUSTRIAL 12′ x 100 Ton AB100-12 Hydraulic Press Brake

Manufactured in the USA including a 5 Year warranty!


Specifications:

  • Tonnage Forming/Punching: 100/66
  • Distance between housings: 10’-5”
  • Bed/Ram length: 12’
  • Below grade: No
  • Top bed height: 35"
  • Bed width: 4.5"
  • Throat depth: 6"
  • Ram stroke: 6" (fully adjustable)
  • Open height: 13"
  • Closed height: 7"
  • Main motor: 15 HP
  • Ram speeds:
    - Approach: 127 IPM
    - Press: 22 IPM
    - Return: 163 IPM

    Features:
  • Perfect for full length and off-center loading applications
  • Full Tonnage across Bed and Ram
  • Full Tonnage throughout Stroke
  • Simple limit switch ram control (CNC optional)
  • Counterbalance for Punching applications
  • UL508A compliant
  • Typical +, - .001” Repeatability
  • (2) 24” Work Support Arms
  • Manifold centralized lube system
  • Hand/Foot sequence w/footswitch
  • T-slot across front edge of brake bed
  • Off The Shelf, Readily Available from Your Local Suppliers
  • Groove in Bed and Ram Clamps for American Style Tooling
  • 5 Year Parts Warranty + 5 Year Limited Onsite Labor Warranty
  • Typical 30+ year lifetime, plus a lifetime of parts and service availability

    Optional Equipment:
  • T-slot support arms - Available in 24”, 36” or 48” and with imbedded scales.
  • Quick-change, quick-disconnect style support arms.
  • CNC sheet assist - CNC controlled for precision part following.
  • Tooling - Single V, Four Way Conventional tooling plus Wilson/Wila Precision Ground, Segmented tooling.
  • Manual crowning - allows the operator to set the desired deflection.
  • American and new standard precision tooling.
  • CNC Crowning - CNC crowning allows the operator to program the desired deflection for each job reducing set up time.
  • Ram and bed clamping systems - Quick-change, powered clamping systems for upper and lower tooling.
  • Auto return of ram - allow ram to return to upper limit.
  • Decompression system - allows oil pressure to bleed off to reduce shock to hydraulic system.
  • Automatic lubrication system - Automatically pumps EP-1 grease through lubrication system.
  • Extra stroke / extra open height / deeper throats/ horn extensions
  • Robotic interfaces
