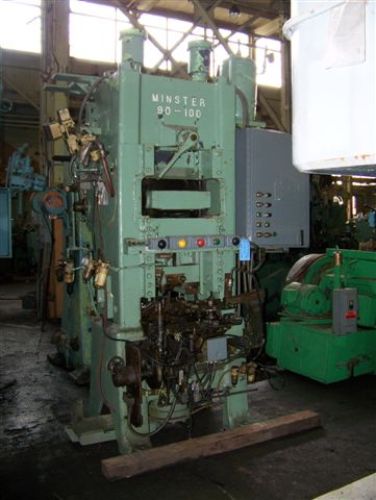

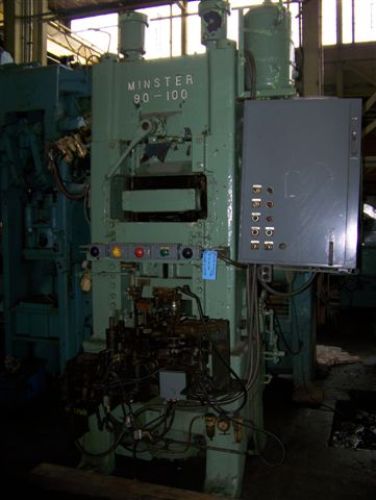

For Sale by National Machinery Exchange
Description
RATED CAPACITY ........................... 100 TONS
SPM ..................................... 30-60
SLIDE ADJUSTMENT ......................... 1/2"
STROKE OF SLIDE .......................... 3-1/2"
SHUT HEIGHT .............................. 10"
BED AREA ..........(LR X FB).............. 24" X 22"
RAM AREA ..........(LR X FB).............. 20" X 10"
BOLSTER AREA ......(LR X FB X THICK)...... 24" X 27" X 3"
DISTANCE BETWEEN GIBS .................... 16-1/2"
SIDE FRAME OPENING ...(FB X HIGH)......... 6" X 11"
WIDTH BETWEEN UPRIGHTS ................... 24" TO CLEAR
WEIGHT ESTIMATED ........................ 16,000#
O.A. DIMENSIONS ...(LR X FB X HIGH)....... 7' X 5'3" X 11'6" WITH MOTOR
EQUIPPED WITH: AIR CLUTCH
TIE ROD FRAME CONSTRUCTION
DIRECT V-BELT MOTOR DRIVEN
5 HP 3/110-440/60 (1800 RPM) MOTOR WITH
VARIDRIVE AND CONTROLS
AIR COUNTERBALANCE
AIR CUSHION
RATCHETING SLIDE ADJUSTMENT
KNOCKOUT IN RAM
PALM BUTTONS
11 STATION X 15" DIAMETER DIAL FEED
