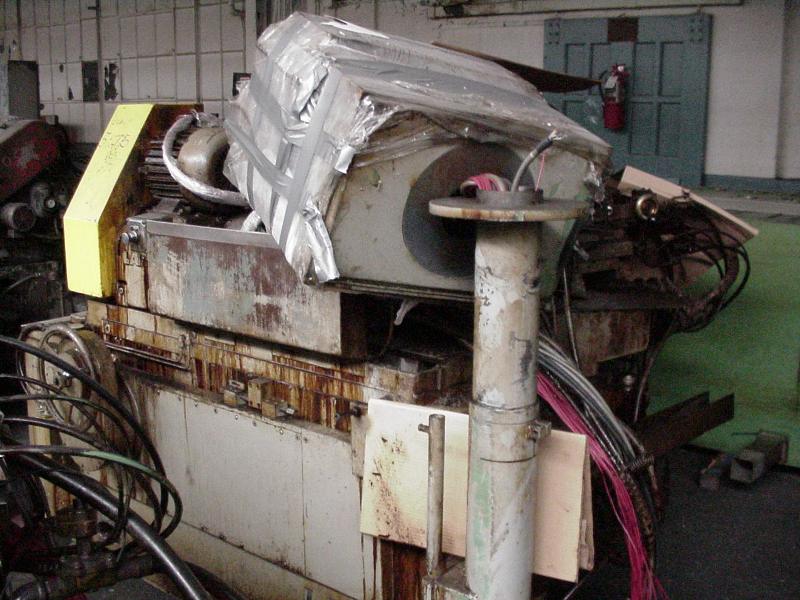

10" x 24" Landis #3R, angle head cylindrical grinder, 30 deg., 7" work rest capacity, 24" x 8" x 12" grinding wheel, 10 HP, 800/964 RPM, 1978

10" x 24" Landis, Model 3R Angle Head Cylindrical, Plunge Control Stepping Motor, Hydraulic Tail Stock, Behind Wheel Tru-Form Dresser, As Is
10 x 24 3R LANDIS 30 DEGREE ANGLE HEAD CYLINDRICAL GRINDER
S/N 848-26 Year: 1978
STANDARD CATALOG SPECIFICATIONS
Nominal work swing..................................... 10
Maximum work swing over table.......................... 10 31/32
Nominal distances between work centers................. 24
Maximum work swing and diameter standard machine will
grind with full size standard wheel on machine with
hydraulic infeed stroke...................... 106‑2 H.I.
Minimum diameter wheel to grind zero diameter work on
centers................................................20
Coolant tank capacity.................................. 40 gallons
Hydraulic tank capacity................................ 19 gallons
WORK CARRIAGE
Traverse speed, all lengths thru72......... 2 to 240 IPM
Traverse speed, per turn of handwheel:
(slow)............... 0.100 (fast)......... 0.750
Work rest capacity........................... 1/2 to 7
HEADSTOCK FOOTSTOCK
Work centers.................................No. 10 Jarno
Foot stock center movement by................ lever and hand wheel
Head stock work speeds RPM
Dead spindle................................. 72‑116‑185‑300
WHEELHEAD WHEELFEED
Grinding wheel, size(standard).................... 8 x 24 x 12
Grinding wheel, maximum width...................... 8
Grinding wheel, spindle speeds..................... 800/964 RPM
Grinding wheel, minimum diameterof worn wheel..... 12
Basicmachine................................. 0.0003 to 0.004
Machine w/hydraulic infeed................... 0.0002 to 0.004
Distance wheel centerline to work centerline:
Work diameter reduction per revolution of wheel feed
hand wheel........................................ 0.100
Work diameter reduction per revolution of fine knob:
Basic machine...................................... 0.010
Hydraulic infeed.................................. 0.001
Maximum hydraulic in feed on diameter for hydraulic
in feed machines................................... 0.090
Rapid in feed stroke for hydraulic in feed machines:
Maximum............................................2
Minimum............................................1/2
ELECTRIC MOTORS
Wheel drive motor.................................. 10 HP
Wheel spindle lubrication pump motor............... 1/4 HP
Work drive motor................................... 1/4 HP
Hydraulic pump and lubricating drive motor......... 2 HP
Coolant pump motor................................. 1/4 HP
GENERAL DATA
Swivel table graduated inches per foot............. 4 1/4
Degrees included angle............................. 19 degrees
Height from floor to work centerline............... 40 3/4
Net weight......................................... 10,400 lbs.
EQUIPMENT FEATURES
Plunge control stepping motor.
Hydraulic operated tail stock.
Behind wheel Tru-form dresser.
Landis Microtronic controls.
Microsphere bearings.
Very good operating condition!
