10" x 10" Marvel #V10A, Vertical Bandsaw, 208 V., 3 phase, Rebuilt

This saw will be completely rebuilt.

We brought it in house Stripped the sheet metal and sent everything out for cleaning.
We will go through it and replace worn and bad parts as needed. All bearings and operator switches
will be replaced.

This saw will take 8-12 weeks from order to complete.
It is in the "up-next" position for rebuild.

$5000 down payment for first refusal

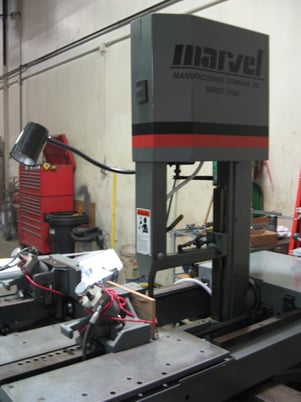

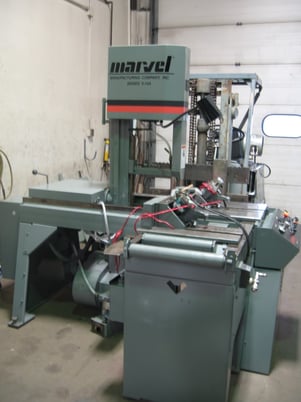

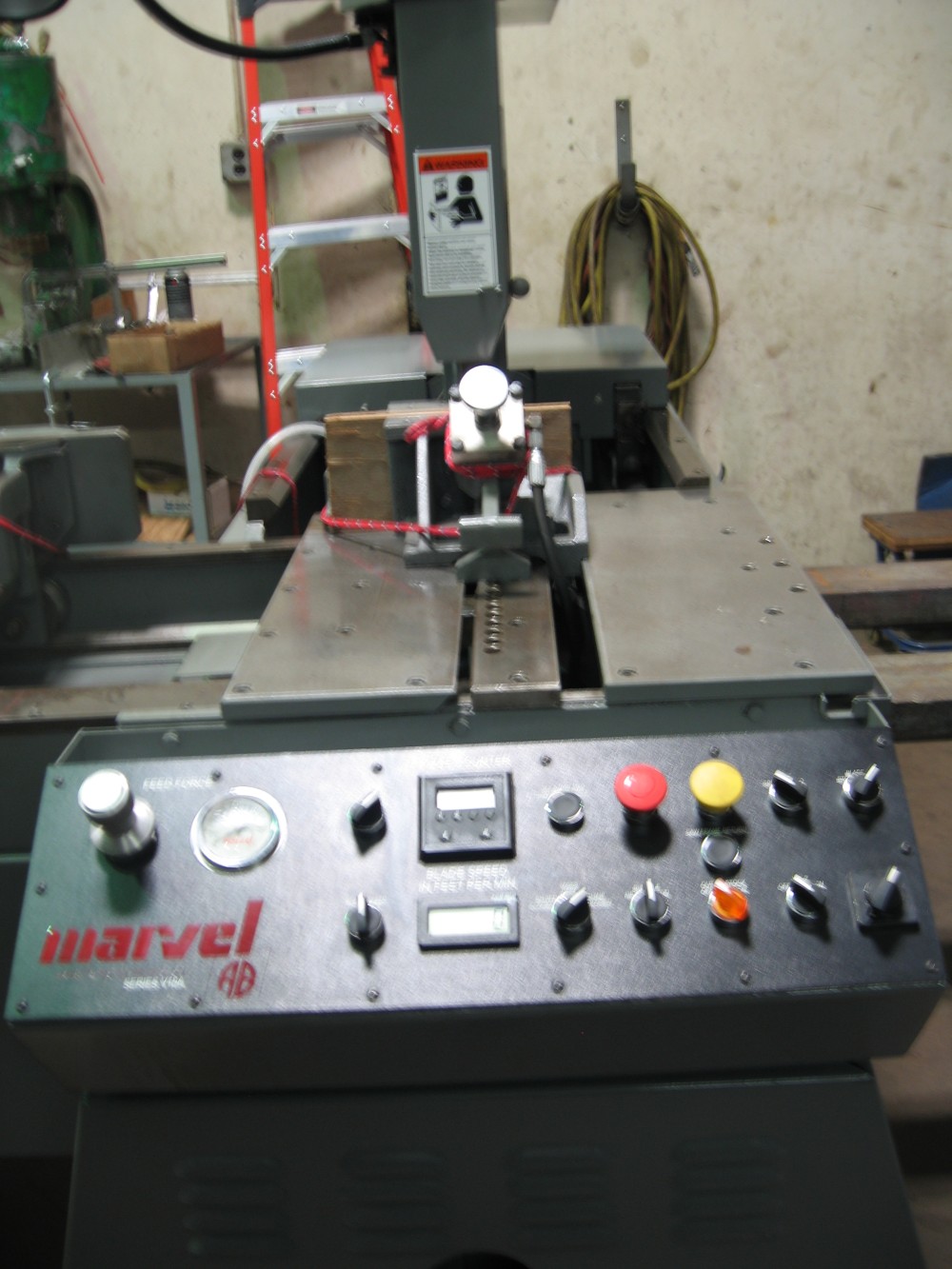

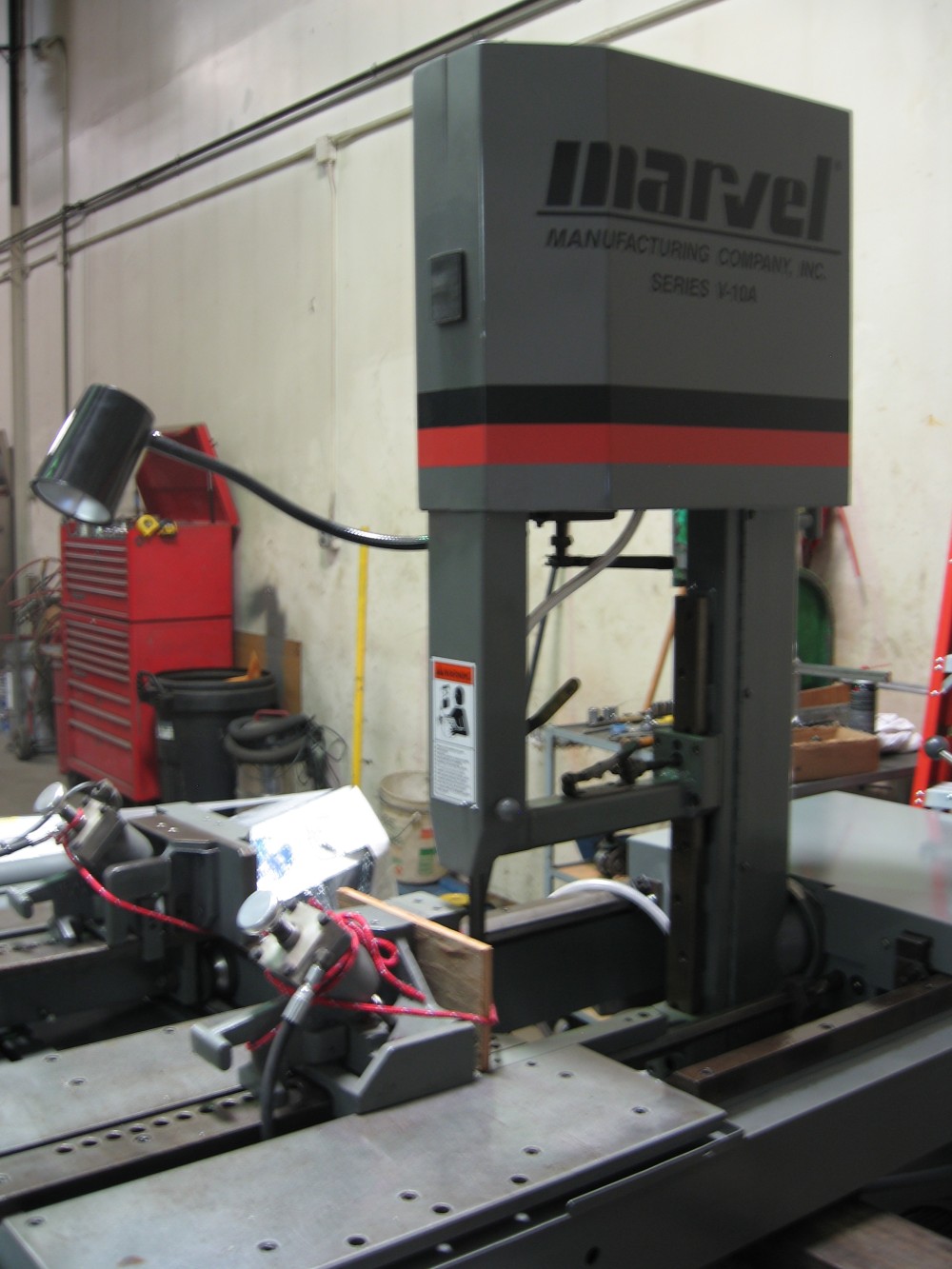

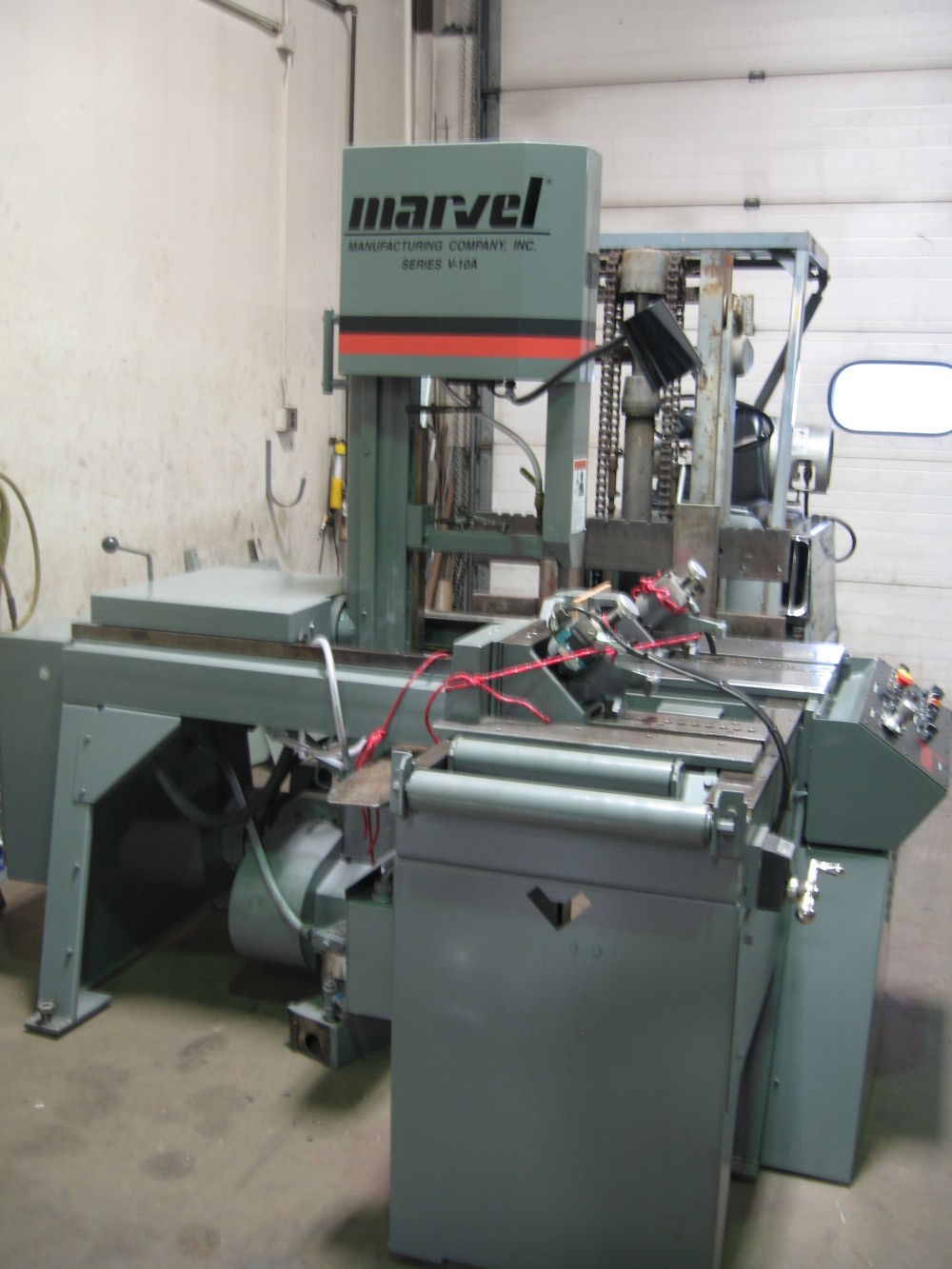

~~~Photos attached to this advertisment are of a previously completed V10A~~~

Specifications:

• Model: V10A
• Phase: 3
• Volts: 208/3/60

Capacity:

Round: 10"

Flat: 10" X 10"

45 Degree Flat: 10" X 7"

45 Degree Round .......... 7"

Vises:

Max Opening: 10-1/2"

Height of Jaws: 6"

Blade:

Standard: 12' X 1" X .035"

Wheel Diameter: 15"

Speed: 60 TO 400 ft/min

Drive Motor: 3 HP

Feed Pressure: 0 - 250 LBS

Hydraulic System:

Motor: 1.5 HP

Reservoir Capacity: 10 Gallons

Pump Capacity: 7 GPM

Coolant System:

Motor: 1/4 HP

Reservoir: 32 Gallon

Shuttle Table:

Length: 36"

Capacity: 5000 lbs

Travel (one cycle): 15" Max (adjustable)
