Description

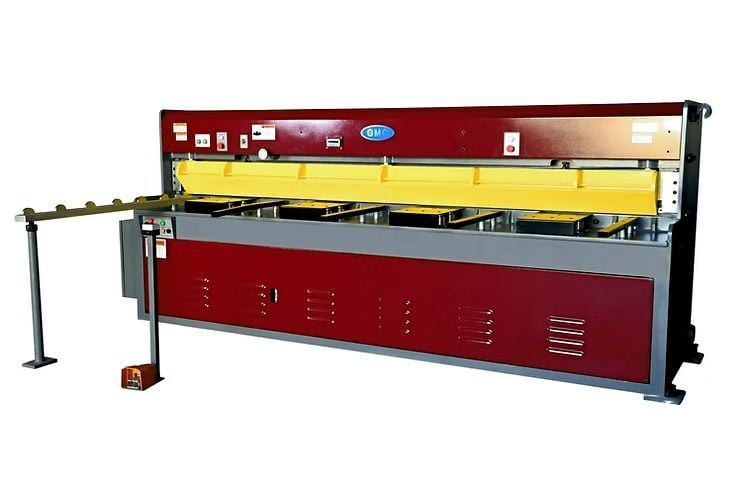

Cutting capacity: Mild steel 8 x 1/4" Stainless steel 8 x 10 Ga. soft aluminum 8' x 3/8" min. thickness 20 Ga Blade length 8' 2" = 98" Strokes per minute 10-15 Worktable height 34 1/2" Front support arm 24" Back gauge 36" SIKO powered B.G. Blade rake angle 2 degree Oil tank cap. 32 Gal Main Motor 20 HP, 220V/70A - 440V/35A, 3 Phase Powered B.G. Motor 1 HP, 220V/440V, 3 Phase Machine weight 12,850 LBS Machine dimensions 157" x 99" x 65" 36 German SIKO Front Operated Power Back Gauge with micro adjustment , accuracy 0.004 inch/metric digital display. 1 each 60 squaring arm with inlaid inch/metric dual scale Quick change blade gap adjustment (BGA) with gap dial Shadow line for accurate straight cutting Material support and drop back chuter Upper and bottom blade set with 2-edge on bottom & 2-edge on upper 2 each 24 front support arms Hydraulic hold-downs with anti-mar neoprene Full length viewable finger guard Removable safety foot pedal Tool box
¼” X 8’ Hydraulic Shear with SC200 Controller, Finger Protection with Hand Gaps, Hard Clamp Hold Downs, Hydraulic Sheet Support and 40” Squaring Arm with Ball Transfers., Capacity (Mild Steel): ¼”, Capacity (Stainless Steel): 3/16”, Cutting Length: 100”, Cutting Angle: ...more
MODEL #: 1808G, SERIAL #: 52612, 98 1/4" MAXIMUM WIDTH, 1/4" THICKNESS CAPACITY, 1/4" RAKE, 8 TONS MAXIMUM FORCE, 36" POWERED BACK GAUGE, 60 SPM, 23" x 103" BED, FOOT PEDAL, 7.5 HP 230/460/60/3, MFG DATE 2002, 11' LR x 7' FB x72" TALL, 13,200 LBS ESTIMATED WEIGHT, GOOD CONDITION.
