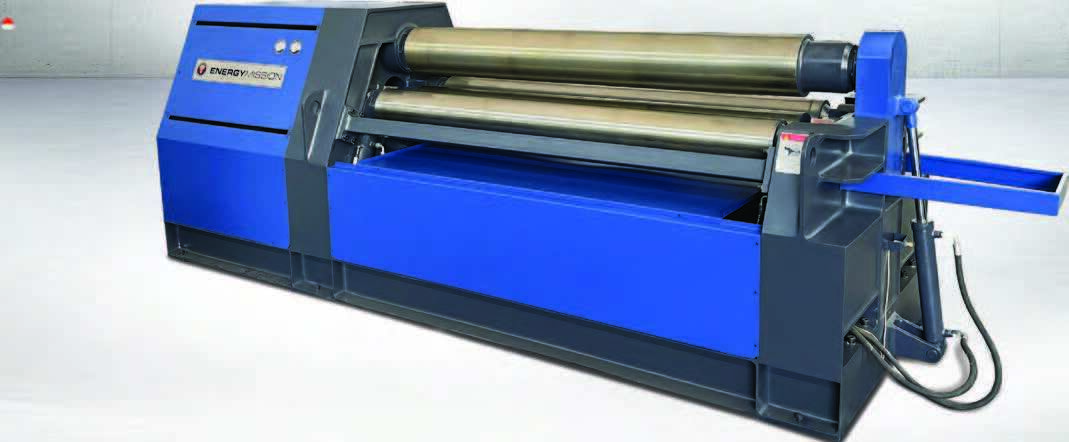

For Sale by Bud's Machine Tools
Description
Specifications
Useful Length 10′
Bending Capacity 1/2"
Pre-Bending Capacity 5/16"
Motor 20HP
Top Roll Diameter 11"
Bottom Roll Diameter 11"
Side Roll Diameter 8.6"
Min. Diameter Pre-Bending Capacity 22"
Min. Diameter Bending Capacity 33"
Plate Rolling Speed 138 In/min
Overall Dimensions 220"x65"x63"
The capacities are based on Normal steel with yield point 260 N/mm². (2600 Kg/Cm²)
Remaining Straight end after pre-bending 1.5-2xplate thickness.
The min. bending diameter is 2xTop roll diameter, depending on plate thickness.
Max. Cone bending thickness capacity is 70% of pre-bending thickness.
Max. Cone bending width capacity is 2/3 x bending length.
NC / CNC can program each work piece, and manually adjust the diameter
deviation caused by the difference of material properties.
Equipped With
Main Drive Motor
Manual Centralized Lubrication System
Planetary Gearbox Attached w/ Hydraulic Motor
4-Roll Pyramid Type Design with Double Pre-Pinching Arragnement
High Roll Roundness Consistency
Fixed Top Roll. Up/Down Bottom Roll, Side Rolls Inclined
Side & Bottom Rolls Up/Down through Hydraulic Cylinders
Built in Cone Bending Attachment
Get Your Price from Bud's Machine Tools!
