Description

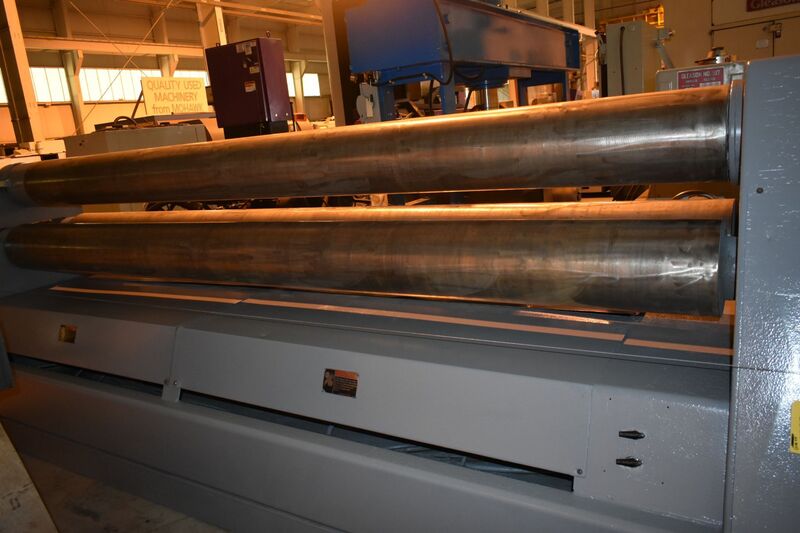

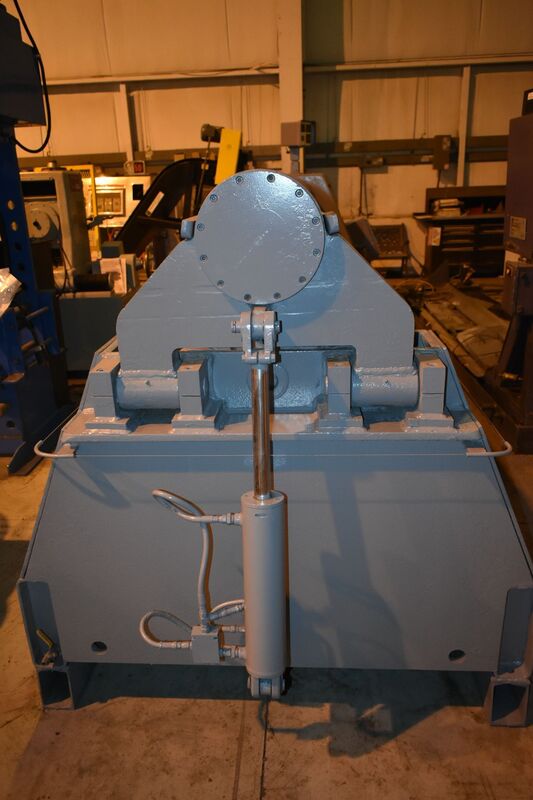

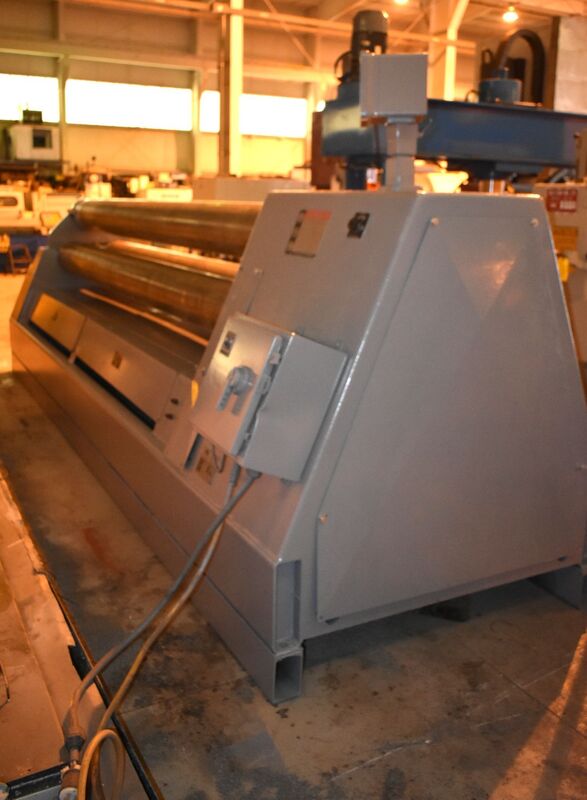

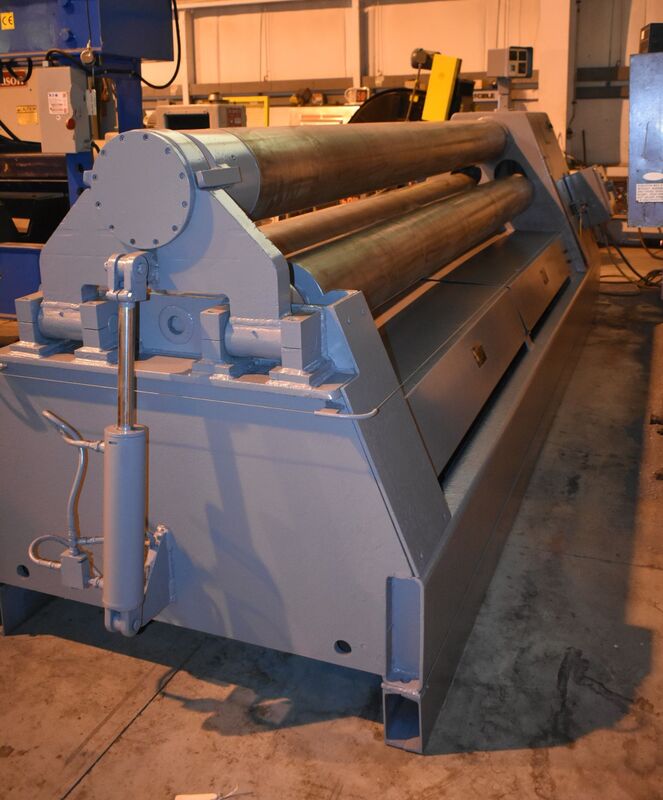

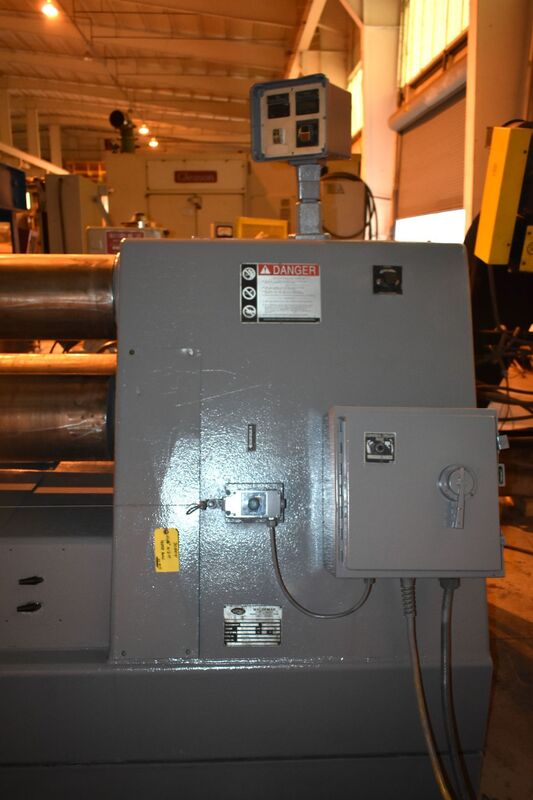

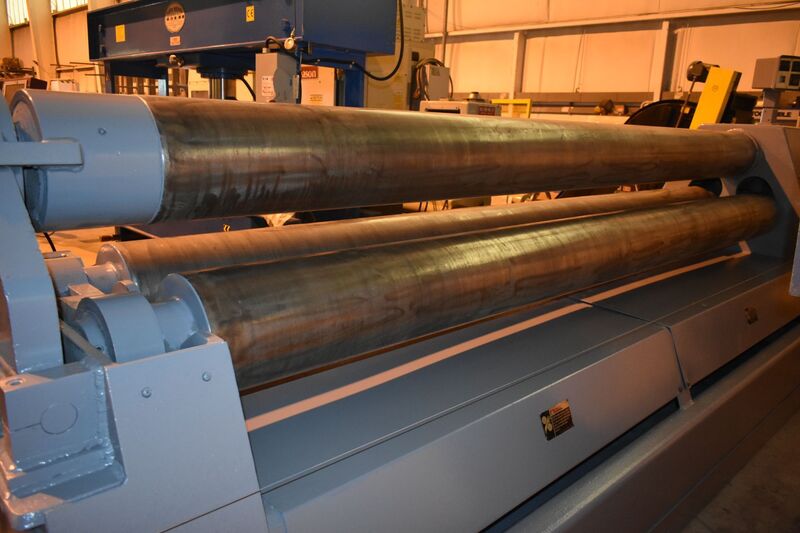

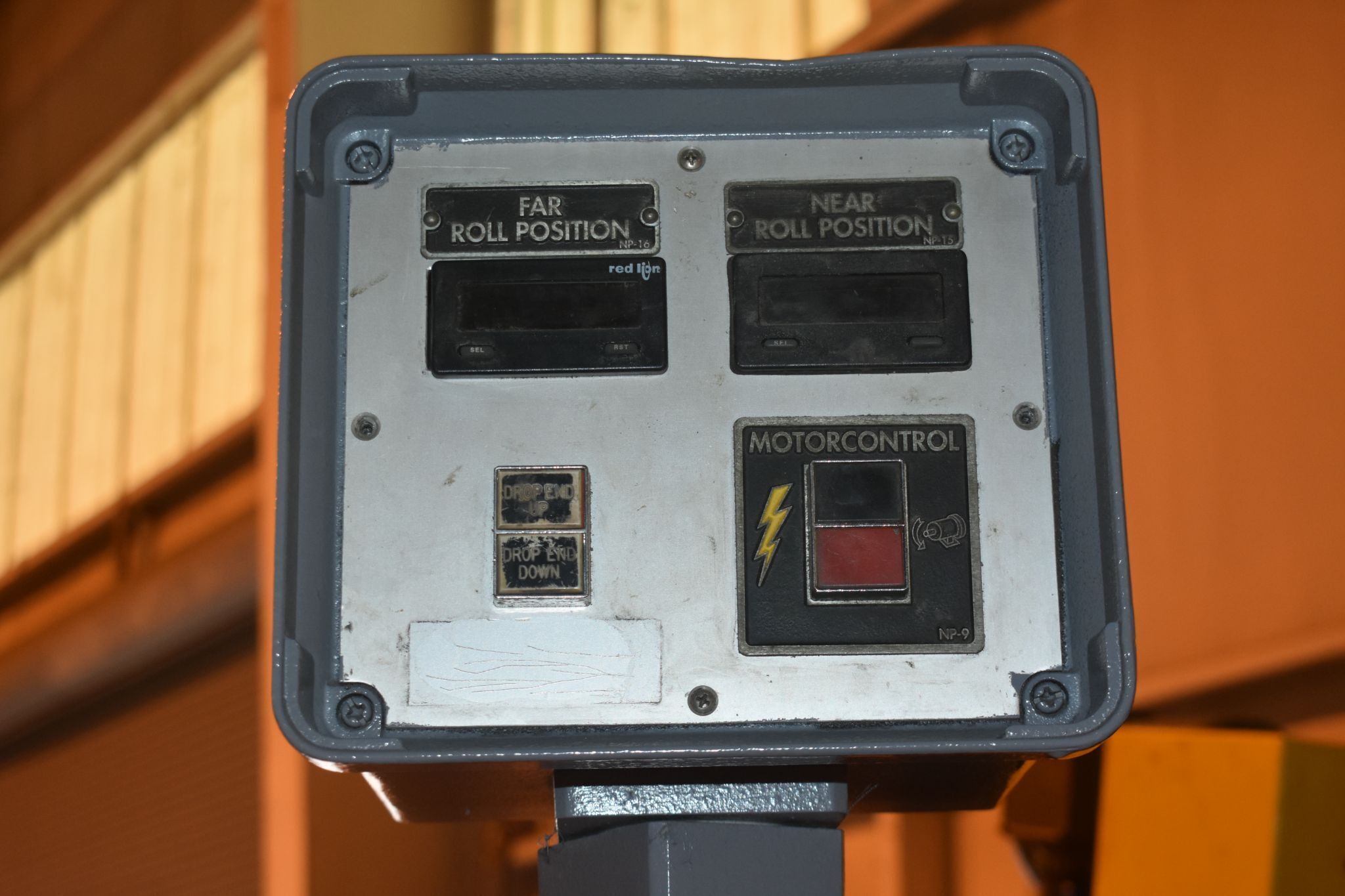

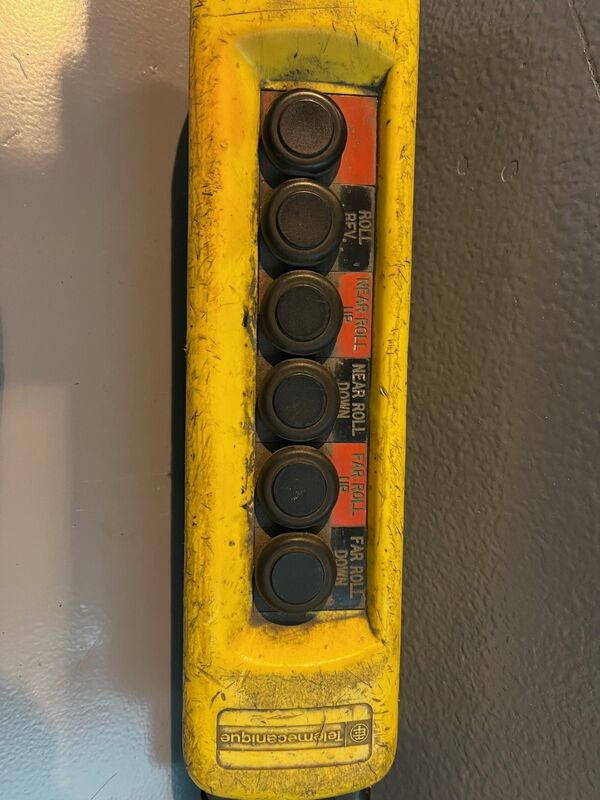

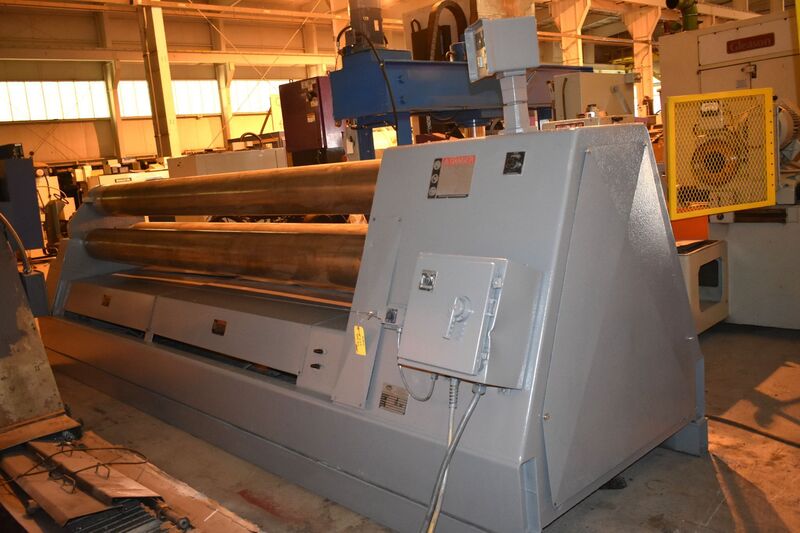

12 X 7/16 WDM 100-11-12 3-ROLL HYDRAULIC PINCH PYRAMID PLATE BENDING ROLL - Hydraulic Drop End - Pendant Control - Roll Position Indicator - 0 to 22 FPM Roll Speed - 15 HP Motor 12 x 7/16 WMD 3-ROLL HYDRAULIC PYRAMID PINCH PLATE BENDING ROLL Serial No 60428-98, Model 100-11-12 EQUIPPED WITH: Hydraulic Drop End Hydraulic Driven Rolls Through Planetary Type Speed Reducer Pendant Control - Roll Position Indicator No Pit Required CATALOG SPECIFICATIONS: Bending Capacity, Rated 12 x 7/16 Top Roll Diameter 11 Bottom Roll Diameters 11 Roll Speed Infinitely Variable, Range 0 to 22 FPM Motor Horsepower 15 HP Overall Dimensions, L X W 210 X 55 Overall Height 54 Weight, Approximately 26500 LBS F.O.B. OUR WAREHOUSE
