Description
- Description
Product Description

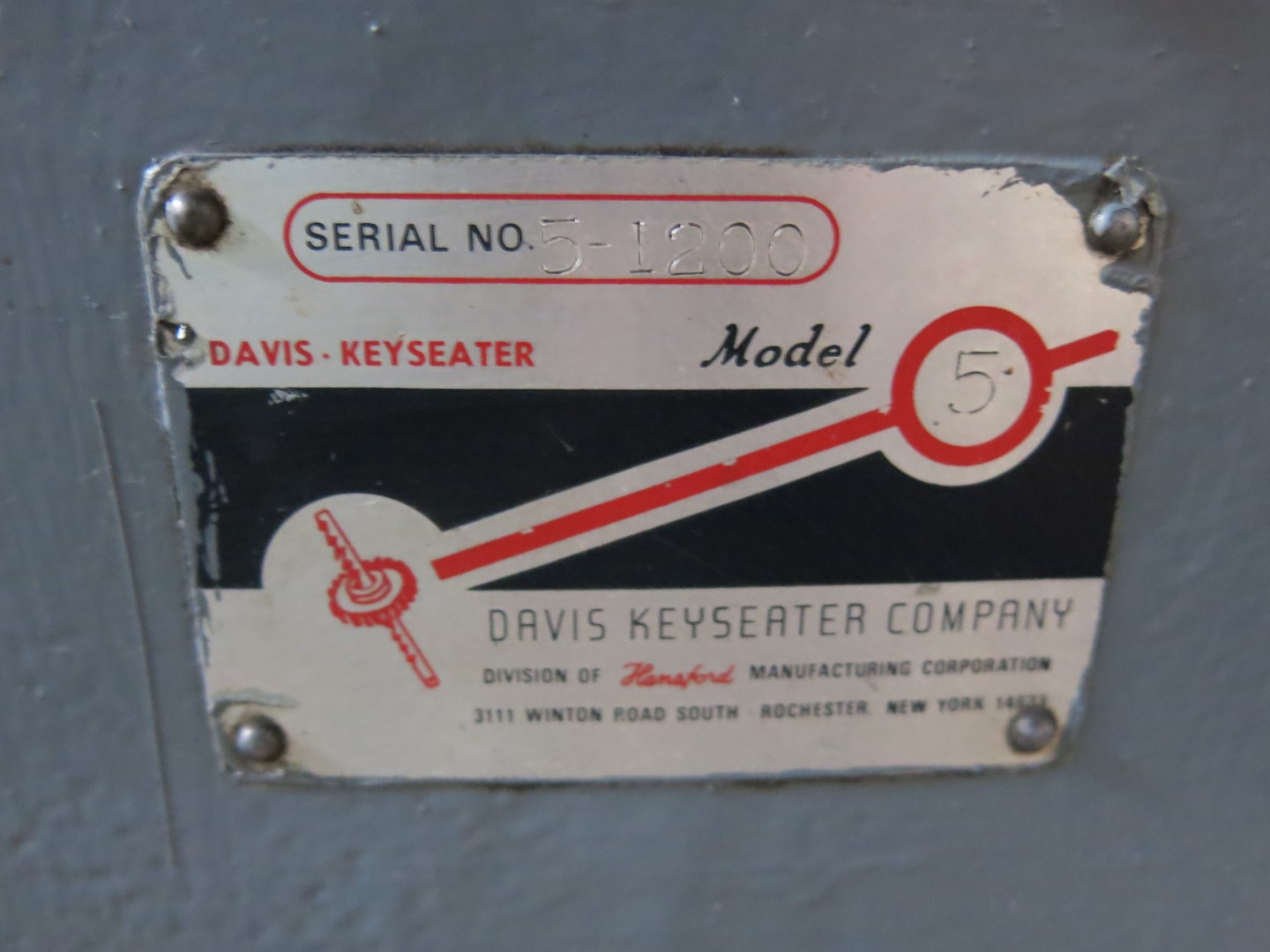

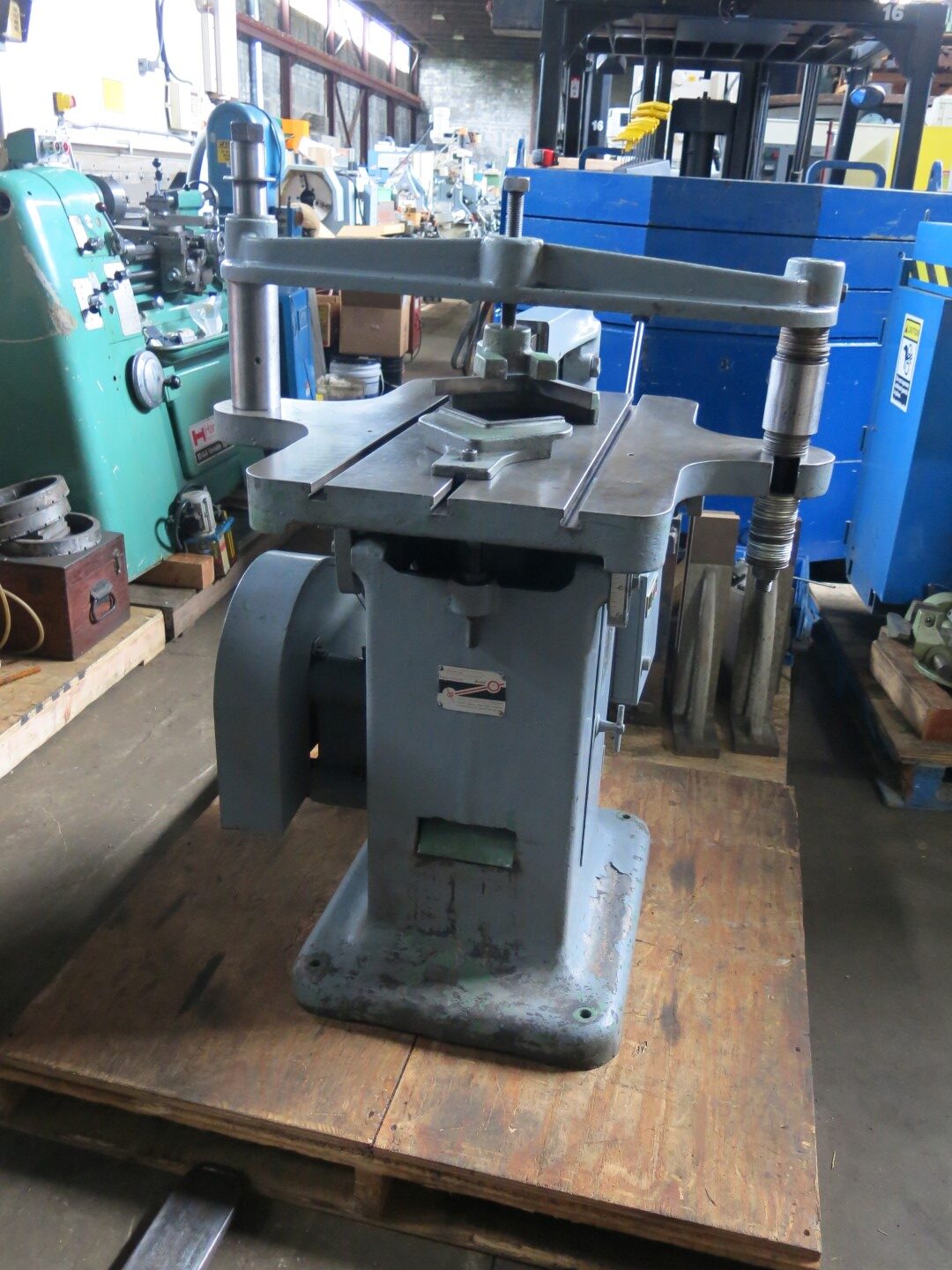

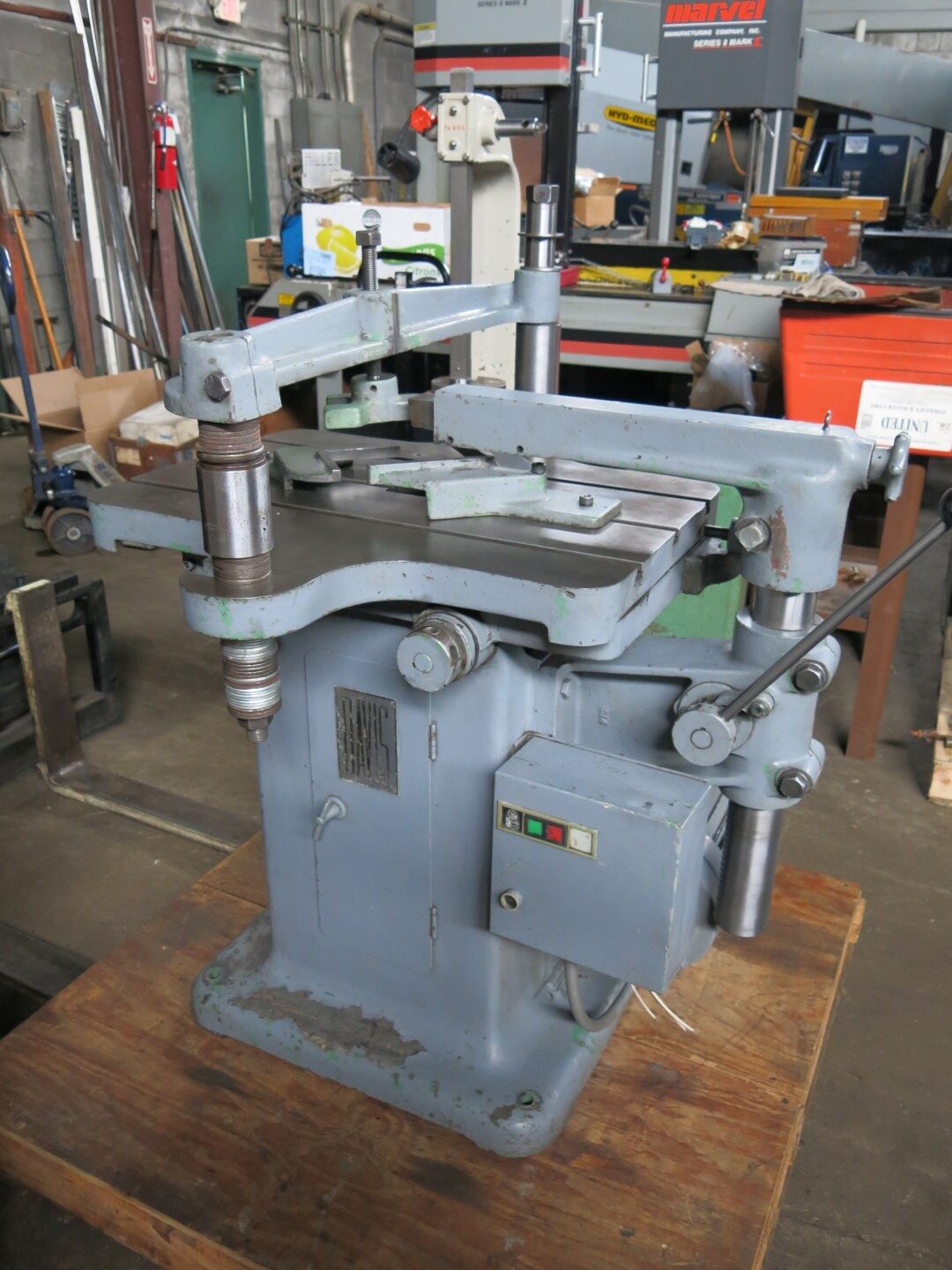

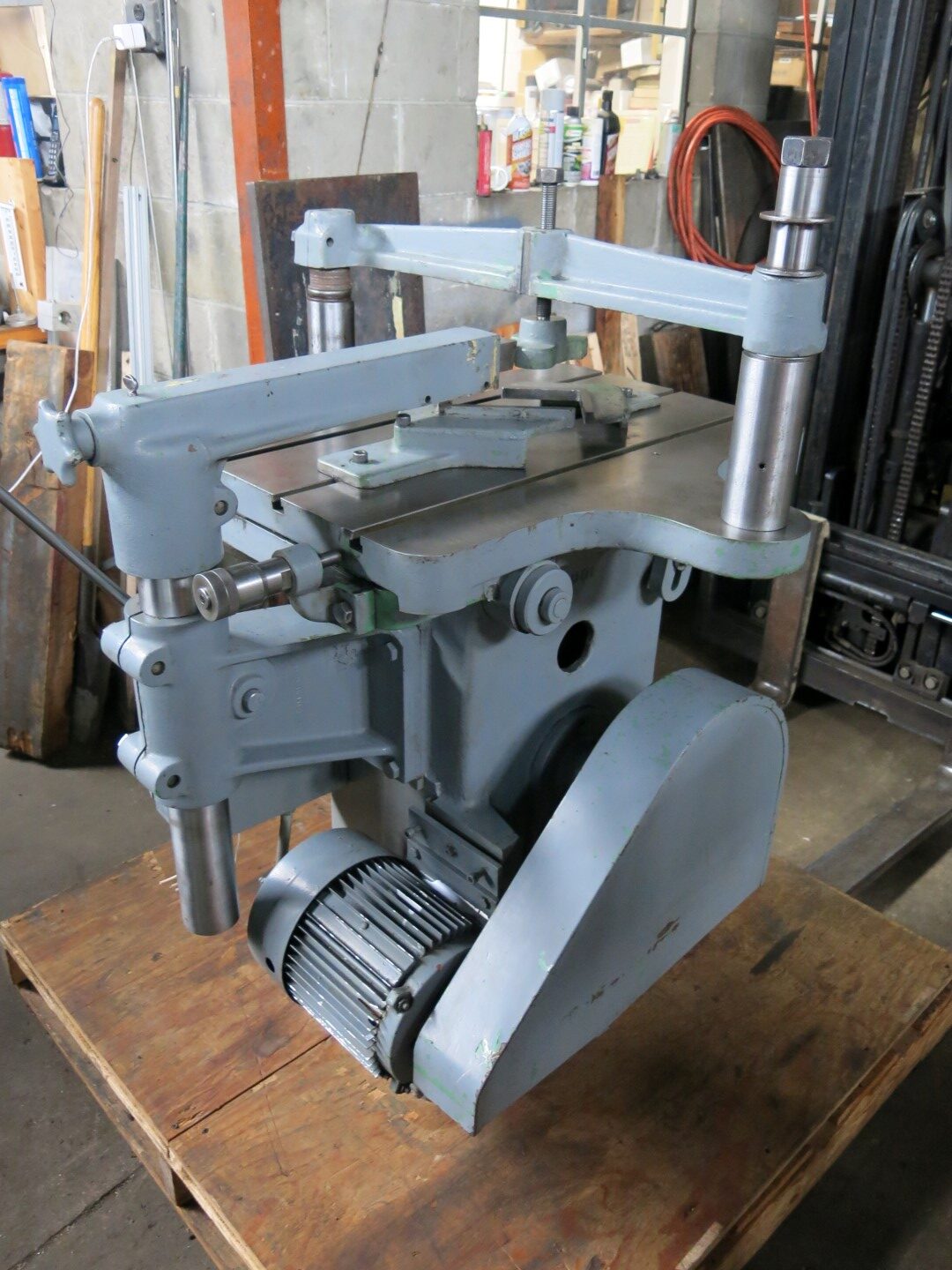

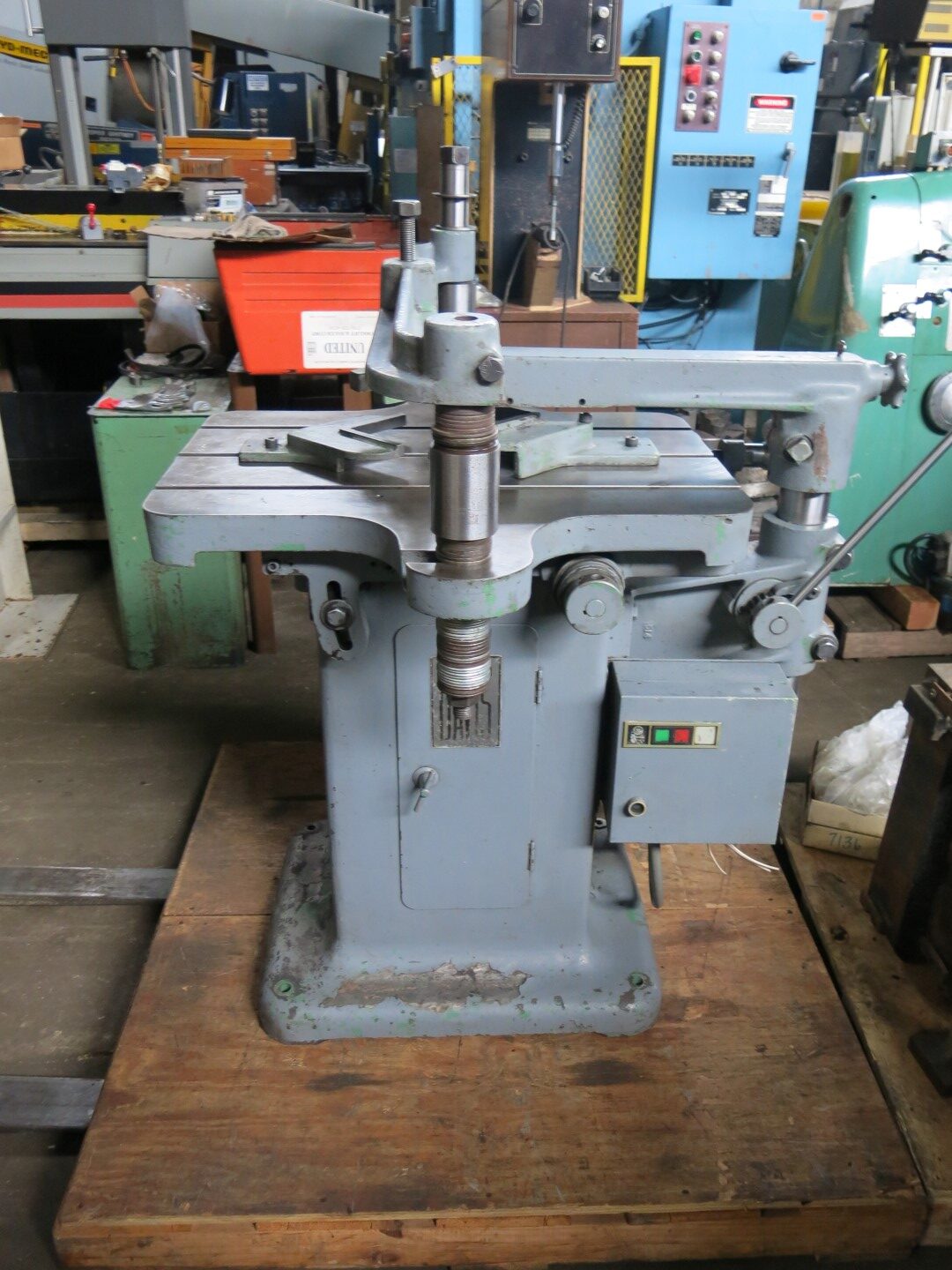

1 1/2″ Davis No. 5 Keyseater
SPECIFICATIONS: CUTS KEYWAYS IN STEEL …………….. 1/16″ TO 1-1/2″
WIDE THROAT DEPTH, FACE OF CUTTER TO ARM POST ……………. 18-3/4″
MAX WORK HEIGHT, STANDARD …………. 12″
TABLE SIZE ………………………. 30-1/4″ x 31″
MAX INCLUDED TAPER PER FT CAN BE CUT .. 3″
TABLE MOVEMENT …………………… 1-3/8″
STROKE ………………………….. 4-1/2″
MAX LENGTH OF CUT WITH 3/4″ HIGH BUSHING HOLDER
-16″ LONG CUTTER …………….. 3″
-20″ LONG CUTTER …………….. 7″
-24″ LONG CUTTER …………….. 11″
STROKES PER MINUTE ……………….. 48
WEIGHT ……………….. 1,400 LBS.

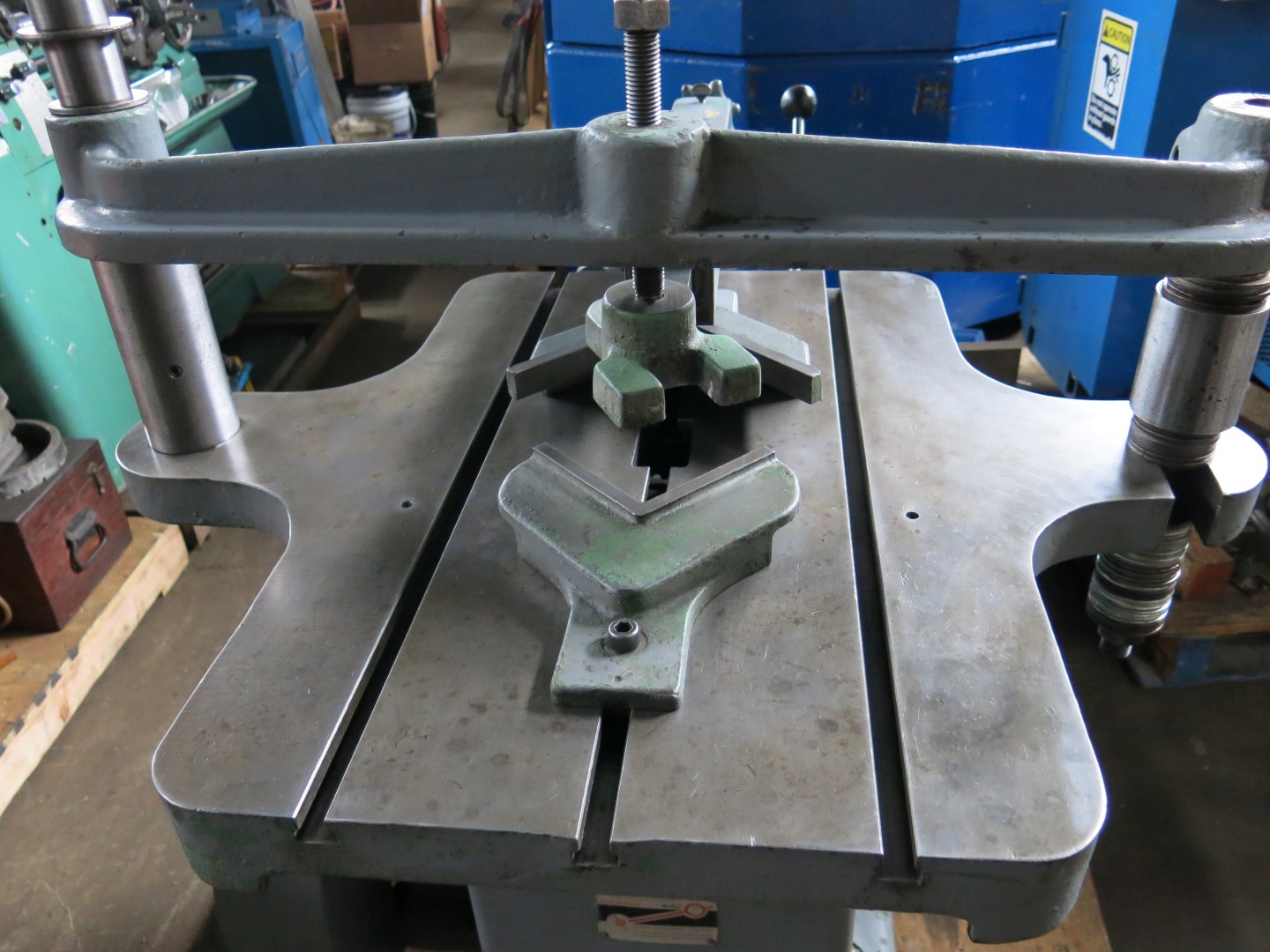

Comes with a good selection of used broaches, (2) table V-guides, & top clamp. You will need to make or buy bushings for the workpieces.

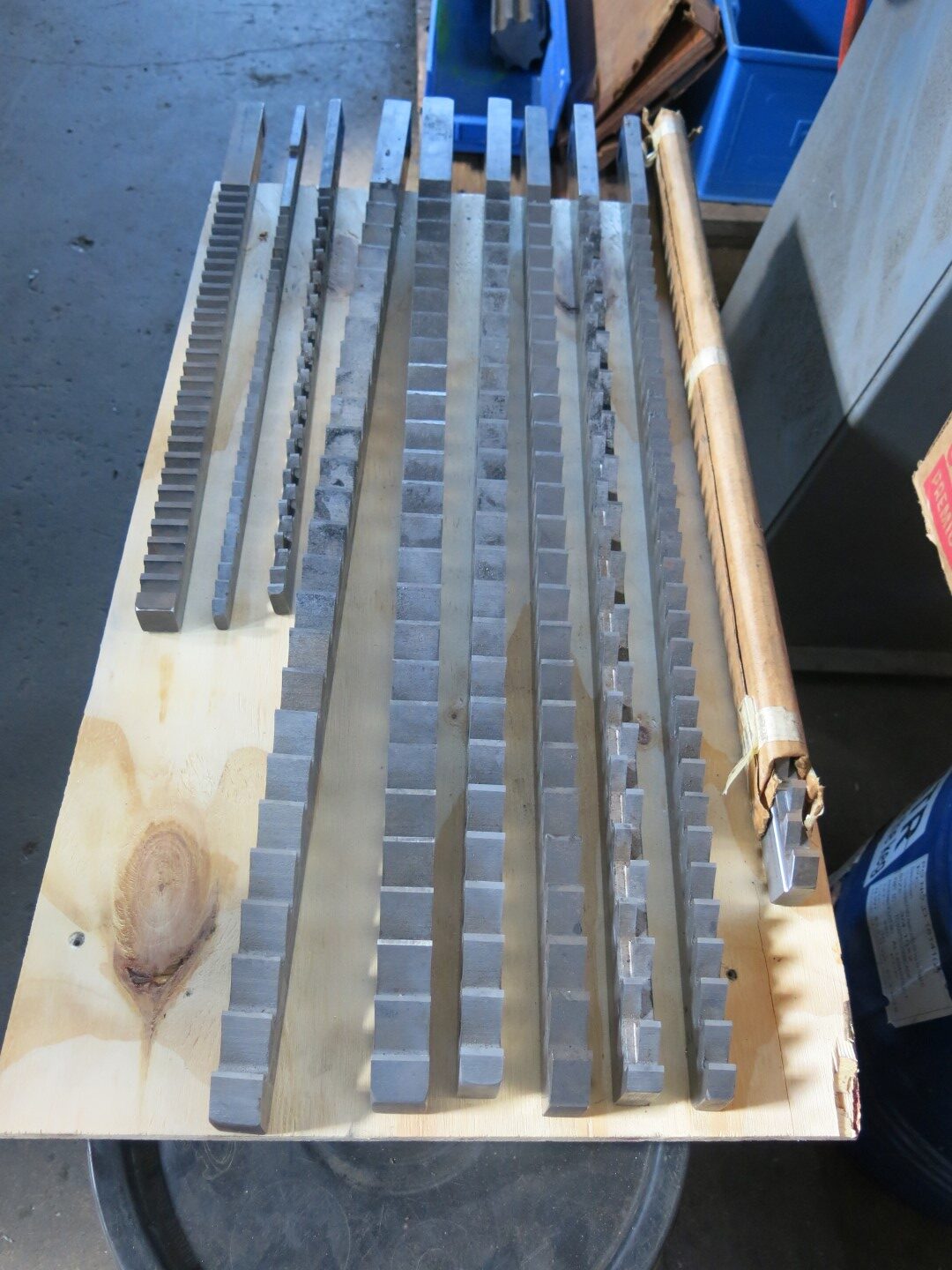

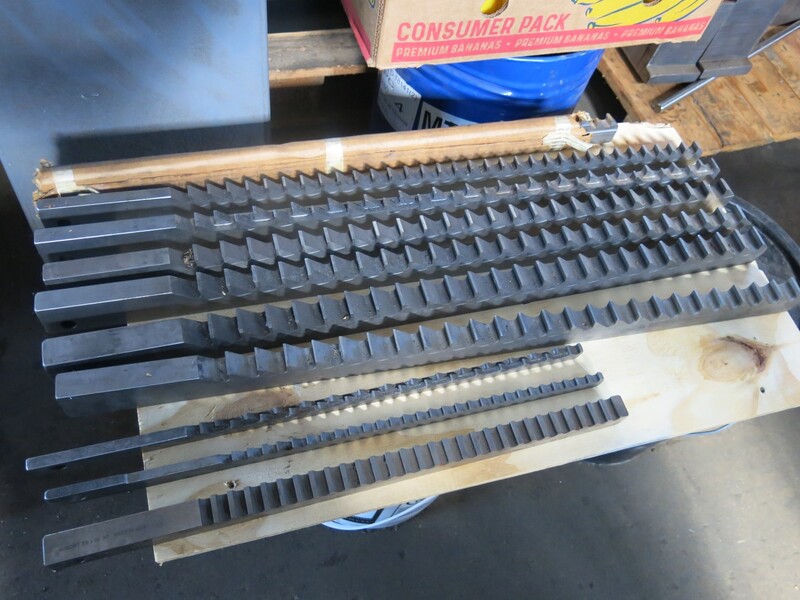

Comes with the following broaches:
- 5/16″ x 20″
- 3/8″ x 20″
- 1/2″ x 20″
- 17/32″ x 24″
- 5/8″ x 30″
- 18mm x 30″
- 3/4″ x 30″
- 7/8″ x 20″
- 7/8″ x 30″
- 1″ x 30″
Inquire Further with Mullin Machinery!
