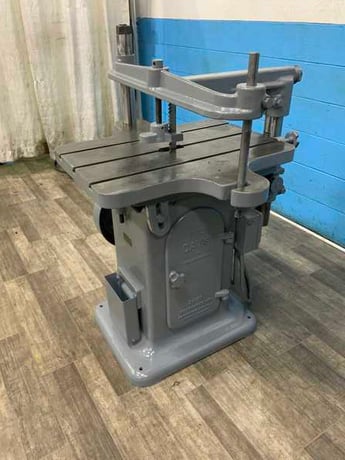

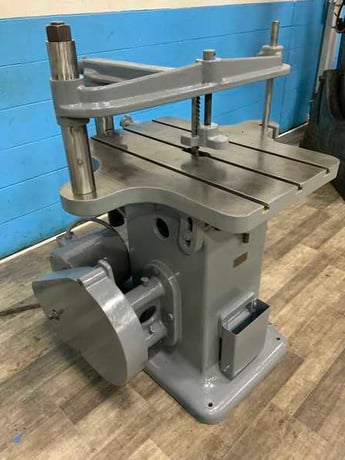

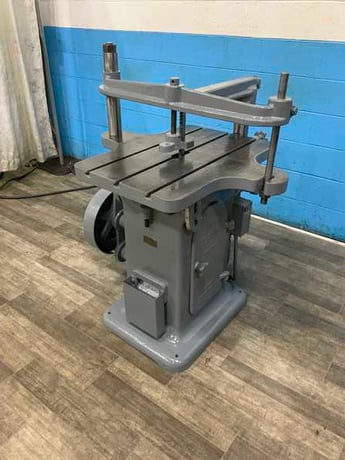

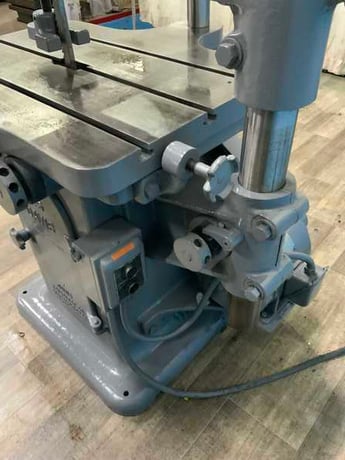

1/16" x 7-1/2" Davis #5, keyseater, tilt table, micro depth stops, resistance bar, 2 HP, 48 SPM

SERIAL ......................................... 5-360

MODEL .......................................... 5

CAPACITY ....................................... 1/16" TO 1-1/4"

LENGTH OF KEY WITH 16" CUTTER .................. 3-1/2"

LENGTH OF KEY WITH 20" CUTTER .................. 7-1/2"

DISTANCE FROM CUTTER TO RESISTANCE ARM POST .... 17-1/2"

MAXIMUM HEIGHT ................................. 12"

TABLE MOVEMENT ................................. 1-3/8"

TABLE DIMENSION ................................ 21" X 31"

STROKE ......................................... 4-1/2"

T SLOTS IN TABLE ............................... 3

STROKES PER MINUTE ............................. 48

TILT TABLE ..................................... YES

MICRO DEPTH STOPS .............................. YES

RESISTANCE BAR ................................. YES

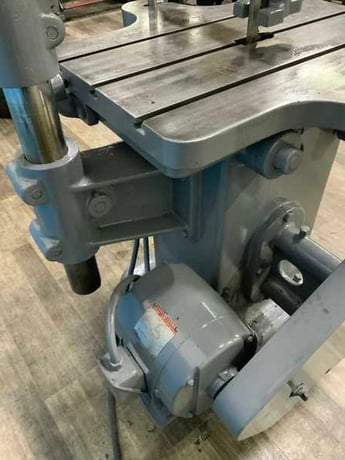

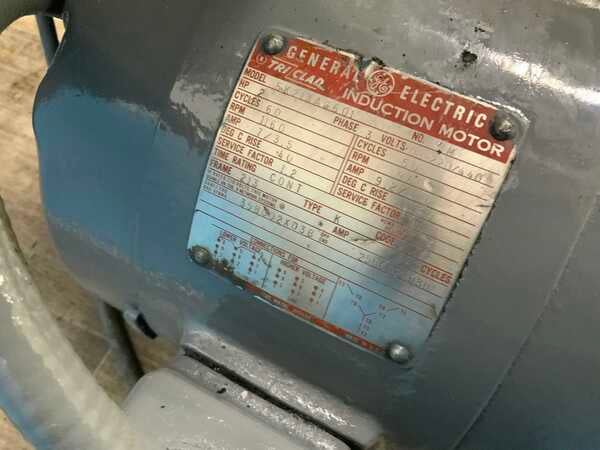

MOTOR .......................................... 2 HORSEPOWER
