Description
SPECIFICATIONS:
MANUFACTURER - AUTOMATIC FEED COMPANY
YEAR - 1989
LINE DIRECTION - LEFT to RIGHT
MATERIALS - C.R.S, HRP&O, HOT DIP GALV., ELECTRO GALV., PRE-PAINTED (COPIED
FROM STAMCO)
THICKNESS - .020" MIN., .125" MAX.
COIL WIDTH - 74" MAX.
COIL WEIGHT - 75,000# MAX.
COIL OUTSIDE DIAMETER - 38" MIN., 80" MAX.
COIL INSIDE DIAMETER - 28" MIN., 28" MAX.
BLANK LENGTH - 24" MIN., 168" MAX.
BLANK WIDTH - 74" MAX., 18" MIN. AT 90 DEGREE CUT, 24" MIN. AT 30 DEGREE CUT
PACK HEIGHT - 26" MAX. INCLUDING PALLET
PACK WEIGHT - 25,000# MAX.
LEVELER TYPE - 19 ROLL, 2.50" DIA., 7 FLIGHTS (FROM MACHINE TAG)
SHEAR TYPE - QUICK CHANGE DIES FOR STRAIGHT CUTS, +/- 30 DEGREE (MAX.)
TRAPEZOID CUTS, OR CHEVRON CUTS
LINE SPEED - 300 FPM MAX. AT LEVELER
UNCOILER DRIVE - HP DC FEED-UP DRIVE / DRAG GENERATOR BRAKE
LEVELER DRIVE - HP DC
LINE COMPONENTS:
COIL STORAGE SADDLES w/ TWO (2) STORAGE POSITIONS
END TRAVELING COIL LOADING CAR
DUAL EXPANDING MANDREL UNCOILER w/ HP DC FEED-UP DRIVE / DRAG GENERATOR BRAKE
MACHINE MOUNTED HOLD DOWN ROLL
PIVOTING AND TELESCOPING PEELER BLADE
ENTRY PINCH ROLLS
ENTRY CROP SHEAR w/ THREADING TABLE AND SCRAP CART
SPRAY NOZZLE TYPE STRIP OILER
19 ROLL, 2.50" DIA., 7 FLIGHT LEVELER (FROM MACHINE TAG) w/ HP DRIVE
LEVELER EXIT PINCH ROLLS
STRIP INSPECTION TABLE
ENTRY LOOP FEED ROLLS
LOOPING PIT QUADRANT TABLES w/ PIVOTING ENTRY AND EXIT THREAD TABLES
EXIT LOOP FEED ROLLS

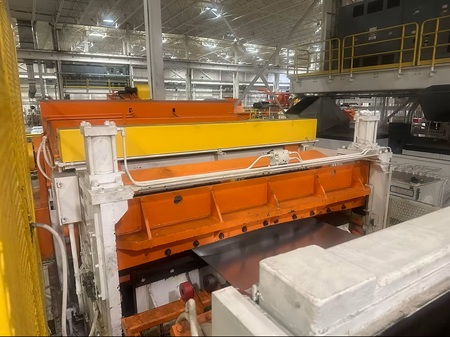

MAIN CUT OFF SHEAR w/ +/- 30 DEGREE OSCILLATION, QUICK CHANGE DIE SETS
DIE SET #1 w/ STRAIGHT KNIVES FOR STRAIGHT OR TRAPEZOIDAL CUTS
DIE SET #2 w/ ANGLED KNIVES FOR CHEVRON CUTS
DIE STORAGE AND SHUTTLE CART w/ TWO (2) STORAGE POSITIONS
INSPECTION TABLE w/ NON-MARKING BELTS
BELT CONVEYOR SYSTEM FOR TRANSPORTING BLANKS FROM INSPECTION STATION INTO
STACKER #1, STACKER #2, OR SCRAP SHUTTLE CART
14 FOOT MAGNETIC BLANK STACKER #1 w/ DUAL SHUTTLE CART FOR DISCHARGE TO
OPERATOR SIDE OR TO DRIVE SIDE BLANK STORAGE CONVEYOR SYSTEM
14 FOOT MAGNETIC BLANK STACKER #2 w/ DUAL SHUTTLE CART FOR DISCHARGE TO
OPERATOR SIDE OR TO DRIVE SIDE BLANK STORAGE CONVEYOR SYSTEM
SCRAP SHUTTLE CART FOR OPERATOR SIDE SCRAP REMOVAL
DRIVE SIDE BLANK STORAGE CONVEYOR SYSTEM

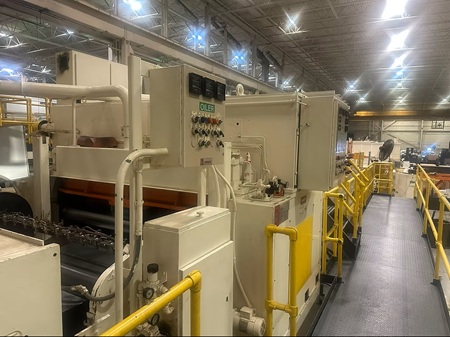

OPERATOR CONTROL STATIONS
AC CONTROLS
VARIABLE SPEED DRIVE CONTROLS
CLOSED LOOP HYDRAULIC SYSTEM
MANUFACTURER - AUTOMATIC FEED COMPANY
YEAR - 1989
LINE DIRECTION - LEFT to RIGHT
MATERIALS - C.R.S, HRP&O, HOT DIP GALV., ELECTRO GALV., PRE-PAINTED (COPIED
FROM STAMCO)
THICKNESS - .020" MIN., .125" MAX.
COIL WIDTH - 74" MAX.
COIL WEIGHT - 75,000# MAX.
COIL OUTSIDE DIAMETER - 38" MIN., 80" MAX.
COIL INSIDE DIAMETER - 28" MIN., 28" MAX.
BLANK LENGTH - 24" MIN., 168" MAX.
BLANK WIDTH - 74" MAX., 18" MIN. AT 90 DEGREE CUT, 24" MIN. AT 30 DEGREE CUT
PACK HEIGHT - 26" MAX. INCLUDING PALLET
PACK WEIGHT - 25,000# MAX.
LEVELER TYPE - 19 ROLL, 2.50" DIA., 7 FLIGHTS (FROM MACHINE TAG)
SHEAR TYPE - QUICK CHANGE DIES FOR STRAIGHT CUTS, +/- 30 DEGREE (MAX.)
TRAPEZOID CUTS, OR CHEVRON CUTS
LINE SPEED - 300 FPM MAX. AT LEVELER
UNCOILER DRIVE - HP DC FEED-UP DRIVE / DRAG GENERATOR BRAKE
LEVELER DRIVE - HP DC
LINE COMPONENTS:
COIL STORAGE SADDLES w/ TWO (2) STORAGE POSITIONS
END TRAVELING COIL LOADING CAR
DUAL EXPANDING MANDREL UNCOILER w/ HP DC FEED-UP DRIVE / DRAG GENERATOR BRAKE
MACHINE MOUNTED HOLD DOWN ROLL
PIVOTING AND TELESCOPING PEELER BLADE
ENTRY PINCH ROLLS
ENTRY CROP SHEAR w/ THREADING TABLE AND SCRAP CART
SPRAY NOZZLE TYPE STRIP OILER
19 ROLL, 2.50" DIA., 7 FLIGHT LEVELER (FROM MACHINE TAG) w/ HP DRIVE
LEVELER EXIT PINCH ROLLS
STRIP INSPECTION TABLE
ENTRY LOOP FEED ROLLS
LOOPING PIT QUADRANT TABLES w/ PIVOTING ENTRY AND EXIT THREAD TABLES
EXIT LOOP FEED ROLLS
MAIN CUT OFF SHEAR w/ +/- 30 DEGREE OSCILLATION, QUICK CHANGE DIE SETS
DIE SET #1 w/ STRAIGHT KNIVES FOR STRAIGHT OR TRAPEZOIDAL CUTS
DIE SET #2 w/ ANGLED KNIVES FOR CHEVRON CUTS
DIE STORAGE AND SHUTTLE CART w/ TWO (2) STORAGE POSITIONS
INSPECTION TABLE w/ NON-MARKING BELTS
BELT CONVEYOR SYSTEM FOR TRANSPORTING BLANKS FROM INSPECTION STATION INTO
STACKER #1, STACKER #2, OR SCRAP SHUTTLE CART
14 FOOT MAGNETIC BLANK STACKER #1 w/ DUAL SHUTTLE CART FOR DISCHARGE TO
OPERATOR SIDE OR TO DRIVE SIDE BLANK STORAGE CONVEYOR SYSTEM
14 FOOT MAGNETIC BLANK STACKER #2 w/ DUAL SHUTTLE CART FOR DISCHARGE TO
OPERATOR SIDE OR TO DRIVE SIDE BLANK STORAGE CONVEYOR SYSTEM
SCRAP SHUTTLE CART FOR OPERATOR SIDE SCRAP REMOVAL
DRIVE SIDE BLANK STORAGE CONVEYOR SYSTEM
OPERATOR CONTROL STATIONS
AC CONTROLS
VARIABLE SPEED DRIVE CONTROLS
CLOSED LOOP HYDRAULIC SYSTEM
