40"/49.25" x 170" Poreba #TR100BI/8M, inch/metric, 31" 4-jaw, 2 tlstks, power rapid traverse, ASAA-1-11,6MT

Estimated monthly payment valid upon approved credit.

Request Formal Quote

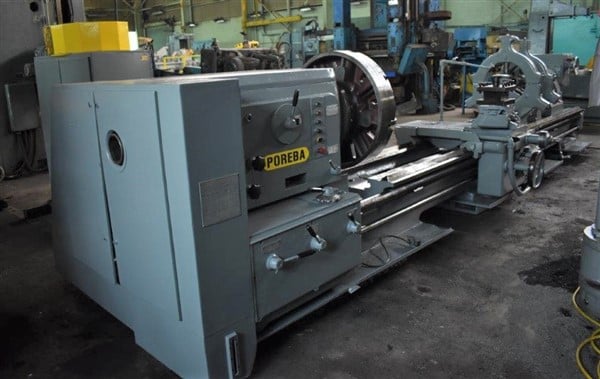

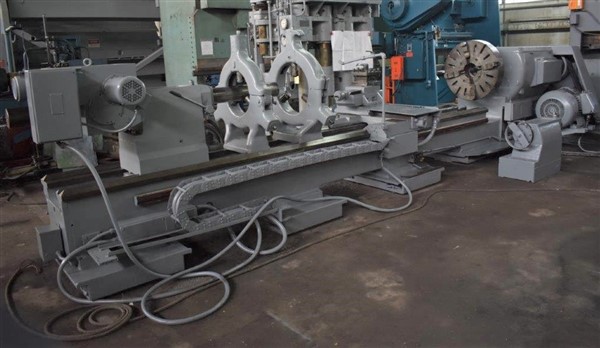

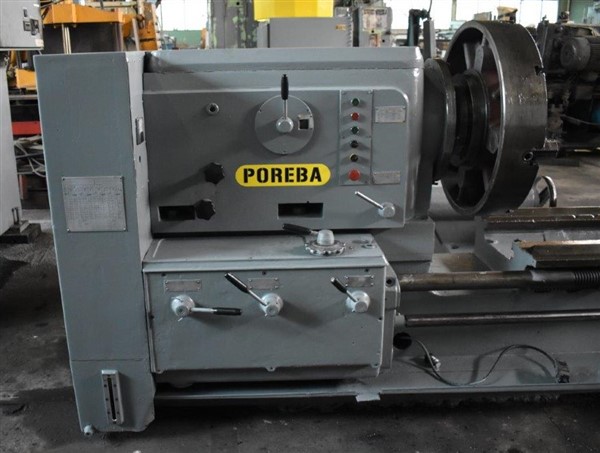

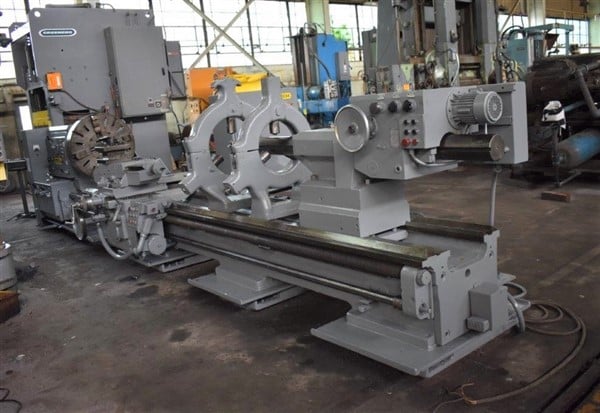

40"/49.25" X 170" POREBA GAP-TYPE ENGINE LATHE
W/MANUAL & DRILLING TYPE TAILSTOCK
SERIAL NO. 1191-317, MODEL TR100BI/8M,
40"/49.25" X 170" POREBA GAP-TYPE ENGINE LATHE
W/MANUAL & DRILLING TYPE TAILSTOCK
SERIAL NO. 1191-317, MODEL TR100BI/8M,
EQUIPPED WITH:
INCH-METRIC THREADING CAPABILITIES
POWER RAPID TRAVERSE (LONG & CROSS)

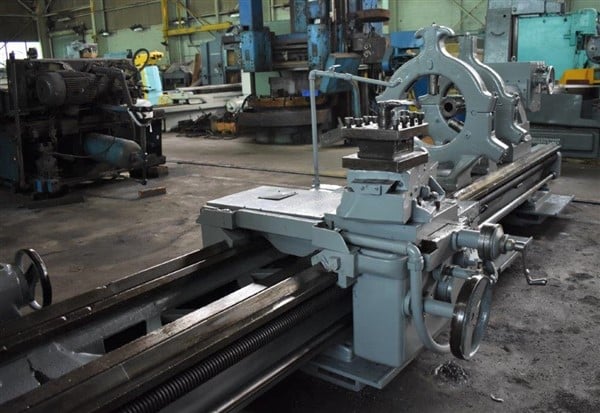

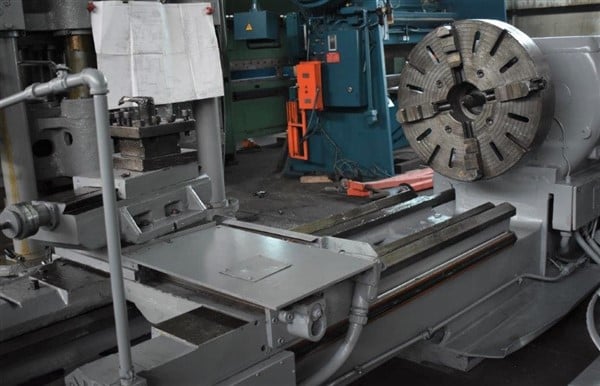

31" 4-JAW CHUCK - 4-WAY TOOL POST
HARDENED & GROUND BED WAYS

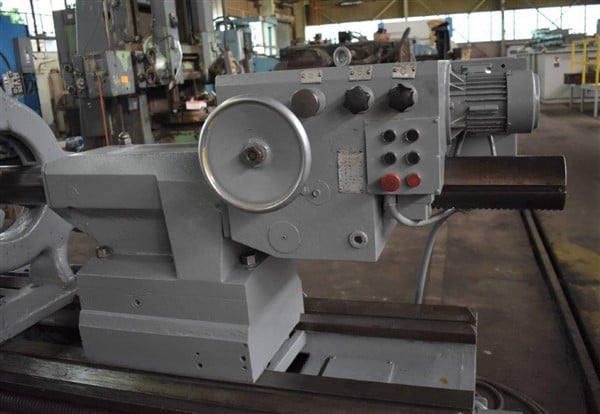

(2) TAILSTOCKS - (1) 40" DRILLING TAILSTOCK &

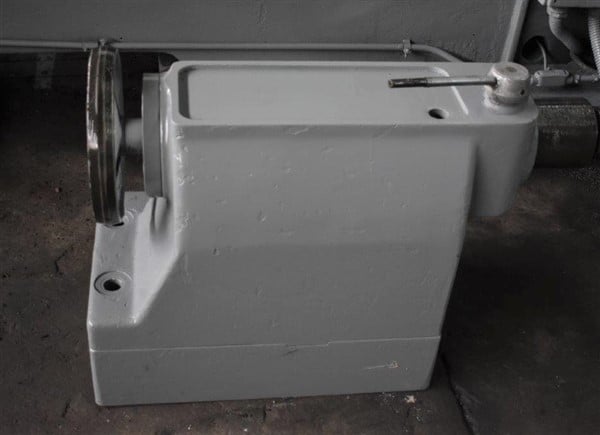

(1) MANUALLY OPERATED TAILSTOCK

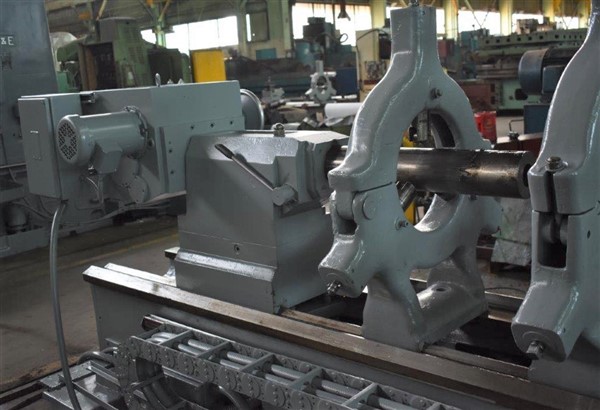

(2) STEADY RESTS - AMMETER
(2) SPEED MOTOR (39/53 HP - 29/40 KW)
CATALOG SPECIFICATIONS:
Hole Thru Spindle 4.7"
Swing Over Bed Ways, Rated 39.37"
Swing thru Gap 49.25"
Distance Between Centers 170"
Swing Over Carriage 26.755"
Workpiece Weight Capacity w/(2) Steadys 24200 LBS
Spindle Nose ASA A-1-11
(21) Spindle Speeds, Range 5 to 500 RPM
Longitudinal Feeds, Range .0017 to .125 IPR
Cross Feeds, Range .0008 to .063 IPR
(62) Metric Treads, Range 1 to 120 MM
(52) Inch Threads, Range 1/4 to 30 IPR
(45) Modular Threads, Range .25 to 30 MM
(70) DP Threads, Range 1/2 to 60 TPI
Tailstock Spindle Taper 6 MT
2-Speed Motor 29/40 KW
Overall Dimensions, L x W 21' x 7'6"
Overall Height 6'4"
Weight, Approximately 23000 LBS
PRICE: F.O.B. OUR WAREHOUSE
Hole thru spindle: 4.7"
Swing over bed ways, rated: 39.37"
Swing thru gap: 49.25"
Distance between centers: 170"
Swing over carriage: 26.755"
Workpiece weight capacity w/(2) steadys: 24200 LBS
Spindle nose: ASA A-1-11
(21) spindle speeds, range: 5 TO 500 RPM
Longitudinal feeds, range: .0017 TO .125 IPR
Cross feeds, range: .0008 TO .063 IPR
(62) metric treads, range: 1 TO 120 MM
(52) inch threads, range: 1/4 TO 30 IPR
(45) modular threads, range: .25 TO 30 MM
(70) dp threads, range: 1/2 TO 60 TPI
Tailstock spindle taper: 6 MT
2-speed motor: 29/40 KW
Overall dimensions, l x w: 21' X 7'6"
Overall height: 6'4"
Weight, approximately: 23000 LBS
