100 gallon Legion #LGB-100F, Stainless Steel Self-Contained Jacketed Steam Kettle, 47.8" L x 55.6" width x 93.5" H, 154800 btu/hr, 150°F-260°F temp. range, 208/240 V., 1-Ph.

Equipment Overview

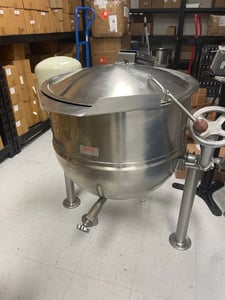

This unit is a Legion LGB‑100F 100-gallon, low-rim, self-contained gas-fired steam kettle with a fully jacketed 304 stainless liner, insulating jacket, actuator-assisted domed cover, and a 2″ stainless draw-off valve. Its 154,800 BTU input (nat gas) drives rapid, even heating with thermostat control between 150–260°F, making it suitable for high-volume institutional cooking. The robust build and full stainless construction enable long service life.

Key Features and Specifications
• Capacity: 100 gal / 378.5 L
• Weight (empty): 860 lb / 390 kg
• BTU Input: 154,800 BTU/hr (natural gas) / 149,200 BTU/hr (propane)
• Gas connection: ¾” IPS
• Gas supply pressure: Natural 5–7″ W.C. (factory outlet 3.5″), Propane 12–14″ W.C. (factory outlet 10″)
• Electrical: 120 V, 1 A, single-phase (208/240 V optional)
• Temperature control range: 150°F to 260°F via thermostat
• Draw-off: 2″ stainless compression valve
• Liner & Construction:
– Seamless deep-drawn 304 stainless liner with radius lip
– 304 stainless draw-off tube and welds
– Full 304L stainless outer jacket
• Safety / Protection Features:
– Pressure relief valve
– Air eliminator valve
– Pressure gauge
– Automatic low-water cut-off + indicator
– Safety pilot control
– Full body insulation between kettle jacket and outer shell
• Cover: Actuator-assisted domed stainless cover (on units 40–125 gal)
• Strainer: Perforated disc (¼” holes)
• Support: Adjustable bullet feet / leg-mounted
• Dimensions (approx with cover): 47.80″ L × 55.60″ W × 93.50″ H
