100 gallon Kettle w/ Leeson motorized Mixer, SteamJacketed Tilting, 316/304-4 Stainless Steel int/ext, 3 leg, 2" discharge

Equipment Overview

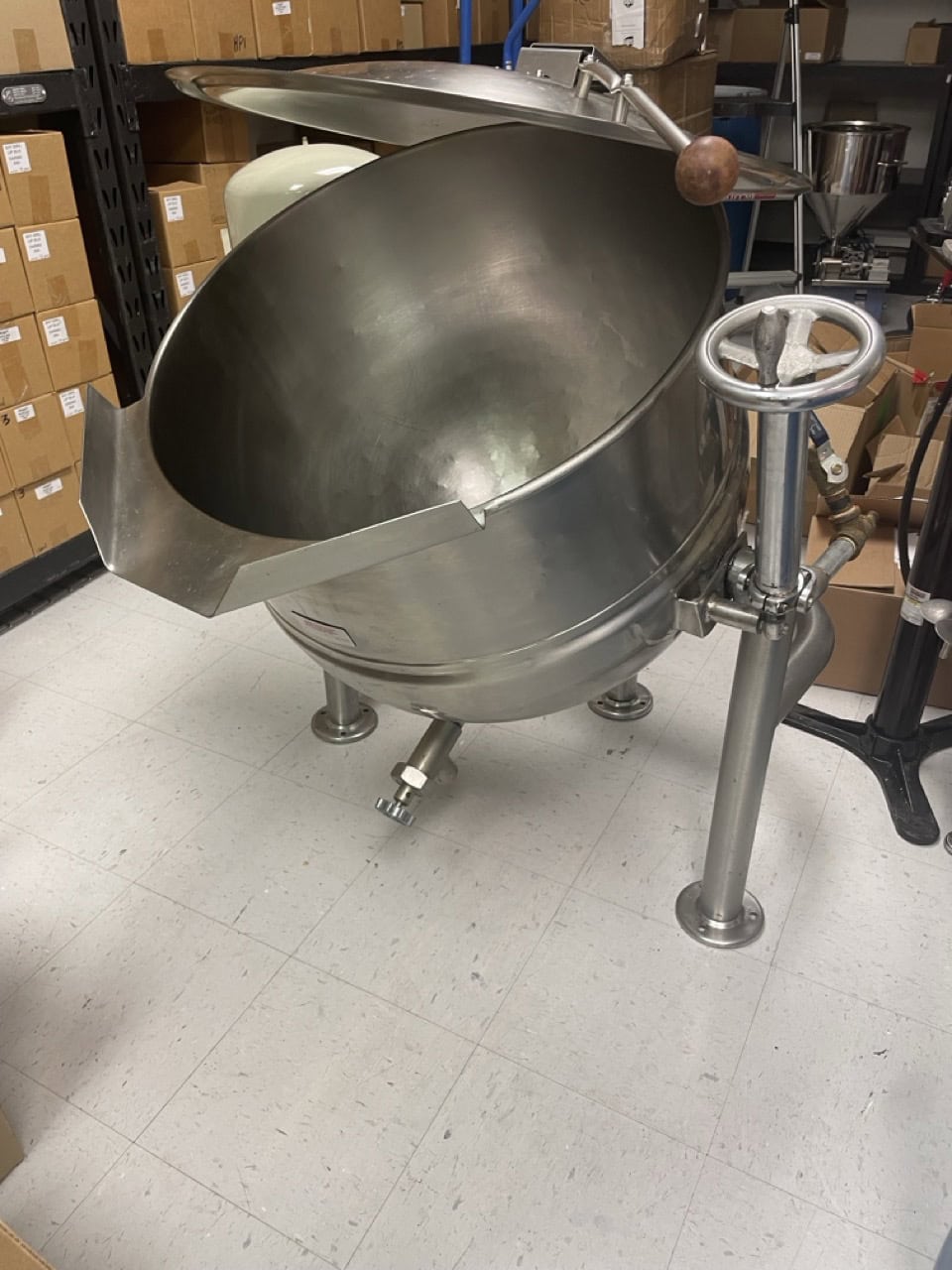

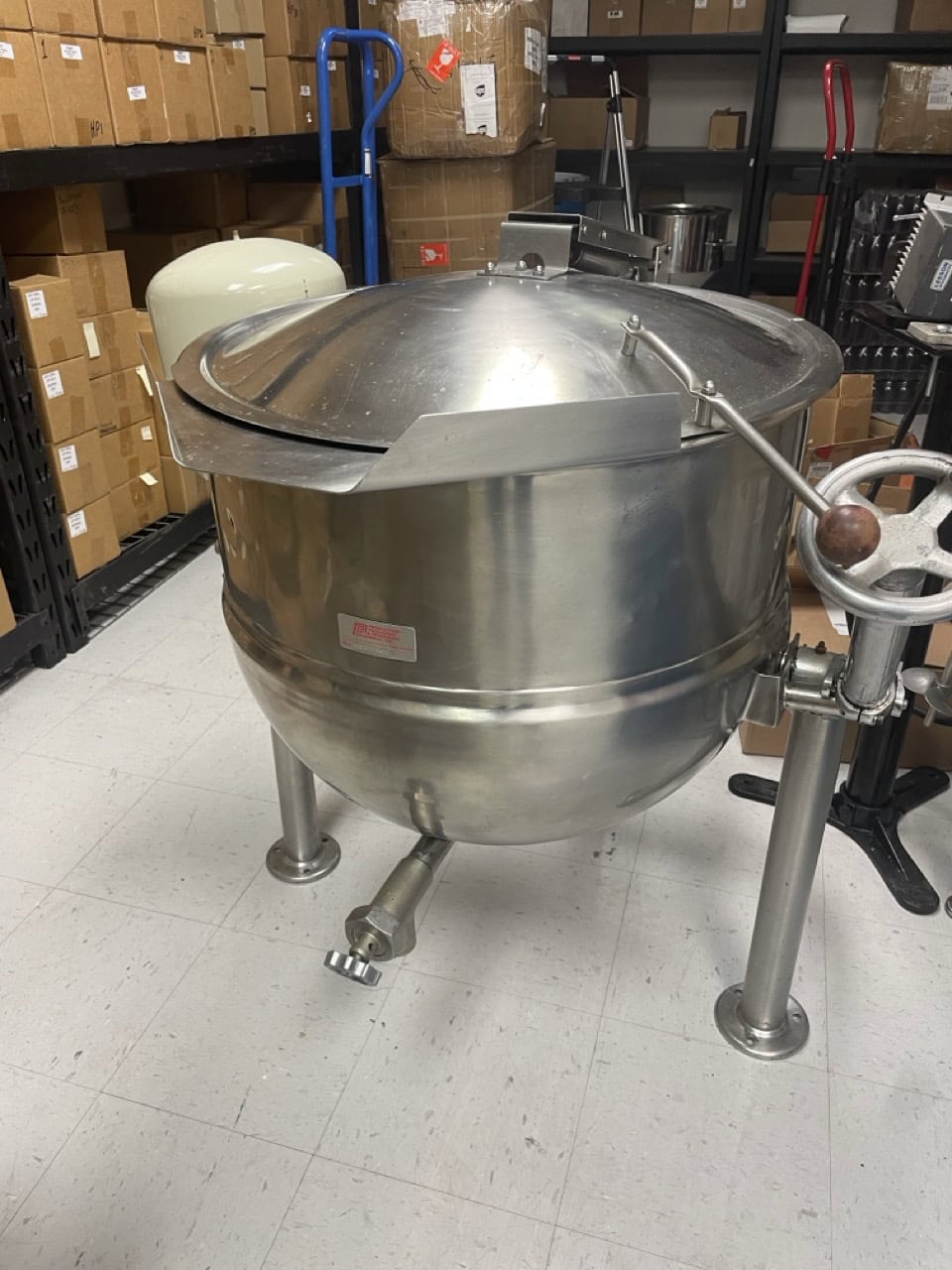

Heavy-duty stainless steel steam-jacketed kettle, likely around 100 gallons. Equipped with a crank-tilt mechanism, hinged lid, bottom discharge valve, and independent pedestal-mounted electric mixer—rendering it suitable for high-throughput food or process environments.

Key Features and Specifications

Capacity: 100 US gallons (379 liters)

Jacket Design: 2/3 steam-jacketed construction for even heat distribution

Material: Interior is 316 stainless steel; Exterior is 304 stainless with No.4 finish

Operating Pressure: Approx. 50 PSI for jacketed operation

Operating Temperature: 145–260 °F (63–127 °C)

Dimensions: 51″ W × 71.25″ D × 48.875″ H (to lip)

Weight (Empty): Approx. 520 lb

Base / Support: Tri-leg base with floor flanges, boltable

Tilt Mechanism: Crank with self-locking worm gear

Controls & Indicators: Solid-state thermostat, ON/OFF switch, LED cycle indicators

Discharge Valve: 2″ tangent draw-off valve, compatible with strainer insert

Jacket Fill and Safety: Pre-filled treated water, safety relief valve, low-water cutoff

Lid and Handling: Hinged spring-assisted lid, reinforced rolled rim

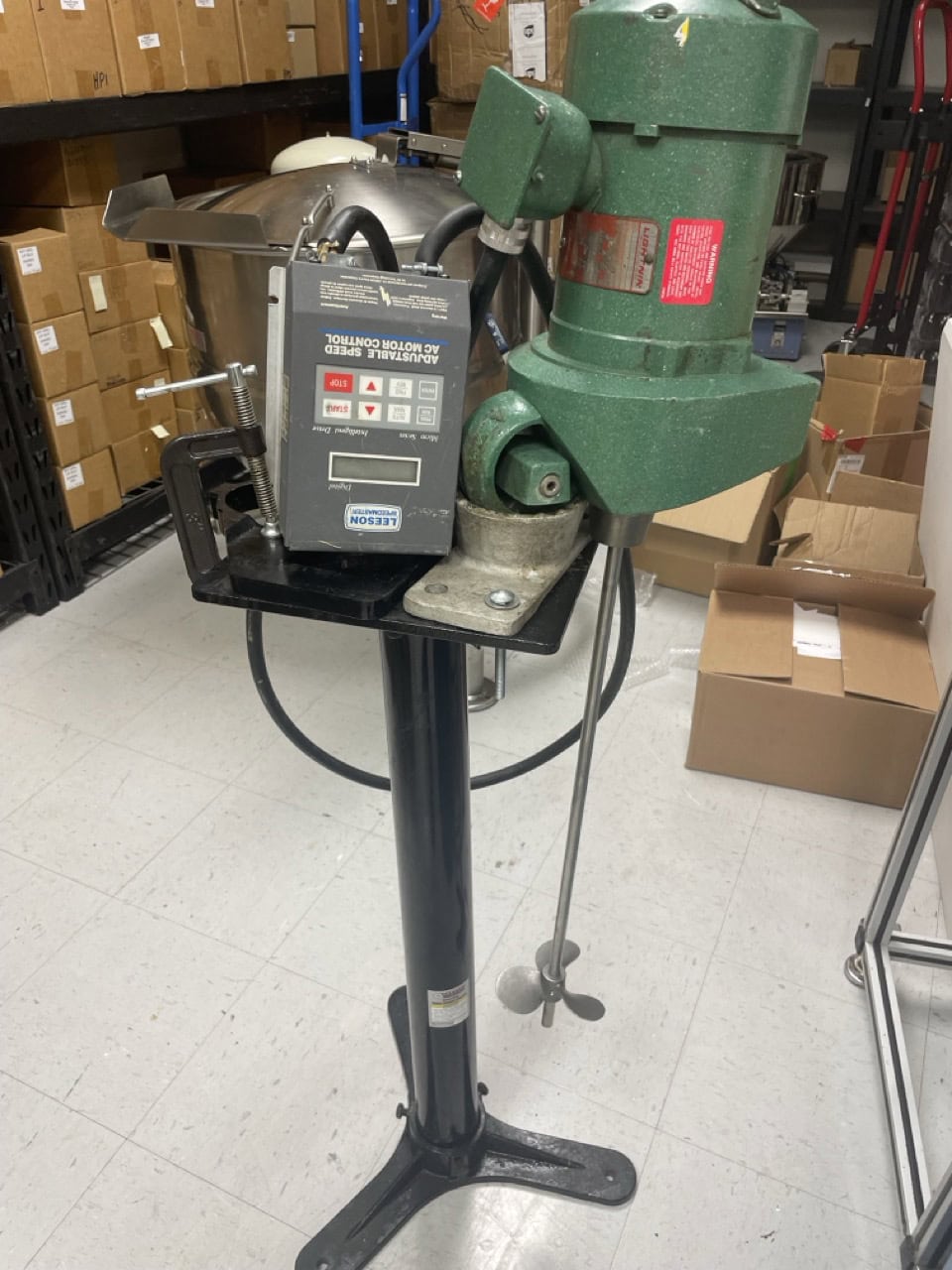

Mixer: Leeson electric motor with stainless agitator shaft and control box
