Buy or Sell American HOLE-WIZARD Radial Drills
American HOLE-WIZARD Radial Drills are precision drilling machines designed for heavy-duty applications. They offer versatility in drilling, tapping, and reaming, ideal for metalworking and fabrication industries.
Check out the 7 American HOLE-WIZARD listings available for sale below!

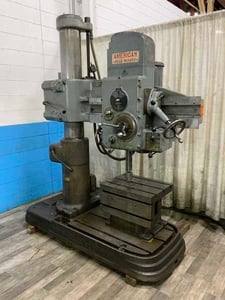

3' -9" American #Hole-Wizard, radial drill, 46" x 36" T-slot base, 5 HP, power elevation & clamping, coolant
Yoder Machinery Sales | Holland, OH
Category: Radial Drills
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: American
Model: HOLE-WIZARD
SERIAL. 73577-51ARM LENGTH. 3'COLUMN DIAMETER. 9"AREA OF BASE (T SLOTTED). 46" X 36"SPINDLE SPEEDS. (12) 70 TO 1500 RPMSPINDLE FEEDS. (4).004 TO.020SPINDLE TRAVEL. 12"SPINDLE DIAMETER. 2-1/2"SPINDLE TAPER. #4 MTDISTANCE SPINDLE TO COLUMN. 10-3/4" MINIMUM TO 36" MAXIMUMDISTANCE SPINDLE TO BASE. 15-1/4" MINIMUM TO ...more
4' -9" American #Hole-Wizard, radial arm drill, power elevation, 30" x53" base, 5 HP, #62917
Yoder Machinery Sales | Holland, OH
Category: Radial Drills
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: American
Model: HOLE-WIZARD
SERIAL. 69224, MODEL. HOLE WIZARD, ARM LENGTH. 4', COLUMN DIAMETER. 9", AREA OF BASE. 53" X 30", AXILLARY L BASE. YES, SPINDLE SPEEDS. (12) 50 TO 1500 RPM, SPINDLE FEEDS. (6).004 TO.025 IPR, SPINDLE STROKE. 9", DIAMETER OF SPINDLE. 2-1/2", TAPER IN SPINDLE. MORSE, DISTANCE SPINDLE TO COLUMN. 11" MIN 48" MAX ...more
4' -11" American Tool #Hole-Wizard, Radial Drill, 51" max Spindle to Column, 103" overall Height, 18" deep Box Table, #5 MT, 3 Ph.
MachineCo | Montreal, QC
Category: Radial Drills
Seller: MachineCo
Location: Montreal, QC
Mfr: American
Model: HOLE-WIZARD
“Normal wear from use.”, Radial Drill 4′ x11″ col. American “Hole Wizard” w/ Box Table, 18″ deep, Mfr. ………………………. “American Tool” (made in USA), Model ……………………. ...more

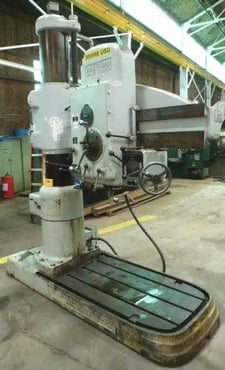

4' -13" American #Hole-Wizard, 25-2000 RPM, #5MT, 10 HP,power elevation & clamping
Perfection Global | Elk Grove Village, IL
Category: Radial Drills
Seller: Perfection Global
Location: Elk Grove Village, IL
Mfr: American
Model: HOLE-WIZARD
Length of Arm: 4'Diameter of Column: 13"Drills to Center of Circle on Base: 96"Spindle to Base: 6" - 60"Spindle Speeds: 25 - 2000 RPMSpindle Travel: 18"Spindle Taper: #5MTTraverse of Drill Head on Arm: 34-3/4"Traverse of Arm on Column: 36"Number of Spindle Feeds: 16Tap Leads, Threads Per Inch: 8, 11-1/2, 14 ...more
4' -15" American #Hole-Wizard, 18" Z, 20-1600 RPM (32 Steps), 20 HP, 5MT, 30" x24"x20"tbl
Perfection Global | Elk Grove Village, IL
Category: Radial Drills
Seller: Perfection Global
Location: Elk Grove Village, IL
Mfr: American
Model: HOLE-WIZARD
Arm Length: 4'Column Diameter: 15"Drills to Center of Circle on Base: 96"Maximum Distance, Spindle to Base: 66"Minimum Distance, Spindle to Base: 8.5"Traverse of Drill Head on Arm: 34"Traverse of Arm on Column: 39.5"Table Size: 30" L x 24" W x 20" HHeight of Base: 9"Spindle Travel: 18"Spindle Taper: No. 5 ...more
5' -17" American Tool Works #Hole-Wizard, radial drills, 1600 RPM, 5MT, 25 HP, 220/440 V.
DiPaolo Machine Tools | Mississauga, ON
Category: Radial Drills
Seller: DiPaolo Machine Tools
Location: Mississauga, ON
Mfr: American
Model: HOLE-WIZARD
6' -15" American #Hole-Wizard, radial arm drill, power elevation/clamping on column, 24" x30" T-slotted tilting box table
Belmont Machinery Co | Aurora, IL
Category: Radial Drills
Seller: Belmont Machinery Co
Location: Aurora, IL
Mfr: American
Model: HOLE-WIZARD
Size 6'x15" Make AMERICAN Year N/A, ONE USED - 6’x 15” AMERICAN Radial Drill, Model: HOLE WIZARD, Serial Number: 70692-47, 64” Maximum Height Under Arm, #5 MT Spindle, Spindle Speeds from 15 to 1200 RPM, Power Elevation, Power Clamping on Column, Rapid Traverse on Head, 24” x 30” T ...more
