Upset Forging Machines (Upsetters)

Seller: Atlas Techtonic

Location: Bolivar, OH

Mfr: National

Year: 1942

1-1/2" NATIONAL UPSETTER, STROKES PER MIN - 75, STROKE OF MACHINE - 9 1/4", GRIP OPENING - 2 11/16", GATHER - 4", HOLD - 1 1/4", FLOOR SPACE (LXW) - 10'2" X 5'11", 25,000 LBS, HP - 10.

1" Ajax upsetter forging machine, 100-200 tons upsetting/grip force, 90 SPM, 6" stroke header, 7-1/2 HP, approx. 1980

Reid Machinery Inc | Lansing, MI

Seller: Reid Machinery Inc

Location: Lansing, MI

Mfr: Ajax

Year: 1980

1" Ajax upset forging machine, 100-200 Tons upsetting 1980, S/N 5188-R Rated Bar Capacity: 1″ Upsetting Force (Approximately) 200 Tons Gripping Force (Approximately) 100 Tons Hold On 2 ½″ Die Height 9″ - Die Length 8″ - Die Thickness 5″ Gather 3-3/4″ Header Slide Stroke ...more

1" Ajax upset forging machine, 100-200 Tons upsetting/grip force, 90 SPM, 6" stroke header, 7-1/2 HP, approx. 1980

Mauldin Machine Inc | Jacksonville, AR

Seller: Mauldin Machine Inc

Location: Jacksonville, AR

Mfr: Ajax

ONE PREOWNED 1″ AJAX UPSET FORGING MACHINE, NEW about 1980, S/N 5188-R, Rated Bar Capacity 1″, Upsetting Force (Approximately) 200 Tons, Gripping Force (Approximately) 100 Tons, Hold On 2 ½″, Die Height 9″, Die Thickness 5″, Die Length 8″, Gather 3-3/4″, Header Slide ...more

4 Photos Video

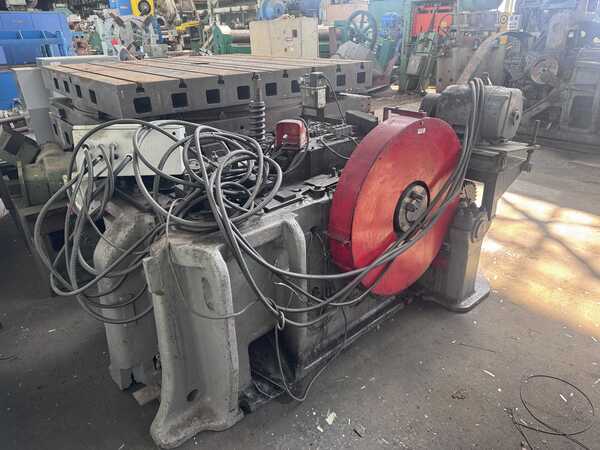

1-1/4" Hill-Acme, upsetter, 2" die opening, air clutch, lube system, 15 HP

Yoder Machinery Sales | Holland, OH

866-69... (Show) 866-692-8933

Seller: Yoder Machinery Sales

Location: Holland, OH

Mfr: Hill-Acme

CAPACITY. 1-1/4", STROKE OF HEADER SLIDE. 7", STOCK GATHER. 3-3/4", HOLD OR RECEDE. 1-1/2", DIE OPENING. 2", WIDTH OF TOOL HOLDER POCKET. 2-7/16", DEPTH OF DIE POCKET. 12", WIDTH OF DIE POCKET. 8", LENGHT OF DIE POCKET. 8", AIR CLUTCH. YES, LUBE SYSTEM. YES, HORSEPOWER MOTOR. 15.

1-1/2" Ajax, upsetter, 7" stroke, 3-1/4" die opening, air clutch, 10 HP, 75 SPM, #68926

Yoder Machinery Sales | Holland, OH

866-69... (Show) 866-692-8933

Seller: Yoder Machinery Sales

Location: Holland, OH

Mfr: Ajax

SERIAL. 4400, CAPACITY. 1-1/2"", STROKE OF HEADER SLIDE. 7", STROKES PER MIN. 75, DIE OPENING. 3-1/4", GATHER. 4-1/2", HOLD-ON. 2-7/8", AIR CLUTCH. YES, MOTOR. 10 HP.

10 Photos

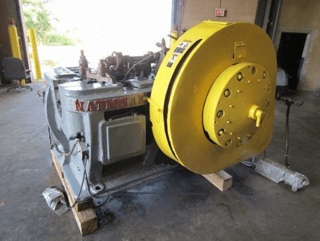

1-1/2" National upsetter, 75 SPM, 9-1/4" stroke of machine, 2-11/16" grip opening, 10' 2" x 5'11" floor space (LxW)

Atlas Techtonic | Louisville, KY

502-28... (Show) 502-287-3095

Seller: Atlas Techtonic

Location: Bolivar, OH

Mfr: National

Year: 1942

1-1/2" NATIONAL UPSETTER, STROKES PER MIN - 75, STROKE OF MACHINE - 9 1/4", GRIP OPENING - 2 11/16", GATHER - 4", HOLD - 1 1/4", FLOOR SPACE (LXW) - 10'2" X 5'11", 25,000 LBS, HP - 10.

Get email updates for newly added Upset Forging Machines (Upsetters)

Upset Forging Machines (also known as upsetters) are machines used to increase the diameter of a metal workpiece by applying localized pressure at one end, typically to create parts like bolts or rivets. Common in industries like automotive, aerospace, and fastener manufacturing, upsetters shape metal without removing material. These machines are essential for producing high-strength, durable components with precise dimensions, especially in high-volume production environments.

1-1/2" National, tong feed upsetter, 9-1/4" stroke, 4" gather, 15 HP, 60 SPM, 1972

National Machinery Exchange | Newark, NJ

Seller: National Machinery Exchange

Location: Newark, NJ

Mfr: National

Year: 1972

1 1/2" NATIONAL TONG FEED UPSETTER, 1972, SPM - 60, STROKE - 9 1/4", GRIP OPENING - 2 11/16", GATHER - 4", HOLD - 1 1/4", HP - 15, FLOOR SPACE - 5'11" X 10'2" (WxL), LBS - 30,000, LENGTHS UP TO 20", HEX HEAD BOLTS TRIMMED OR FLASHLESS, BOLTS FOR HI TENSION POWER LINES, AUTOMOTIVE PUSH RODS, HAND TOOL SOCKET ...more

8 Photos

2" National upsetter, 9" stroke, 6" gather, 3-1/2" grip opening, 60 SPM, 20 HP, 1947

National Machinery Exchange | Newark, NJ

Seller: National Machinery Exchange

Location: Newark, NJ

Mfr: National

Year: 1947

2" NATIONAL UPSETTER, YEAR 1947, 60 SPM, 9 " STROKE, 3 1/2" GRIP OPENING, 6" GATHER, 1 " HOLD, 9' X 12' L X W, 20 HP, 43,500 LBS.

2-1/2" Hill-Acme #XN, upsetter, 16" die depth, 6" die width, 15-1/2" die length, 4" die opening, 11" stroke, 25 HP

Yoder Machinery Sales | Holland, OH

866-69... (Show) 866-692-8933

Seller: Yoder Machinery Sales

Location: Holland, OH

Mfr: Hill-Acme

Model: XN

SERIAL. 17900, MODEL. XN, CAPACITY. 2-1/2", DIE DEPTH. 16", DIE WIDTH. 6", DIE LENGTH. 15-1/2, DIE OPENING. 4", STOCK GATHER. 7", LENGTH HEADER SLIDE. 70", LENGTH OF STROKE. 11", SPEED OF MACHINE. 55 SPM, SIZE OF MOTOR. 25 HP.

3" Acme Hill #XN, upsetter, 22" D x 14" W x 19-1/4" L die, 5" die opening, 12" stroke, 630 ton, 30 HP, 1942

FH Machinery Inc | Ivyland, PA

215-35... (Show) 215-355-6641

Seller: FH Machinery Inc

Location: Ivyland, PA

Mfr: Acme

Model: XN

Year: 1942

Die Depth22" Die Width14" Die Length19-1/4" Die Opening5" Tool Holder Pocket Width5" Stock Gather7-5/8" Hold2" Stroke12" Header Slide Length80" HP30 Forging Pressure630 Tons Dimensions184" x 101" x 85" Weight95000 pounds, Check out our full inventory www.fhmachinery.com.

3" Acme Upsetter, 22" depth x 14" W x 19-1/4" L, 5" die opening, 5" pocket width, 7-5/8" gather, 2" hold, 12" stroke, 1942

National Machinery Exchange | Newark, NJ

Seller: National Machinery Exchange

Location: Newark, NJ

Mfr: Acme

Year: 1942

3" HILL ACME XN UPSETTER, S/N M17010, YEAR 1942, DIE DEPTH. 22", DIE WIDTH. 14", DIE LENGTH. 19-1/4", DIE OPENING. 5", TOOL HOLDER POCKET WIDTH. 5", STOCK GATHER. 7-5/8", HOLD. 2", STROKE. 12", HEADER SLIDE LENGTH. 80", HP. 30, LBS. 95,000, FORGING PRESSURE. 630 TONS, L x W x H. 184" x 101" x 85".

5 Photos

3" Hill-Acme, upsetter

R D Erbe & Associates Inc | Lansing, MI

517-24... (Show) 517-244-9919

Seller: R D Erbe & Associates Inc

Location: Lansing, MI

Mfr: Hill-Acme

Hariton Machinery Co Inc | Bridgeport, CT

Seller: Hariton Machinery Co Inc

Location: Bridgeport, CT

Mfr: National

Year: 1978

Strokes Per Minute 33 Stroke of Machine 20" Grip Opening 7" Gather 11 1/2" Hold 10" Floor Space : W x L 12'6" x 18'8" Motor 75 HP Net Weight 253,000 Lbs. Tool & Die Space 67" L x H of Die Space 38" x 29" Die Thickness 11 1/8" Lube System Trabon Oil Heading Slide Tonnage 1100 Ton Grip Slide Tonnage 550 Ton.

10 Photos

5" National, double toggle upsetter machine, 20" stroke, 33 SPM, 7" grip opening, 10" hold, 1980

Hariton Machinery Co Inc | Bridgeport, CT

Seller: Hariton Machinery Co Inc

Location: Bridgeport, CT

Mfr: National

Year: 1980

Strokes Per Minute 33 Stroke of Machine 20" Grip Opening 7" Gather 11 1/2" Hold 10" Floor Space : 12'6" W x 18'8" L L x H of Die Space 38" x 29" Motor 75 HP Net Weight 253,000 Lbs. Tool & Die Space 67" Length x Height of Die Space 38" x 29" Die Thickness 11 1/8" Lube System Trabon Oil Heading Slide Tonnage ...more

8 Photos

5" National upsetter press 1100 upset550 grip, Stroke: 15"-381mm

Reid Machinery Inc | Lansing, MI

Seller: Reid Machinery Inc

Location: Lansing, MI

Mfr: National

`1100 Ton National 5” / 127 mm Upsetter Press Asset: L003 Year: 1950’s Asset: L003 Serial Number: 19452 Capacity: (Metric Ton): 1100 Upset—550 Grip Capacity: 1100 Ton Stroke: 15" - 381 mm Grip Opening: 7" 177 mm Gather: 8.125” - 206 mm Hold: 2.500” - 63.5 mm Die Depth: F-B 24” ...more

6" Ajax, horizontal upsetter, 8" die opening, 11" stock gather, 75 HP, 27 SPM

Hariton Machinery Co Inc | Bridgeport, CT

Seller: Hariton Machinery Co Inc

Location: Bridgeport, CT

Mfr: Ajax

Rating in Tons 1200 Die Grip in Tons 606 HDR SL Stroke 18" Strokes/Min 27 Die Opening 8" Stock Gather 11" Hold On 5" Die Height 36" Die Thickness 11" Die Seat Length 26" Tool & Die Space Max 57" Eccentric Pin Diameter 16 1/2" Journal Diameter 14" Flywheel Diameter 76" Total Energy (ft/Lbs) 375,090 Clutch Torque ...more

6" National, 1300 ton upsetter, 18" stroke, 27 SPM, 8" grip opening, #2666

Mauldin Machine Inc | Jacksonville, AR

Seller: Mauldin Machine Inc

Location: Jacksonville, AR

Mfr: National

ONE PREOWNED 6” NATIONAL UPSETTER PRESS, S/N 16939, New 1953, Tonnages: 1300 upset, 650 grip, Stroke: 18", SPM: 27, Grip Opening: 8”, Gather: 9 5/8”, Hold: 4 5/8”, Die Depth: F-B 26”, Die Thickness: 11 1/2”, Height: 10', Weight: 255,000# Approx., CONDITION: Very Good/ ...more

10 Photos

6" National Upsetter Press, 1300 ton, 18" stroke, 27 SPM, 8" grip opening

Reid Machinery Inc | Lansing, MI

Seller: Reid Machinery Inc

Location: Lansing, MI

Mfr: National

1300 Ton National 6” / 152 mm Upsetter Press Year: 1954 Asset: L002 Serial Number: 16939 Capacity: 1300 Ton Stroke: 20" 508mm Width of Dies: 26" 660.4mm Height of Dies: 32" 812.8mm Thickness of Dies: 11 1/8 282.5mm Stock Gather: 6.5" 165mm Hold: 4 5/8" 117 mm Die Depth: F-B 26” 600 00, Thickness 11 ...more

9 Photos Video

6" National upsetter, 18" stroke, 8" grip opening, 9-5/8" gather, 4-5/8" hold, 75 HP, 27 SPM

National Machinery Exchange | Newark, NJ

Seller: National Machinery Exchange

Location: Newark, NJ

Mfr: National

6" National, Upsetter, 13'10" x 16' 6" floor space, 8" grip opening, 11" gather, 5 1/2" hold, 32" H x 11-1/8" x 26" L die, 20" stroke

National Machinery Exchange | Newark, NJ

Seller: National Machinery Exchange

Location: Newark, NJ

Mfr: National

STROKES PER MINUTE: 27, MOTOR (R.P.M - 60 CYCLE) 900 (HORSEPOWER) 75, FLOOR SPACE (FT-IN) 13'10" X 16'6", NET WEIGHT (LBS) 255,000, GRIP OPENING: 8", GATHER: 11", HOLD: 5 1/2", HEIGHT OF DIE: 32", THICKNESS OF DIE: 11 1/8", LENGTH OF DIE SPACE: 26", LENGTH OF STROKE: 20".

6" National, upsetter

R D Erbe & Associates Inc | Lansing, MI

517-24... (Show) 517-244-9919

Seller: R D Erbe & Associates Inc

Location: Lansing, MI

Mfr: National

6" National, 4" National, 7" National, 7" Ajax upsetters

Ray Jacobs Machinery Co | Scottsdale, AZ

248-22... (Show) 248-225-8979

Seller: Ray Jacobs Machinery Co

Location: Scottsdale, AZ

Mfr: National

7" Ajax, horizontal upsetter, 20" stroke, 9-1/2" die opening, 13" stock gather, 125 HP, 25 SPM

Hariton Machinery Co Inc | Bridgeport, CT

Seller: Hariton Machinery Co Inc

Location: Bridgeport, CT

Mfr: Ajax

Year: 1943

Rating in Tons 1500 Die Grip in Tons 995 HDR SL Stroke 20" Strokes/Min 25 Die Opening 9 1/2" Stock Gather 13" Hold On 5" 1/2" Die Height 39" Die Thickness 12" Die Seat Length 28" Tool & Die Space Max 64" Eccentric Pin Diameter 20" Journal Diameter 18" Flywheel Diameter 102" Total Energy (ft/Lbs) 727,530 Clutch ...more

7" Ajax, Upsetter, 2100 ton, 20" stroke, 25 SPM, 9-1/2" opening, 13" gather, 5 1/2" hold

National Machinery Exchange | Newark, NJ

Seller: National Machinery Exchange

Location: Newark, NJ

Mfr: Ajax

MACHINE SIZE: 7", RATING IN TONS: 2,100, MAX DIE CLOSING TONS: 995, HEADER SLIDE STROKE: 20", STROKES/MINUTE: 25, DIE OPENING: 9 1/2", STOCK GATHER: 13", HOLD ON: 5 1/2", DIE HEIGHT: 39", DIE THICKNESS: 12", DIE SEAT LENGTH: 28", DIE & TOOL SPACE: 36", FLYWHEEL DIA: 102", TOTAL ENERGY (FT. LBS): 727,530, MOTOR ...more

7" Ajax Axle Forging Line w/Newelco 600 KW ind heater, bar feeder, Fanuc robot, inspect running

TrueForge Global Machinery Co | Rockville Centre, NY

516-82... (Show) 516-825-7040

Seller: TrueForge Global Machinery Co

Location: Rockville Centre, NY

Mfr: Ajax

7-1/2" National #7-1/2, heavy duty upsetter with tong feed, 22" stroke, 25 SPM

Mauldin Machine Inc | Jacksonville, AR

Seller: Mauldin Machine Inc

Location: Jacksonville, AR

Mfr: National

Model: 7-1/2

Mauldin Machine Inc., Dealers In New and Used Industrial Machinery, PROPOSAL, We are pleased to offer, subject to prior sale and our “Standard Terms and Conditions of Sales”, for immediate acceptance, the following:, ONE PREOWNED 7 ½” NATIONAL HEAVY DUTY UPSET FORGING MACHINE, MODEL NO. 7 ...more

5 Photos

7-1/2" National #7.5ATF-FM, automatic tong, 1800/900 forge/grip ton, 22" stroke, 9" grip open

TrueForge Global Machinery Co | Rockville Centre, NY

516-82... (Show) 516-825-7040

Seller: TrueForge Global Machinery Co

Location: Rockville Centre, NY

Mfr: National

Model: 7.5ATF-FM

7-1/2" National Heavy Duty Upsetter, 1800 ton, single toggle

Reid Machinery Inc | Lansing, MI

Seller: Reid Machinery Inc

Location: Lansing, MI

Mfr: National

1800 Ton 7-1/2" National Heavy Duty Upsetter MACHINE, MODEL NO. 7 ½, S/N 16155, SINGLE TOGGLE Capacity: (Metric Ton): 1800 Upset Rated Bar Diameter: 7 ½” 190.5mm Strokes Per Minute: 25 Stock Gather: 13" 330.2mm Hold: 6 ¼” 158.75mm Grip Opening: 9.5" 288.6mm Length x Height of Die ...more

Mauldin Machine Inc | Jacksonville, AR

Seller: Mauldin Machine Inc

Location: Jacksonville, AR

Mfr: National

Model: 10

ONE PREOWNED 10 NATIONAL HEAVY DUTY UPSET FORGING MACHINE, MODEL NO. 10, S/N 23120, DOUBLE TOGGLE, (subject to buyer verification), Upsetting Force. 3000 tons, Grip Force. 1500 Tons, Rated Bar Diameter. 10, Stroke. 30, Strokes Per Minute. 25, Stock Gather. 23, Hold. 12, Grip Opening. 13.5, Motor 300 HP, Floor Space ...more

5 Photos

10" National Upsetter Heavy Duty Forging Machine, double toggle, 30" stroke, 300 HP

Reid Machinery Inc | Lansing, MI

Seller: Reid Machinery Inc

Location: Lansing, MI

Mfr: National

3000 Ton 10" National, Heavy Duty Upset Forging Machine ONE PREOWNED 10” NATIONAL HEAVY DUTY UPSET FORGING MACHINE, MODEL NO. 10, S/N 23120, DOUBLE TOGGLE Upsetting Force. 3000 tons Grip Force: 1500 Tons Stroke: 30" 762mm Rated Bar Diameter: 10" 254mm Strokes Per Minute: 25 Stock Gather: 23" 584mm Hold: 12" ...more

1800" Ton, National #7-1/2, upsetter press, 7-1/2" bar diameter, 11-1/2" stock gather, 25 SPM

Reid Machinery Inc | Lansing, MI

Seller: Reid Machinery Inc

Location: Lansing, MI

Mfr: National

Model: 7-1/2

1800 Ton 7-1/2" National Heavy Duty Upsetter Asset: L066 MACHINE, MODEL NO. 7 ½, S/N 16155, SINGLE TOGGLE Capacity: (Metric Ton): 1800 Upset Rated Bar Diameter: 7 ½” 190.5mm Strokes Per Minute: 25 Stock Gather: 13" 330.2mm Hold: 6 ¼” 158.75mm Grip Opening: 9.5" 288.6mm Length x Height ...more

1800" Ton, National 7.5" Heavy Duty Upsetter (Spare Parts)

Reid Machinery Inc | Lansing, MI

Seller: Reid Machinery Inc

Location: Lansing, MI

Mfr: National

1800 Ton 7.5" National Heavy Duty Upsetter (Spare Parts), 1800 Ton 7.5" National Heavy Duty Upsetter (Spare Parts), 1800 Ton 7.5" National Heavy Duty Upsetter (Spare Parts), 1800 Ton 7.5" National Heavy Duty Upsetter (Spare Parts), 1800 Ton 7.5" National Heavy Duty Upsetter (Spare Parts), 1800 Ton 7.5" National Heavy ...more

Eumuco #SMZ160, 1600 metric tons, serial #79694, 280mm, 25 SPM, good condition, 1958

Hoffman Machinery Corp | Grosse Pointe, MI

313-64... (Show) 313-642-1100

Seller: Hoffman Machinery Corp

Location: Grosse Pointe, MI

Mfr: Eumuco

Model: SMZ160

Year: 1958

1600 METRIC TON EUMUCO HORIZONTAL UPSETTER, MDL. #SMZ 160, Mfg. 1956 Serial No. 79694, Working stroke 280 mm, Strokes per minute 25, Clamping opening min. 200 mm, Upset & clamp capacity 1600 met. tons each, Motor (upsetting) 68 ps, Motor (clamping) 29 ps, Weight 115,000 kg, Additional Information:, Good ...more
