13 Results
80 Ton, French Oil, 32" x16", up-act 4-post, 18" stroke, 22" daylight, 10" ram, 42" wk.height, 80" tall, #260
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: French Oil
BED 32" L to R X 16" F to B. DISTANCE BETWEEN POSTS: 33 \u00bd" L to R X 7" F to B. POST DIAMETER 3". DAYLIGHT 22". APPROX STROKE 18". 10" DIAMETER MAIN RAM, SINGLE ACTING, RATED AT 2000 PSI. 1" NPT PORTS. HALF SURROUND GUIDES 7" LONG ON MOVING BOLSTER. OPERATOR HEIGHT: 42". OVERALL DIMENSIONS: 55" W X 24" D X 80" ...more
118 Ton, French Oil, 30.5" x20", upact 4-post, 12" stroke, 16" daylight, 10" ram, 48" work height, #78
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: French Oil
11" F TO B BETWEEN THE POSTS AND 36" L TO R OVERALL. 10" DIA. RAM RATED TO 3000 PSI. ADJUSTABLE DAYLIGHT FROM 16" TO 30". APPROX 12" STROKE. FULLY GUIDED. 3 \u00bc" DIA. POSTS. TEE-SLOTTED SLIDE AND CROWN. FLOOR STANDING. 48" OPERATOR HEIGHT. 1 \u00be" PUSHBACK CYLINDERS. OVERALL HEIGHT OF 95". (ITEM #78).
154 Ton, French Oil, 26" x26", up-act, slab side, 16" daylight, 10" stroke, 31" work hght, 56" tall, #2238
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: French Oil
PH-29064A. MACHINE #15391. 28" CLEARANCE L TO R BETWEEN THE SIDES. 26" X 26" NOMINAL PLATEN SIZE. RAM IS 14" DIAMETER WITH APPROX 10" MAX STROKE AND RATED TO 2000 PSI. APPROX 16" DAYLIGHT. APPROX 31" OPERATOR HEIGHT. GIB GUIDES. SLAB-SIDES ARE 3" THICK AND EACH HAS A 2" X 16" WINDOW NEAR FRONT EDGE. OVERALL DIMENSIONS ...more
250 Ton, French Oil, 24" x24", upact.slab side, 18" stroke, 28" daylight, 18" ram, 39" work height, #607
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: French Oil
250 TONS AT 2000 PSI. SINGLE ACTING 18" DIAMETER RAM. 4 BOLT 2 \u00bd" NPT PORT. DISTANCE BETWEEN SIDES IS 25 \u00be" L TO R. DAYLIGHT 28 \u00be". STROKE APPROX 18". MOVING BOLSTER FULLY GUIDED WITH 45\u00b0 GIBS. OPERATOR HEIGHT 39". OVERALL DIMENSIONS 40" L TO R X 36" F TO B X 80" TALL. APPROX WEIGHT 15,000 LBS. R3. ...more
314 Ton, French Oil, 24" x24", up-act slab side, 16" stroke, 29" daylight, 20" ram, 38" work height, #796
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: French Oil
SERIAL # PH-30388. OVERALL CLEARANCE L TO R IS 26". 29" DAYLIGHT. APPROX. 16" STROKE. 20" DIAMETER RAM. 38" OPERATOR HEIGHT. 45 DEGREE GIB GUIDES. 2" NPT PORT WITH FOUR BOLT FLANGE. OVERALL DIMENSIONS: 36" X 36" X 80" TALL. APPROX. WEIGHT 15,000 LBS. R2 (ITEM #796).
Get email updates for newly added Hydraulic Presses
Hydraulic Presses (also known as hydraulic molding presses or hydraulic stampers) are machines that use hydraulic force to apply pressure for shaping, forming, or compressing materials. Commonly used in industries like automotive, metalworking, and manufacturing, they are ideal for tasks such as metal stamping, plastic molding, and rubber pressing. Hydraulic presses are essential for producing high-quality parts with precise force and control in heavy-duty applications.

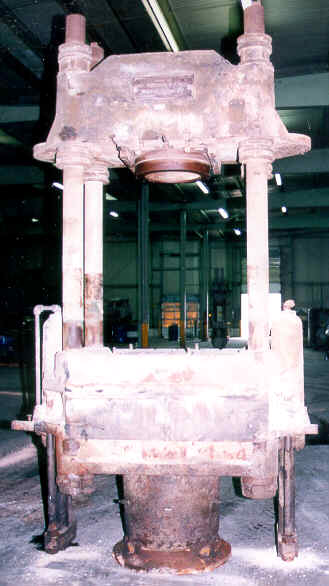

340 Ton, French Oil, 40" x30", up-act, 4-post, 22" stroke, 27" -60" DL, 17" ram, 5" posts, #38,39
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: French Oil
45" L TO R OVERALL. 16" F TO B BETWEEN THE POSTS. (THERE IS A \u00bd" TALL RING AROUND THE POSTS. L TO R BETWEEN THE RINGS IS 37" AND F TO B BETWEEN THE RINGS IS 13 \u00bd"). 17" DIA. MAIN RAM RATED TO 3000 PSI. ADJUSTABLE DAYLIGHT FROM 27" TO 60". APPROX 22" STROKE. 5" DIA. POSTS. FULLY GUIDED. APPROX. 2 \u00bd" DIA. ...more

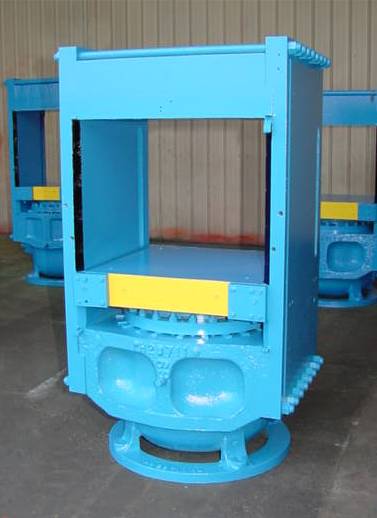

380 Ton, French Oil, 30" x 30", up-acting slabside, 14" stroke, 25" daylight, 35" work height, #792
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: French Oil
Model: 792
SERIAL # PH-29711. OVERALL CLEARANCE L TO R IS 31". 25" DAYLIGHT. APPROX. 14" STROKE. 22" DIAMETER RAM. 35" OPERATOR HEIGHT. 45 DEGREE GIB GUIDES. 2 \u00bd" NPT PORT. OVERALL DIMENSIONS: 40" X 40" X 72" TALL. APPROX WEIGHT 15,000 LBS. R3 (ITEM #792).

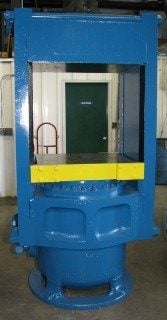

452 Ton, French Oil, 28.75" x24", up-act.slab-side, 28.5" daylight, 18" stroke, 24" dia.ram, #2260
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: French Oil
FRENCH OIL. PH 39078. CLEARANCE LEFT TO RIGHT BETWEEN SIDES IS APPROX 30.75". 28.75" X 24" NOMINAL BED SIZE. 24" DIAMETER SINGLE-ACTING RAM WITH APPROX 18" STROKE. MAX DAYLIGHT OF APPROX 28.5". OPERATOR HEIGHT APPROX 43". 5" THICK SLAB SIDES. 2" WIDE WINDOW APPROX 5" IN FROM EDGE. ADJUSTABLE GIB GUIDES. 2.5" PORT. ...more
530 Ton, French Oil #51118, hydraulic molding press, #A5484
Sterling Machinery Exchange | South El Monte, CA
Category: Hydraulic Presses
Seller: Sterling Machinery Exchange
Location: South El Monte, CA
Mfr: French Oil
Model: 51118
Tonnage 530 Ram Size 36" x 48" Bed Size 36" x 48" Daylight 9" Distance Between Uprights 52" Maximum Opening Without The Upper And Lower Bolsters 36" Approximate Stroke 20" Weight (Approx.) 35,000# Total. Tank Can Be Removed For Transport. Tank Weight Is #2500 And Machine Is #32,500 Upper Platen 36" X 52" Lower Platen ...more
707 Ton, French Oil, 36" x36", up-act, 30" ram, 20" daylight, 12" stroke, slab side (qty) #1152
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: French Oil
30" DIAMETER MAIN RAM. LEFT TO RIGHT CLEARANCE BETWEEN SLAB SIDES IS 37.25". 21" DAYLIGHT. 12" STROKE. 41.25" OPERATOR HEIGHT. 1.5" NPT PORT WITH 8-BOLT FLANGE. RATED @ 2000 PSI. 45 DEGREE ADJUSTABLE GIB GUIDES. OVERALL DIMENSIONS: 54" X 52" X 81" TALL. APPROX 30,000 LBS. ARRANGEMENT PRINT. R2. C. ITEM #1152C.
707 Ton, French Oil, 35" x36", slab-side, 24" daylight, 15" stroke, 86" tall, (#2470 is similar)#2257
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: French Oil
FRENCH OIL #PH-35384. CLEARANCE L TO R BETWEEN THE SIDES IS APPROX 40". NOMINAL BED SIZE IS 35" X 36". 30" DIAMETER SINGLE-ACTING RAM WITH APPROX 15" STROKE. MAX DAYLIGHT IS APPROX 24". OPERATOR HEIGHT IS APPROX 43.5". ADJUSTABLE GIB GUIDES. 4.5" WIDE WINDOW IN CENTER OF SLABS; 2" WINDOW NEARER TO FRONT EDGE. SLABS ...more
707 Ton, French Oil, 35" x 32", up-act, 25" daylight, 15" stroke, 43" work height, #1358
Icon Industries, Inc | Grand Rapids, MI
Category: Hydraulic Presses
Seller: Icon Industries, Inc
Location: Grand Rapids, MI
Mfr: French Oil
FRENCH OIL CASTING #PH35684. MAIN RAM IS 30" DIAMETER WITH APPROX 15" STROKE. 3" EIGHT BOLT PORT BUSHED TO 2" NPT. TWO SIDE PUSH –BACK CYLINDERS: 2.5" BORE 2" ROD; APPROX 26" STROKE; 1" NPT PORTS; SINGLE ACTING. OVERALL CLEARANCE LEFT TO RIGHT BETWEEN SIDES IS 40". DAYLIGHT IS APPROX 25". OPERATOR HEIGHT IS 43". ...more
850 Ton, TMP French Oil, hydraulic press, 30" x 30", 24" daylight, 24" stroke, electric platens
Soberay & Sons Ltd | Cleveland, OH
Category: Hydraulic Presses
Seller: Soberay & Sons Ltd
Location: Cleveland, OH
Mfr: French Oil
One (1) Used TMP 30" x 30" press, 850 ton, 24" daylight between platens, 24" stroke, electric platens, incomplete self contained hydraulic_unit_incomplete_controls.
