15 Results
6" x 18" K.O. Lee #S718, surface grinder, extra grinding wheels, S/N 14973
Smith Machinery Co | Ames, IA
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: K.o. Lee
Model: S718
Year: 1977
Table-W 7" Table-L 18" Size 6" X 18" K.O. LEE Model S718HG 6" X 18" Horizontal Surface Grinder, Capacity: 6" X 19", Longitudinal Travel: 20", Cross Feed: 7", Hydraulic Feed On X & Y Axis, Grinding Wheel: 8" X 3/4" X 1-1/4", Chuck Size: 6" X 14", Spindle Speed: 2850 RPM, Spindle Motor: 1 HP, One Shot Lube ...more
7" x 18" U.S. Industrial #USG618A-S, toolroom surface grinder, Sino 2-Axis digital read out, NEW
Smith Machinery Co | Ames, IA
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: U.S. Industrial
Model: USG618A-S
Parallelism & Flatness Accuracy.
7" x 18" U.S. Industrial #USG618S-SD, toolroom surface grinder, Sino 2-Axis digital read out, NEW
Smith Machinery Co | Ames, IA
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: U.S. Industrial
Model: USG618S-SD
Parallelism & Flatness Accuracy.
JUST ADDED!

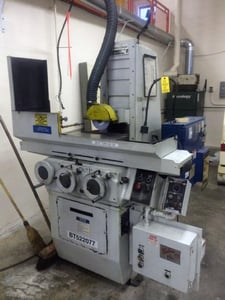

8" x 18" Brown & Sharpe #818, hydraulic surface grinder, 2 HP, 7" x1.25" x0.5", 460 V.
Smith Machinery Co | Ames, IA
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: Brown & Sharpe
Model: 818
Capacity 8" x 18" Table Size 8" x 18" Wheel Size 7" x 1.25" x.5" Motor 2 HP Electrics 460 Volts, 3 Phase, 60 Hertz Dimensions 66" x 60" x 75" Tall Weight 2600 pounds, * TRABON CONTROLLER, * TRABON SERIES-FLO SYSTEM, * MAGNET CHUCK 8" x 18", NOTES:, SUBJECT TO VERIFICATION, DELIVERY:, IMMEDIATE, SUBJECT TO PRIOR SALE.
9" x 20" Mitsui #250MH, surface grinder, coolant tank, S/N 79082108,1979
Smith Machinery Co | Ames, IA
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: Mitsui
Model: 250MH
Year: 1979
GRINDING WHEEL SIZE:, DIAMETER ------------------------ 180, THICKNESS ----------------------- 13, HOLE ---------------------------- 31.75, DIMENSIONS ----------------------- 53 in LR x 53 in FB x 75 in H, COOLANT TANK, NOTES:, SUBJECT TO VERIFICATION, DELIVERY:, IMMEDIATE, SUBJECT TO PRIOR SALE.
Get email updates for newly added Reciprocating Surface Grinders - Horizontal Spindle
Reciprocating Surface Grinders - Horizontal Spindle (also known as horizontal spindle grinders) are machines used for precision grinding of flat surfaces by moving the workpiece back and forth under a rotating grinding wheel. Commonly used in automotive, aerospace, and tool-making industries, they are ideal for achieving smooth finishes and tight tolerances. These grinders are essential for producing high-quality, flat components.

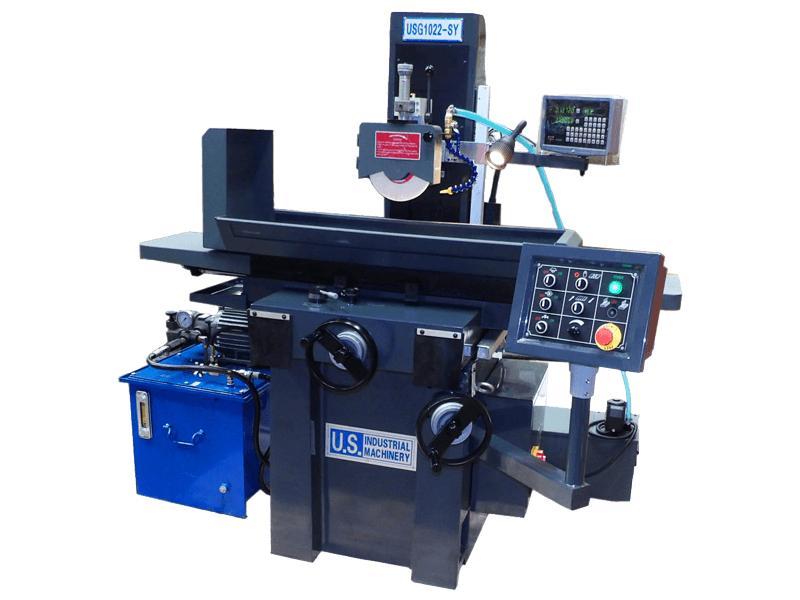

10.2" x 22" U.S. Industrial #USG1022-SY, toolroom surface grinder, 3360 RPM, 220/440 V., 3 HP, 1-shot lube, digital read out, NEW
Smith Machinery Co | Ames, IA
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: U.S. Industrial
Model: USG1022-SY
Parallelism & Flatness Accuracy.
12" x 24" Blohm #Simplex-7, surface grinder
Smith Machinery Co | Ames, IA
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: Blohm
Model: SIMPLEX-7
Chuck Size (W x L) 12" x 28" Max. from Spindle Center to Tabletop 22.5 inches Max. Longitudinal Travel 27.5 inches Max. Cross Travel 14 inches Type of Chuck Electro-Mag Auto Downfeed 0.00004 - 0.0016 Spindle Drive Motor 5 HP Power Cross Feed yes Wheel Diameter 12 inches Wheel Width 2 inches Wheel Bore 5 inches ...more
12" x 24" Chevalier #FSG-1224AD, Surface Grinder, 82 FPM, 5 HP, 460 V., 2006
Smith Machinery Co | Ames, IA
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: Chevalier
Model: FSG-1224AD
Year: 2005
TABLE WORKING SURFACE --------------------- 11.75 in x 12.625 in, GRINDING WIDTH CAPACITY, MAX. ------------- 12 in, GRINDING LENGTH CAPACITY, MAX. ------------ 24 in, HEIGHT SPINDLE CENTER TO TABLE, MAX. ------ 24-3/4 in, GRINDING WHEEL DIAMETER, STANDARD --------- 14 in, GRINDING WHEEL WIDTH, STANDARD ------------ 2 ...more
12" x 24" Chevalier #FSG-1224AD, Surface Grinder, 82 FPM, 5 HP, 460 V., 2005
Smith Machinery Co | Ames, IA
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: Chevalier
Model: FSG-1224AD
Year: 2005
TABLE WORKING SURFACE --------------------- 11.75 in x 12.625 in, GRINDING WIDTH CAPACITY, MAX. ------------- 12 in, GRINDING LENGTH CAPACITY, MAX. ------------ 24 in, HEIGHT SPINDLE CENTER TO TABLE, MAX. ------ 24-3/4 in, GRINDING WHEEL DIAMETER, STANDARD --------- 14 in, GRINDING WHEEL WIDTH, STANDARD ------------ 2 ...more

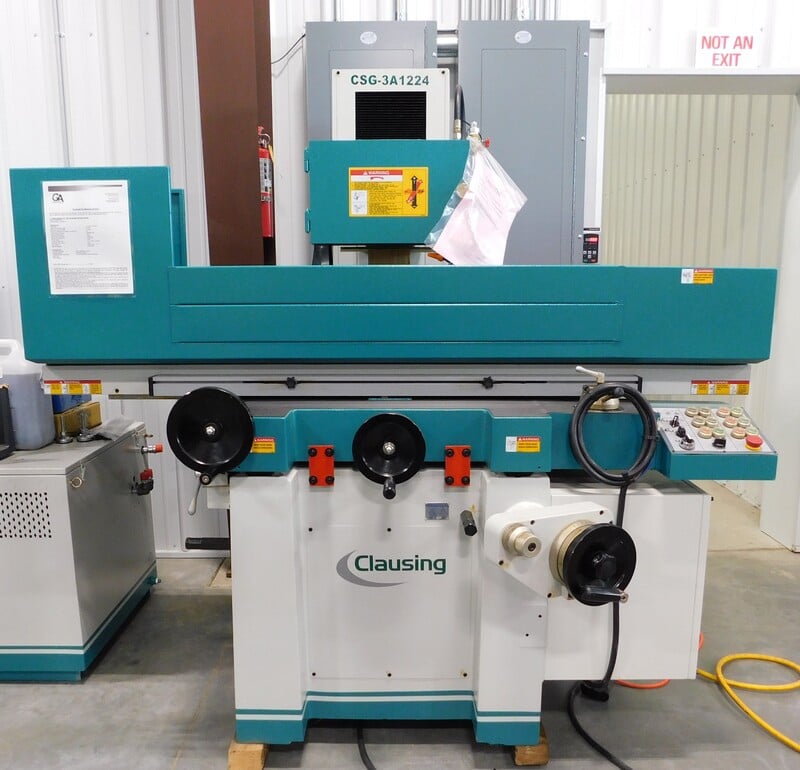

12" x 24" Clausing #CSG3A1224, automatic surface grinder, 12" x 1.25" x 3" wheel, diamond dresser
Greenway & Associates Ltd | Orange City, IA
Seller: Greenway & Associates Ltd
Location: Orange City, IA
Mfr: Clausing
Model: CSG3A1224
, Tool box and tools Auto lubrication system, Balancing stand Diamond dresser, Leveling screws and blocks 3 axis movement w/micro downfeed, Work light, Wheel flange.

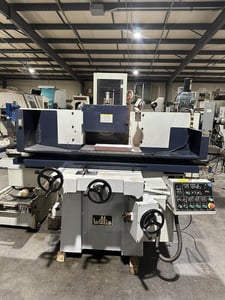

12" x 24" Willis #1224-3A, surface grinder, 14" outside dimension, 1.5" T, 5" ID wheel, 2004
Smith Machinery Co | Ames, IA
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: Willis
Model: 1224-3A
Year: 2004
Table Size 12 x 24 Max. Distance Spindle CL to table 20.5 inches Maximum Travels 13 x 26 Wheel Dimension 14 OD, 1.5 T, 5 ID Table Load including magnetic chuck 220 pounds Longitudinal table speed 16-82 ft./min Cross feed hand wheel graduations 0.001 inches Cross feed travel per hand wheel revolution 0.2 inches ...more
12.6" x 24.8" U.S. Industrial #USG1022-SY, toolroom surface grinder, 1680 RPM, 220/440 V., 3 HP, 1-shot lube, digital read out, NEW
Smith Machinery Co | Ames, IA
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: U.S. Industrial
Model: USG1022-SY
Parallelism & Flatness Accuracy.
13.7" x 35.5" Gallmeyer & Livingston #450, Automatic Surface Grinder, Neutrofier II electromagnetic chuck & control, Bijur lube system
Smith Machinery Co | Ames, IA
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: Gallmeyer & Livingston
Model: 450
Year: 1980
Hydraulic Table Travel (Longitudinal) 35.5 inches Hydraulic Table Travel (Cross) 13.75 inches Working Surface of Table 12" x 24" Wheel Size 14" x 4" x 5" Longitudinal Table Speeds 3" - 150" IPM Auto Cross Feed to Table per Stroke.01" -.5" Continuous Cross Speed (IPM) 120 inches Vertical Movement of Wheelhead 19 inches ...more
Doall #D1030-14, Surface Grinder, 14" x 1" x 3" wheel, 50 FPM, 5 HP,
Smith Machinery Co | Ames, IA
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: Doall
Model: D1030-14
TABLE DIMENTIONS 30" X 10" X 3" CROSS TABLE TRAVEL 12 inches MAXIMUM UNDER WHEEL 10.5 inches GRINDING WHEEL DIAMETER 14" X 1" X 3" CHUCK MAGNALOCK FINE LINE 10" X 30" X 3" MAGNETIC CHUCK CONTROL VARIABLE LONGITUDIAL TABLE SPEEDS 5 TO 50 FPM AUTO TRANSVERSE FEEDS.005 TO.1875 IPM VERTICAL HAND WHEEL ADJ 0.0001 inches ...more
Kent #KSG-360AHD, Surface Grinder, 6.5-72 FPM, 1740 RPM, S/N 87120103, 1989
Smith Machinery Co | Ames, IA
Seller: Smith Machinery Co
Location: Ames, IA
Mfr: Kent
Model: KSG-360AHD
Year: 1989
Working Surface of Table 11 3/4" x 25.5" Max. Surface Ground 12 1/8" x 26 3/8" Max. Distance between table & spindle center 19.625 inches Table Speed 6.5-72 FPM Automatic crossfeed of saddle per stroke (Variable) 0.001" - 0.4" Power crossfeed of saddle 36.6" / Min. Power Elevation 7" / Min Crossfeed on Handwheel ...more
