14 Results
120 Ton, Schuler #M120, Horizontal Coining Press, 250 PPM, hopper feed
National Machinery Exchange | Newark, NJ
Category: Extrusion Presses
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Schuler
Model: M120
RATED CAPACITY (TONS). 120, MAXIMUM COIN DIAMETER:, GOLD, BRONZE, COPPER. 30MM (1.18"), ALUMINUM (SILVER). 28MM (1.10"), COPPER-NICKEL (CLAD). 25MM (.98"), NICKEL. 22MM (.87"), PIECES PER MINUTE. 125 - 250, PIECES PER HOUR (MAXIMUM). 15,000, SOUND ENCLOSURE, WITH HOPPER FEED, 3Kw, 50Hz, 750 RPM, WITH CONTROLS, O.A.: ...more
240 Ton, Herlan #P5, impact extrusion press, air actuated clutch, bowl feeder, ejector
National Machinery Exchange | Newark, NJ
Category: Extrusion Presses
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Herlan
Model: P5
Nominal Power Mp: 240, Stroke Length mm: 300, Aluminum - 99.5 :, Max Diameter mm: 38, Wall Thickness mm: 0.1, Max Extruded Length mm: 250, Zinc 130 deg C :, Max Diameter mm: 32, Wall Thickness mm: 0.35, Max extruded Length mm: 80, Max Diameter Soft Metal mm: 50, Number of Strokes per minute spm: 85, Nominal Power Mp: ...more
240 Ton, Herlan #P6, impact extrusion press, air actuated clutch, bowl feeder, ejector
National Machinery Exchange | Newark, NJ
Category: Extrusion Presses
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Herlan
Model: P6
Nominal Power Mp: 270, Stroke Length mm: 350, Aluminum - 99.5 :, Max Diameter mm: 45, Wall Thickness mm: 0.12, Max Extruded Length mm: 260, Zinc 130 deg C :, Max Diameter mm: 37, Wall Thickness mm: 0.4, Max extruded Length mm: 125, Max Diameter Soft Metal mm: 50, Number of Strokes per minute spm: 85, Motor Power kW: ...more
400 Ton, Herlan #P8, impact extrusion press, air actuated clutch, bowl feeder, ejector
National Machinery Exchange | Newark, NJ
Category: Extrusion Presses
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Herlan
Model: P8
Nominal Power Mp: 400, Stroke Length mm: 335, Aluminum - 99.5 :, Max Diameter mm: 65, Wall Thickness mm: 0.12, Max Extruded Length mm: 255, Zinc 130 deg C :, Max Diameter mm: 56, Wall Thickness mm: 0.4, Max extruded Length mm: 154, Max Diameter Soft Metal mm: 65, Number of Strokes per minute spm: 65, Motor Power kW: ...more
400 Ton, Schuler #X400, impact extrusion press, 60 PPM, 1000 RPM
National Machinery Exchange | Newark, NJ
Category: Extrusion Presses
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Schuler
Model: X400
Pressing Power: 400 Tons, For aluminum tubes with a 0.12 mm wall, thickness up to a dia. of: 60 mm, For aluminum shells (sleeves) with wall, thickness of 0.3mm up to a dia. of: 72 mm, Largest untrimmed tube length (cylindrical part): 260 mm, Largest untrimmed sleeve length: 260mm, Quantity per minute up to: 60 pieces ...more
Get email updates for newly added Extrusion Presses
Extrusion Presses (also known as extrusion machines) are used to force materials like metal, plastic, or rubber through a die to create continuous shapes, such as pipes, rods, or profiles. Commonly used in industries like manufacturing, automotive, and construction, they are ideal for producing long, uniform parts. Extrusion presses are essential for efficient production of complex shapes with consistent cross-sections.
620 Ton, Herlan #P10, impact extrusion press, air actuated clutch, bowl feeder, ejector
National Machinery Exchange | Newark, NJ
Category: Extrusion Presses
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Herlan
Model: P10
Nominal Power Mp: 620, Stroke Length mm: 325, Aluminum - 99.5 :, Max Diameter mm: 75, Wall Thickness mm: 0.3, Max Extruded Length mm: 270, Zinc 130 deg C :, Max Diameter mm: 65, Wall Thickness mm: 0.5, Max extruded Length mm: 200, Max Diameter Soft Metal mm: n/a, Number of Strokes per minute spm: 60, Motor Power kW: ...more

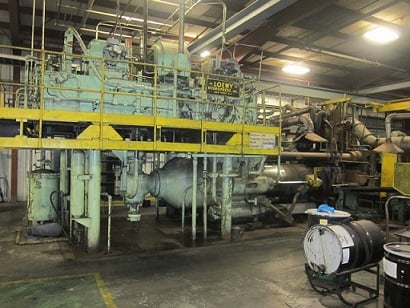

1700 Ton, Loewy, Copper Rod/tube Extrusion Press w/ Internal Piercer, Oil Hydraulic 4-tie rods, 52" stroke, 2750 PSI
National Machinery Exchange | Newark, NJ
Category: Extrusion Presses
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Loewy
Manufacturer.Loewy, Tie Rod Configuration.4-tie rods, Design.Direct Horizontal Extrusion, Product.Copper Rod/Bar and Tube, Piercer.Internal Piercer, Piercer Tonnage.145 ton, Press Max Tonnage.1700 ton, PSI.2750, Max Stroke.52", Billet Diameter Range.4.8"-7", Billet Length.16.5" (17" max length), Pumps.4 qty - Oilgear ...more

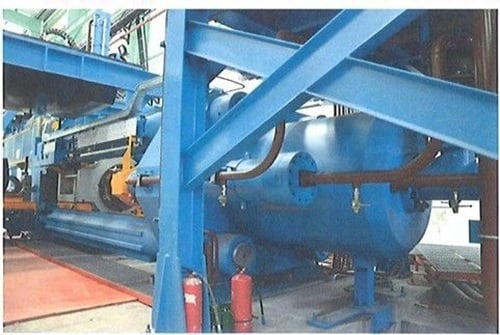

1800 Ton, Cometal, Aluminum Extrusion Press Line, 280 bar, 7" diameter x 38.58" length billet, 39.37" container liner length, 2023
National Machinery Exchange | Newark, NJ
Category: Extrusion Presses
Seller: National Machinery Exchange
Location: Newark, NJ
Year: 2023
2000 Ton, Watson Stillman #3186-D, 8" Copper & Brass Rod Extrusion Press Line, 4 rod, 36" RAM stroke,
National Machinery Exchange | Newark, NJ
Category: Extrusion Presses
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Watson Stillman
Model: 3186-D
2000 TON WATSON STILLMAN MODEL 3186-D ROD EXTRUSION PRESS LINE, MANUFACTURER - WATSON STILLMAN, PRESS TYPE - 4 ROD DESIGN, CAPACITY - 2000 TON (5000 LBS/SQ IN), RAM STROKE - 36", RAM DIA. - 33", MATERIAL - COPPER & BRASS AND RELATED ALLOYS, PROFILES PROCESSED - VARIOUS SIZES & SHAPES (DIES NOT INCLUDED) ...more
2800 Ton, SMS, Aluminum extrusion press, 9" billet diameter, Kelly Control Systems Control, 1987
National Machinery Exchange | Newark, NJ
Category: Extrusion Presses
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Sms
Year: 1987
5500 Ton, Taiyuan, 16" Aluminum Extrusion Press Line, 2007
National Machinery Exchange | Newark, NJ
Category: Extrusion Presses
Seller: National Machinery Exchange
Location: Newark, NJ
Year: 2007
7000 Ton, Schloemann, Stainless Steel oil hydraulic extrusion press line
National Machinery Exchange | Newark, NJ
Category: Extrusion Presses
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Schloemann
PRESS LINE COMPONENTS:, HANS HENNING ROTARY BILLET FURNACE, 2800 TON VERTICAL EXPANSION PRESS, (2) IAS (SMS) PREHEAT UNITS, (2) IAS (SMS) INDUCTION HEATING UNITS, 7000 TON SCHLOEMANN EXTRUSION PRESS, PRESS RUNOUT, DIES, CONTAINERS, BACKING ASSEMBLIES, TOOLING, HANS HENNING ROTARY BILLET FURANCE, TYPE - NATURAL GAS ...more
Herlan #P5, impact extrusion press
National Machinery Exchange | Newark, NJ
Category: Extrusion Presses
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Herlan
Model: P5
240-TON HERLAN P5 IMPACT EXTRUSION PRESS, Nominal Power Mp: 240, Stroke Length mm: 300, Aluminum - 99.5 :, Max Diameter mm: 38, Wall Thickness mm: 0.1, Max Extruded Length mm: 250, Zinc 130 deg C :, Max Diameter mm: 32, Wall Thickness mm: 0.35, Max extruded Length mm: 80, Max Diameter Soft Metal mm: 50, Number of ...more
Herlan #P6, Impact Extrusion Press, 270 Mp overload, 350 mm stroke, 65 SPM
National Machinery Exchange | Newark, NJ
Category: Extrusion Presses
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Herlan
Model: P6
MANUFACTURER - HERLAN, MODEL - P6, NOMINAL POWER - 215 Mp, OVERLOAD - 270 Mp, STROKE - 350 mm, ALUMINUM MAX DIAMETER - 45 mm, ALUMINUM MIN WALL THICKNESS - 0.12 mm, ALUMININUM MAX EXTRUDED LENGTH - 260 mm, ZINC MAX DIAMETER - 37 mm, ZINC MIN WALL THICKNESS - 0.4 mm, ZINC MAX EXTRUDED LENGTH - 125 mm, STROKES PER ...more
