1700 Ton, Loewy, Copper Rod/tube Extrusion Press w/ Internal Piercer, Oil Hydraulic 4-tie rods, 52" stroke, 2750 PSI

Manufacturer............Loewy
Tie Rod Configuration...4-tie rods
Design..................Direct Horizontal Extrusion
Product.................Copper Rod/Bar and Tube
Piercer.................Internal Piercer
Piercer Tonnage.........145 ton
Press Max Tonnage.......1700 ton
PSI.....................2750
Max Stroke..............52"
Billet Diameter Range...4.8"-7"
Billet Length...........16.5" (17" max length)
Pumps...................4 qty - Oilgear V-W Servo Control
Motors..................2 qty - Elliott 300 HP, 900 RPM
Extrusion Speed.........4"-10" per min
Status..................Installed and Operating
Availability............Delayed Delivery
Line Configuration:
Ajax-Magnathermic Billet Heater
Power Supply #1
Power Input - 480 V, 448 KVA, 550 AMP, 3 Phase, 60 Cycle
Output - 1090 V, 665 AMP, 350 KW, 1 Phase, 60 Cycle
Power Supply #2
Power Input - 1090 V, 680 KVA, 625 AMP, 1 Phase, 60 Cycle
Output - 200 V, 6875 AMP, 1375 KVA, 350 KW, 1 Phase, 60 Cycle
(3) Induction Heating Coils for Billet Heating
One in use and two spares depending on billet size
Max Billet temperature 1350-1400 degrees F
Billet Storage Ramp
Hydraulic Loading Pusher Arm
Billet Heater
Gravity Ramp
Hydraulic Billet Loading Arm

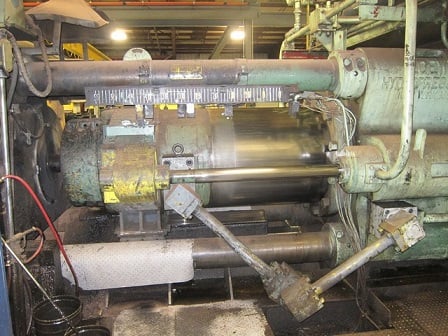

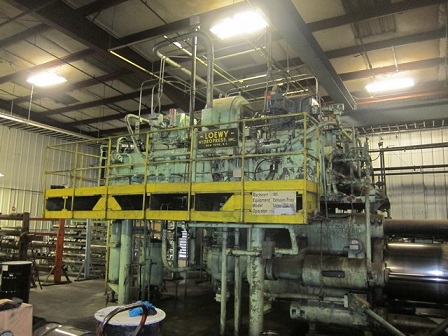

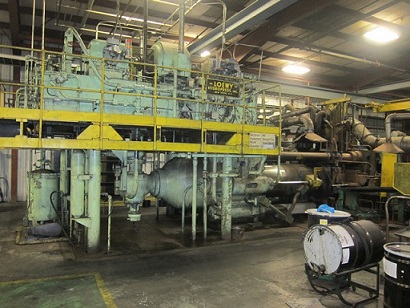

Loewy 1700 Ton Extrusion Press

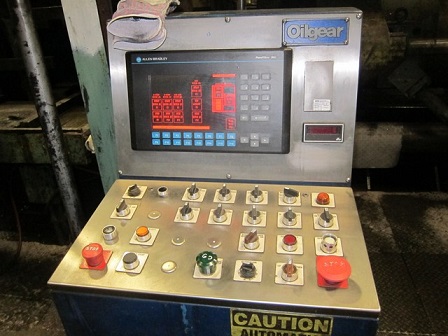

Oilgear-Allen Bradley Panelview 900 Operators Controls - installed 1996
Integrated Circular Cutoff Saw
Downacting (in between main ram and platen)
Hydraulic Rake for Scrap-End Billet Discharge
40' Water trough runout

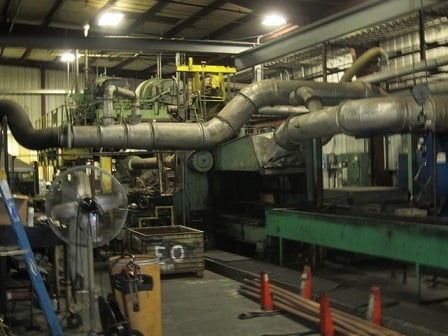

Torit Dust Collection System
Die Heater
Multiple spare parts, spare stems, spare container, accessories, and
drawing/manuals.
Specific Tooling, Dies, Backing Assemblies Included with Press
