13 Results
.7" Leistritz #Micro-18, co-rotating twin screw extruder, 28:1 L/D, Mistic PLC controller, 42" centerline, 1994
Arlington Machinery | Lake Zurich, IL
Category: Extruders and Extrusion Lines
Seller: Arlington Machinery
Location: Lake Zurich, IL
Mfr: Leistritz
Model: MICRO-18
Year: 1994
Used 18mm Leistritz Micro-18 Co-Rotating Twin Screw Extruder 500 RPM Screw Speed Approx. 28:1 L/D 6 Barrel Segments, Top Ports In Segments 1, 2, and 6 6 Barrel Zones Controlled By Eurotherm 808 Temperature Controllers Lenze 2.3 KW(3.1HP) 2950 RPM DC Motor Parker 512C DC Drive Mistic PLC Controller 42" Centerline, On ...more
2.16" Leistritz #ZSE-50-GG, counter rotating twin screw extruder, 44:1 L/D, 62 HP Baumuller DC motor, 1997
Arlington Machinery | Lake Zurich, IL
Category: Extruders and Extrusion Lines
Seller: Arlington Machinery
Location: Lake Zurich, IL
Mfr: Leistritz
Model: ZSE 50 GG
Year: 1997
55MM Leistritz ZSE 50 GG Counter-Rotating Twin Screw Extruder 300 RPM Screw Speed 44:1 L/D Ratio 10 Barrel Sections, Water-Cooled Barrel, Non-Vented 46KW(62HP) Baumuller DC Motor, 112 AMPS DOES NOT INCLUDE DC DRIVE MISSING HALF OF BARREL HEATER IN ZONE 7 10 Barrel Zones, 3 Die Zones Eurotherm 2208e Controllers -SOME ...more
2.36" Leistritz #ZSE-60-GL, Twin Screw Extruder, liquid cooled, 36:1 L/D, 150 HP, 9 zones, Side Stuffer, extra parts
Aaron Equipment Co | Schaumburg, IL
Category: Extruders and Extrusion Lines
Seller: Aaron Equipment Co
Location: Schaumburg, IL
Mfr: Leistritz
Model: ZSE-60-GL
used leistritz zse-60 gl twin screw extruder 36:1 l/d, 150 hp, side stuffer, strand dies, screws & spares. with (9) modular barrel sections. 114 kw / 150 hp baumueller dc motor, 500 rpm max. screw speed, barrels are electrically heated and internally cored for liquid cooling. includes stand-alone electrical ...more
2.36" Leistritz #ZSE-60-GL-36D, twin screw extruder, 36:1 L/D, 121 KW Baumuller Shunt Wound DC motor, 10 zone Control panel w/ Eurotherm 2208 temperature ctrlrs
Arlington Machinery | Lake Zurich, IL
Category: Extruders and Extrusion Lines
Seller: Arlington Machinery
Location: Lake Zurich, IL
Mfr: Leistritz
Model: ZSE-60-GL-36D
Used 60MM Leistritz ZSE 60 GL-36D Twin Screw Extruder, 121KW(162 HP) Co-Rotating 500 RPM Screw, 36:1 L/D Ratio, 9 Barrel Segments, With 40 MM Side Feeder Vent In Zone 4, Side Feeder In Zone 5 10 Zone Control Panel With Eurotherm 2208 Temperature Controllers 121KW(162) HP Baumuller Shunt Wound DC Motor Allen Bradley DC ...more
2.4" Leistritz #ZSE-60-MAX, Co-Rotating twin screw extruder, 62" L, 400 RPM, 20:1 L/D, liquid cooled, Sinamics Control, w/ wheels & adj feet, 480 V., 3 phase
Aaron Equipment Co | Schaumburg, IL
Category: Extruders and Extrusion Lines
Seller: Aaron Equipment Co
Location: Schaumburg, IL
Mfr: Leistritz
Model: ZSE-60-MAX
used leistritz 60mm zse maxx twin screw extruder, type zse60maxx-20d. (2) co-rotating screws approximately 2.44" diameter x 62" long. speed 400 rpm. approximate 20 to 1 l/d ratio. 4 barrel sections, 1 feed section. liquid heated and cooled. 4-cooling zones. screws driven by a 121kw (160hp), 1600 rpm motor thru a ...more
Get email updates for newly added Extruders and Extrusion Lines
Extruders and Extrusion Lines (also known as extrusion machines) are systems used to shape materials like plastic, rubber, or metal by forcing them through a die. Commonly used in industries like manufacturing, construction, and packaging, they are ideal for producing pipes, sheets, films, and profiles. Extruders and extrusion lines are essential for creating consistent, high-quality products in large volumes.
3.93" Leistritz #ZSE-100-GLAAX, co-rotating screw extruder, 442 HP, 1600 RPM DC motor w/SCR Control, 2002
Perry Videx LLC | Hainesport, NJ
Category: Extruders and Extrusion Lines
Seller: Perry Videx LLC
Location: Hainesport, NJ
Mfr: Leistritz
Model: ZSE-100-GLAAX
Year: 2002
Used Leistritz 100mm 44/1 L/D Co-Rotating Twin Screw Extruder. Model ZSE100 GL/44D, serial #3092, new 2002. Driven by 330 kw (442 hp), 1600 rpm DC motor with SCR control. Has 300 rpm screw speed, rated at 5000 Newton meters per shaft torque capability and electrically heated water cooled vented barrel. Includes twin ...more

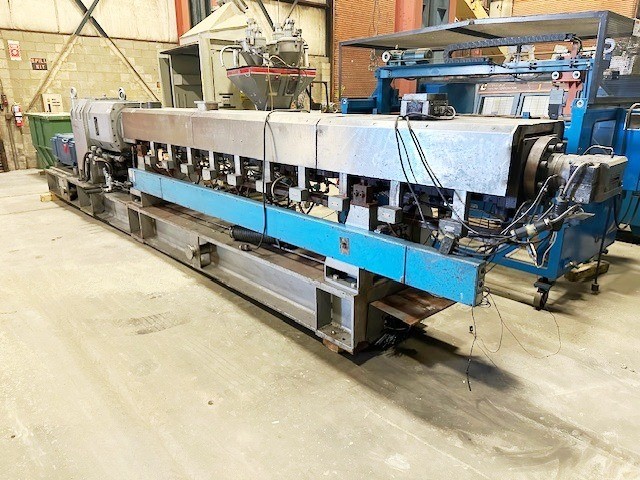

3.94" Leistritz #ZSE100GL/44D, co-rotating twin screw extruder, 442 HP DC motor, Eurotherm temperature controllers, 2002
Arlington Machinery | Lake Zurich, IL
Category: Extruders and Extrusion Lines
Seller: Arlington Machinery
Location: Lake Zurich, IL
Mfr: Leistritz
Model: ZSE100GL/44D
Year: 2002
Used 100mm Leistritz Co-Rotating Twin Screw Extruder, Model ZSE100-GL/44D, 442hp, New in 2002 442hp Direct Drive DC Motor, 1600 RPM with DC Drive Electrically Heated Water Cooled Vented Barrel Model ZSE100-GLAAX Gearbox, 5000 Newton Meters per Shaft Torque Capability 300 rpm Screw Speed Twin Screw Side Feeder Strand ...more

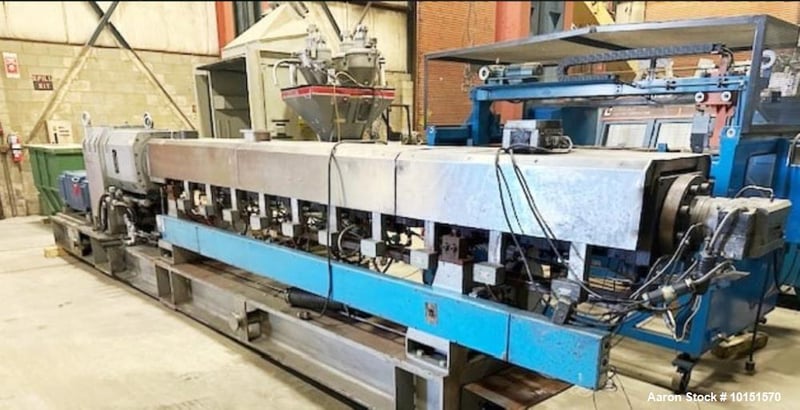

100" mm Leistritz #ZSE-100-GLAAX, Co-Rotating Twin Screw Extruder, electric heat, water-cooled, 442 HP, 1600 RPM, 7,515.6 hours, 2002
Aaron Equipment Co | Schaumburg, IL
Category: Extruders and Extrusion Lines
Seller: Aaron Equipment Co
Location: Schaumburg, IL
Mfr: Leistritz
Model: ZSE-100-GLAAX
Year: 2002
used leistritz zse 100 glaax 100mm co-rotating twin screw extruder, driven by 330 kw (442 hp), 1600 rpm dc motor with scr control. has 300 rpm screw speed, rated at 5000 newton meters per shaft torque capability and electrically heated water cooled vented barrel. has twin screw side feeder. has 7515.6 hours on the ...more
Leistritz #LSB70, twin screw side feeder, 70mm screw, 2011
Perry Videx LLC | Hainesport, NJ
Category: Extruders and Extrusion Lines
Seller: Perry Videx LLC
Location: Hainesport, NJ
Mfr: Leistritz
Model: LSB70
Year: 2011
Used 77mm Leistritz Twin Screw Side Feeder (Only), Manufacturer: Leistritz, Model: LSB70, Size: 70mm, Serial: 4080, Year: 2011, 2011 LEISTRITZ LSB70.
Leistritz #Micro18-GGL, Pelletizing Line, 0.7" screws, counter rotating, 40:1 L/D, 8 section, water cooled, w/ SCR Control, die & rod
Federal Equipment Company | Cleveland, OH
Category: Extruders and Extrusion Lines
Seller: Federal Equipment Company
Location: Cleveland, OH
Mfr: Leistritz
Model: MICRO18-GGL
Used Leistritz twin screw pelletizing line, model Micro18-GGL, 18 mm screws, counter rotating screws, 40:1 1/d, 500 rpm screw speed, electrically heated, water cooled barrel, 2.3 kw, 210/260 volt, 2950 rpm de motor with SCR controller, (8) barrel sections with (1) jacketed feed, (1) vented, (1) vented and plugged, (5) ...more
Leistritz #ZSE27-MAXX-40D, Lab Sheet Line, 29.8 kW, 1200 RPM, 320 hours, 2018
Aaron Equipment Co | Schaumburg, IL
Category: Extruders and Extrusion Lines
Seller: Aaron Equipment Co
Location: Schaumburg, IL
Mfr: Leistritz
Model: ZSE 27 MAXX-40D
Year: 2018
used-leistritz lab sheet line, includes the following- leistritz extruder, model zse27 maxx-40d. 29.8 kw main drive, 1200 rpm screw speed. 320 hours. (4) schenck feeders. (2) aec chilling units. (1) sterlco unit. (1) water trough. calendaring web handling stack system (roll stack os2):web alignment (pull roll 2 nip ...more
Leistritz, counter rotating twin screw extruder, 30mm, 42:1 L/D, elec.heated, air cooled, 1987
Perry Videx LLC | Hainesport, NJ
Category: Extruders and Extrusion Lines
Seller: Perry Videx LLC
Location: Hainesport, NJ
Mfr: Leistritz
Year: 1987
Used 30mm Leistritz counter-rotating twin screw extruder, 42/1 L/D vented barrel. New 1987. Has 11kw motor, 2200 rpm, 422 volt input. Gearbox rated at 13.5kw at 60hz. Barrel is electrically heated and air cooled and includes operator control panel., 1987 LEISTRITZ 30mm.
Leistritz, Side Feeder, 92 mm, 11" L x 6" width Feed Section, 39.75" Centerline, 3 kW
Arlington Machinery | Lake Zurich, IL
Category: Extruders and Extrusion Lines
Seller: Arlington Machinery
Location: Lake Zurich, IL
Mfr: Leistritz
Used 92MM Leistritz Side Feeder 11" L x 6" W Feed Section 3 KW(4HP) AC Motor With AC Tech Inverter Drive 39.75" Centerline(Base Will Accept Adjusting Screws, Not Included) Approximate Dimensions: 50" L x 22" W x 60" H.
