Also See 13 Results
3" Lucas #41B, Horizontal Boring Mill, 34" x68" table, #5 Morse taper, 1954, 41B-48
Revelation Machinery | Chicago, IL
Category: Boring Mills, Horizontal, Table Type
Seller: Revelation Machinery
Location: Chicago, IL
Mfr: Lucas
Model: 41B
Year: 1954
Make: Lucas, Model: 41B-48, Year: 1954, Machine Location: Arizona, SPINDLE SIZE 3″, SPINDLE TVL. 18″, Y-VERT TVL OF HEAD 48″, X-HORIZ TVL OF TABLE 60″, TABLE-W 34″, TABLE-L 68″, Spindle Taper # 5 Morse, Spindle Speeds Main 13 To 1,500 Rpm’s, Spindle Feeds.001 To.698 I.P.R. ...more
3" Lucas #41B-48, table type horizontal boring mill, 60" X, 48" Y, 24" spindle travel, serial #42B0724
Liberty Machine Works | Preston, ID
Category: Boring Mills, Horizontal, Table Type
Seller: Liberty Machine Works
Location: Pleasant Grove, UT
Mfr: Lucas
Model: 41B-48
This heavy duty boring mill can be seen under power and is in great condition! It is being sold because the shop needs a CNC machine in its place. Comes with manuals., Located in Pleasant Grove, Utah, We care about the machines we sell and want all of them to enjoy continued productive and profitable service for our ...more
JUST ADDED!
4" Lucas #42B-120, table type horizontal boring mill, 42" x 110" table, 30000 lb. table, 110" X, 60" Y, 48" Z, Sony 3-Axis digital read out
G-2000 Inc | Toledo, OH
Category: Boring Mills, Horizontal, Table Type
Seller: G-2000 Inc
Location: Toledo, OH
Mfr: Lucas
Model: 42B-120
SERIAL.: 42B3-416, MODEL.: 42B-120, SPINDLE DIAMETER.: 4", TABLE SIZE.: 42" X 110", TABLE CAPACITY.: 30,000 LBS, TRAVELS:, X AXIS.: 110", Y AXIS.: 60", Z AXIS.: 48", SPINDLE TRAVEL.: 36", MOTOR HP.: 20, SPINDLE SPEEDS.: 9-1200, SPINDLE TAPER.: 50, DIGITAL READ OUT.: SONY 3 AXIS DRO, BUILT IN OUTRIGGER DESIGN, MANUAL ...more

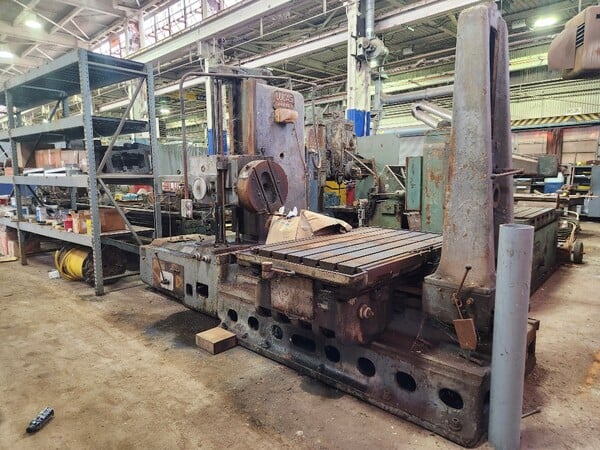

4" Lucas #441B-48, 48" X, 36" Y, 24" Z, 54" W Saddle travel, 36" x 62" table
Tiger Demolition | Saint Amant, LA
Category: Boring Mills, Horizontal, Table Type
Seller: Tiger Demolition
Location: Saint Amant, LA
Mfr: Lucas
Model: 441B-48
3 phase, 460 volts, 15 HP.
5" Lucas #42B, table type horizontal boring mill, 48" x110" table, coolant, pendant controls, 20 HP, #68297
Yoder Machinery Sales | Holland, OH
Category: Boring Mills, Horizontal, Table Type
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Lucas
Model: 42B
SERIAL NUMBER. 42B0509, SPINDEL DIAMETER. 5", SPINDLE TAPER. 7 MT, SPINDLE SPEEDS. (26) 9 - 1200 RPM, SPINDLE STROKE - Z. 24", SADDLE TRAVEL - W. 72", TABLE TRAVEL - X. 108", HEAD TRAVEL - Y. 72", FEEDS. (81).0001 - 1.038 IP, TABLE SIZE. 48" x 110", TABLE HEIGHT. 38", MAIN MOTOR. 20 HP, 240/480 VAC, COLLANT. YES ...more
Get email updates for newly added Boring Mills, Horizontal, Table Type
Horizontal table-type boring mills (also known as table-type horizontal borers) are versatile machines designed for boring, milling, and drilling large workpieces positioned on a movable table. The table moves to allow precise alignment with the boring head, making these machines ideal for machining heavy components like engine blocks, frames, and gear housings.
5" Lucas #5426-20, #50 taper, 3-Axis digital read out, pendant Control, power tool lock
Heart Of Wisconsin Mchy Co | Nekoosa, WI
Category: Boring Mills, Horizontal, Table Type
Seller: Heart Of Wisconsin Mchy Co
Location: Nekoosa, WI
Mfr: Lucas
Model: 5426-20
5" Lucas #542B-60, table type horizontal boring mill, 74" x48" table, 4-way bed, #6MT, 25 HP, #65650
Yoder Machinery Sales | Holland, OH
Category: Boring Mills, Horizontal, Table Type
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Lucas
Model: 542B-60
SERIAL. 42B1217, MODEL. 542B60, FOUR WAY BED MACHINE. YES, DIAMETER OF SPINDLE. 5", AREA OF TABLE. 74" X 48", SPINDLE SPEEDS. (26) 9 TO 1200 RPM, FEEDS. (81).0001 TO 1.038 IPR, CROSS TABLE TRAVEL. 60", IN/OUT TRAVEL OF SADDLE. 49", VERTICAL TRAVEL OF SPINDLE CARRIER. 48", SPINDLE TRAVEL. 36", TAPER IN SPINDLE. #6 MT ...more
5" Lucas #542B-84, horizontal boring mill, tooling, 48" x74" table, 84" X, 60" Y, 77" Z, Heidenhain 3-Axis digital read out
G-2000 Inc | Toledo, OH
Category: Boring Mills, Horizontal, Table Type
Seller: G-2000 Inc
Location: Toledo, OH
Mfr: Lucas
Model: 542B-84
SERIAL.: 42B3607, MODEL.: 542B-84, SPINDLE DIAMETER.: 5", TABLE SIZE.: 48" X 74", TABLE CAPACITY.: 30,000 LBS, TRAVELS:, X AXIS.: 84", Y AXIS.: 60", Z AXIS.: 77", SPINDLE TRAVEL.: 36", MOTOR HP.: 25, SPINDLE SPEEDS.: 12 TO 1500, SPINDLE TAPER.: 50, DIGITAL READ OUT.: HEIDENHAIN 3 AXIS, BUILT IN OUTRIGGER DESIGN ...more
Featured
5" Lucas #542B-120, 48" x 110" table, 96" X, 72" Y, 36" Z, 1120 RPM, 3-Axis Accurite digital read out, 1966
Cleveland Machinery Sales Inc | Cleveland, OH
Category: Boring Mills, Horizontal, Table Type
Seller: Cleveland Machinery Sales Inc
Location: Cleveland, OH
Mfr: Lucas
Model: 542B-120
Year: 1967
1967 LUCAS 542B120, 5" SPINDLE DIAMETER, MODEL 542B120 4 Bedways, PENDANT CONTROL, NO 50 TAPER WITH POWER DRAW BAR, Travel X-axis: TABLE 120", Travel Y-axis: VERT 72", Travel W- SADDLE 48", Travel Z- SPINDLE 36", TABLE size: 48 x 122", Spindle taper: 50, Spindle speed: 10-1120 rpm, Spindle taper: ISO 50, ACCURITE ...more
5" Lucas #542B-120, CNC Boring Mill, 120" X, 72" Y, 56" width, 20000 lbs. workload, 84" angle plates
C3 Surplus LLC | Miami, FL
Category: Boring Mills, Horizontal, Table Type
Seller: C3 Surplus LLC
Location: Miami, FL
Mfr: Lucas
Model: 542B-120
CNC Lucas 542B-120 3 Axis CNC 120"X axis 72" Y Axis 56" W axis (saddle) 36" Independent spindle travel. Dynapath Delta CNC Control 5" Bar 20,000 lbs. Workload Total remanufacture in 2006 new servo's and ballscrews. 84"angle plates. Sony scales. Under power. TU502, Location: Florida.
5" Lucas #542B120, Horizontal Boring Mill, 48" x 110" Table, 1220 RPM, Pendant Control, 1973
Cleveland Machinery Sales Inc | Cleveland, OH
Category: Boring Mills, Horizontal, Table Type
Seller: Cleveland Machinery Sales Inc
Location: Cleveland, OH
Mfr: Lucas
Model: 542B120
Year: 1973
1973 LUCAS 542 B, Table Size 48" x 110", X-Travel 96", Y-Travel 72", Saddle Travel 48", Spindle Speeds 10 to 1220 RPM, Taper In Spindle 50 Taper with Power Drawbar, Full Pendant Control, Hardened Ways, Air Ride & Clamping on Ways, Way Covers, Coolant, One Piece Bed, Spindle Support, OVERALL 216" L X 132"W X ...more
5" Lucas #542B-120, table type horizontal boring mill, 110" x60" table, 4 way bed, pendant Control, 25 HP, #59524
Yoder Machinery Sales | Holland, OH
Category: Boring Mills, Horizontal, Table Type
Seller: Yoder Machinery Sales
Location: Holland, OH
Mfr: Lucas
Model: 542B120
MODEL. 542B-120, DIAMETER OF SPINDLE. 5", AREA OF TABLE. 110" X 60", SPINDLE SPEEDS. (26) 10 TO 1200 RPM, FEED RANGE. (81).0001 TO 1.038 IPR, TABLE TRAVEL. 96", SADDLE TRAVEL. 120", VERTICAL TRAVEL. 84", SPINDLE TRAVEL. 36", 4 WAY BED. YES, PENDANT CONTROL. YES, MOTOR. 25 HORSEPOWER MAIN MOTOR.
Lucas #542B-84, horizontal boring mill, table type, recontrolled 1991
Orca Machine Tools Inc. | Fridley, MN
Category: Boring Mills, Horizontal, Table Type
Seller: Orca Machine Tools Inc.
Location: Fridley, MN
Mfr: Lucas
Model: 542B-84
(1) Used Lucas Model 542B-84 Horizontal Boring Mill, Recontrolled 1991 Refitted 1991 by Phoenix Specificitions: Table 86" X 48" 50" Indexing table, (Electric, manual) 70" X 42" right angle plate X Travel - 80" Y Travel - 60" Z Travel - 30" W Travel -52" Fanuc 15M control Fanuc drives.
