15 Results
5.5" x 8" I2S Sizing Rolling Mill, single direction, 80 FPM, Hydraulic Screwdown, reconditioned in 2014
National Machinery Exchange | Newark, NJ
Category: 2 High Rolling Mills
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: I2s
5.5" x 8" I2S SIZING MILL (RECONDITIONED IN 2014), Mill Type 2 Hi - Single Direction, Roll Diameter 5.25"max, 4.75"min, Roll Face 8", Roll Material Forged Alloy steel, Roll hardness 64 - 66 Rc"C - body, 60 - 62 Rc"C - necks, Roll bearings Needle type, Rolling Force Cap. 100,000 Lbs, Mill Drive One GE DC motor 25Hp @ ...more
10" x 2-1/2" Fenn, 2-Hi wire flattening mill, water cooled rolls, 75 HP DC GE Kinamatic direct curretn motor
National Machinery Exchange | Newark, NJ
Category: 2 High Rolling Mills
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Fenn
-MANUFACTURER: FENN MANUFACTURING COMPANY (USA), -TYPE: 2 HI WIRE FLATTENING ROLLING MILL, -ROLLS, -DIAMETER: 10" (254mm), -ROLL FACE: 2-1/2" (63.5mm) WIDE CARBIDE SHELL INSERTS, MOUNTED ON 5" (127MM) WIDE STEEL ROLLS, -ROLLS ARE WATER-COOLED, -HOUSING COLUMN SIZE: 6"(152mm) X 6"(152mm), -WINDOW WIDTH: 10-5/8"(270mm) ...more
10" x 12" I2S 2-Hi Rolling Mill / Reducing Sizing Roll Mill, Auto Gauge control, Entry guide, 6" x 8" frame uprights
National Machinery Exchange | Newark, NJ
Category: 2 High Rolling Mills
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: I2s
10.5" x 13" I2S 2HI COLD ROLLING MILL, MANUFACTURER - I2S, TYPE - 2HI, YEAR - 1992, MODERNIZED IN 2007, ROLL DIMENSIONS - 10.5" D X 13" F, MILL MOTOR - 25 HP DC, TENV, 1750 RPM, MILL DRIVE - 12.30:1 PINION STAND GEARBOX, LINE SPEED - 400 FPM, GAUGES - DOUBLE PRATT & WHITNEY 10A# EACH SIDE, SCREWDOWN - VIA ...more
10" x 15-3/4" Schmitz #EA7-250/400, 2-hi Rolling Mill
National Machinery Exchange | Newark, NJ
Category: 2 High Rolling Mills
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Schmitz
Roll size. 10" Diameter x 15-3/4" Face, Water Cooled, Manual Screwdown-Individual Dual Control Handwheels, Strip width. 13-3/4" (350MM) - as taken from Mfg. tag, EQUIPPED WIDTH:, DRIVE :, 37/50KW,380V,50 Cycle, 965 RPM, 73 AMP Motor, Gear Reducer, w/controls, Boxed Set of Spare Rolls 3'7" x 2'4" x 1'9"H ...more
10.5" I2S, 2-Hi Rolling Mill / Reducing Sizing Mill
National Machinery Exchange | Newark, NJ
Category: 2 High Rolling Mills
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: I2s
5.25" x 8" I2S 2HI COLD ROLLING MILL, MANUFACTURER - I2S, TYPE - 2HI NON-REVERSING, ROLL DIAMETER - 4.75" MIN - 5.25" MAX, ROLL FACE - 8", ROLL MATERIAL - FORGED ALLOY STEEL, ROLL BEARINGS - NEEDLE TYPE, MAXIMUM ROLLING FORCE - 100,000 LBS, MOTOR - 25 HP GE DC @ 1750 RPM, SPINDLES - UNIVERSAL TYPE, SPINDLE SUPPORTS - ...more
Get email updates for newly added 2 High Rolling Mills
2 High Rolling Mills (also known as two-high mills) are rolling mills with two opposing rolls used to reduce the thickness of metal sheets or bars. Commonly used in industries like metalworking, steel production, and manufacturing, they are ideal for basic rolling applications, including flattening and initial shaping. These mills are essential for producing uniform, high-quality metal products in small to medium-scale operations.
12" x 12" Ruesch, 2-Hi reversing rolling mill, electroc-mechanical screwdowns, R to L, 0-80 FPM
National Machinery Exchange | Newark, NJ
Category: 2 High Rolling Mills
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Ruesch
MANUFACTURER: RUESCH MACHINE CO. (USA), TYPE: 2 HIGH REVERSING ROLLING MILL, PREVIOUS USE: BREAKDOWN MILL FOR GOLD AND SILVER, INTERMEDIATE MILL FOR, COPPER/STEEL/ALUMINUM, CLADDING/BONDING MILL FOR DUAL STRIP, ROLL SIZE: 12" (305MM) DIA. x 12" (305MM) FACE, WIDTH, ROLL BEARINGS: ROLLER BEARING, SCREWDOWNS: ...more

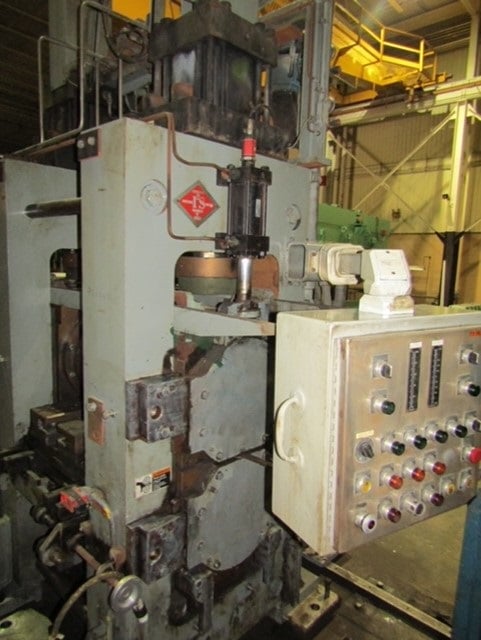

16" x 19" I2S One Way 2 Hi Mill w/ Hydraulic Screwdowns, 500 FPM, New, 2002
National Machinery Exchange | Newark, NJ
Category: 2 High Rolling Mills
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: I2s
Year: 2002
16" (419mm) DIA. x 18" (457mm) FACE I2S 2HI MILL W/ HYD. SCREWDOWNS, NEW 2002, MANUFACTURER - INTEGRATED INDUSTRIAL SYSTEMS (I2S), YEAR - 2002, STRIP RANGE -.250" -.063" (6.35mm - 1.60mm), STRIP WIDTH - 14.25" - 4.12" (368mm - 76mm), SPEED - 500 FPM (152 MPM), THREADING SPEED - 30 FPM, STRIP ENTRY/EXIT TENSION - 1500 ...more

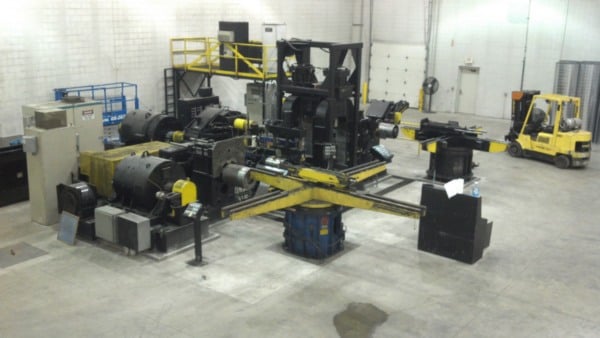

20" x 22" Bliss, 2 Hi Temper Cold Rolling Mill, 900 FPM line speed, roller bearings, R-L
National Machinery Exchange | Newark, NJ
Category: 2 High Rolling Mills
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Bliss
MANUFACTURER - BLISS, CONFIGURATION - 2HI, TYPE - ONE WAY TEMPER, WIDTH RANGE - 4" - 20", THICKNESS RANGE - 0.008" -.250" ALUMINUM / 0.019" -.200" STEEL, ROLL DIMENSIONS- 20" DIAMETER X 22" FACE, COIL ID/OD - 20" ID ENTRY/EXIT, 60" OD ENTRY/80" OD EXIT, LINE SPEED - 900 FPM, MAIN MILL MOTOR - 450 HP DC, 600/1200 RPM ...more

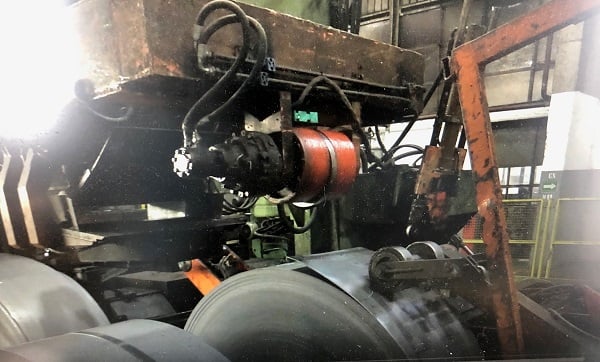

23" x 79" Mino, 3-stand Tandem Mill, 450 MPM, 1978
National Machinery Exchange | Newark, NJ
Category: 2 High Rolling Mills
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Mino
Year: 1978
Year of Installation: 1978, Material width: 300 mm to 588 mm, Max Diameter: 2000mm, Thickness: 1.5mm - 5mm, Speed: 450 meters per minute, Winder Block I.D: 600 mm, Coil Weight: 15 ton, Separation force: 500 ton, Max Tension: 4700 kg.
23" x 91" Mino, 2 Hi Skin Pass Mill, 600 MPM, 1978
National Machinery Exchange | Newark, NJ
Category: 2 High Rolling Mills
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Mino
Year: 1978
Year of Installation: 1978, Material width: 300 mm to 590 mm, Max Diameter: 2300mm, Thickness:.3 mm - 4 mm, Speed: 600 meters per minute, Winder Block I.D: 500 mm, Coil Weight: 15 ton, Separation force: 180 ton, Max Tension: 2000 kg.
25" Waterbury-Farrel, 2-Hi skin pass mill, non-reversing, R to L
National Machinery Exchange | Newark, NJ
Category: 2 High Rolling Mills
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Waterbury-Farrel
MILL SECTION: 2 HI, MILL TYPE: NON REVERSING, MATERIAL: STAINLESS STEEL, CARBON STEEL, STRIP WIDTH DATA, MAXIMUM: 25.000IN/635.001MM, MINIMUM: IN/0.000MM, ENTRY GAUGE MAXIMUM: 0.030IN/0.762MM, EXIT GAUGE MINIMUM: 0.003IN/0.076MM, MAXIMUM COIL SIZE (WINDER) O.D.: 44.000IN/1117.602MM, COIL SIZE (WINDER) I.D.: ...more
30" x 62" I2S / Mesta, 2 Hi Temper Pass Mill, Carbon Steel, L-R, 2160 FPM, Hydraulic Screwdown, GE 9070 PLC
National Machinery Exchange | Newark, NJ
Category: 2 High Rolling Mills
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: I2s
Mill Manufacturer - MESTA, Modernized in 1998 by I2S, Typical Products - Carbon Steel, 2 mm to.15 mm up to 1422 mm wid,.080 to.006" thickness up to 56" wide, Roll Size: 762 mm (30"), Max 30" Min 28", Roll Face: 1575 mm (62"), Coil ID: 570/600 mm (22.5/24"), Coil OD Max: 1676 mm (66"), Coil Weight: 20 tons, Mill ...more
33" x 24" RWF 2 Hi Skin Pass Mill, 1960, Electrical revamped 1994, Replaced DC-converter 1994
National Machinery Exchange | Newark, NJ
Category: 2 High Rolling Mills
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Rwf
Year: 1960
Year of Commissioning: 1960, Width: 250-840mm, Gauge Range: 0.25 - 4mm, Max Coil Weight: 12ton, Entry Coiler ID: 500mm, Max Entry Coil OD: 1700mm, Exit Coiler ID: 500mm, Max Exit Coil OD: 1700mm, Maximum Line Speed: 150m/min, Maximum Tension: 25kN, Roll Diameter: 600mm, Main Modification: Electrical revamped 1994 ...more
37" Waterbury-Farrel, 2 Hi Skin Pass Mill, non reversing, Stainless Steel & Carbon Steel, 500FPM, 1969
National Machinery Exchange | Newark, NJ
Category: 2 High Rolling Mills
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: Waterbury-Farrel
Year: 1969
MILL SECTION: 2 HI, MILL TYPE: NON REVERSING, MATERIAL: STAINLESS STEEL, CARBON STEEL, STRIP WIDTH DATA, MAXIMUM: 37IN/939.802MM, MINIMUM: 14IN/355.601MM, ENTRY GAUGE MAXIMUM: 0.125IN/3.175MM, EXIT GAUGE MINIMUM: 0.008IN/0.203MM, MAXIMUM COIL SIZE (WINDER) O.D.: 48IN/1219.202MM, COIL SIZE (WINDER) I.D.: ...more
60" United Reversing Mill Reels, 50000 lb.
National Machinery Exchange | Newark, NJ
Category: 2 High Rolling Mills
Seller: National Machinery Exchange
Location: Newark, NJ
Mfr: United
COIL WEIGHT. 25 TON MAX, MATERIAL THICKNESS.229" -.010", COIL I.D. 20"/24"/30", COIL O.D. 78", LINE SPEED. 2000 FPM, ENTRY REEL, 66" FACE HYDRAYLIC PUSH OFF, GRIPPER SLOT, OUT BOARD BERING SUPPORT, 1.85:1 MAIN GEAR BOX RATIO, 2-1085 HP DC MOTORS, 650 VOLT, IN TANDEM, OUTBOARD BEARING SUPPORT, ENTRY & EXIT COIL ...more
