For Sale by National Machinery Exchange
Description

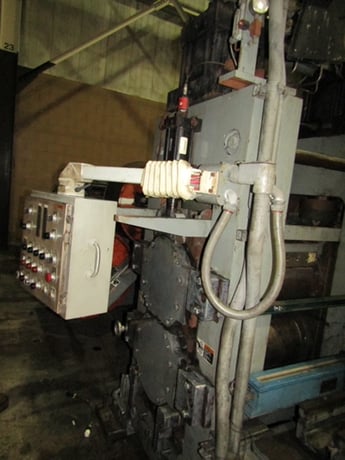

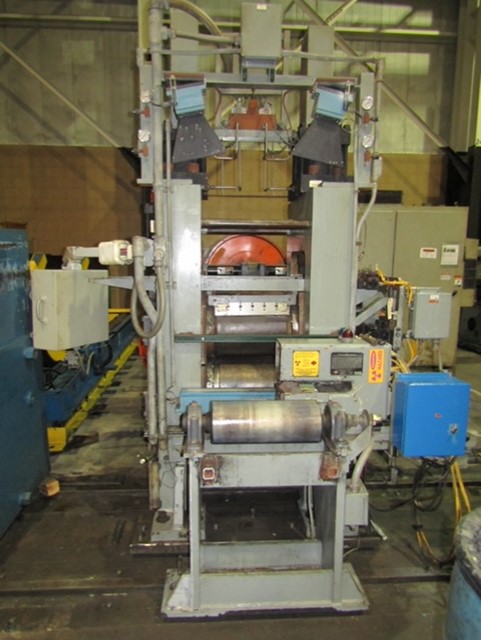

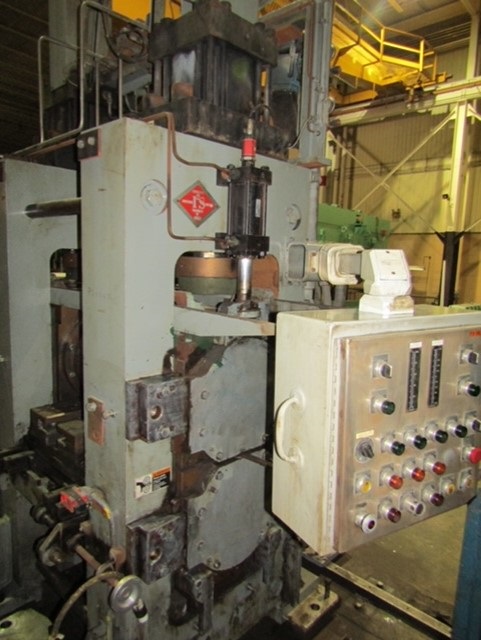

16" (419mm) DIA. x 18" (457mm) FACE I2S 2HI MILL W/ HYD. SCREWDOWNS, NEW 2002
MANUFACTURER - INTEGRATED INDUSTRIAL SYSTEMS (I2S)
YEAR - 2002
STRIP RANGE - .250" - .063" (6.35mm - 1.60mm)
STRIP WIDTH - 14.25" - 4.12" (368mm - 76mm)
SPEED - 500 FPM (152 MPM)
THREADING SPEED - 30 FPM
STRIP ENTRY/EXIT TENSION - 1500 LBS (680 kg)
SEPERATING FORCE - 575,000 LBS (3,000 MT)
ROLL FACE - 18" (457mm)
ROLL DIAMETER - 16" (419mm)
MOTOR - 250 HP DC ABB MOTOR, 300V 850/2400 RPM
MILL GEARBOX RATIO - BRAD FOOTE 20:1 SERVICE FACTOR 2.0
ROLL COUNTERBALANCE - HYDRAULIC CYLINDER
SCREWDOWN - MOOG SERVO POSITIONED HYD. SCREWDOWN SYSEM W/ 10" DIA. SCREW
CYLINDERS
DIRECTION - LEFT TO RIGHT
INCLUDES:
2-ROLL ENTRY "S" TYPE TENSION BRIDLE ROLLS
MILL STAND WITH HYDRAULIC SCREWDOWNS
MILL ENTRY AND EXIT GAUGES (SOURCE NOT INCLUDED)
EXIT BILLY ROLL
ROLL CHANGEOUT STAND
ELECTRICAL CABINET
MILL CONTROLS
Get Your Price from National Machinery Exchange!
