For Sale by Bullseye Industrial Sales LLC
Surplus Record Dealer Since 2017
Location: Middlebury, IN
Contact Keith Couturier
Phone Number: 574...> Show Phone Number 574-825-4990
Let the seller know you found their listing on Surplus Record!
$19,395 USD
Finance for as low as $393/mth
Description
- Capacity (tons): 3
- Capacity (lb): 6000
- Volts: 480V
- Phase: 3
- Hanging Style: Underhung
- Runway Beam Distance Between Centers: 172-1/4"
- Runway Beam Length & Width: 8" x 8"
- Main Beam Length Of Travel On Runway: 105' Approx. travel
- Main Girder Beam Size (Height x Width x Length: 18" x 3-1/2" on bottom and 9-1/2" top flange

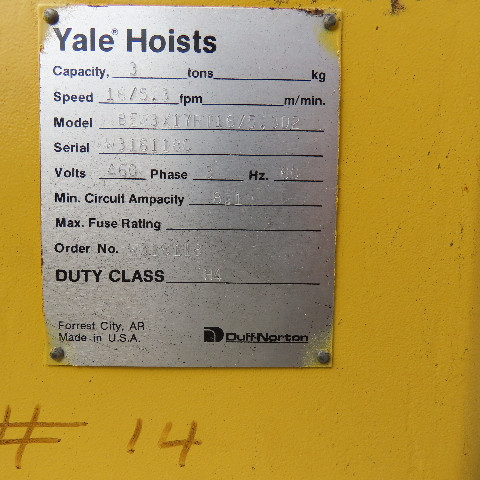

- Hoist Brand: Yale
- Lift Speed (feet per minute): 16/5.3 FPM
- Motor Horse Power: 3/1.13Hp main hoist motor
- Hoist Duty Class: H4
- Lifting Medium: Wire Rope
- Hoist Trolley Length of Travel: 12'
- System foot print is 172-1/4" center on center width x 110' long and requires a ceiling height of 15'1" minimum

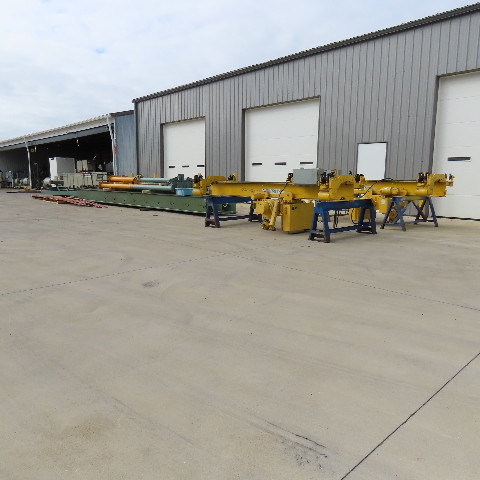

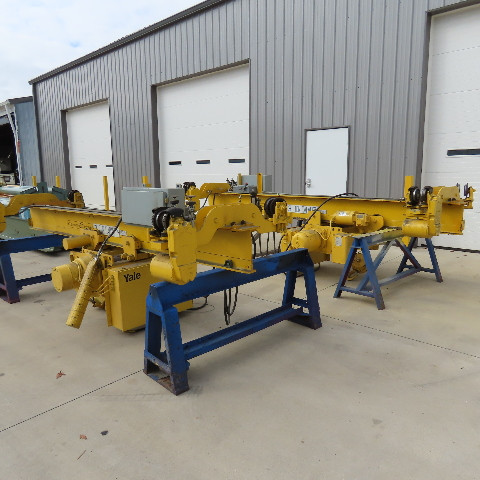

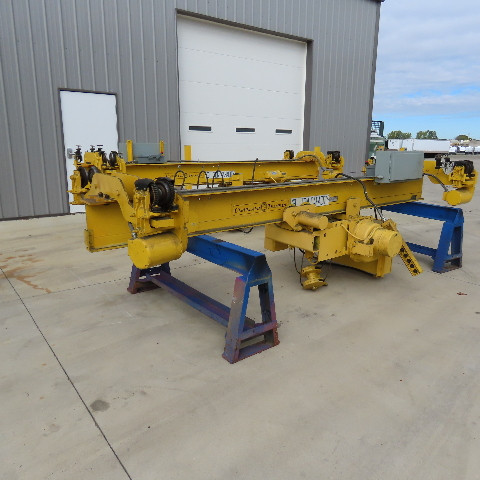

- Each crane is a Yale model BEW3X17RT16/5.3D2
- Two speed hoist 16/5.3 FPM
- Powered trolleys
- Includes conductor rails for full run, 480V 3Ph Only
- Assembly notes will be included, and parts are numbered with position on notes

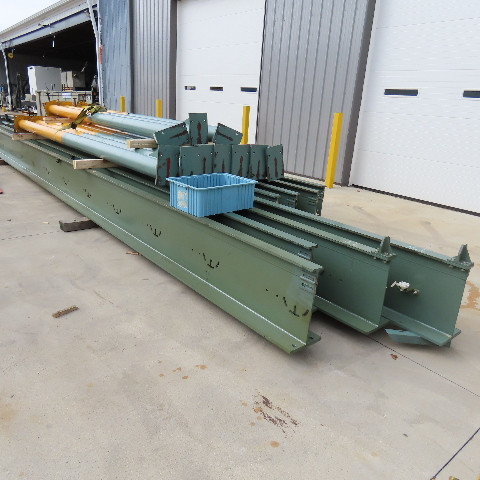

- Girder beams were seamed together with weld plates, and were cut when dismantling, new plates will be needed for installation.
- Removed from a working environment
- For space consideration, the support columns were set at 26' centers and 26-1/2" centers. The columns are 198" tall, there are 10 of them.
- Trolleys are Cleveland Tramrail, hoists are Yale
Inquire Further with Bullseye Industrial Sales LLC!
