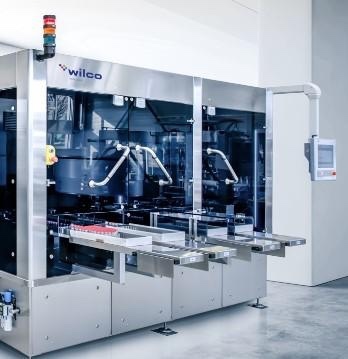

Leak Testing Machine, Wilco R DPV 400-36, with Spectra HSX 500 Analyzer

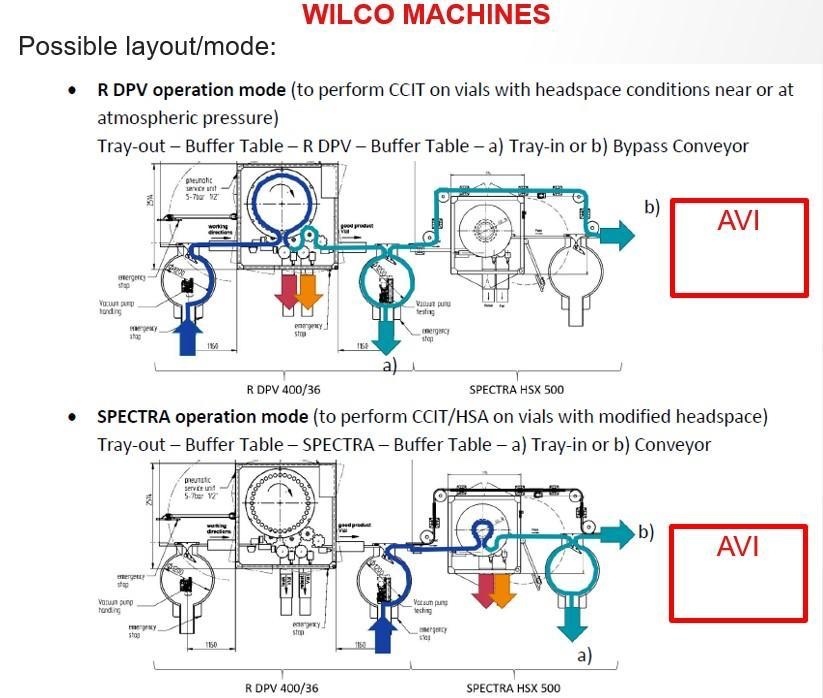

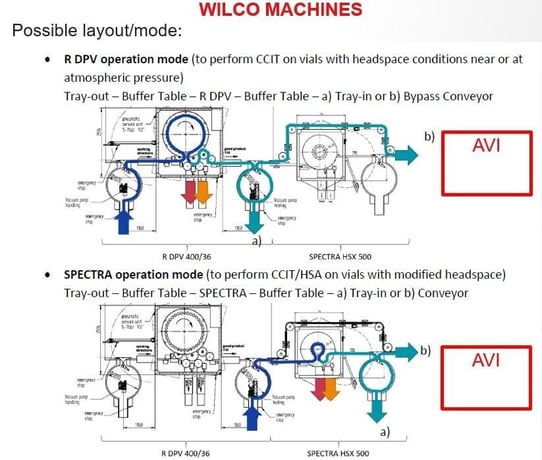

The Wilco Leak Testing Machine R DPV 400-36 and Head Space Gas Analyzer SPECTRA HSX 500 offer advanced non-destructive test capabilities for detecting gas leakages and measuring headspace characteristics in pharmaceutical vials. Manufactured in the United States, this new and unused system features a by-pass conveyor for the analyzer, 36 test stations, and two distinct leak detection methods: Vacuum Decay for lyophilized products and Pressure Decay for liquid products. The machine processes up to 400 vials per minute with a format range from 2R to 50ml. The accompanying Head Space Gas Analyzer employs 10 O2 laser heads and 1 H2O laser head for precise residual oxygen and moisture measurement, supporting efficiency testing under varied atmospheric pressures. The system is optimized for stability and efficiency, delivering accurate validation through Needle Valve and Flowmeter procedures.

FOB: Switzerland

• Non-destructive optical measurement

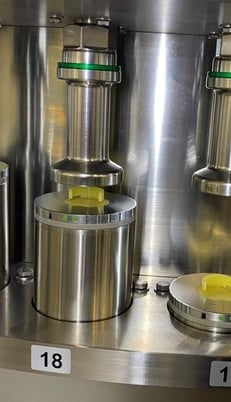

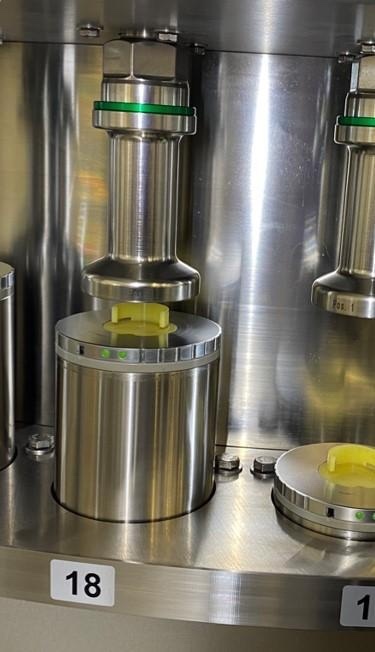

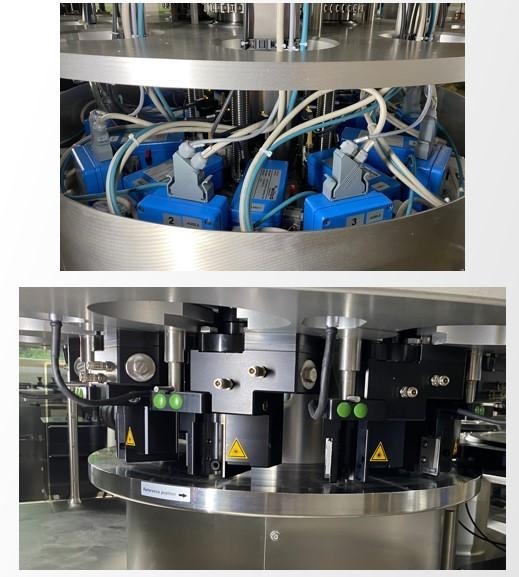

• 36 test stations
• Processes up to 400 vials/min
• Oxygen and water vapor headspace analysis
• Vacuum and Pressure Decay methods

• Leak Testing Methods: Vacuum Decay and Pressure Decay
• Test Station Count: 36
• Vial Format Range: 2R to 50ml
• Machine Efficiency: 98%
• Speed: Up to 400 vials/minute

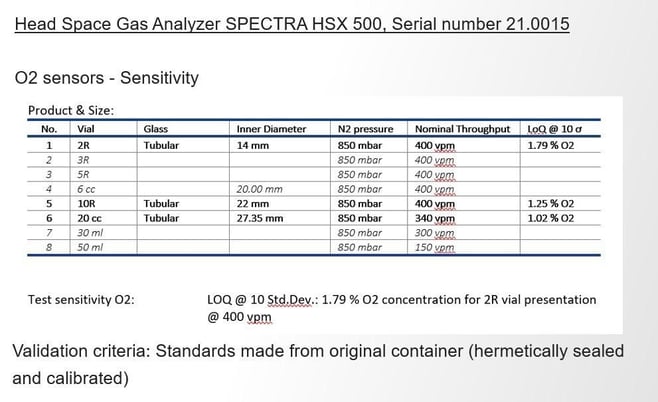

• Detection Sensitivity: Leak of Ø ≥ 10 µm

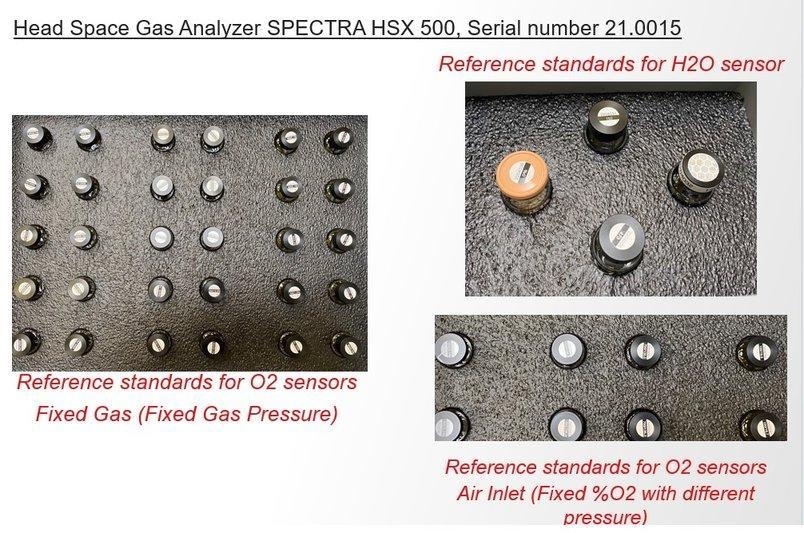

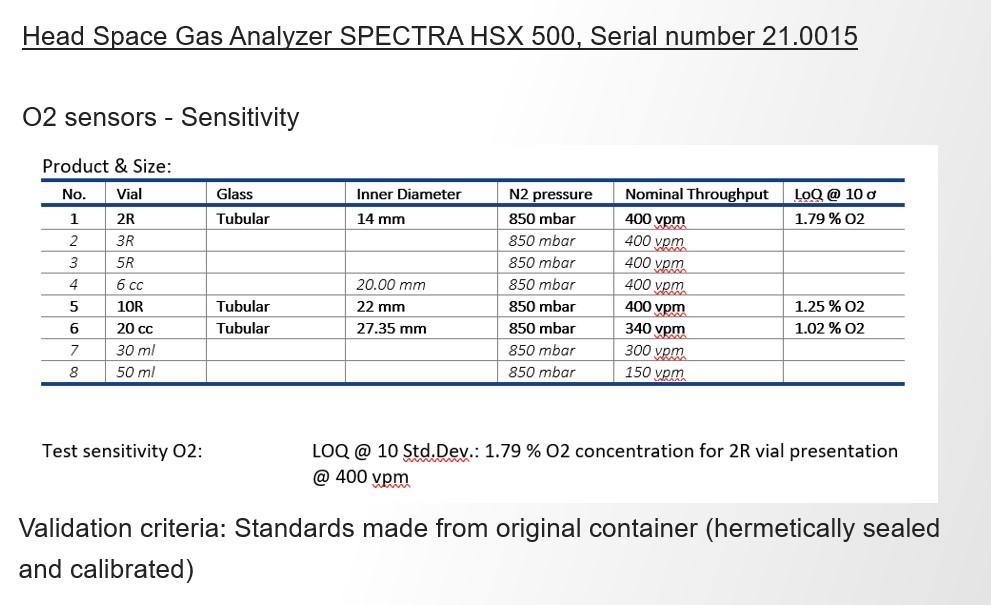

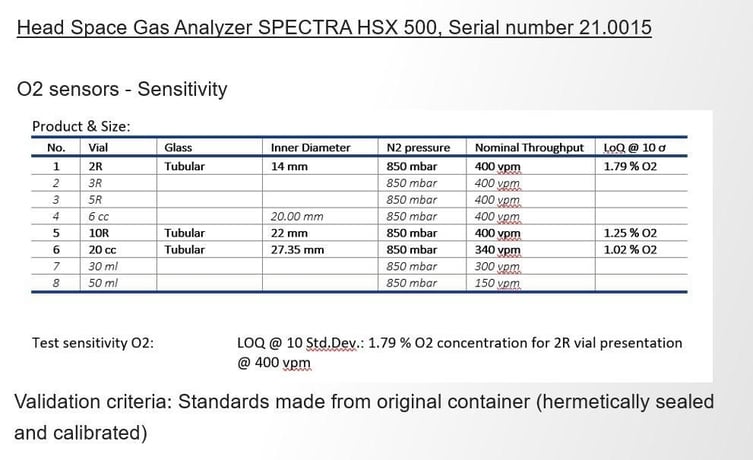

• HGA Tech: O2 laser heads at 760 nm, H2O laser head at 1380 nm
• Gas Measurement Range: Oxygen, water vapor, carbon dioxide

Imperial: 18000.0 Pounds

Metric: 8164.66 Kilograms

Imperial: 720.0 lb x 300.0 lb x 126.0 lb

Metric: 1828.8 cm x 762.0 cm x 320.04 cm
