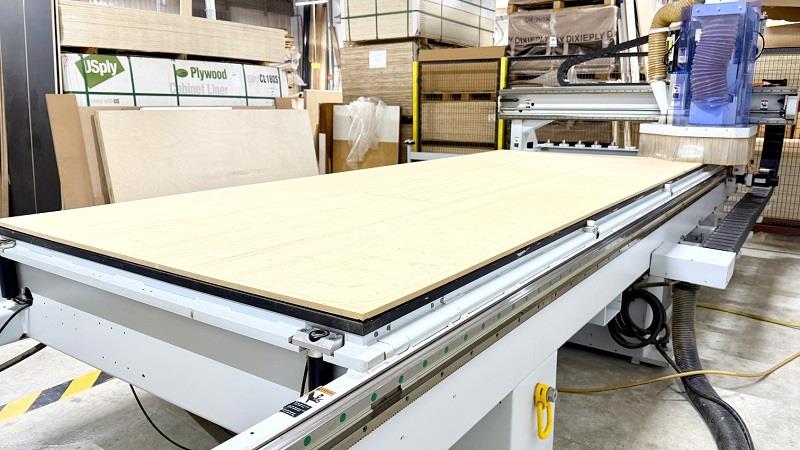

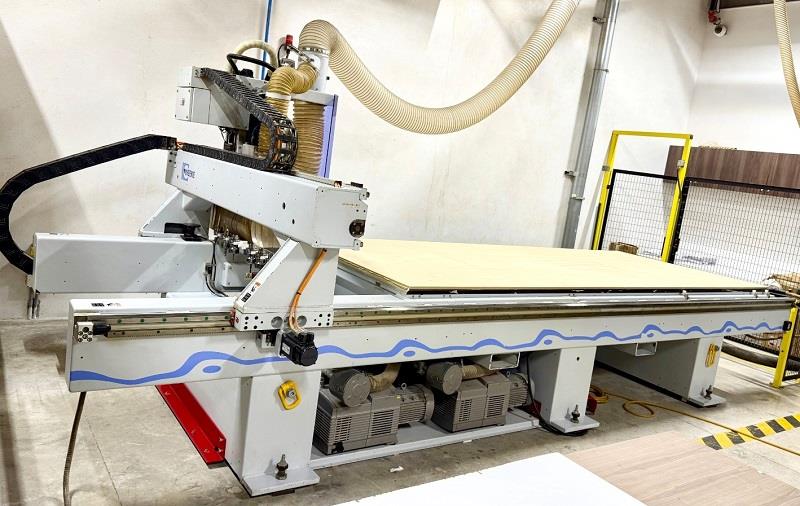

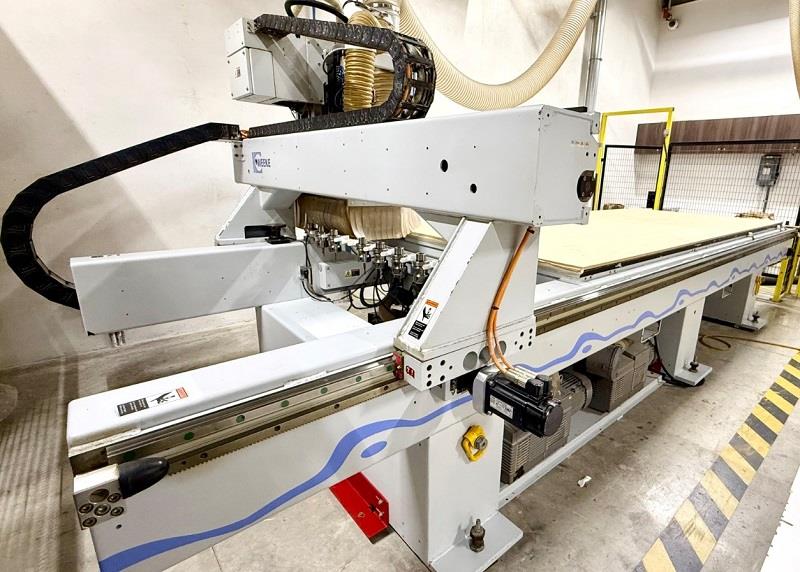

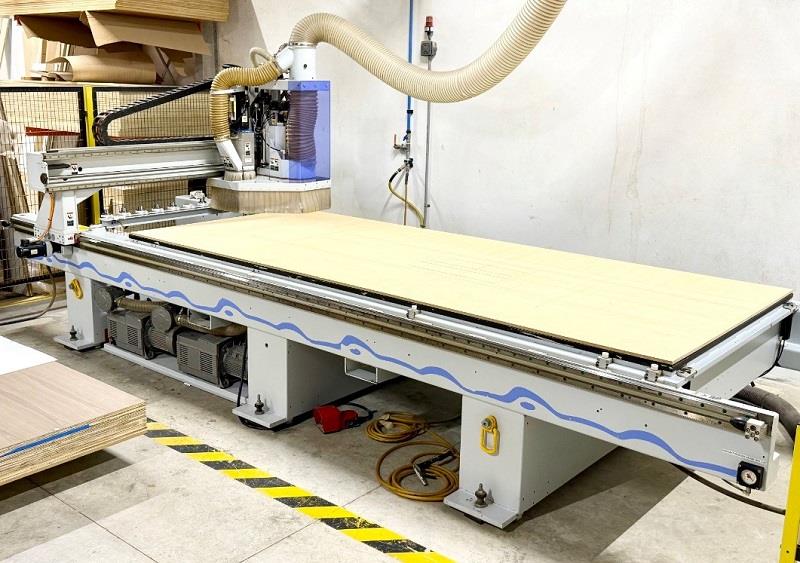

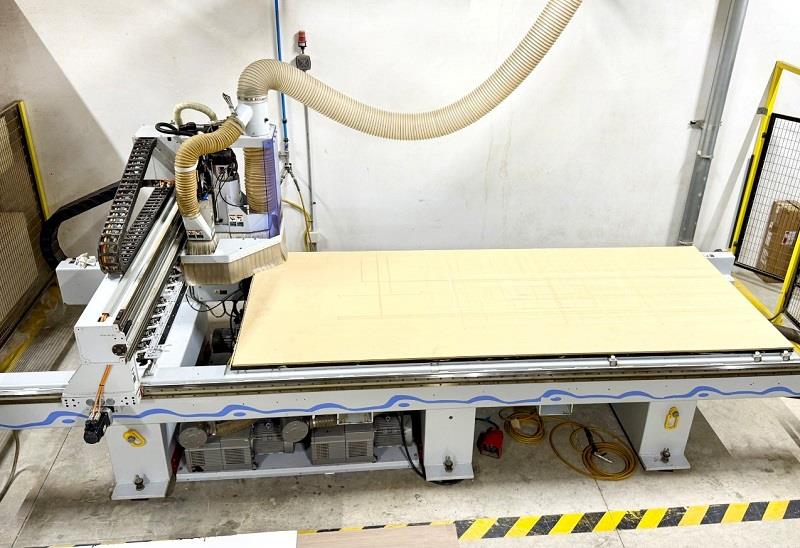

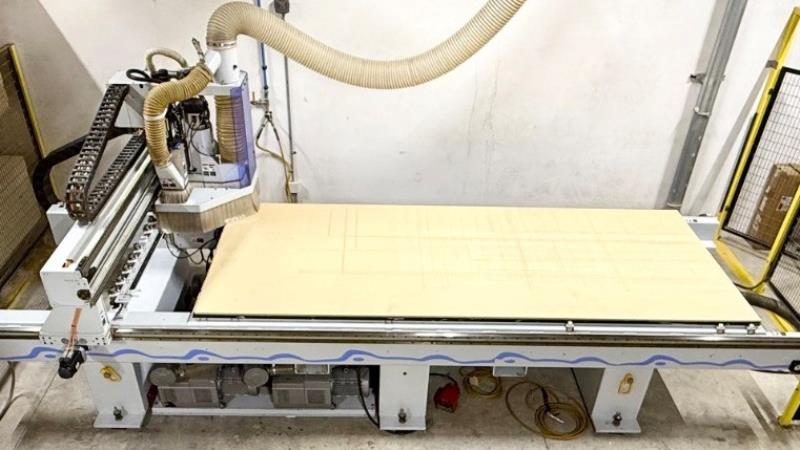

Weeke #Vantech-512, flat table machine, 5' x12'tbl., 156.7" X, 61" Y, 9.6" Z, 9 ATC, 2014

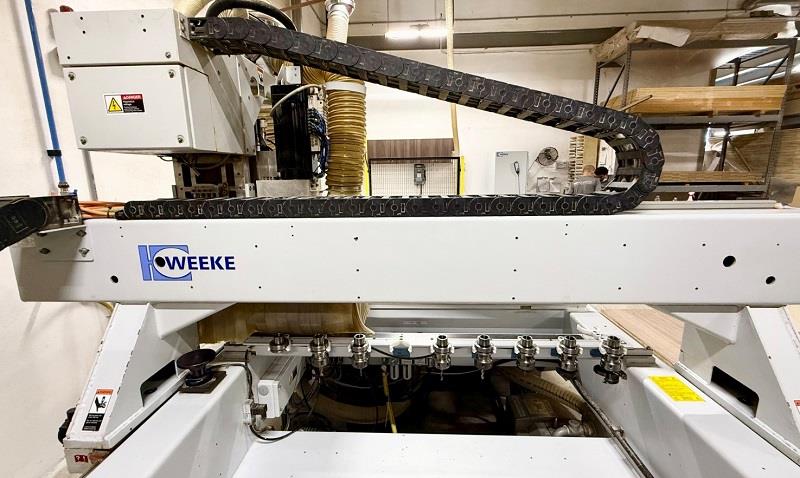

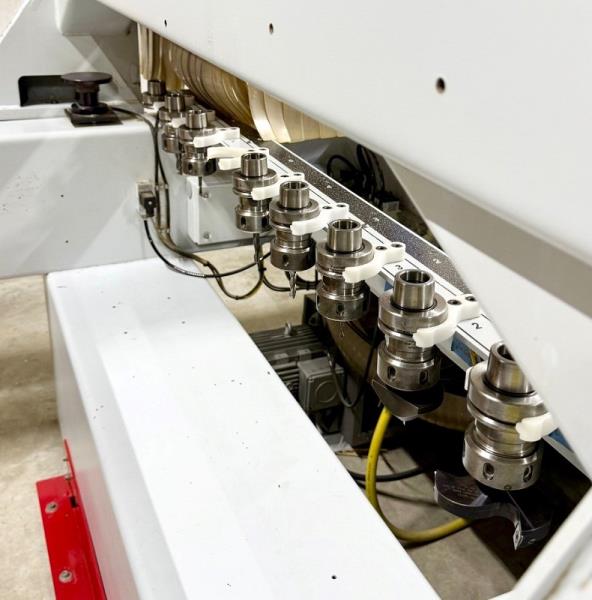

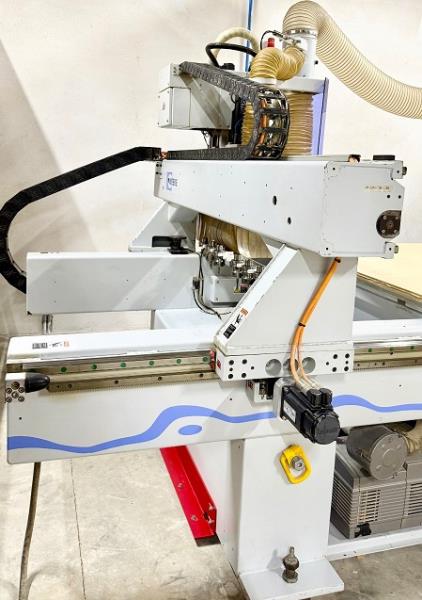

WEEKE - VANTECH 512: Flat Table Machine (w/ATC/Boring) -- Specifications5' x 12' Flat Table "Bridge Gantry" machine with: User-Friendly "S/C Tech" "MATRIX" grooved phenolic vacuum table. -- Working Capacity"X" Axis 156.7" (3,980 mm); "Y" axis 61" (1,550 mm); "Z" axis stroke is 9.6" (243.8 mm); max. material thickness is 3.9" (99 mm). -- Positioning Speed"X" & "Y" Axes: 315 FPM (96 MPM); "Z" axis: 82 FPM (25 MPM). -- Head travels via AC brushless drives & THK linear motion guides on all axes. -- Worktable. User-Friendly "S/C Tech MATRIX" grooved phenolic vacuum table for: Easy vacuum pod placement. -- (6) Pop-up pneumatic locator/positioning on the front side; (1) on the back side in "X" axis; (2) pop-up pneumatic locator/positioning pins on RHS facing side in "Y" axis. -- (4) Vacuum Table work zones can be used independently or together for full table area foot pedal vacuum zone controls. -- Boring Unit. 2 HP (1.5 kW) Motor; 3,450 RPM motor with: (7) Independent vertical spindles; (4) in "X" axis & (3) in "Y" axis. -- Machining. (1) 12 HP (9 kW) High-Speed constant duty; variable speed electrospindle router with: "HSK F 63" adaptor. -- Router is programmable from: 1,250 - 24,000 RPM, RH or LH rotation. -- (1) 9-Position ATC rack located at the end of machine. -- Operator Interface. PC Front-End with: WEEKE "PC 85T" + "Windows XP" + WoodWOP Operating System. -- 17" TFT Color graphic monitor; keyboard for data entry; PC 85T hand control pendant; central USB hub; Ethernet interface for LAN connection to office PC; RS-232 serial interface. -- BECKHOFF Programmable logic control for: (3/4) Axes: Linear, circular & helical interpolation; controller is contained in a separate freestanding, dust free control cabinet that can be placed at either the LH or RH side of the machine. -- Complete with: (2) 100 cbm Vacuum Pumps; safety light curtain (the machine will stop when the Operator enters the work area); safety fencing; separate control cabinet. - Manuals & Documents. -- Options Include: NC Controlled Touch Off Tool Probe length measuring device; (9) HSK F63 Tool Holders, as pictured. -- Actual Model is: WEEKE - VANTECH 512 OPTIMAT NBP084
