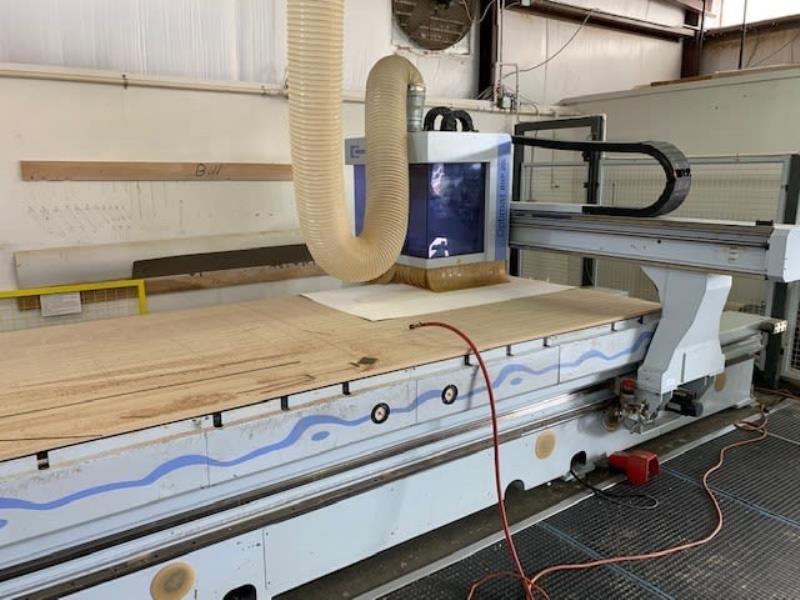

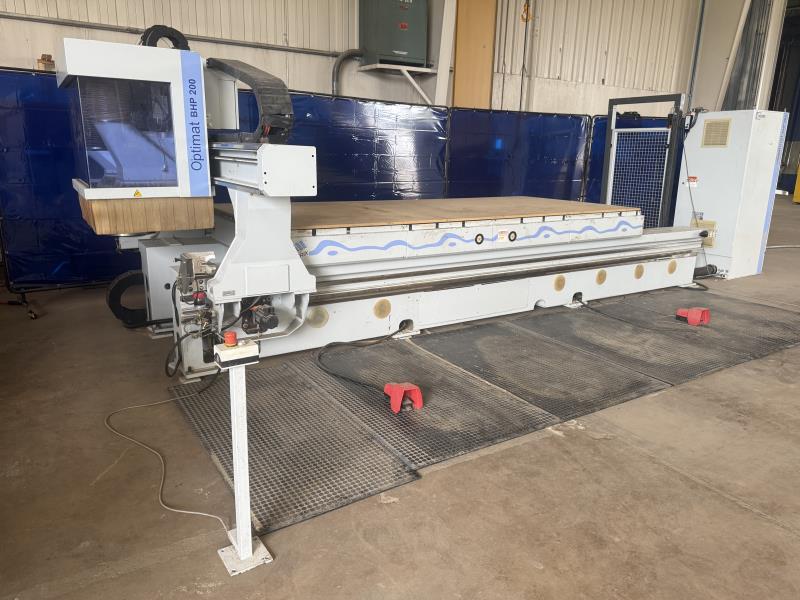

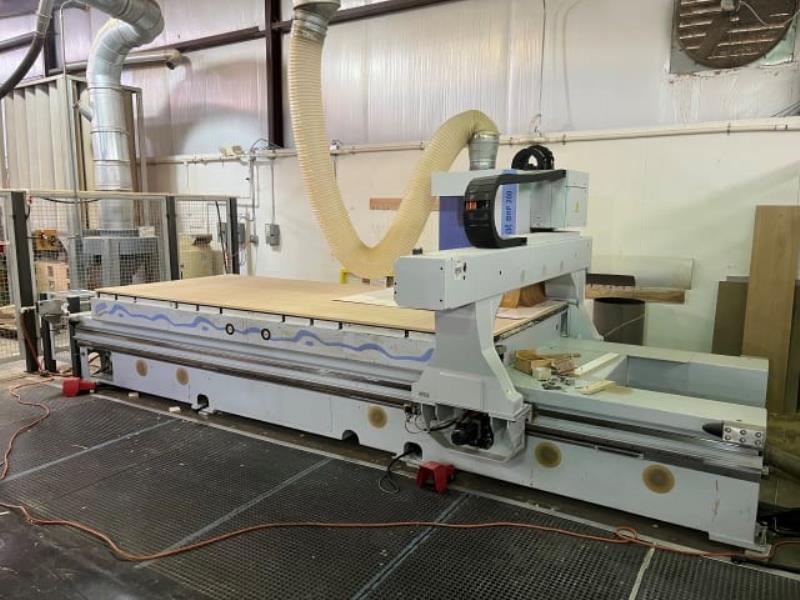

Weeke #BHP-200, Flat Table Machine w/ATC/Boring, 5' x 12' table, 145.6" X, 61" Y, 12.8" Z, 4" Z, 164 FPM X, 131 FPM Y, 66 FPM Z, 2008

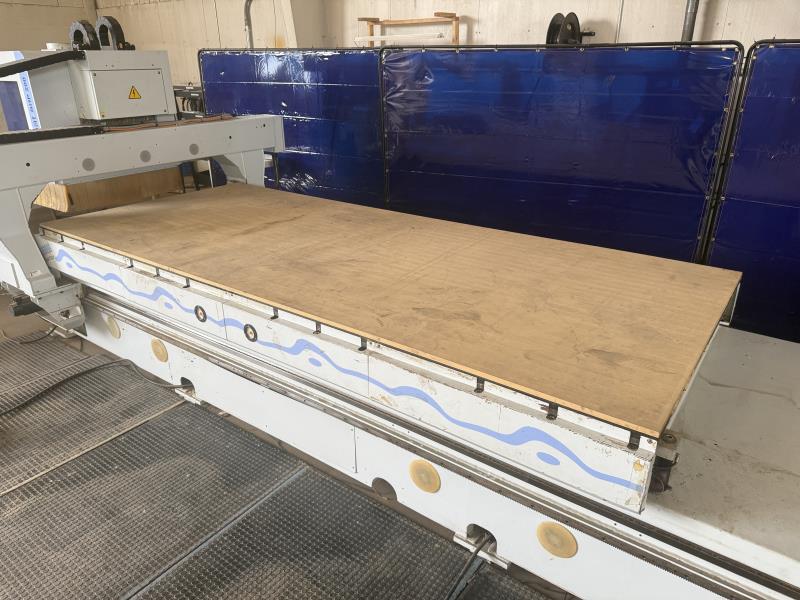

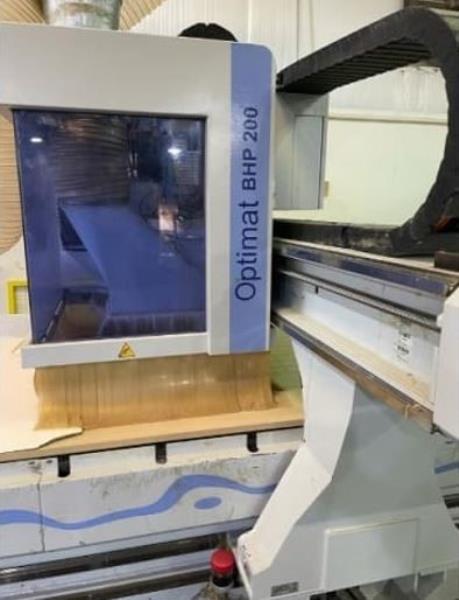

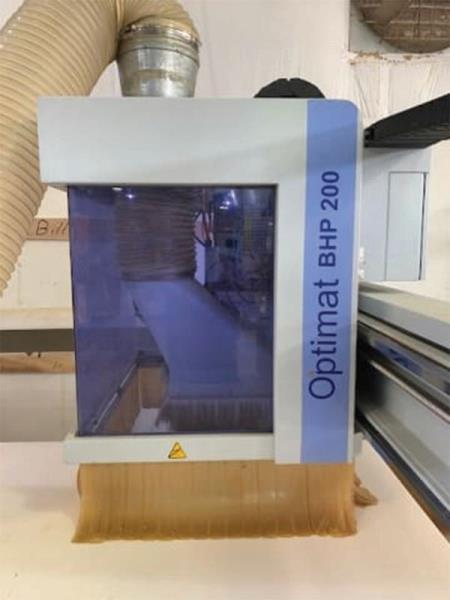

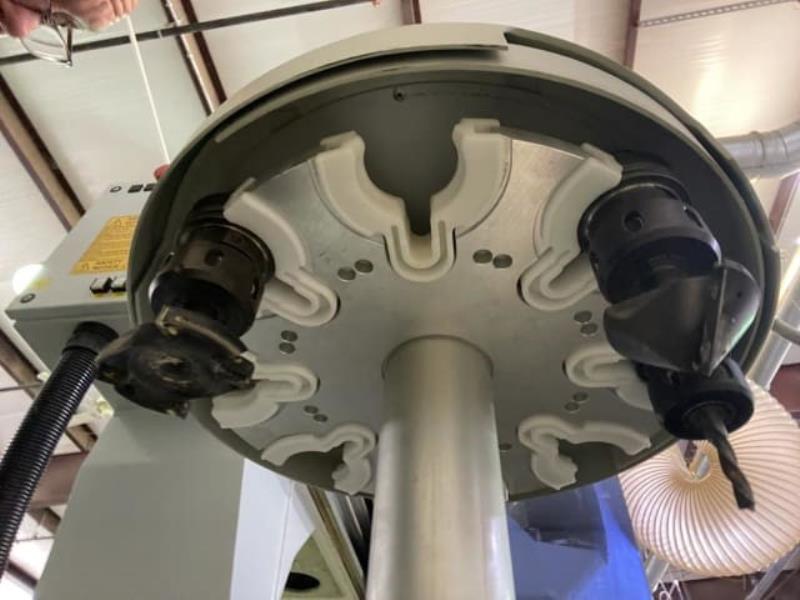

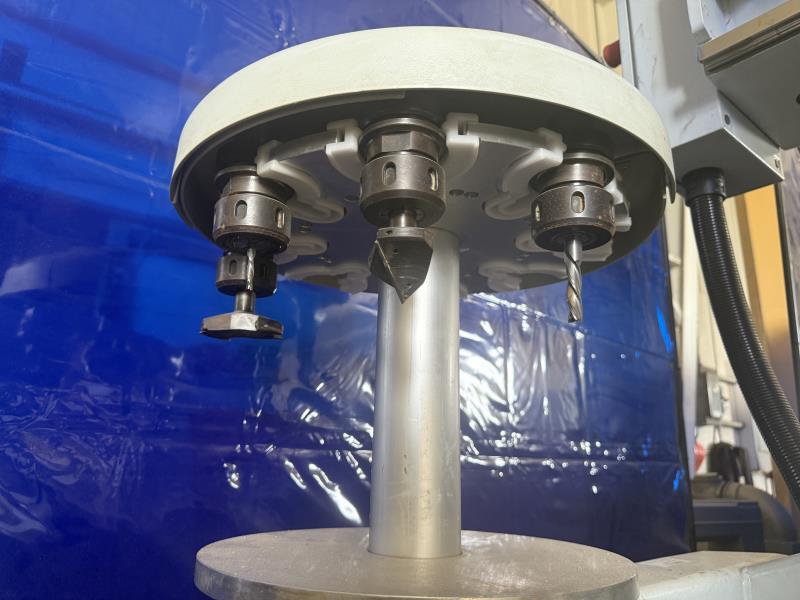

WEEKE BHP 200 FLAT TABLE MACHINE (W/ATC/BORING): -- Specifications:5' x 12' Bridge style gantry machine with User-Friendly "S/C Tech" "MATRIX" grooved phenolic vacuum table. -- Working Area:'X" Axis 145.6" (3,700 mm), "Y" axis 61" (1,550 mm), "Z" axis stroke is 12.8" (325 mm), max. material thickness of 4" (100 mm). -- Positioning Speed:"X" Axis is 164 FPM (50 MPM), "Y" axis is 131 FPM (40 MPM), "Z" axis 66 FPM (20 MPM);The head travels via AC brushless drives & THK linear motion guides on all axes. -- Worktable: User-Friendly "S/C Tech "MATRIX" grooved phenolic vacuum table for easy vacuum pod placement, divided into (2) work zones.(4) Front pneumatic pop-up positioning stops, (2) side pneumatic pop-up positioning stops & (4) back pneumatic pop-up positioning stops. -- Boring Unit:(1) 4 HP (3 kW) motor, variable speed for 1,500 - 7,500 RPM.(10) Independent vertical spindle with (5) in "X" axis & (5) in "Y" axis. -- Machining:(1) 12 HP (9 kW) High speed constant duty Router with HSK F63 adaptor,1,250 - 24,000 RPM, constant torque achieved at 9,000 RPM, RH or LH rotation(1) 8-Position tool changer magazine located at the back side of the spindle carriage.Router is powered by a 14 kW programmable frequency inverter. -- Machine & Operator Control:PC Front-End with WEEKE "PC 85T" + Windows "XP" + WoodWOP 5.0 operating system.17" TFT Color graphic monitor, keyboard for data entry, PC 85T hand control pendant; CD R/W & floppy drives, EtherNET interface for LAN connection to office PC, RS-232 serial interface, USB ports. -- Complete with:(1) 500 m/Hr Vacuum pump, safety mats & safety fencing. -- Actual model is WEEKE BHP 200
