For Sale by Precision Matthews Machinery Co
Surplus Record Dealer Since 2024
Location: Coraopolis, PA
Contact Sales Dept.
Phone Number: 412...> Show Phone Number 412-787-2876
Let the seller know you found their listing on Surplus Record!
$159 USD
Description

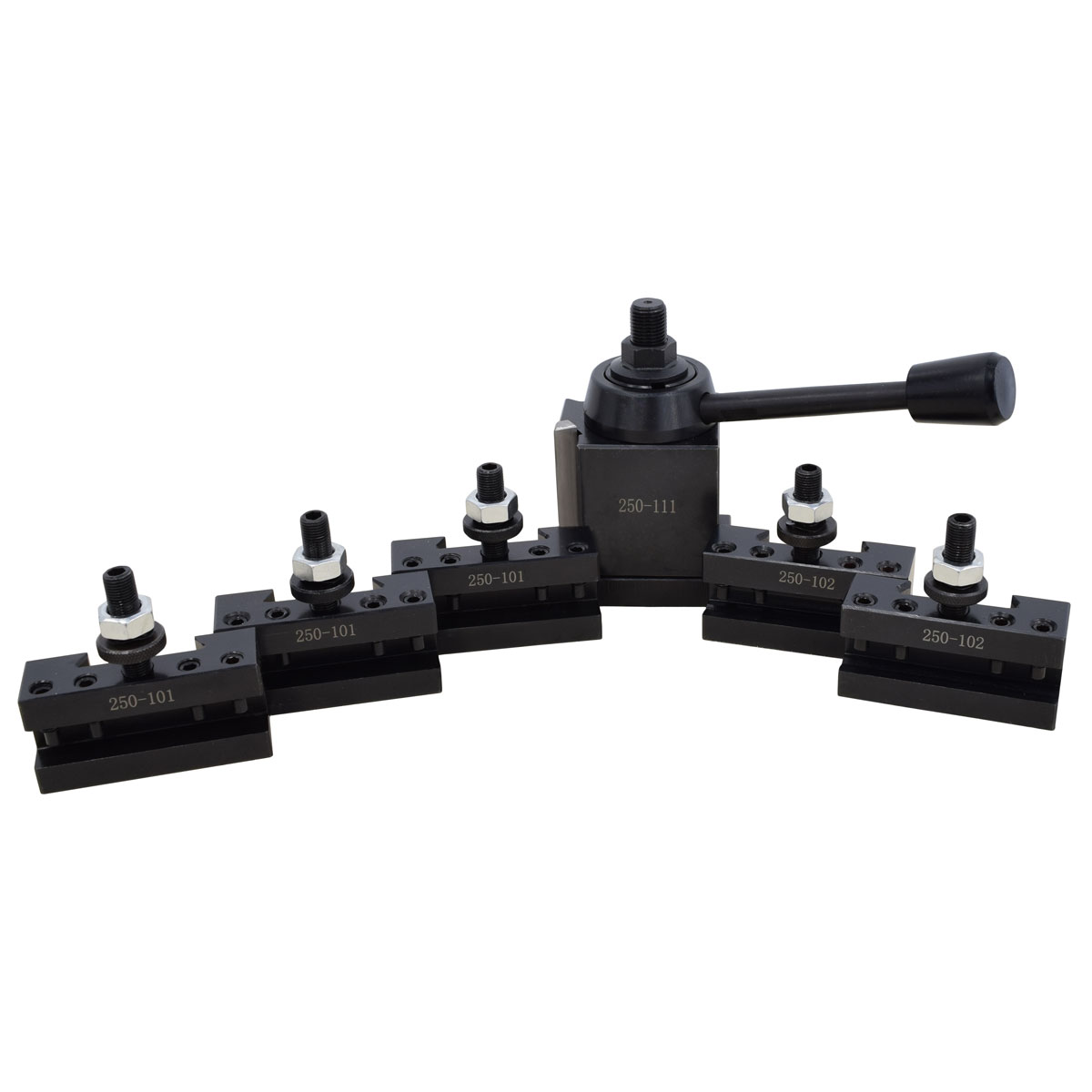

Quick Change Toolpost Set, Wedge Type #100 (AXA) with 5 holders: (This set is made for those who don't want the Knurling, Boring, or Parting Holders)

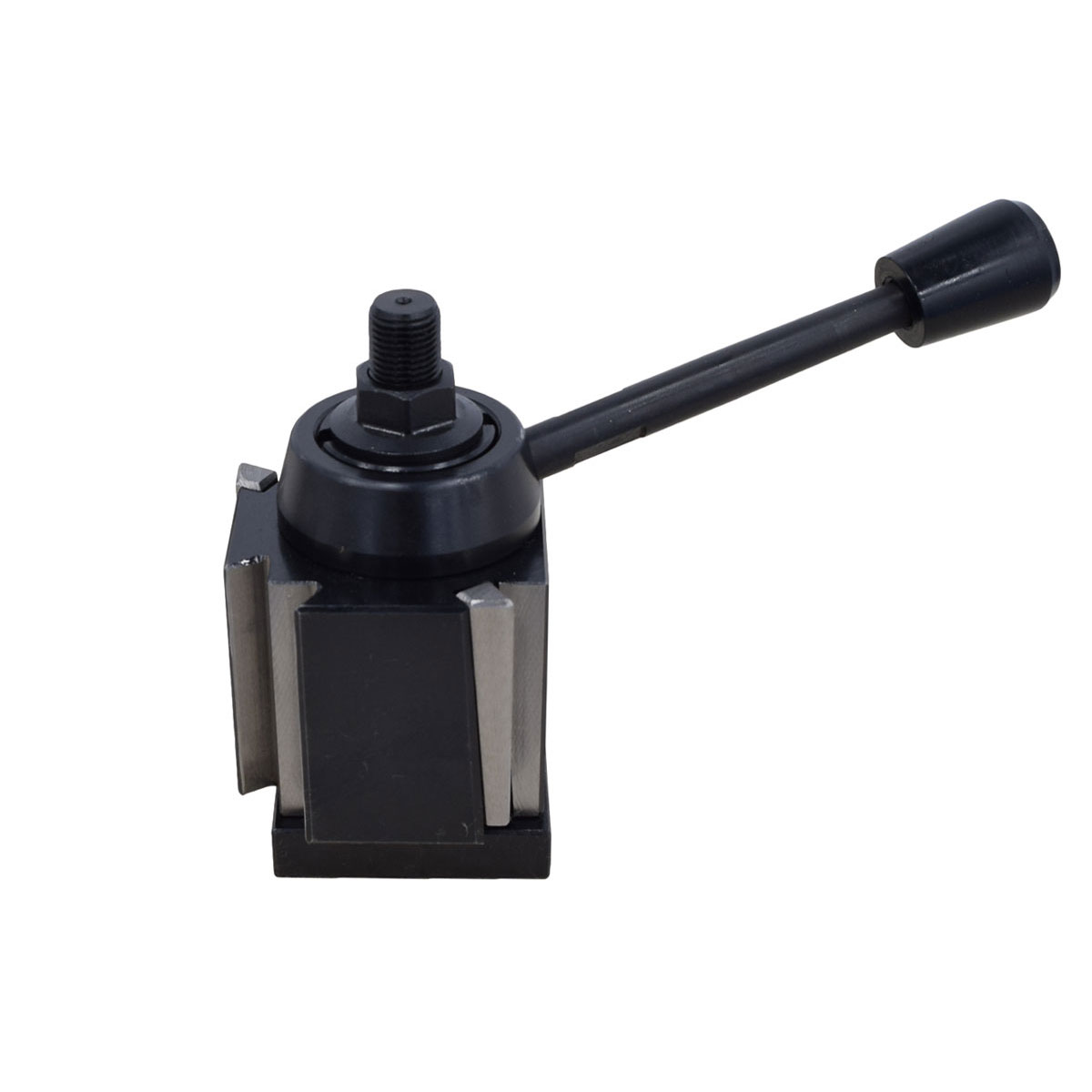

- #100/AXA Series Wedge Type Tool Post

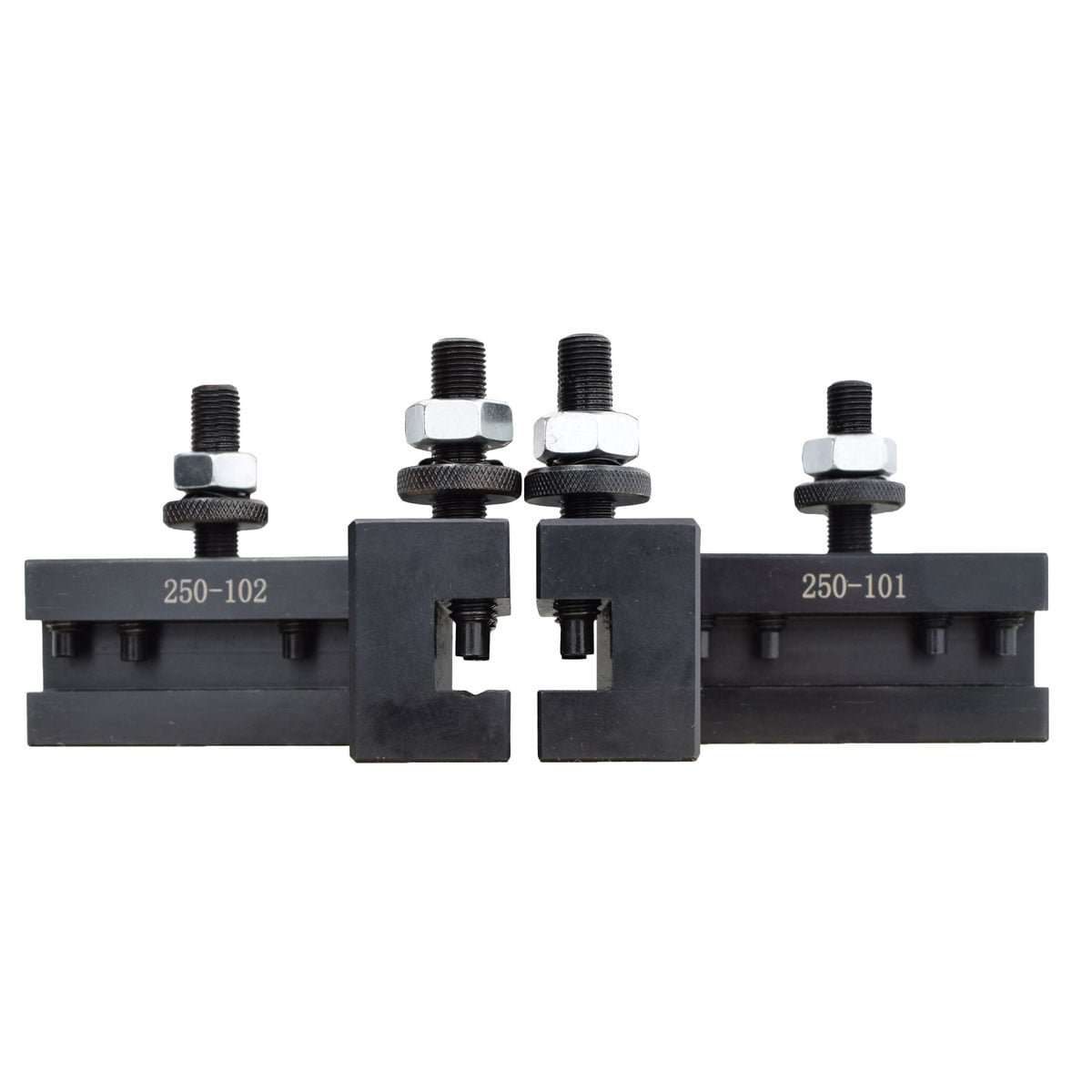

- (3) 250-101 Straight Holder 1/4-1/2" Capacity
- (2) 250-102 Straight w/V Groove for straight OR round tools 1/4-1/2" Capacity
Sizing:
(This tool post will generally fit lathes from 10" to 12" Swing, please check carefully as shown below)
Measure from the top of your compound slide, where the tool post sits, to the centerline of the spindle/work piece (Using a center in the tailstock to find this is normally the easiest way) For this AXA Tool Post Set, you will need a minimum of 1" from that measurement, up to a maximum of about 1-3/4". If it is more than this 1-3/4", you want to use a larger tool post to fit it properly.
Dimensions Below for standard straight tool holder to help with sizing:
- A: 15/16"
- B: 1/2" (This is where the cutting tool fits)
- C: 7/16"
- D: 1-1/2"
Inquire Further with Precision Matthews Machinery Co!
