Venjakob #Ven-Flow, Flow Coater & Oven, 305 mm max Part width, 70 deg. C drying tunnel, 2-10 MPM, 480 V, 2015

Estimated monthly payment valid upon approved credit.

Request Formal Quote

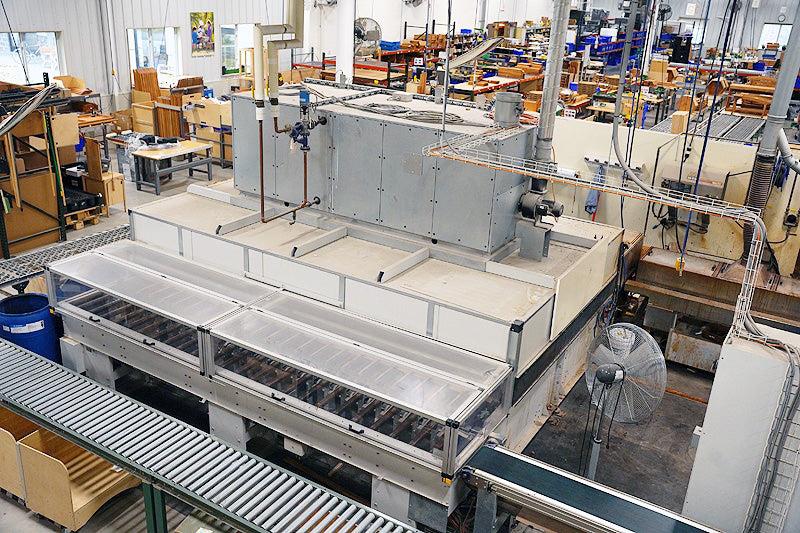

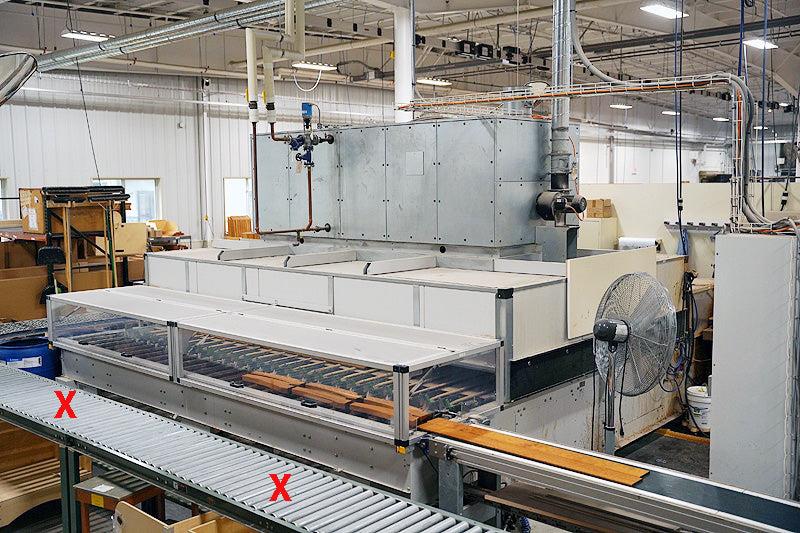

This listing Is for a complete line that consists of a Flow Coating line that feeds into a cross transfer oven and back out on to an outfeed conveyor making a 180 degree circuit. The heat exchanger needs to be heated by means of a hot water boiler or similar. Maximum Part width: 305 mmSpeed range: 2 - 10 m/min.Pos. 1 - FEEDING BELT CONVEYOR:For feeding the batches into the flowcoater, Belt with marked area to built a gap for the angle transfer, Technical Data: length: 2300 mmPos. 2 - IMPREGNATION MACHINE VEN FLOW:For flowcoating of profiles in continious production with a waterbased impregnation (viscosity similar to water)The material is is sprinkled on the surface and remains for appr. 10 seconds. After this time a high pressure air knife nozzles will blow the acess materialfrom the surface. The whole cabin is built with fall to the side to collect the rest of the material. It is reused after passing a filter system. The cabin is built of stainless steel. The blowing off of the access material by air knife is effected by a high pressure fan.The machine comprises:1 conveyor system with spray protected roller system length 3000 mm1 sprinkling zone with two nozzle systems adjusted to reach the whole surface of the workpiece. length: 200 mm1 penetration area length ca. 1000 mm time of residence ca. 10 sec1 blowing zone with adjustable knife nozzles air supply with high pressure fan air flow adjustable by frequency converter length ca. 1000 mmair speed ca. 40 m/sec. material supply to supply the two sprinklers with fluid and collector for recovered material.workpiece tolerances:twist: max. 1 on the whole length, straightness max. 0,5mm deviation/m in horizontal and vertical weight distribution: evenly on whole length coating material: waterbased impregnation. Unstable components can not be repositioned when tilted.Pos. 3 - MOULDING ANGLE TRANSFER VEN TRANS 90conveying from lengthwise direction to crosswise, comprising:1 excenter-transfer arms integrated into the driven infeef roller conveyor. The tacted transfer system allows a minimum distance between the singlemouldings on the following cross transfer system.Technical Data:length of roller conveyor: 4500 mmroller pitch: 185 mmnumber of transfer arms: 22spacing 185 mmtacting cycle: max. 30/min.Pos. 4 - MOULDING CROSSWISE V-BELT CONVEYOR:Mouldings are conveyed by means of various v-belts along the system. The unit is fitted with an insulation cover between the conveyor. A drying tunnel is fitted on top of the unit.Technical data:length: 4000 mmoperating width: 4200 mmnumber of belts: 22distance of belts: 185 mmoutfeed prepared for an additional angletransfer:position of driving shaft in the middlegaps for passing of the carriers of the angle transferPos. 5 - JET DRYING TUNNEL 70 C:Made of sandwich elements with fire preventing insulation material. The even distribution of air over the full operating width is reached by using slot nozzles on the full width of the tunnel. One combined heating-, fan
