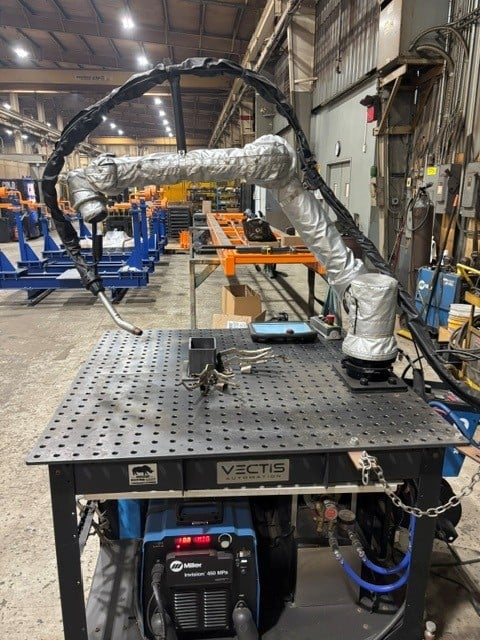

Vectis, UR10e, Collaborative Welding Robot, 6-Axis, 27.5 lb. Payload, 51" Reach, Miller Invision 450MPa, 2023

Arm Model: Universal Robots UR10e Collaborative Robot
Controlled Axes: 6-Axis Servo Controlled
Wrist Payload Capacity: 27.5lbs
Max Reach: 51″

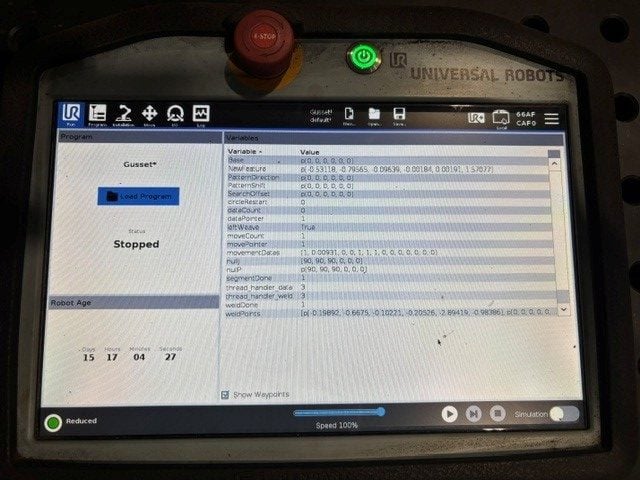

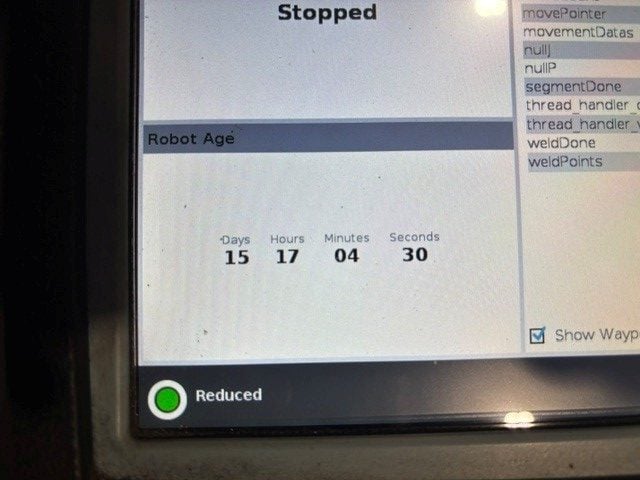

Programming Interface: 12″ Touchscreen
Safety Certifications: Embedded Collaborative Safety System

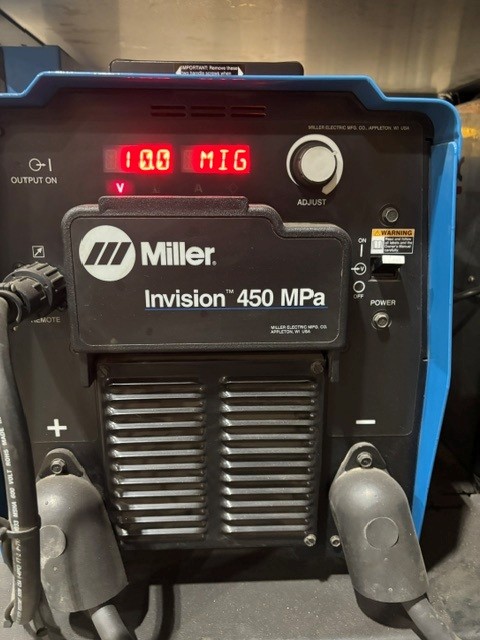

Power Source Model: Miller™ Invision 450MPa MIG Welder with integrated Vectis Controls Package
Wirefeeder Unit: Miller 20 Series Digital Wirefeeder
Available Waveforms: Pulsed MIG waveforms
Input Power Requirement: 3-Phase Power
Material Wire Capacities: Optimally handles steel and stainless steel ranging from 0.035″ to 0.06″
Torch Rating: 100% duty cycle running at 400 amps

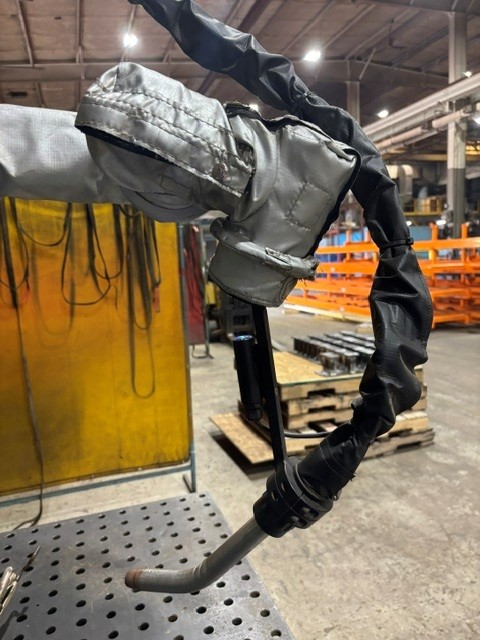

Mount Design: Rigid Torch Bracket

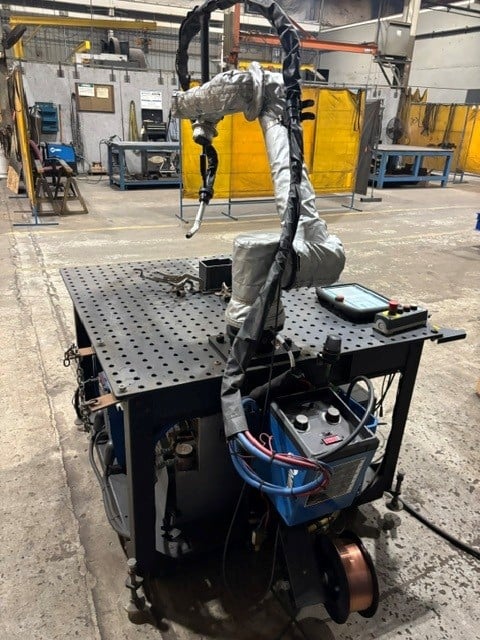

Cart Platform: Heavy-Duty XL Mobile Cart
Tabletop Footprint: 48″ x 48″ Mobile Modular Table
Table Composition: Premium nitrided spatter-resistant surface
Operator Control: Master 4-button external operator panel
Electrical: 110V, Single-Phase

Equipped With
Vectis Let’s Weld Together Software Suite
Vectis ArcPilot™ Seam Tracking
Quick-Release Base Connector Package
Vectis AutoTCP™
Shielding Gas Flow Sensor
Status Light & Buzzer

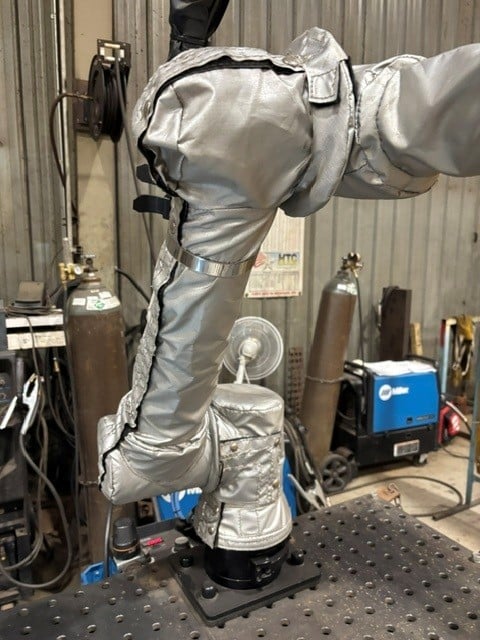

Environmental Arm Protection
66-Piece Kits & Consumables Included
