1500 HP Cleaver-Brooks #CBEX-2W-700-1500-150ST, packaged firetube steam boiler, 150 PSI, natural gas, 61,991,000 BTU/hr., 2022

OVERVIEW

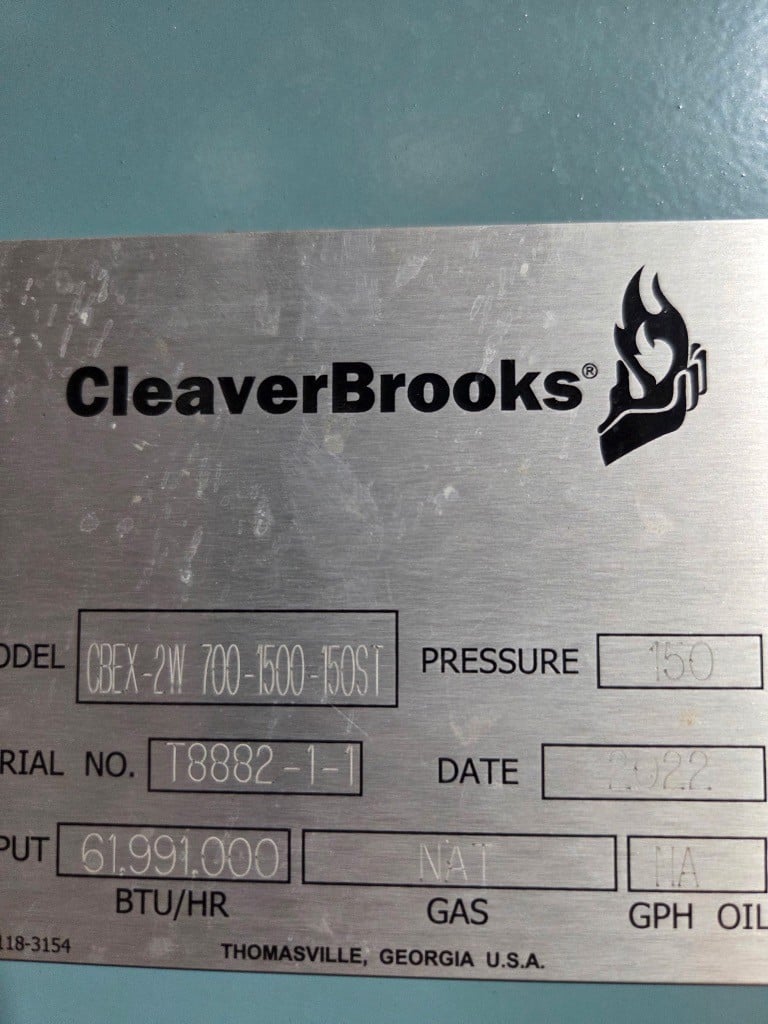

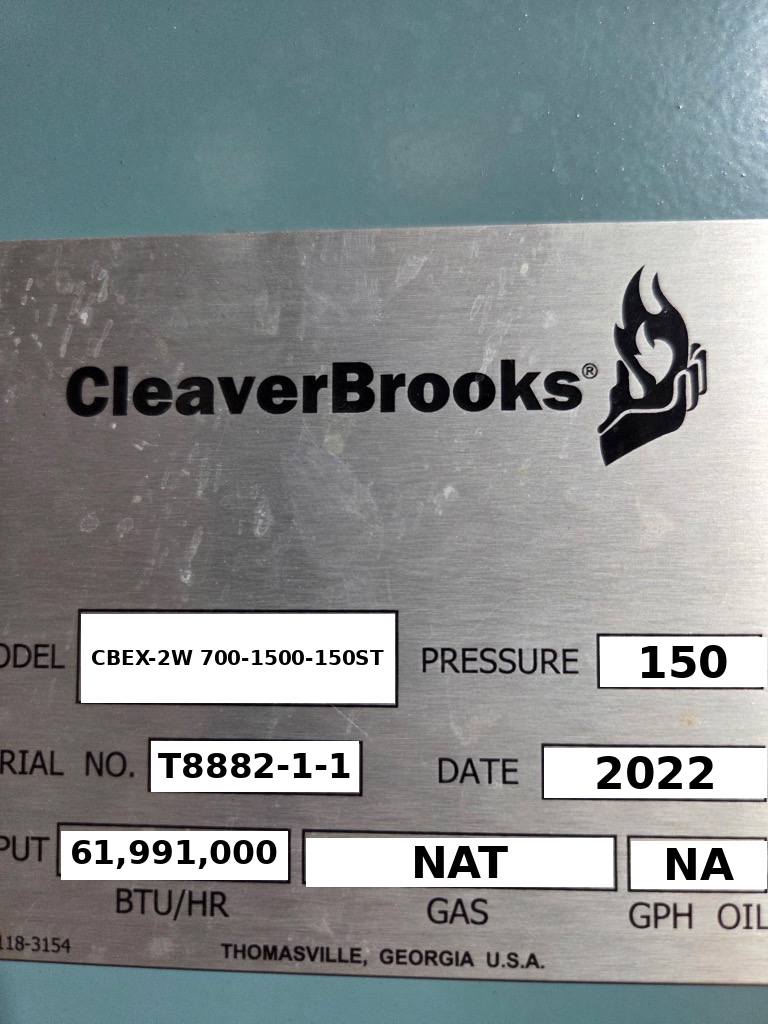

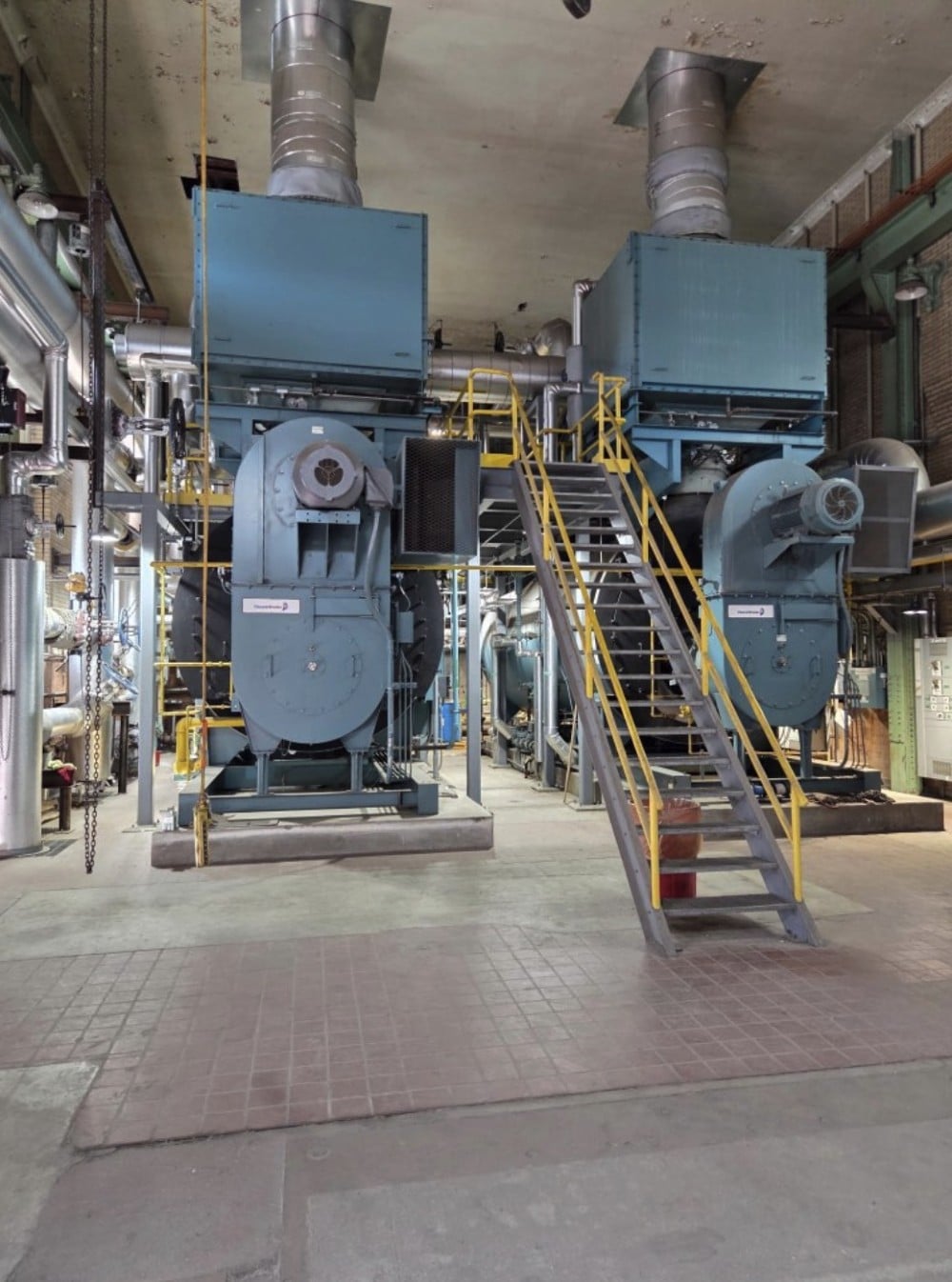

Used 2022 Cleaver Brooks CBEX-2W 700-1500-150ST packaged firetube steam boiler, 1500 boiler HP, 150 PSI steam, natural gas fired. Nameplate input is 61,991,000 BTU/HR. Serial Number T8882-1-1. Built by Cleaver-Brooks, Thomasville, Georgia, USA.

EQUIPMENT SPECIFICATIONS
- Manufacturer: Cleaver Brooks
- Model: CBEX-2W 700-1500-150ST
- Serial Number: T8882-1-1
- Year: 2022
- Type: packaged firetube steam boiler (CBEX Elite 2-W, two-pass wetback)
- Boiler Horsepower: 1500 HP (not stamped on the plate; matches the model number and the nameplate input)
- Pressure: 150 PSI steam (nameplate 150 ST)
- Fuel: natural gas (nameplate NAT; oil GPH marked NA)
- Input: 61,991,000 BTU/HR (nameplate)
- Fuel series 700 = gas only (per Cleaver-Brooks literature)

PERFORMANCE RATINGS (Cleaver-Brooks literature for a 1500 HP CBEX Elite, typical, not measured on this unit)
- Rated steam capacity: 51,750 lb/hr from and at 212F
- Rated output: approx. 50,208,000 BTU/HR
- Fireside heating surface: 4,212 sq ft
- Design: 2-pass, wetback firetube
- Approx. dimensions: overall length 413 in, overall width 131 in, boiler I.D. 114 in
- Approx. shipping weight at 150 psig: 71,435 lb

CONTROLS / BURNER

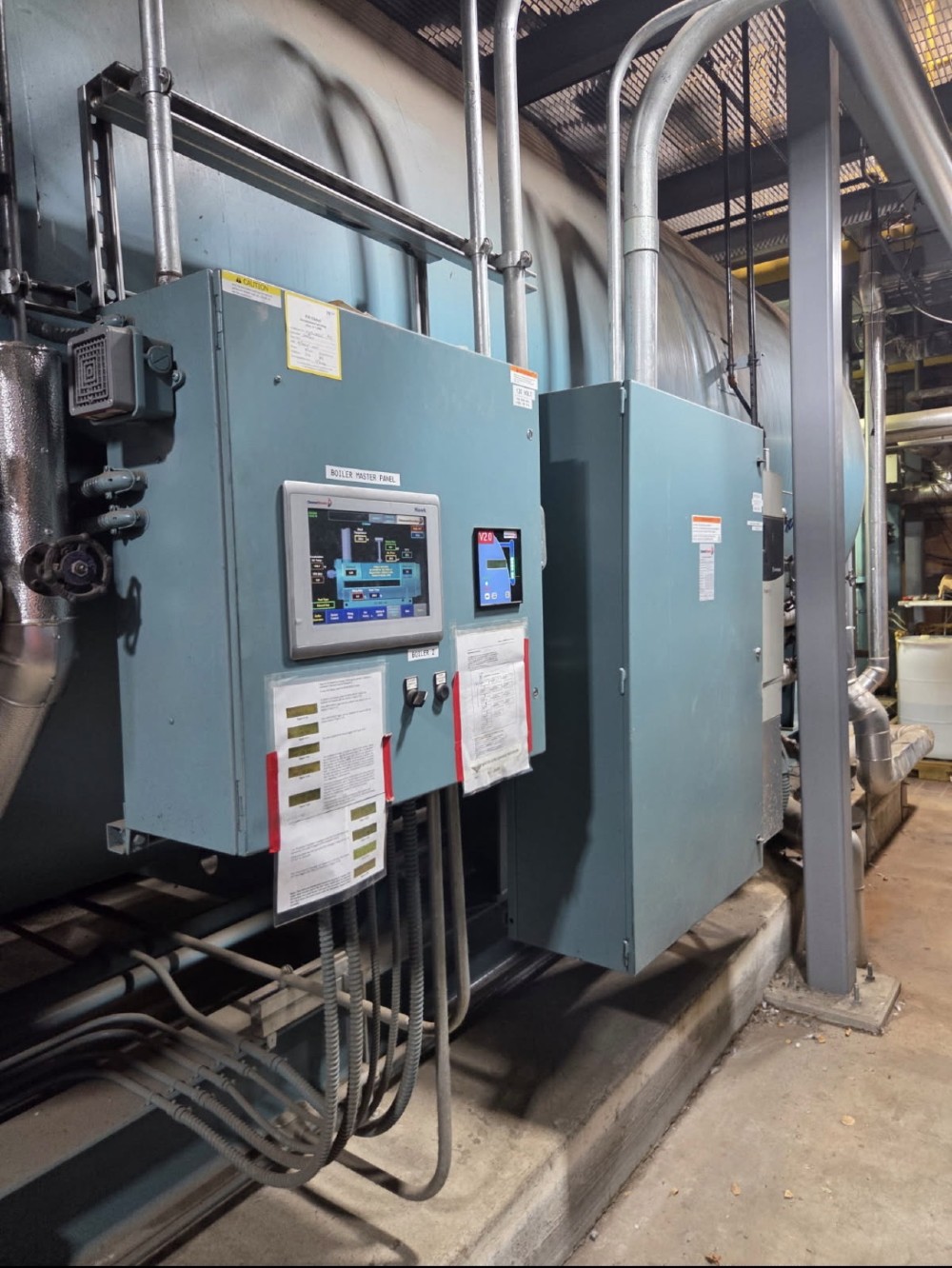

Yard photos show a Cleaver-Brooks boiler master panel with a color touchscreen and a second control cabinet.

ADDITIONAL INFORMATION
- Condition: used
- Included equipment is limited to what is shown in the photos.
- Buyer is responsible for transport and rigging.

Specifications marked "literature" or "typical" come from Cleaver-Brooks published data for this size and may differ on this unit.

Yard tag: BSCB1500HP8882
