Description

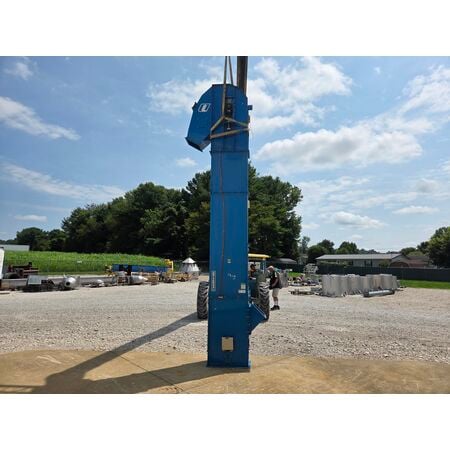

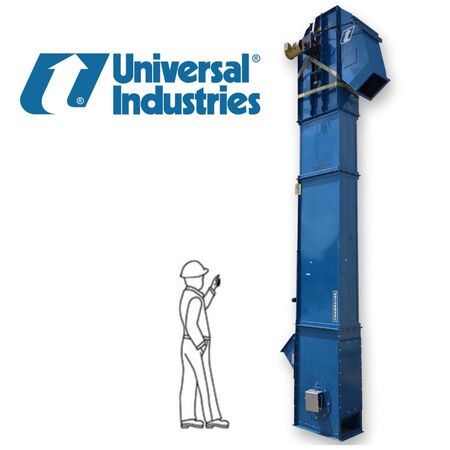

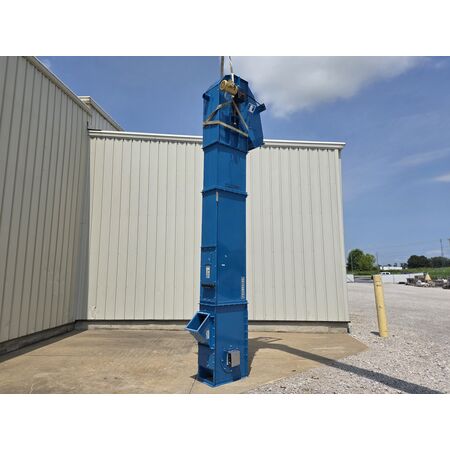

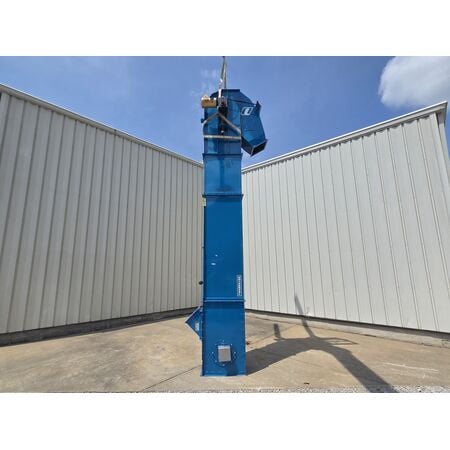

Used U3TT Universal Industries 11"X6" Top Take-up Bucket Elevator Serial No: 87786 Powder coated carbon steel sectional trunk with top head casing belt take-up. Discharge Height: 13'-9" Buckets: 11" X 6" HDPE with Uni-Ply 120PVC belt, 6" center spacing Trunk Size: 29" X 14.75" Product Inlet: 12" square flange Product Discharge: 12" square flange Head Shaft RPM: 76.7 2HP gearmotor drive (230/460V, 60Hz, 3ph, 5.8/2.9Amps) Total Height: 17'-11"
Unitrak Corp, Model "S2" Tip Trak, Z style bucket elevator. Bucket speeds rated from 0 to 150 feet per minute. plastic product buckets with inside dimensions of 10½" long x 4½" wide x 5" deep, 50" long horizontal floor run at 22" in feed height, 128" vertical lift ...more
Used Bucket Elevator 22ft, Thomas Conveyor Company bucket conveyor, Overall Length: 22 feet x 6 inches ( shaft to shaft : 18 ft 11 inches), Discharge height: 18ft 4+ inches, Deep: 36 inches, Width: 15 inches O.D., Weg motor, 3HP, 230/460 volt, Year built: 2017, Prior use was inside of building, Drawing available., We ...more
Rectangular Tank with Dewatering Conveyor. Tank dimensions: 3 ft. 6 in. W x 4 ft. 6 in. L x 2 ft. 4 in. D. Conveyor dimensions: 15 in. W x 5 ft. L. Estimated capacity: 275 gallons.
Stainless steel Z-frame bucket elevator designed for vertical conveying and transfer of food products, ingredients, and bulk materials. Unit s approximately 108" vertical lift section, approximately 4.5' top discharge section, and approximately 4' bottom infeed section. approximately 4" x 8" x 2.5" plastic ...more
