5.1" Union #BFP130, 220" X, 119" Y, 118" Z,spindle support,ISO50,1000 RPM,infeed rotary table 86" x86", Heidenhain TNC355 CNC Control, facing head

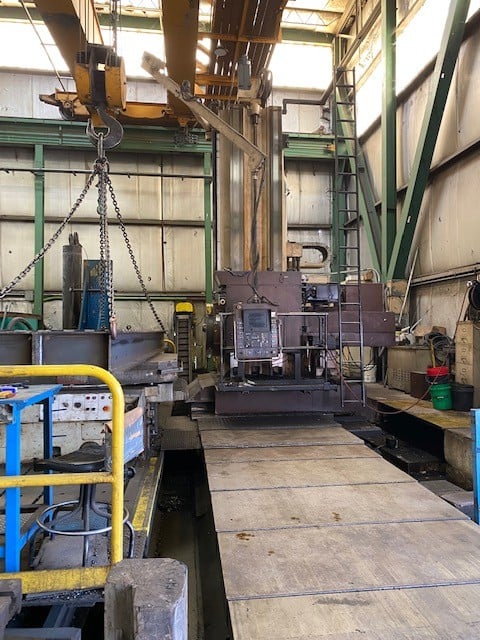

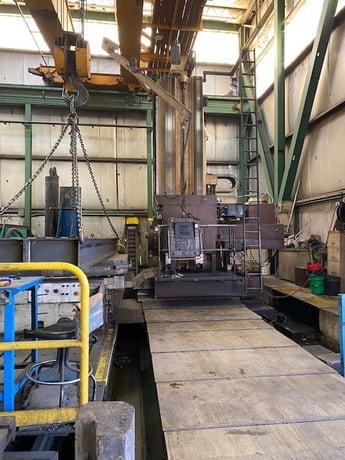

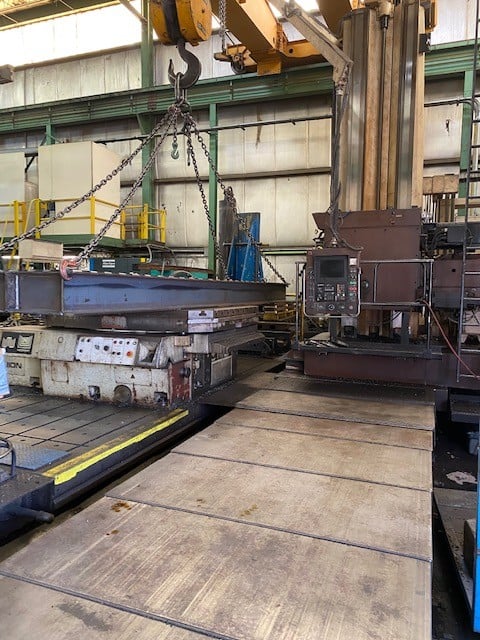

Union BFP130 5.12" CNC Floor Type Horizontal Boring Mill

FEATURES:

Heidenhain TNC 355 CNC Control
In feeding Column

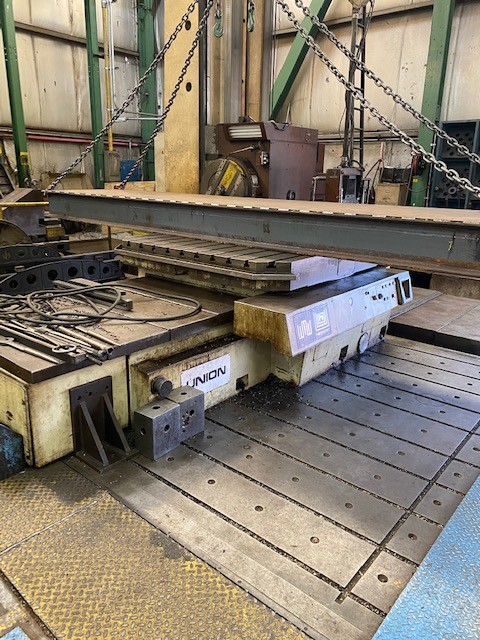

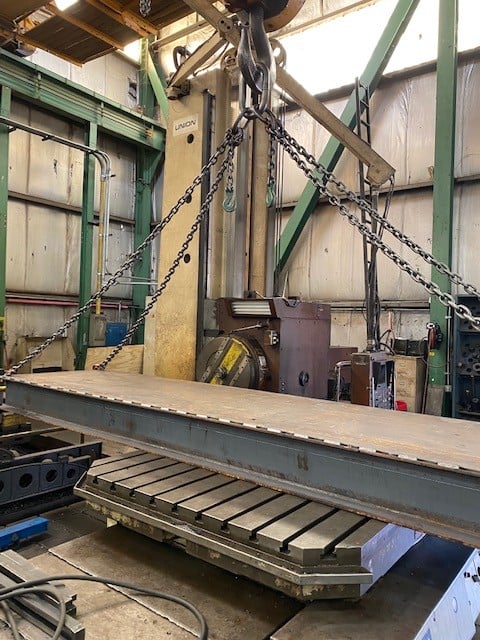

86" x 86" TOS In feeding Rotary Table

CAPACITIES:

Spindle Diameter ---------------------------------------------------------------------------- 5.12"

Spindle Taper ------------------------------------------------------------------------------ ISO 50

Horizontal Column Travel, X-Axis -------------------------------------------------------- 220.5"

Vertical Travel of Head, Y-Axis ------------------------------------------------------------- 119”

Column In feed, Z-Axis -------------------------------------------------------------------- 16.55"

Spindle Travel, W-Axis -------------------------------------------------------------------- 35.43"

Spindle Speeds, 4-Ranges ---------------------------------------------------------- 5-1000 RPM

Rapid Traverse, X & Y Axes --------------------------------------------------------- 196.85 IPM

Rapid Traverse, Z & W Axes -------------------------------------------------------- 118.11 IPM

Feeds, All Axes ------------------------------------------------------------------------- 98.42 IPM

Table Size --------------------------------------------------------------------------- 86.6" x 86.6"

Table In feed ------------------------------------------------------------------------------- 59.05"

Table Feeds, longitudinal ---------------------------------------------------------- 05 - 6.2 IPM

Table Rapids, longitudinal ----------------------------------------------------------- 78.11" IPM

Rotary, Feeds @ 41.14"Dia -------------------------------------------------------- 05 - 6.21PM

Rotary, Rapids @ 41.14" Dia ------------------------------------------------------------- 78.74"

Table Weight Capacity --------------------------------------------------------------- 39,600 Lbs

Number T-Slots ----------------------------------------------------------------------------------- 9

T-Slot Center Distance ---------------------------------------------------------------------- 9.84"

Number Cross Slots ------------------------------------------------------------------------------ 2

Center Hole Diameter --------------------------------------------------------------------- 11.81"

Center Hole Depth ----------------------------------------------------------------------------- 39"

Table Height --------------------------------------------------------------------------------- 37.4"

Approximate Overall Table Weight ------------------------------------------------- 25,300 Lbs

Approximate Overall Machine Weight ---------------------------------------------- 90,000 Lbs

Overall Dimensions ------------------------------------------------------------ 157.48" x 103.2"

EQUIPPED WITH:

HEIDENHAIN TNC 355 CNC Control

Spindle Support

In feeding Rotary Table

Telescoping Steel Way Covers on X-Axis

Independent AC Servo Motor Drives

Hardened & Ground Ways

Steel Sliding Way Covers

67 HP Spindle Drive Motor

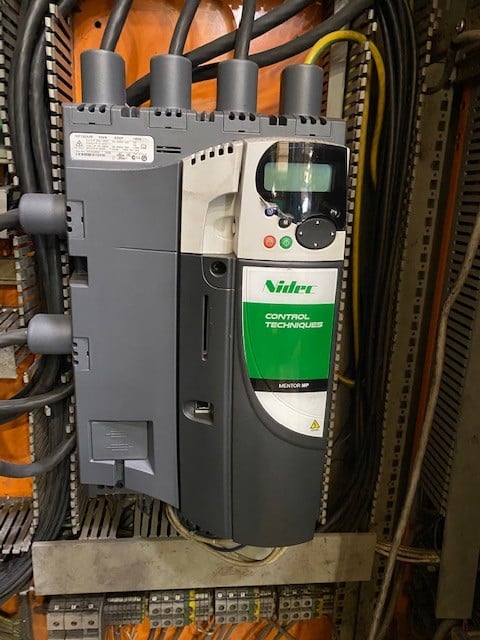

New spindle drive in 2020, Spindle motor was rebuilt.

Union BFP130 CNC HBM
