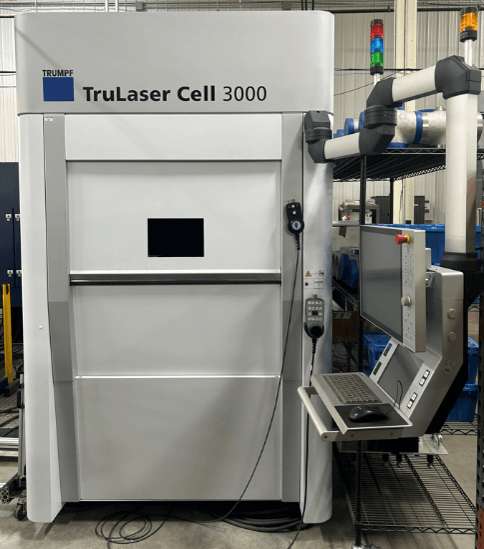

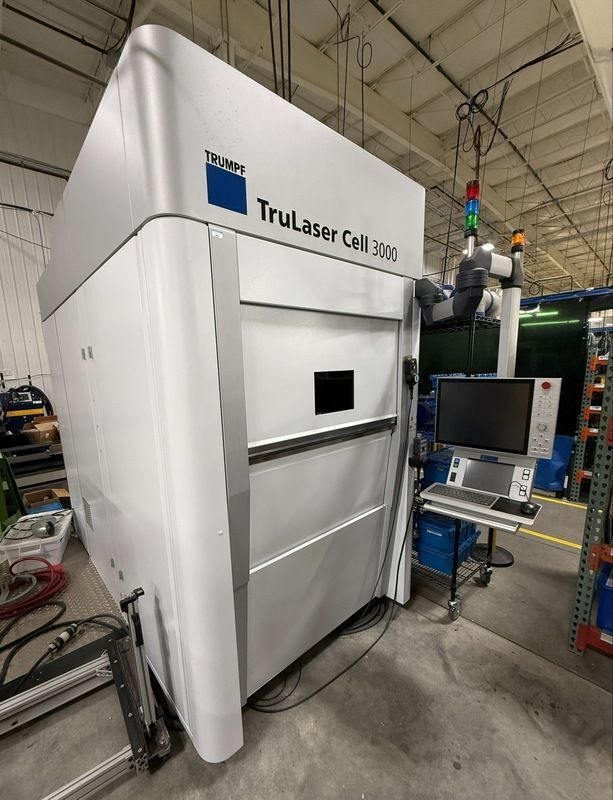

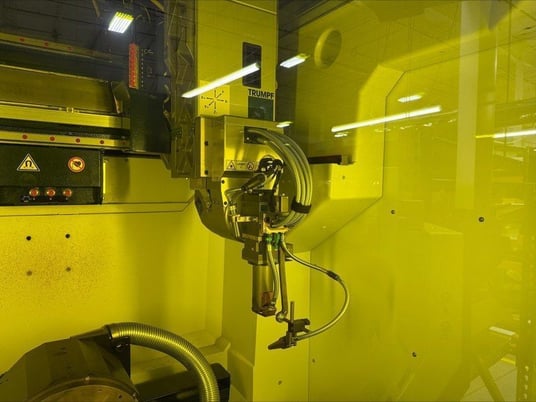

Trumpf #TruLaser-Cell-3000, compact, high precision 5-Axis laser, 9000 watt, 31.49" X, 23.62" Y, 15.74" Z, 2020

"With the compact and high-precision 5-axis laser machine Trumpf TruLaser Cell 3000 you can weld and cut in two or three dimensions. In addition, the 3D laser machine is also ideal for laser metal deposition (LMD). From prototypes to large-scale series production with extensive automation, this multi-talented machine displays its superiority across the board. This applies in particular to cost-effective laser processing of small to medium-sized components with top quality."
~ From Trumpf Literature
Unit was never put into production after being installed and tested by Trumpf.
Year Built - October 2020
SPECIFICATIONS:
Axis Travel Range:
- X-Axis............31.49" (800 mm)
- Y-Axis............23.62" (600 mm)
- Z-Axis............15.74" (400 mm)
Axis Speeds - Maximum:
- Axially Parallel in X, Y, & Z............164 fpm (50 m/min)
- Simultaneous............278.87 fpm (85 m/min)
- B-Axis............393.70 fpm (120 m/min)
Axis Accelerations - Maximum:
- Axially Parallel in X, Y, &Z............32.8 ft/s² (10 m/s²)
- Simultaneous............55.77 ft/s² (17 m/s²)
- B-Axis............130 rad/s²
Positioning Accuracy:
- Linear Axes (X, Y, Z)............0.00059" (0.015 mm)
- Rotary Axis (B)............0.02°
Laser:
- Laser Power - Maximum............9000 W
EQUIPPED WITH:
Trumpf TruDisk 3001 Laser
WeldLine Modular 3D
MF-L1000 Dust Extractor & Control (588.5 cfm)

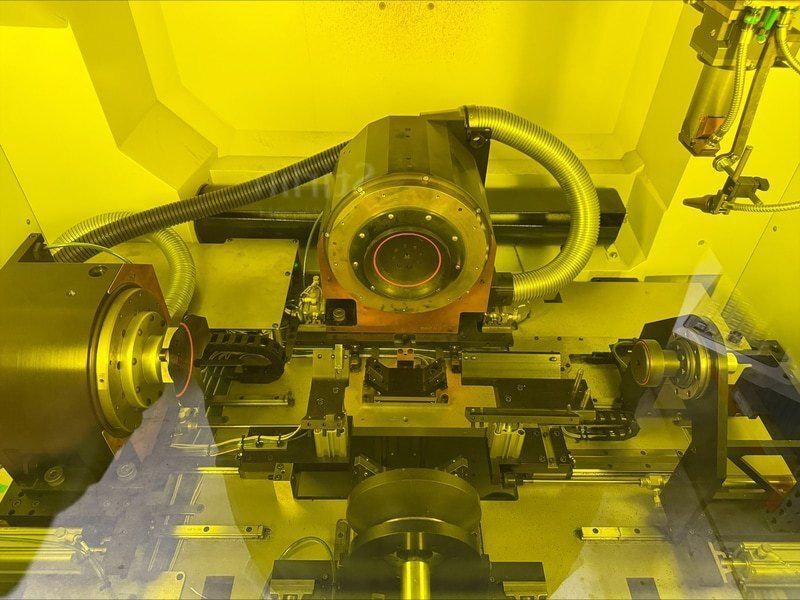

Trumpf C250 Rotary Axis
Trumpf C180-2 Rotary Axis
Optional VisionLine Detect System
Active Laser Power Control
Variable Clamping System
Base Bridge
Water-Air Cooler for TruDisk Laser
Aerator Nozzle
Ar/N2/CO2 Shielding Gas Package

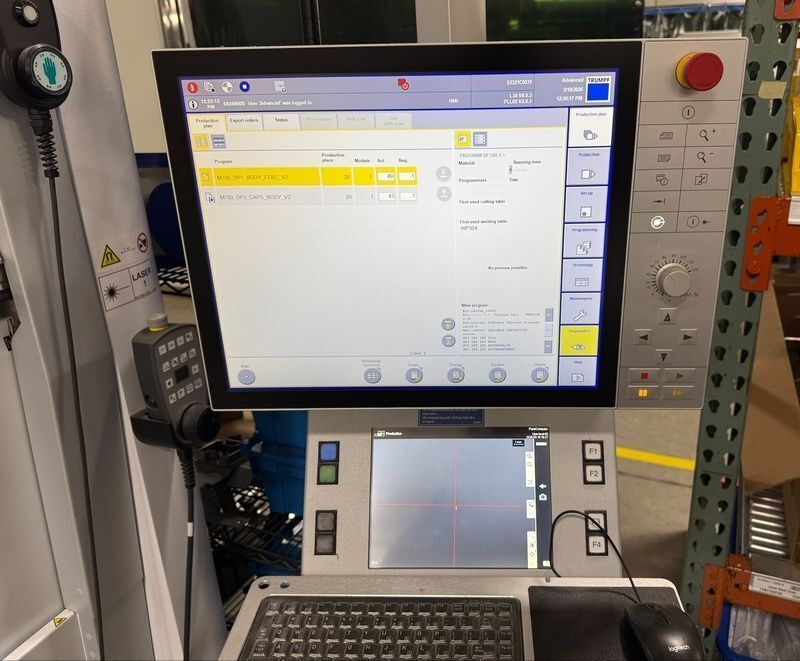

TruTops Cell Basic Software for modifying NC Programs
Extended Ambient Condtions (Laser designed for ambient temperatures of up to 122°F and dew points of 89.6°F)
*Preliminary specifications, pending confirmation.
