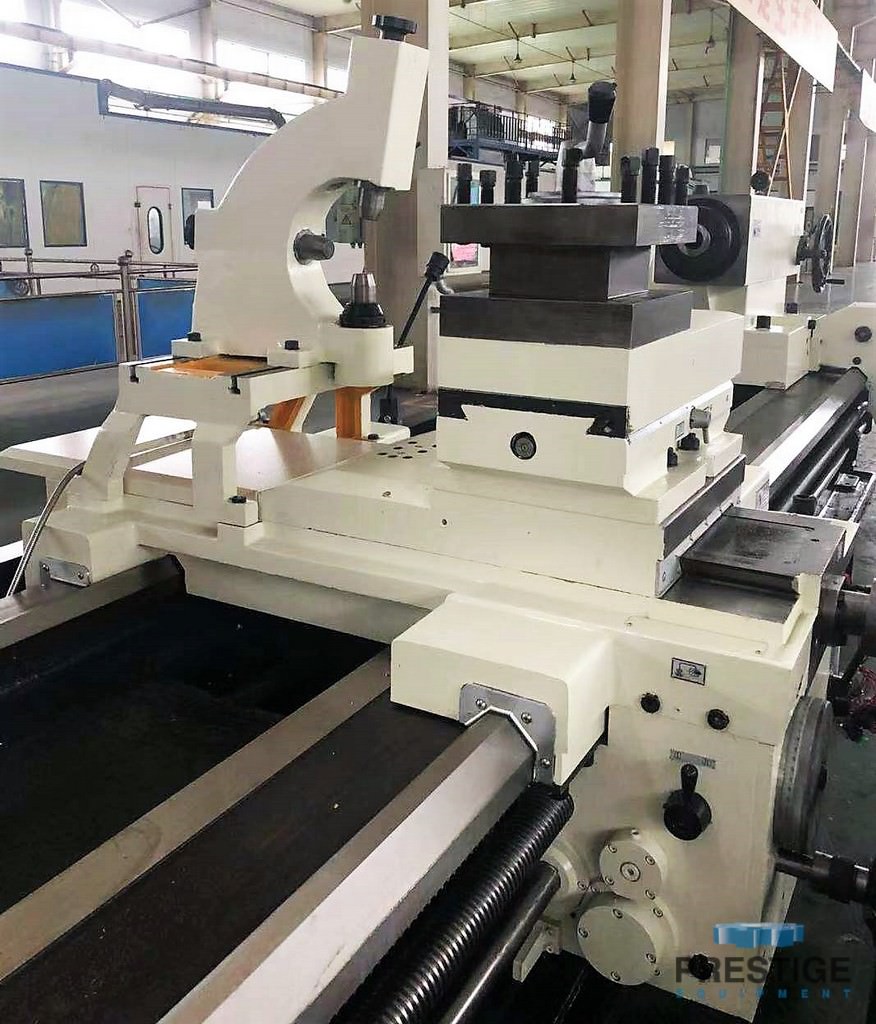

64.5" x 236" Tru-Turn #CW61160H, 49" chuck, 315 RPM,tailstock,inch/metric,taper attach, #30891

CAPACITY:
Swing Over Bed: 64.56"
Swing Over Cross Slide: 49.21"
Width of Guide Way: 43.30"
Distance Between Centers: 236.22"
Spindle Speeds (21 Speeds): 3.15 - 315 RPM
Spindle Bore: 5.12"
Spindle Nose: A-15

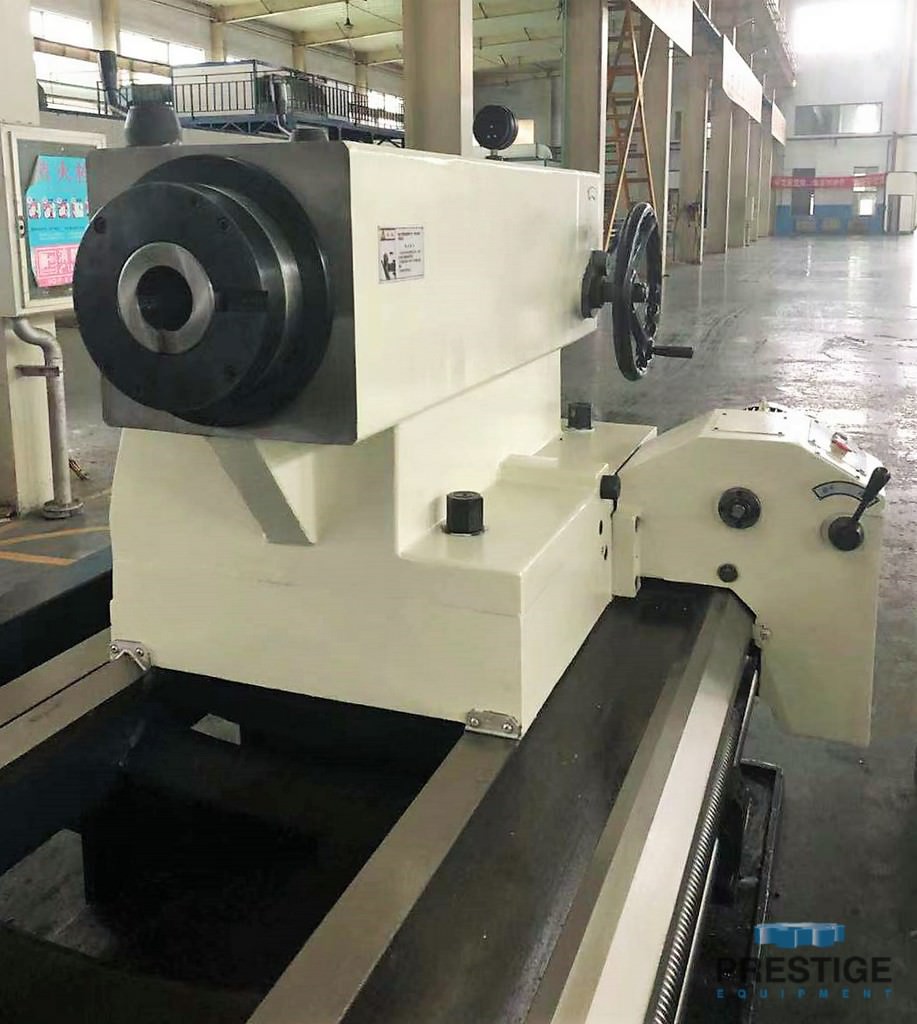

Tailstock Diameter: 11.02"
Tailstock Travel: 11.81"
Taper of Tailstock Bore: 140 Metric
Weight Capacity: 44,000 lbs
Equipped With:
49.21" Diameter Face Plate with 4-Top Jaws
Taper Attachment
Inch / Metric Threading
Thread Dial

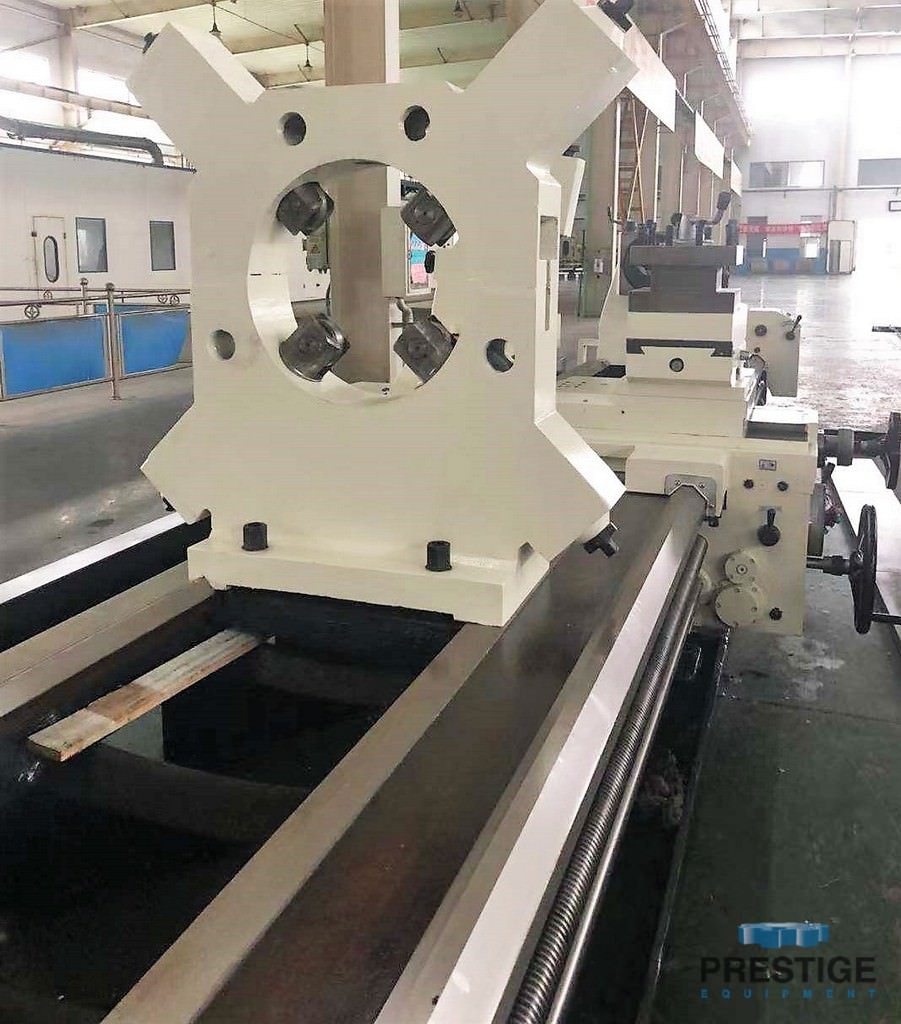

(2) Roller Type Steady Rest: 18.89 & 27.55"
Follow Rest
Power Drive To Top Slide For Conical Cutting
Swivel Compound
Built in 4-Way Tool Post
Pan Bed and Coolant System
Live Quill in Tailstock
Motorized Tailstock
Flame Hardened Bed Ways
40 HP Drive Motor With Controls
3/60/440 Volt Electrics
1-Year Parts Warranty
DELIVERY:
3-5 Months From of Confirmed Order
Features:
49.21" Diameter Face Plate with 4-Top Jaws
Taper Attachment
Inch / Metric Threading
Thread Dial
