Description

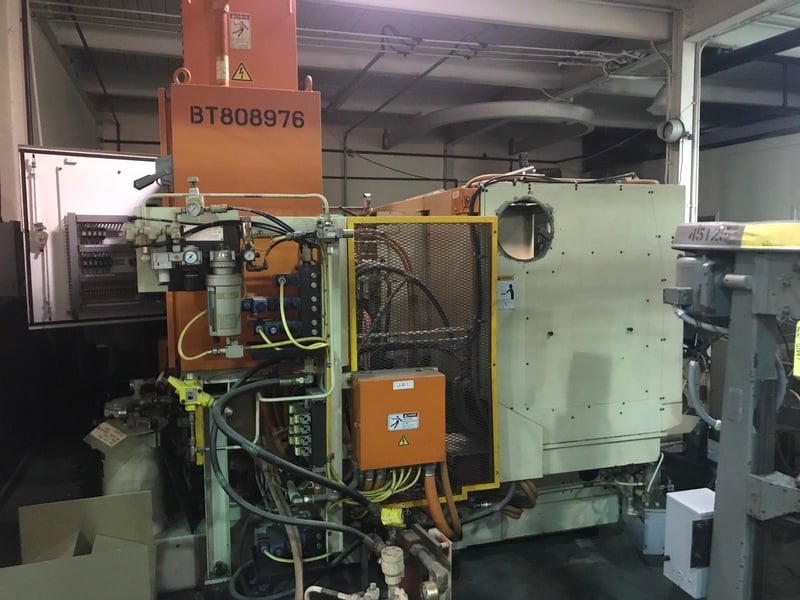

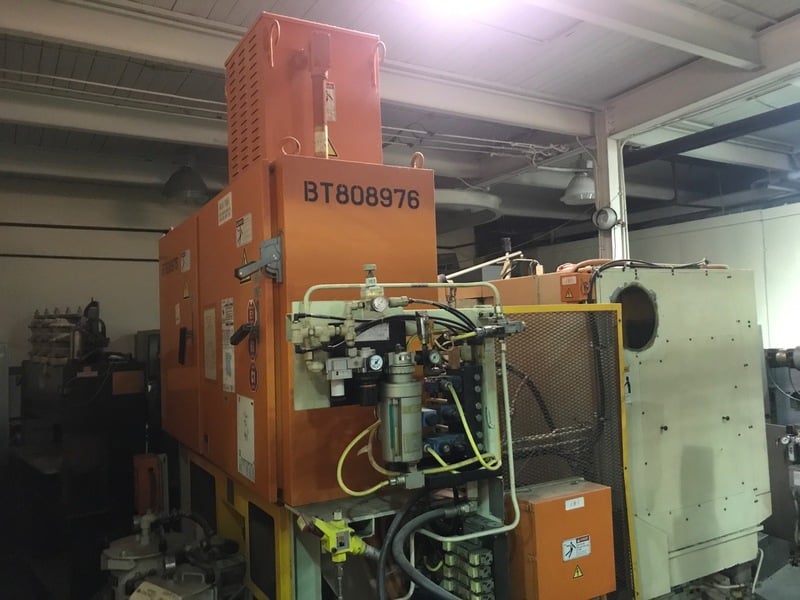

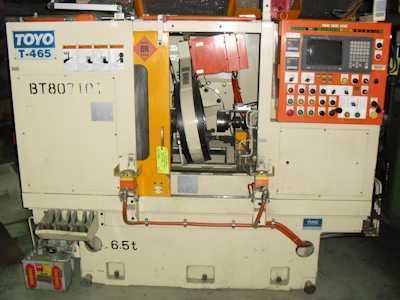

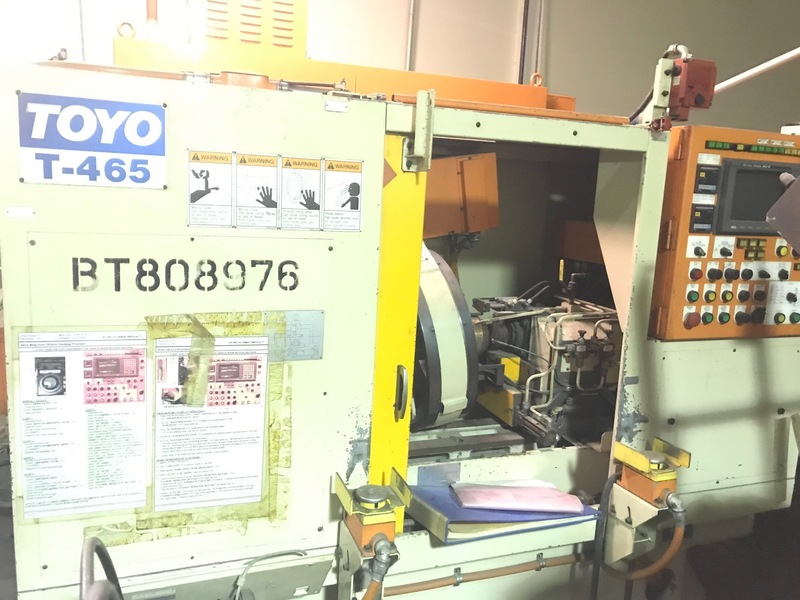

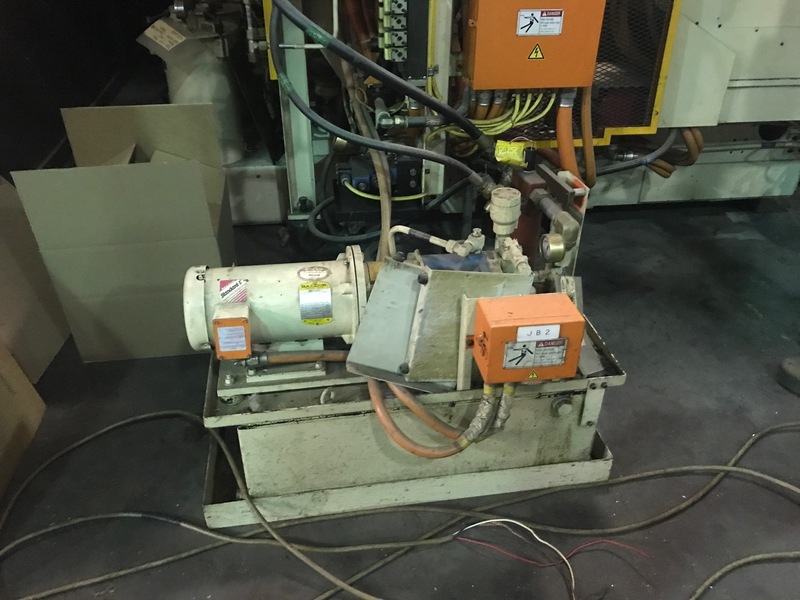

NO. T-465 TOYO CNC GEAR HONE 13" PD. USED 2 YEARSPUT IN OPERATION IN 2001 TOOK OUT IN 2003
EQUIPPED WITH:
Power Stock

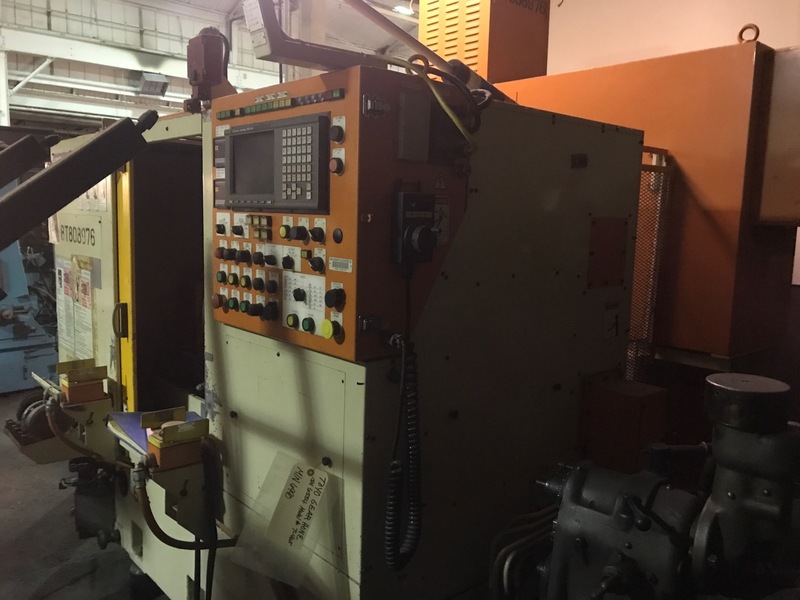

Fanuc 5-Axis CNC Control 160M
400mm Honing Wheel
X Axis Pulse Generator

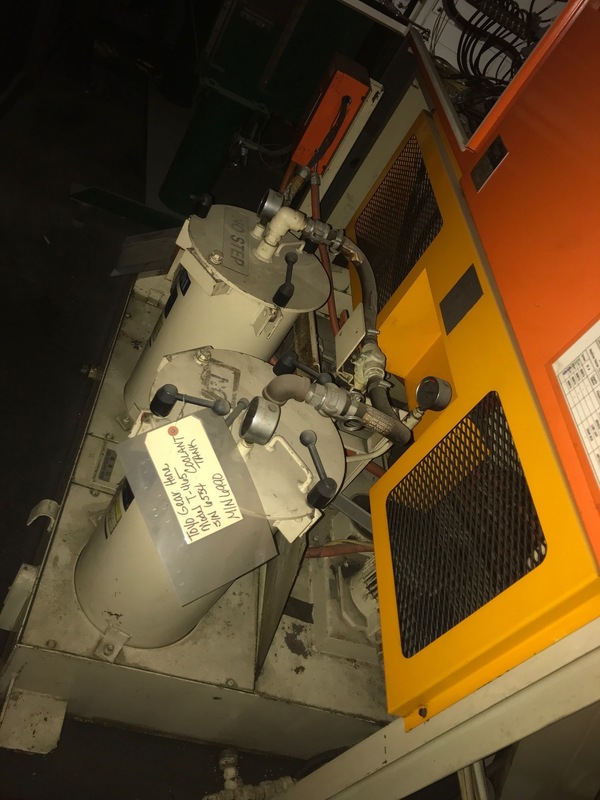

Coolant System w/Twin Filters
Magnetic Chip Separator
Honing Tool Set up for Last Job is Still in Machine
Internal Diameter of Honing Tool on Machine is 14"
Work Light
Power Door
Auto Dress
5-Part Program
Instruction Book for 16M Control
Instruction Book for Set-Up and Operation
SPECIFICATIONS:
Machining Work Range
Max. Outer Diameter: 250 (350)
Min. Outer Diameter: 30
Max. Overall Length: 400mm
Max. Tooth Width: 45mm
Module: 1.0-3.0
Cross Feed Device(Z Axis): 430mm Max. Travel
Honing Wheel Cutting Feed Device(X Axis): 370 Max. Travel
Honing Wheel Swing Device(C Axis):
Swing Angle: +30 Degress
Honing Wheel Rotation Drive Device(A Axis):
Honing Wheel Spindle Speed R/Min: 500
Honing Wheel Outer Dia.: 300 (400)
Max. Honing Wheel Width: 50mm
Crowning Device (Y Axis):
Max. Rocking Angle: 1.6 Degrees
Motor Types:
Z-Axis Drive Motor: 1.8Kw
X-Axis Drive Motor: 1.8Kw
Y-Axis Drive Motor: 0.7Kw
C-Axis Drive Motor: 1.8Kw
A-Axis Drive Motor: 2.2/3.7Kw
Max. Distance Between Centers: 600mm
Center Height: 1,100mm
Floor Space: 2,170W X 2,800D X 2,100H
Mass Of Machine: 4,500Kg
FOB WARREN IN MICHIGAN
F.O.B. Truck Warren, MI
EQUIPPED WITH:
Power Stock
Fanuc 5-Axis CNC Control 160M
400mm Honing Wheel
X Axis Pulse Generator
Coolant System w/Twin Filters
Magnetic Chip Separator
Honing Tool Set up for Last Job is Still in Machine
Internal Diameter of Honing Tool on Machine is 14"
Work Light
Power Door
Auto Dress
5-Part Program
Instruction Book for 16M Control
Instruction Book for Set-Up and Operation
SPECIFICATIONS:
Machining Work Range
Max. Outer Diameter: 250 (350)
Min. Outer Diameter: 30
Max. Overall Length: 400mm
Max. Tooth Width: 45mm
Module: 1.0-3.0
Cross Feed Device(Z Axis): 430mm Max. Travel
Honing Wheel Cutting Feed Device(X Axis): 370 Max. Travel
Honing Wheel Swing Device(C Axis):
Swing Angle: +30 Degress
Honing Wheel Rotation Drive Device(A Axis):
Honing Wheel Spindle Speed R/Min: 500
Honing Wheel Outer Dia.: 300 (400)
Max. Honing Wheel Width: 50mm
Crowning Device (Y Axis):
Max. Rocking Angle: 1.6 Degrees
Motor Types:
Z-Axis Drive Motor: 1.8Kw
X-Axis Drive Motor: 1.8Kw
Y-Axis Drive Motor: 0.7Kw
C-Axis Drive Motor: 1.8Kw
A-Axis Drive Motor: 2.2/3.7Kw
Max. Distance Between Centers: 600mm
Center Height: 1,100mm
Floor Space: 2,170W X 2,800D X 2,100H
Mass Of Machine: 4,500Kg
FOB WARREN IN MICHIGAN
F.O.B. Truck Warren, MI
