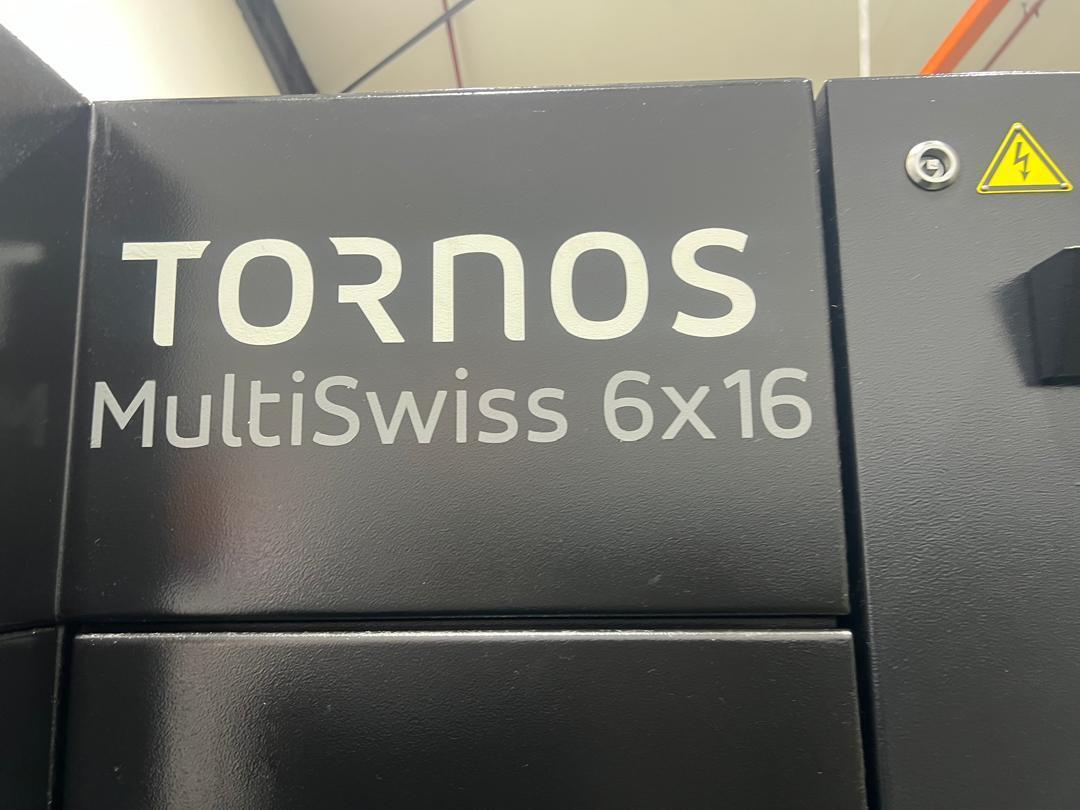

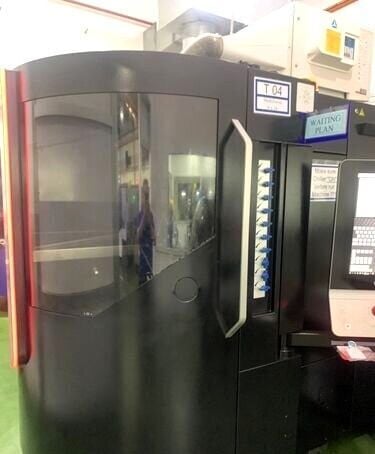

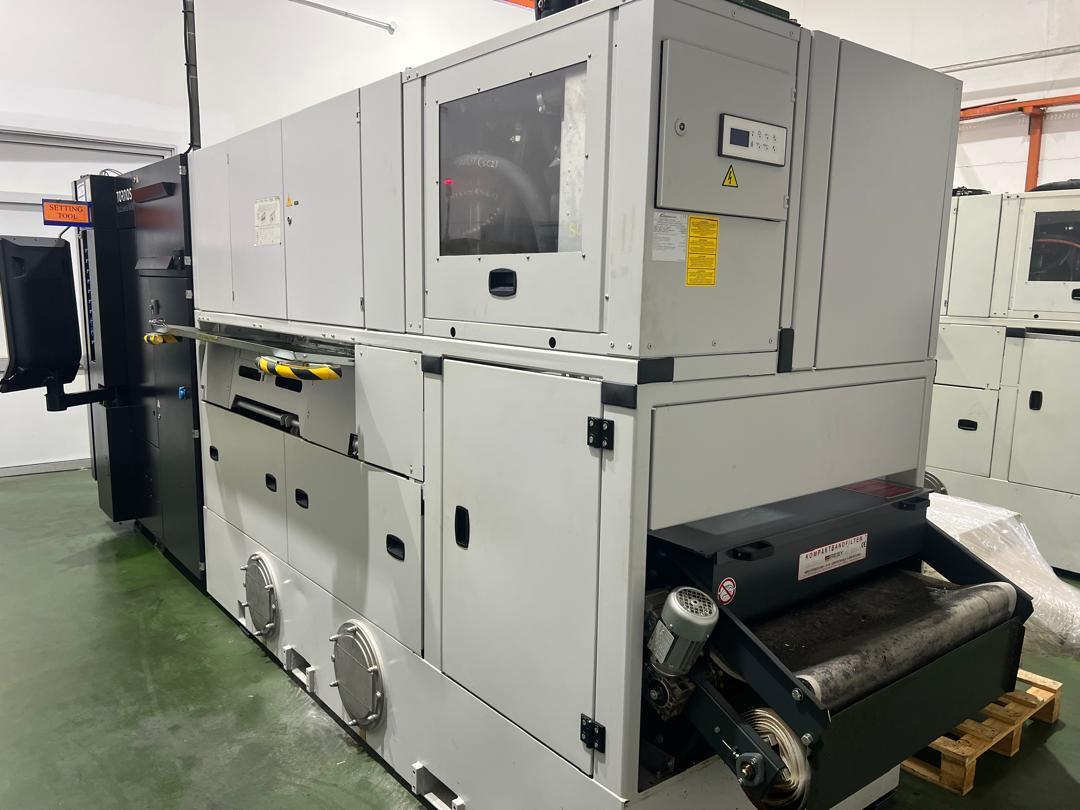

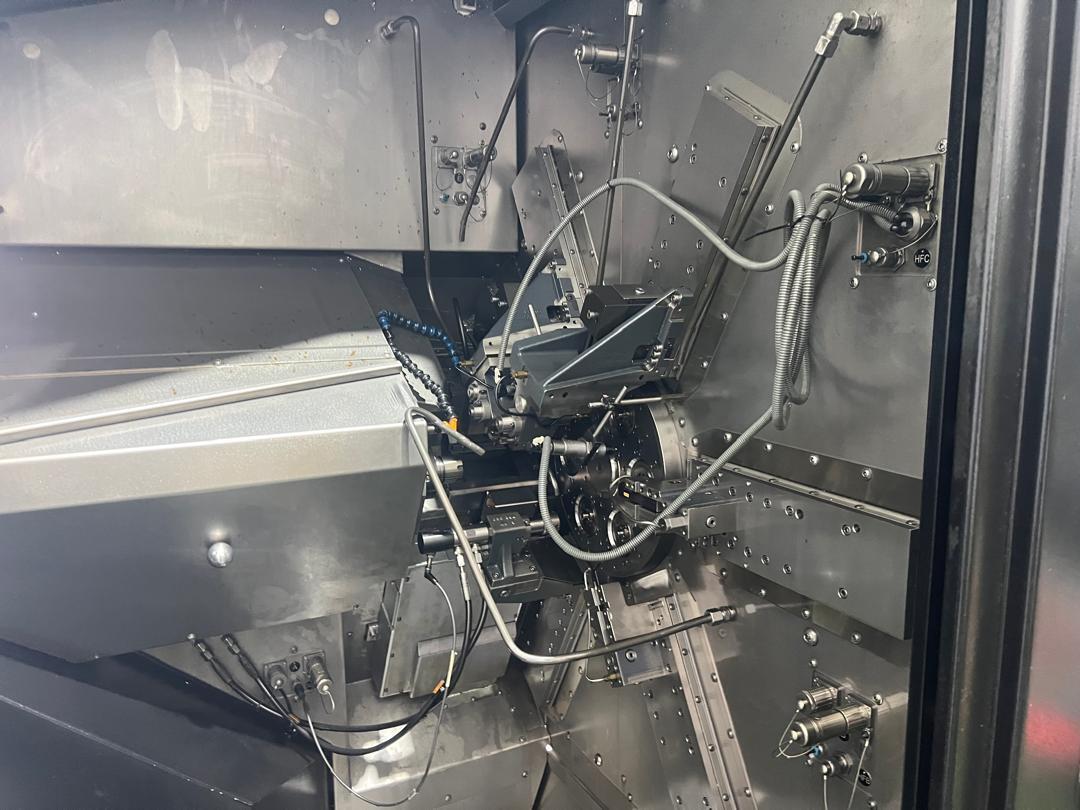

Tornos #Multiswiss-6x16, CNC 6-Spindle Automatic Screw Machine, 2.95" X, 5.9" Z, 0.63" max. swing, 2.76" max. turning/cutting length, 7.5 HP, 8000 RPM, 2019

2019 Tornos Multiswiss 6x16 CNC 6-Spindle Automatic Screw Machine. Key specs: 16 mm bar capacity, 8,000 rpm spindle speed, 5.6 kW power. Suitable for precision machining, offering advanced oil cooling and a 900L oil tank. Compact size, 7,000 kg weight.
X-Travel: 2.95"
Z-Travel: 5.90"
Max Swing Over Bed: 0.63"
Max Turning / Cutting Length: 2.76"
Max Cutting / Turning Diameter: 0.63"
Bar Capacity: 0.63"
Spindle Speed: 8,000 RPM
Spindle Motor: 7.5 HP
Total Spindles: 6
Second Spindle Speed: 8000 RPM
Second Spindle Motor: 6.7 HP
Tool Positions: 18
Bar Capacity: 4 16 mm
Maximum Part Length: 40 mm
Maximum Remnant Length: 70 mm
Maximum Main Spindle Speed: 8,000 rpm
Main Spindle Power: 5.6 kW
Main Spindle Torque: 8 Nm
Maximum Pick-Off Spindle Speed: 8,000 rpm
Pick-Off Spindle Motor Power: 5 kW
Pick-Off Spindle Motor Torque: 8 Nm
Main Spindle Z-Axis Stroke: 50 mm
Pick-Off Spindle Z-Axis Stroke: 150 mm
Number of Linear Axes: 14
Number of Y-Axis: 1 (Optional)
Maximum Number of Tools: 18

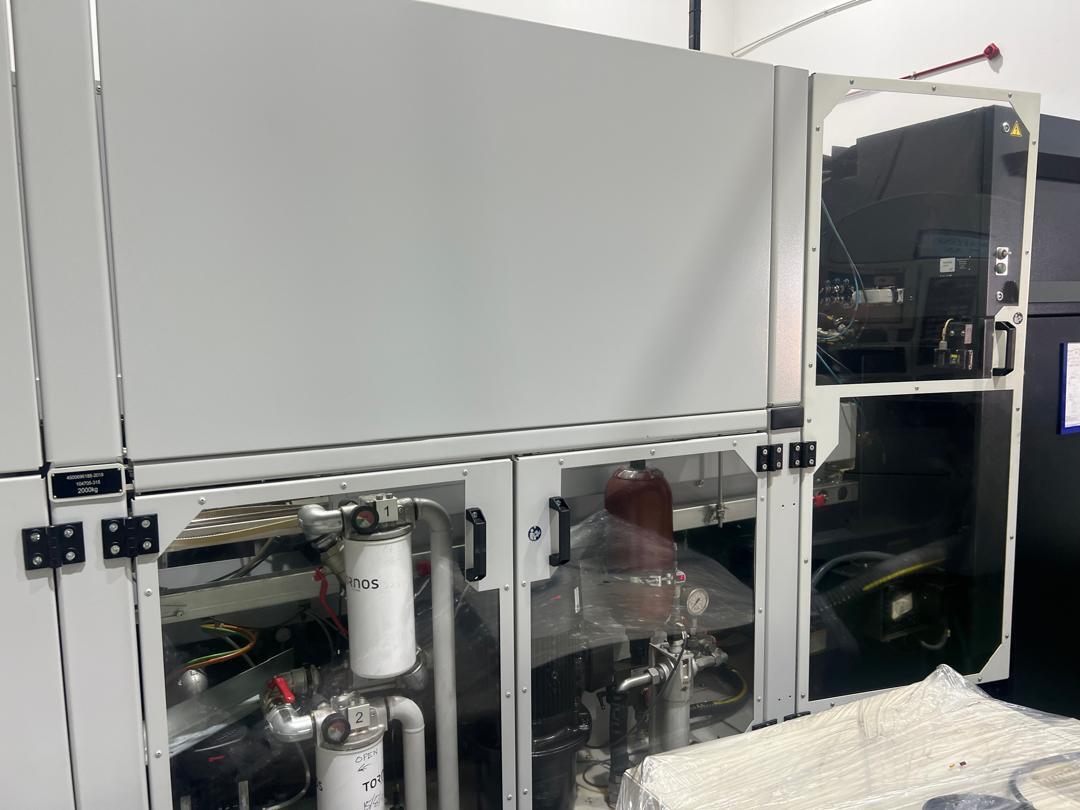

Spindle Cooling: Oil Cooling

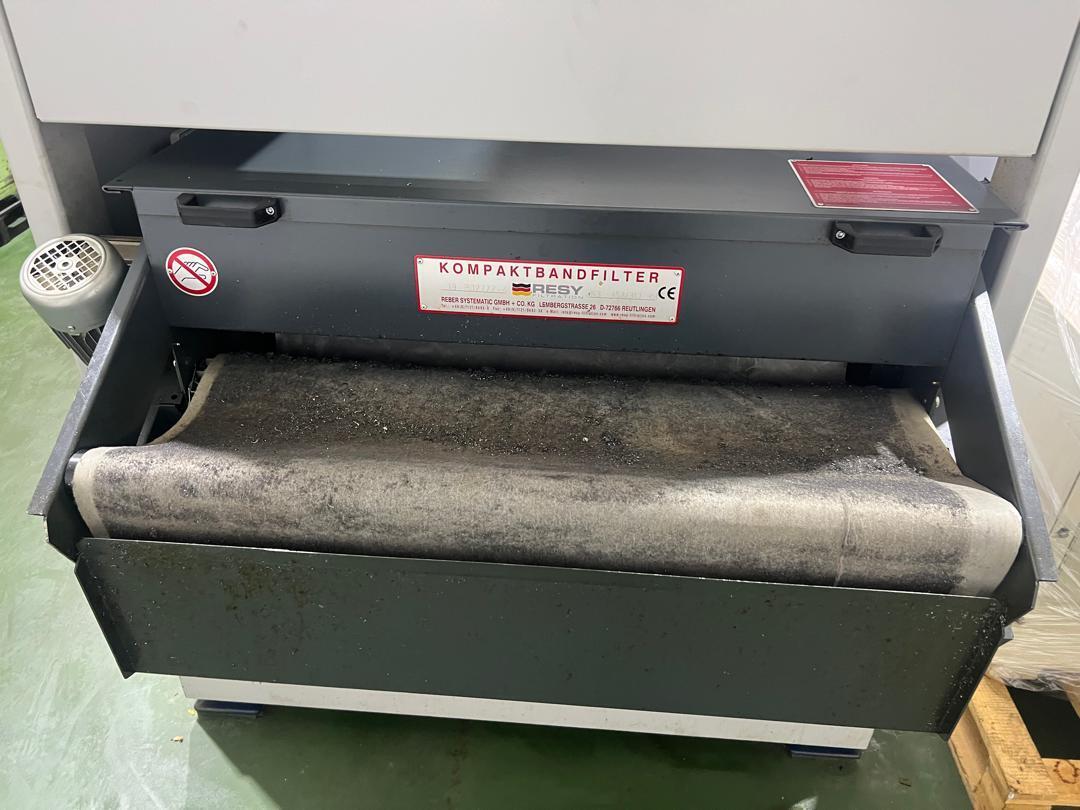

Cutting Oil Filtration: 50 m
Oil Tank Capacity: 900 L
Standard Pump Flow Rate: 100 L/min
Machine Dimensions (L x W x H): 5,920 x 1,440 x 2,120 mm
Machine Weight: 7,000 kg
Installed Power: 59 kW
